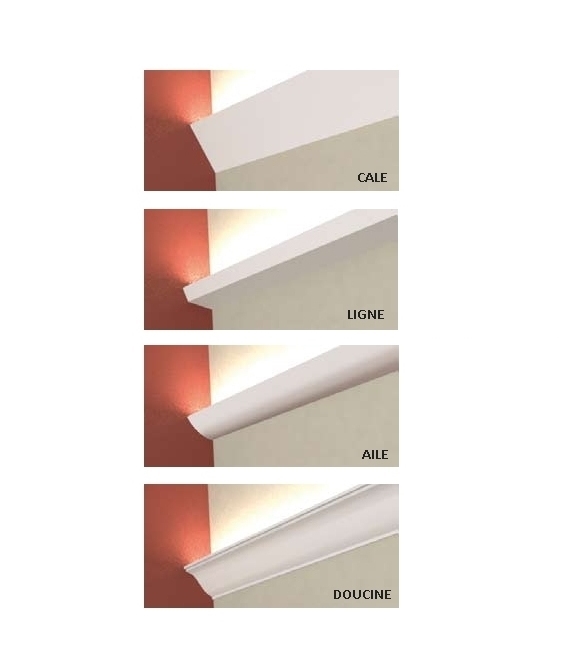

LED Plaster Cornice Uplight - Ligne
Simple Angled Profile with 57mm Projection
Product Ref: 6735From £85.36 inc VAT

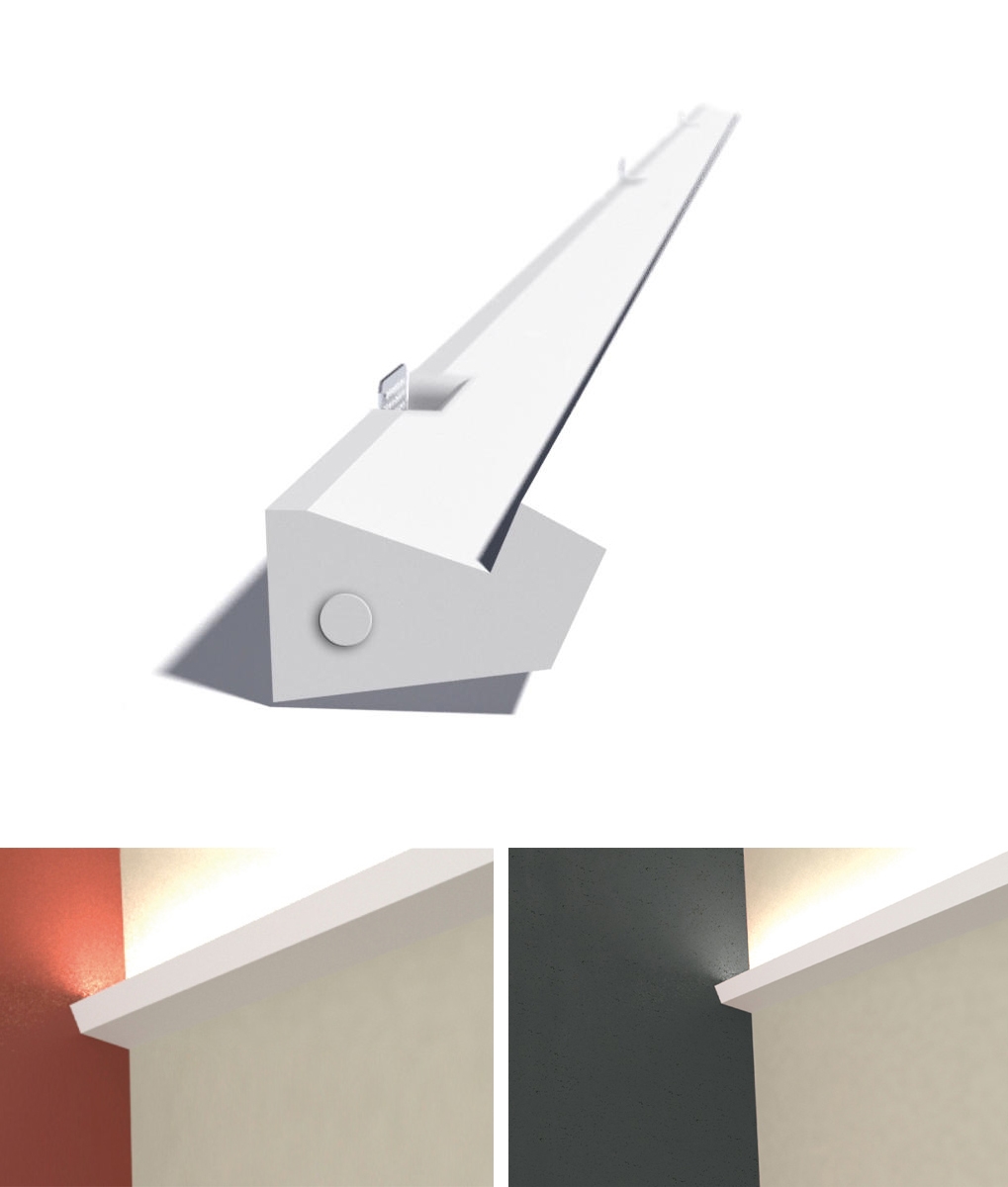

This decorative Micro Cornice plaster lighting is designed to provide indirect architectural feature lighting and can be painted to blend into existing schemes. Fabricated in France using high quality, high density reinforced natural plaster of Paris.
Ligne - 37mm high with a 57mm projection. The plaster fitting can easily be cut on site with a clean finish if you require a custom length.
Cut with a medium tooth, cross-cut saw with a reasonably stiff blade for best results.
To hang the coving there are 3 screw plates per length, the profile is secured in place with a strong adhesive such as Decofix Pro along with Extra Fix cement for joins. Plaster filler can then be used to fill gaps at the tops, bottoms and joins. If you plan on painting the profile any paint is suitable but remember that emulsion is water based. This means that it may suffer hairline cracks if there is excessive movement or vibration in the ceiling. Acrylic/oil based paints have more “elasticity” in them so are less prone to these fine cracks.
The LED tape specified with this fitting is chosen specifically for its minimal LED spacing. Due to the light source providing direct light on the wall from such a close distance it is easy with other systems to create a dotted effect with dark and light spots. This close LED spacing means you will get a smooth, constant light similar to cold cathode lighting.
Warmer white emits 1400 lumens (85 LM/W) Can be cut every 25mm
Warm white emits 1470 lumens (89 LM/W) Can be cut every 25mm
Neutral white emits 1520 lumens (92 LM/W) Can be cut every 25mm
Cool White emits 1490 lumens (90 LM/W) Can be cut every 25mm
Warmer White 2,700k Warm White 3,000k Neutral White 4,000k Cool White 6,000k
The LED tape is affixed to a heatsink profile, a simple low profile finned aluminium strip. This disperses heat to stop any discolouration of the profile and to provide a clean, solid base for the LED tape to stick to. Comes with a semi-clear diffuser.
LED Drivers (Required to power the LED Tape)
To calculate your driver requirements multiply your tape watts per meter with the length (metres) of tape you require, e.g. 4 metres of 15W tape would require a driver outputting at least 60 Watts.
Please click here for standard drivers and here for our dimmable drivers.
We can also offer this with RGB, IP Rated or lower wattage tape. We can suit to all requirements.
|Lamp Type||LED Long Life Tape|
|Driver||No driver or transformer is supplied with this fixture (sold separately)|
|PDF Document(s)||View PDF|
Can this be operated on a dimmer switch?
