3-Circuit Track Lighting – Recessed

What it is and how it works
Recessed 3-circuit track lighting offers all the flexibility of a surface-mounted system while delivering a clean, built-in appearance. Designed to sit flush within the ceiling, the system requires a 40mm-wide slot. Once installed, the track’s visible width is 58mm, with a slim flange that conceals the cut edge and provides a tidy, professional finish.

Using three live conductors and a shared neutral, the system supports up to three independently controlled lighting circuits on a single length of track. This enables flexible control and precise zoning of light, particularly useful in multi-functional or display-led spaces. Circuit selection is managed at the fitting itself via a small dial.

Usage
Ideal for commercial interiors, galleries, retail environments and high-end residential projects where a clean, uncluttered ceiling is a design priority. The system can accommodate a wide range of fittings, including spotlights, floodlights and pendants, all of which can be repositioned and reassigned to different circuits as needed. By recessing the track into the ceiling, the focus remains on the light output and not the hardware. This is particularly useful in spaces where lighting layouts change frequently, but the architectural finish must remain seamless.

Key Features
The track is held in place using discreet saddle clamps (shown above), allowing for a secure, accurate installation. The same fixed joints used in surface and suspended systems are used here, but with matching cover plates to maintain the streamlined look. Tracks are available in a range of lengths and finishes and can be trimmed to length using a mitre saw. Straight runs, corners and connections are all achievable with compatible accessories. Both spotlights and pendant fittings can be used, with a 5kg pendant adapter available.

This 3-circuit recessed system is a smart solution when flexibility is required, but the ceiling needs to remain quiet and architectural.

Filter results by colour, IP rating etc...
Items 1 to 24 of 45.
Recessed 3-Circuit Track for clean, unobtrusive ceiling lighting using  spotlights and pendantsRecessed 3-Circuit Track for clean, unobtrusive ceiling lighting using  spotlights and pendants

Recessed 3-Circuit Track for clean, unobtrusive ceiling lighting using spotlights and pendants

3 Options
£95.50
Black or White 3-Circuit 16A recessed track for high-end domestic & commercial applications.

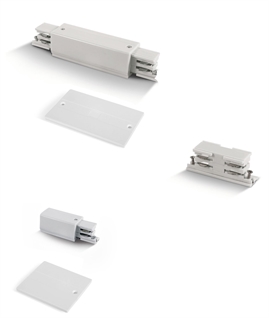

Simple Joints for 3-Circuit Lighting Tracks – Feed-In, & Straight ConnectionsSimple Joints for 3-Circuit Lighting Tracks – Feed-In, & Straight Connections

Simple Joints for 3-Circuit Lighting Tracks – Feed-In, & Straight Connections

17 Options
£3.50
Available in White, Black or Grey Finish

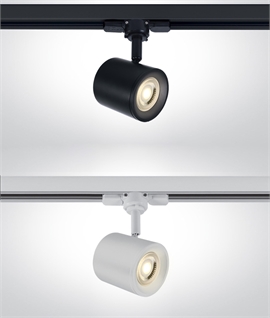

Budget-Friendly GU10 Spotlight for 3-Circuit Mains TrackBudget-Friendly GU10 Spotlight for 3-Circuit Mains Track

Budget-Friendly GU10 Spotlight for 3-Circuit Mains Track

2 Options
£32.00
Suitable for 3 Circuit Track - Stylish Track Spotlight - Black or White
Reduced Glare Track Spotlight For GU10 Mains Lamps - Black or WhiteReduced Glare Track Spotlight For GU10 Mains Lamps - Black or White

Reduced Glare Track Spotlight For GU10 Mains Lamps - Black or White

2 Options
£33.50
Fully Adjustable Track Spotlight - Tubular Style
Enclosed Conical GU10 Spot for 3- Circuit Track - Metal FinishesEnclosed Conical GU10 Spot for 3- Circuit Track - Metal Finishes

Enclosed Conical GU10 Spot for 3- Circuit Track - Metal Finishes

4 Options
£39.50
Adjustable Track Spotlight with Global Track Adapter
Reduced Glare Track Spotlight for GU10 Mains Lamps - Brass or Gunmetal Reduced Glare Track Spotlight for GU10 Mains Lamps - Brass or Gunmetal

Reduced Glare Track Spotlight for GU10 Mains Lamps - Brass or Gunmetal

2 Options
£39.50
Fully Adjustable Track Spotlight - Tubular Style

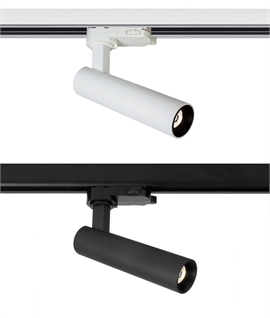

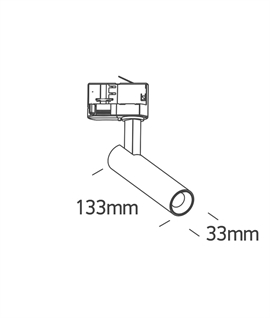

9w Sleek Design LED Track Pencil Spot for 3 Circuit Track9w Sleek Design LED Track Pencil Spot for 3 Circuit Track

9w Sleek Design LED Track Pencil Spot for 3 Circuit Track

2 Options
£52.80
Reduced Glare, 90 CRI 3000°k in White or Black Finish
COB Track Spotlight - 15 watt 1300 Lumens 3000k or 4000k COB Track Spotlight - 15 watt 1300 Lumens 3000k or 4000k

COB Track Spotlight - 15 watt 1300 Lumens 3000k or 4000k

4 Options
£49.95
3-Circuit Global Track Adapter

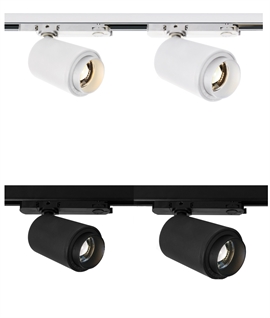

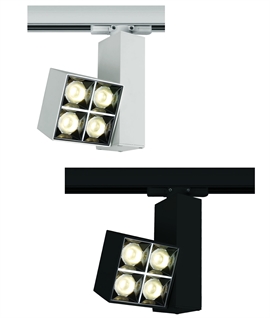

High Powered LED with Adjustable Beam Track HeadHigh Powered LED with Adjustable Beam Track Head

High Powered LED with Adjustable Beam Track Head

8 Options
£82.70
Optical Zoom Beam Angle 20° - 60° For use with our 3 Circuit Track
Adjustable Track Spotlight 75W E27 PAR30 LampAdjustable Track Spotlight 75W E27 PAR30 Lamp

Adjustable Track Spotlight 75W E27 PAR30 Lamp

3 Options
£12.95
Black, White or Grey Option
Black Curved 10w Mains GU10 Track SpotlightBlack Curved 10w Mains GU10 Track Spotlight

Black Curved 10w Mains GU10 Track Spotlight


£28.80
Adjustable In-Situ for Mains Tracks

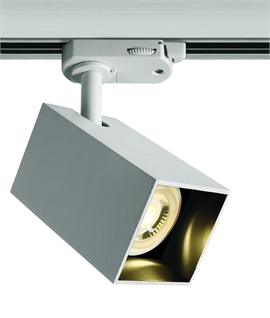

Adjustable Cube GU10 Mains Track SpotlightAdjustable Cube GU10 Mains Track Spotlight

Adjustable Cube GU10 Mains Track Spotlight

2 Options
£30.75
White or Black Finish Option
6W SMD LED Adjustable Track Spot Light - Warm White6W SMD LED Adjustable Track Spot Light - Warm White

6W SMD LED Adjustable Track Spot Light - Warm White

2 Options
£38.00
Choose White or Black for Use with 3-Circuit Track
15W COB LED Commercial Track Spot - Adjustable15W COB LED Commercial Track Spot - Adjustable

15W COB LED Commercial Track Spot - Adjustable

2 Options
£45.00
Square Lamphead - White or Black Finish
8W COB LED Round Track Spot with Honeycomb Filter8W COB LED Round Track Spot with Honeycomb Filter

8W COB LED Round Track Spot with Honeycomb Filter

2 Options
£45.00
Warm White LED - Dimmable - Black or White Option
Adjustable Track Spotlight 15w COB LED & Removable HoneycombAdjustable Track Spotlight 15w COB LED & Removable Honeycomb

Adjustable Track Spotlight 15w COB LED & Removable Honeycomb

2 Options
£48.00
White or Black Option with 15-45 Degree Beam - 80mm Diameter
Black Adjustable 30w Track Spot Light with COB LEDBlack Adjustable 30w Track Spot Light with COB LED

Black Adjustable 30w Track Spot Light with COB LED


£52.10
Versatile Commercial Track Light with 38° Beam
Modern White COB LED Cylinder Track Spotlight - 30W Neutral White, 38° Beam AngleModern White COB LED Cylinder Track Spotlight - 30W Neutral White, 38° Beam Angle

Modern White COB LED Cylinder Track Spotlight - 30W Neutral White, 38° Beam Angle


£52.10
Perfect for Retail and Gallery Lighting – Adjustable, Built-in LED, 2700 Lumens
Modern White COB LED Cylinder Track Spotlight - 30W Warm White, 38° Beam AngleModern White COB LED Cylinder Track Spotlight - 30W Warm White, 38° Beam Angle

Modern White COB LED Cylinder Track Spotlight - 30W Warm White, 38° Beam Angle


£52.10
Use in Commercial Settings, Large Retail Spaces, Galleries and Showrooms
Items 1 to 24 of 45.

Compatibility with Other Fixtures

This recessed 3-circuit track system is based on the EUTRAC profile, widely adopted across the UK and Europe. It is compatible with many professional fittings, including those from Erco, Zumtobel, and other leading brands. The profile matches systems from manufacturers such as Global, Nordic, LTS, Unipro, SLV, Thorn, Ivela, Staff, iGuzzini, Nokia, and Hoffmeister.

Please check the following before specifying fittings:

  • DALI-compatible fittings often require a dedicated DALI track and are not always suitable for standard 3-circuit systems.

  • Older fittings (typically pre-1990s) may not align with the modern EUTRAC profile.

  • Single or two-circuit fittings are not compatible with this 3-circuit track.

If you're unsure whether your chosen fittings will work with this recessed system, please consult the manufacturer's technical details or contact us for guidance.
