LED Plaster Cornice Uplight - Doucine

Simple Angled Profile with 57mm Projection

No driver or transformer is supplied with this fixture (sold separately)

Kelvin Chart

Product Ref: 6734

From £85.36 inc VAT

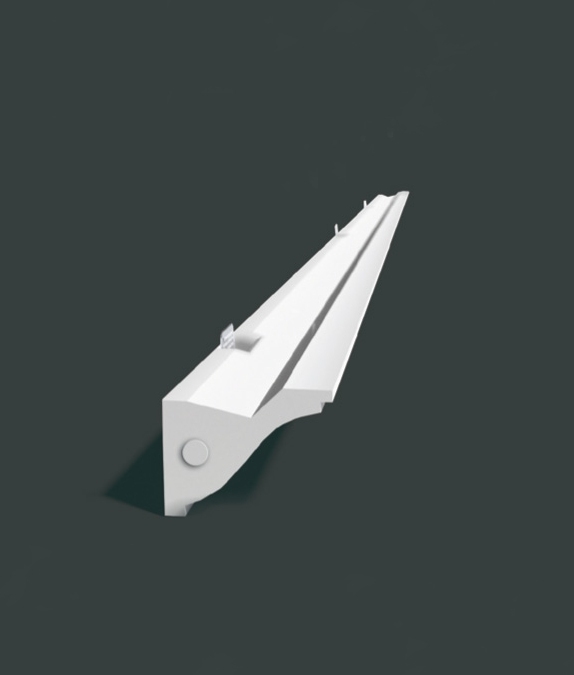

This decorative Micro Cornice plaster lighting is designed to provide indirect architectural feature lighting and can be painted to blend into existing schemes. Fabricated in France using high quality, high density reinforced natural plaster of Paris.

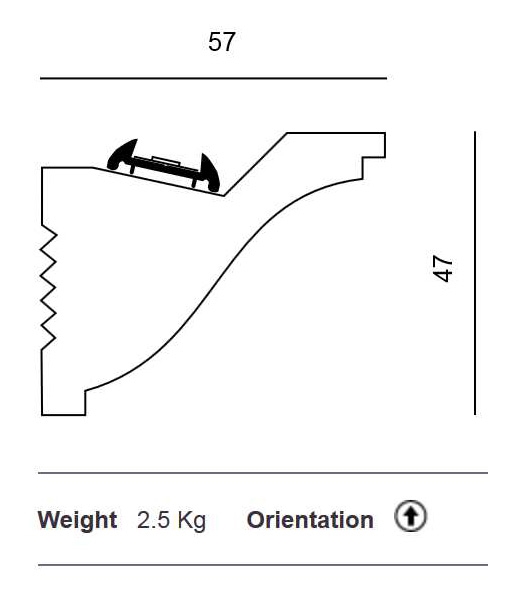

Doucine measures 47mm high with a 57mm projection.

Below you have the option to purchase the Ligne Cornice profile, 15w close spacing LED tape, drivers and heat sink.

Installation
Cut with a medium tooth, cross-cut saw with a reasonably stiff blade for best results.

To hang the coving there are 3 screw plates per length, the profile is secured in place with a strong adhesive such as Decofix Pro along with Extra Fix cement for joins. Plaster filler can then be used to fill gaps at the tops, bottoms and joins. If you plan on painting the profile any paint is suitable but remember that emulsion is water based. This means that it may suffer hairline cracks if there is excessive movement or vibration in the ceiling. Acrylic/oil based paints have more “elasticity” in them so are less prone to these fine cracks.

LED Tape
The LED tape specified with this fitting is chosen specifically for its minimal LED spacing. Due to the light source providing direct light on the wall from such a close distance it is easy with other systems to create a dotted effect with dark and light spots. This close LED spacing means you will get a smooth, constant light similar to cold cathode lighting.

Warmer white emits 1400 lumens (85 LM/W) Can be cut every 25mm.
Warm white emits 1470 lumens (89 LM/W) Can be cut every 25mm.
Neutral white emits 1520 lumens (92 LM/W) Can be cut every 25mm.
Cool White emits 1490 lumens (90 LM/W) Can be cut every 25mm.

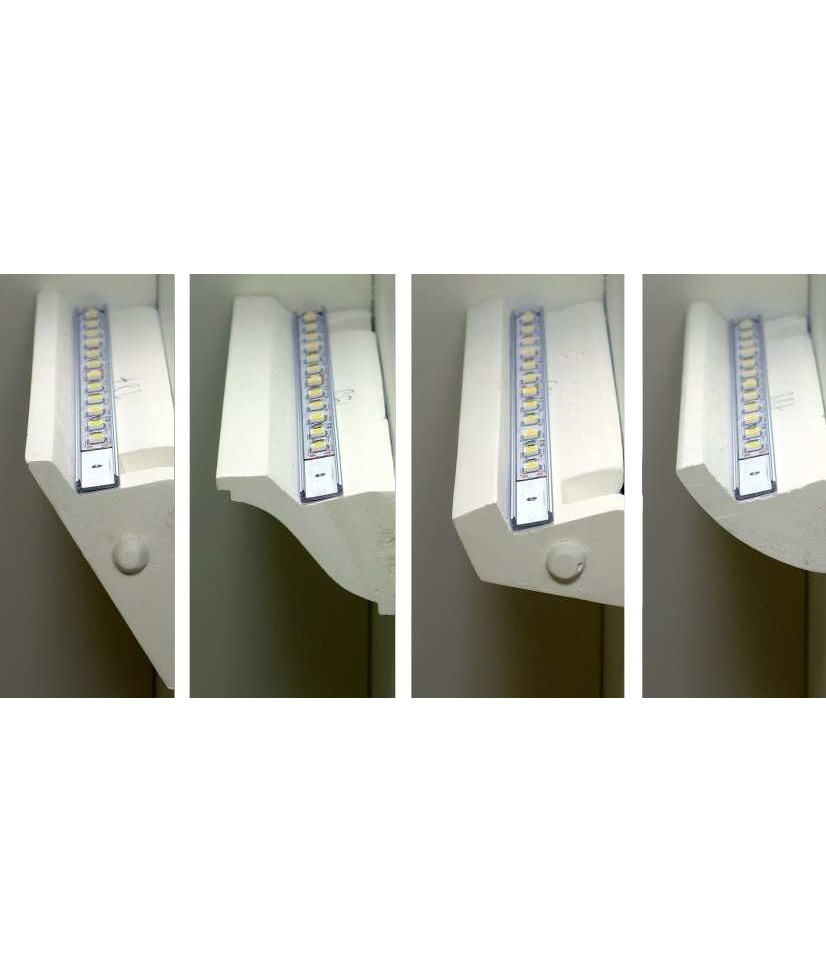

The LED tape is affixed to a heatsink profile, a simple low profile finned aluminium strip. This disperses heat to stop any discolouration of the profile and to provide a clean, solid base for the LED tape to stick to. Comes with a semi-clear diffuser.

LED Drivers (Required to power the LED Tape)
To calculate your driver requirements multiply your tape watts per meter with the length (metres) of tape you require, e.g. 4 metres of 15W tape would require a driver outputting at least 60 Watts.

We can also offer this with RGB, IP Rated or lower wattage tape. We can suit to all requirements.



Lamp TypeLED Long Life Tape
Length1500mm
Height47mm
Depth/Projection57mm
ConstructionPlaster
DriverNo driver or transformer is supplied with this fixture (sold separately)
PDF Document(s)View PDF
Availability: MADE TO ORDER delivery typically 2-3 weeks
We offer free delivery on orders over £50 to most UK Mainland Addresses

Product Code
Product Title

Price
Quantity
Choose your product
ASO190
1.5m Doucine MicroCornice Plaster
£85.36
£71.13 exc VAT
ASO190TWIN
2 Pack of 1.5m Doucine MicroCornice Plaster
£168.00
£140.00 exc VAT
ASO190SAMPLE
300mm Sample of Doucine MicroCornice
£15.00
£12.50 exc VAT
ANGTL024VW240
15w Warmer white LED Tape 1000mm length
£23.98
£19.98 exc VAT
ANGTL024WW240
15w Warm white LED Tape 1000mm length
£23.98
£19.98 exc VAT
ANGTL024NW240
15w Neutral white LED Tape 1000mm length
£23.98
£19.98 exc VAT
ANGTL024CW240
15w Cool white LED Tape 1000mm length
£23.98
£19.98 exc VAT
ANGBUNDLE1782MSC
TL-178 Heatsink with Semi Clear Diffuser - 2000mm length
£16.28
£13.57 exc VAT
ANGMOUNT178
TL-178 Mountng Brackets
£0.41
£0.34 exc VAT
This product requires a driver or transformer - Suitable items can be found below
ANGORION8024V
Non-Dimmable 80W 24V LED Driver
£49.77
£41.48 exc VAT
ANGORION15024V
Non-Dimmable 150W 24V LED Driver IP67
£73.00
£60.83 exc VAT
ANGORION3624V
Non-Dimmable 36W 24V LED Driver
£19.46
£16.22 exc VAT
ANGORION2424V
Non-Dimmable 24W 24V LED Driver
£20.97
£17.48 exc VAT
ANGORION6024V
Non-Dimmable 60W 24V LED Driver
£33.82
£28.18 exc VAT
ANGORION20024V
Non-Dimmable 200W 24V LED Driver IP67
£85.72
£71.43 exc VAT
