LED Plaster Cornice Uplight - Aile

Simple Angled Profile with 50mm Projection

No driver or transformer is supplied with this fixture (sold separately)

Product Ref: 6733

From £85.36 inc VAT

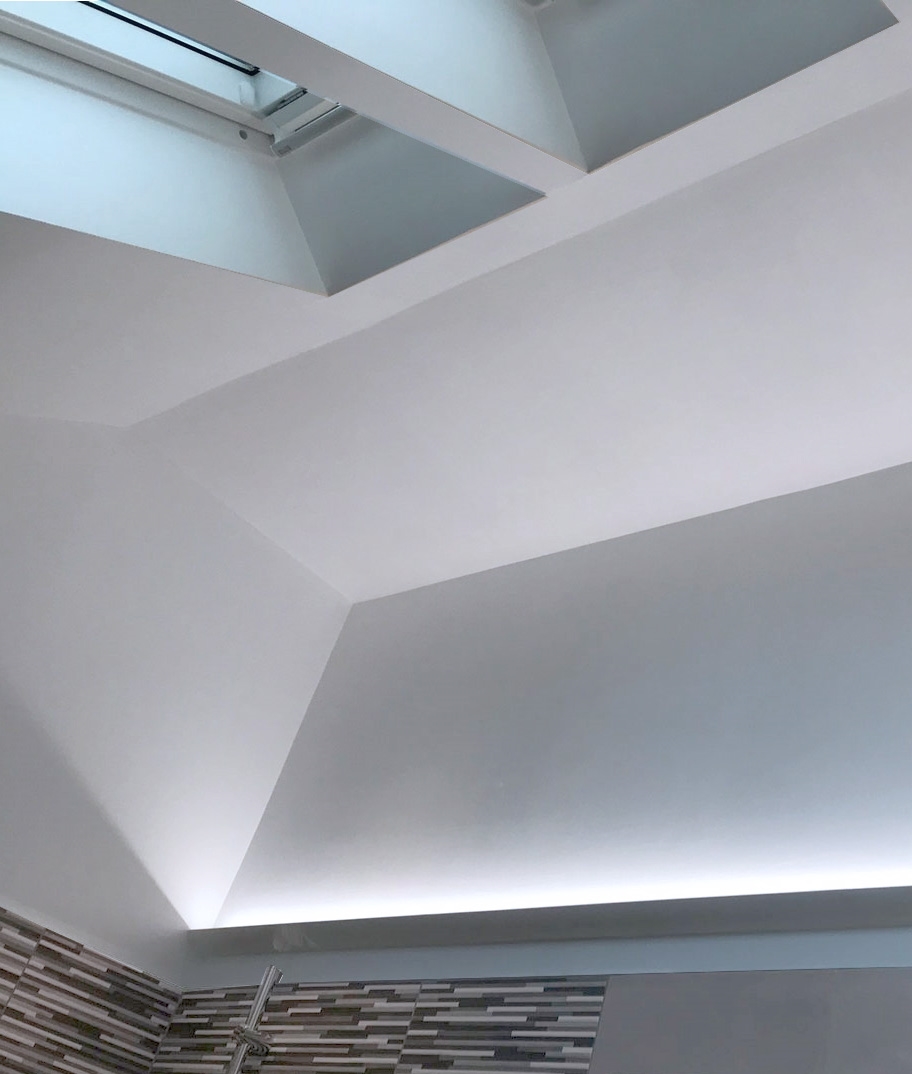

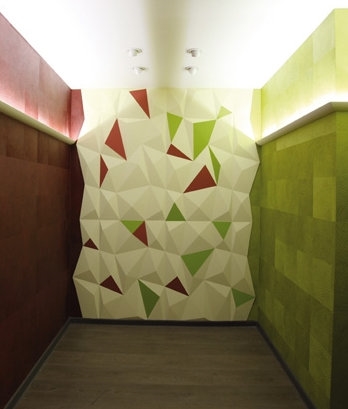

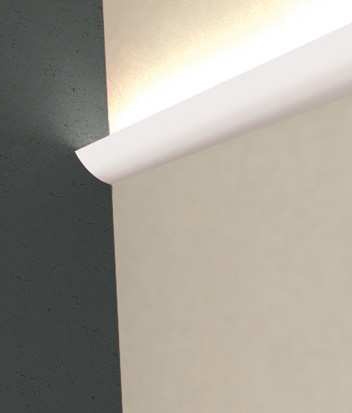

This decorative Micro Cornice plaster lighting is designed to provide indirect architectural feature lighting and can be painted to blend into existing schemes. Fabricated in France using high quality, high density reinforced natural plaster of Paris.

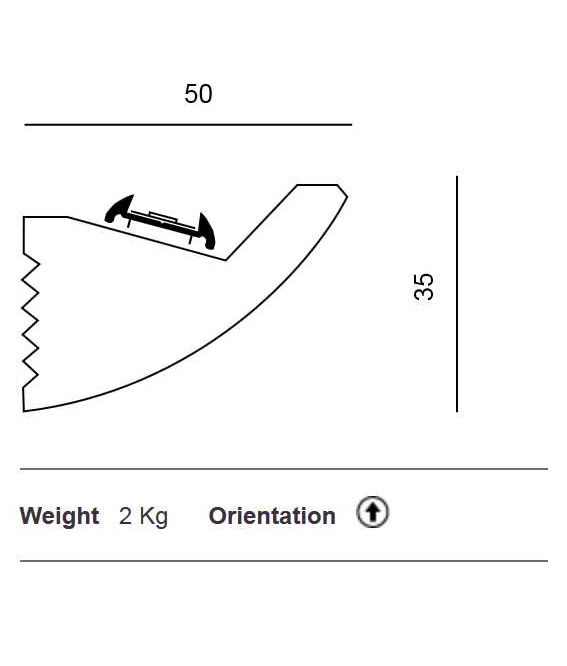

Aile measures 35mm high with a 50mm projection.

This is supplied in 1 x 1.5 metre length. The plaster fitting can easily be cut on site with a clean finish if you require a custom length.

Below you have the option to purchase the Aile Cornice profile, 19.2w close spacing LED tape, drivers and heat sink

Installation
Cut with a medium tooth, cross-cut saw with a reasonably stiff blade for best results.

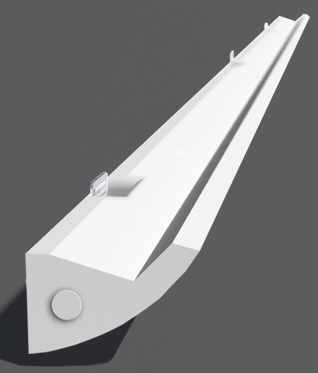

To hang the coving there are 3 screw plates per length, the profile is secured in place with a strong adhesive such as Decofix Pro along with Extra Fix cement for joins. Plaster filler can then be used to fill gaps at the tops, bottoms and joins. If you plan on painting the profile any paint is suitable but remember that emulsion is water based. This means that it may suffer hairline cracks if there is excessive movement or vibration in the ceiling. Acrylic/oil based paints have more “elasticity” in them so are less prone to these fine cracks.

LED Tape
The LED tape specified with this fitting is chosen specifically for its minimal LED spacing. Due to the light source providing direct light on the wall from such a close distance it is easy with other systems to create a dotted effect with dark and light spots. This close LED spacing means you will get a smooth, constant light similar to cold cathode lighting.

Operating at 19.2W per metre these have a high light output at 1800 lumen per metre, lower output tape is available upon request.

Available here in 3 colour temperatures: Very warm white (2700°K), Warm White (3000°K) and Cool White (4000°K). A colour changing option with remote control is also available, please ring customer services for more information.

If you are using this in the bathroom zones please contact us for information on IP rated LED tape.

The LED tape is affixed to a heatsink profile, a simple low profile finned aluminium strip. This disperses heat to stop any discolouration of the profile and to provide a clean, solid base for the LED tape to stick to.

LED Drivers
You can find appropriate 24V drivers in the 'Drivers' tab, we have more powerful options available upon request. To calculate your driver requirements multiply your tape watts per meter with the length (metres) of tape you require, e.g. a 2.5 metre length of 19.2W tape needs a driver outputting at least 48 Watts.

We have sample 30cm sections available for a small deposit.

We can also offer this with RGB, IP Rated or lower wattage tape. We can suit to all requirements.

For larger orders LED tape can be sold in 5 Metre runs, we also offer a soldering and joining service upon request.

Please contact us if you are interested in a sample, or would like us to help you with your bespoke system.

Lamp TypeLED Long Life Tape
Length1500mm
Height35mm
Depth/Projection50mm
ConstructionPlaster
DriverNo driver or transformer is supplied with this fixture (sold separately)
PDF Document(s)View PDF

Be the first to ask a question about this product!

Availability: MADE TO ORDER delivery typically 2-3 weeks
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
ASO188
1.5m Aile MicroCornice Plaster Profile
£85.36
£71.13 exc VAT
ASO188TWIN
2 Pack of 1.5m Aile MicroCornice Plaster Profiles
£168.00
£140.00 exc VAT
ASO188SAMPLE
300mm Sample of Aile MicroCornice
£15.00
£12.50 exc VAT
WIMLS5WW30K
19.2w LED Tape 1M length - Warm White
£28.68
£23.90 exc VAT
WIMLS5CW
19.2w LED Tape 1M length - Neutral White
£28.68
£23.90 exc VAT
WIMAL12M
2m Heatsink Aluminium Profile
£15.65
£13.04 exc VAT
This product requires a driver or transformer - Suitable items can be found below
WIMLDIP10024
Non-Dimmable 100W 24V LED Driver IP67
£60.39
£50.33 exc VAT
WIMLDIP15024
Non-Dimmable 150W 24V LED Driver IP67
£76.10
£63.42 exc VAT
WIMLDIP3024
Non-Dimmable 30W 24V LED Driver IP67
£23.76
£19.80 exc VAT
WIMLDIP6024
Non-Dimmable 60W 24V LED Driver IP67
£34.60
£28.83 exc VAT
WIMLDIP1024
Non-Dimmable 10W 24V LED Driver IP67
£9.08
£7.57 exc VAT
WIMLDIP2024
Non-Dimmable 20W 24V LED Driver IP67
£11.54
£9.62 exc VAT
WIMLDD2024
Dimmable 20W 24V LED Driver IP20
£28.23
£23.53 exc VAT
WIMLDD4524
Dimmable 45W 24V LED Driver IP20
£44.68
£37.23 exc VAT
WIMLDDIP6024
Dimmable 60W 24V LED Driver IP67
£72.17
£60.14 exc VAT
WIMLDDIP8024
Dimmable 80W 24V LED Driver IP67
£85.66
£71.38 exc VAT
WIMLDDIP10024
Dimmable 100W 24V LED Driver IP67
£108.74
£90.62 exc VAT
WIMLDDIP15024
Dimmable 150W 24V LED Driver IP67
£144.57
£120.48 exc VAT
WIMLDDIP20024
Dimmable 200W 24V LED Driver IP67
£166.67
£138.89 exc VAT
WIMLDIP20024
Non-Dimmable 200W 24V LED Driver IP67
£91.81
£76.51 exc VAT
