Square Trimless Plaster-In Downlight - Adjustable

Requires Skim Coat - Designed for GU10 Lamps

Class 2 – This fitting is double insulated and does not require an earth.Yes, this product is dimmable - See the specifications tab for more detailsBulbs Not Included

Product Ref: 52319

£13.90 inc VAT

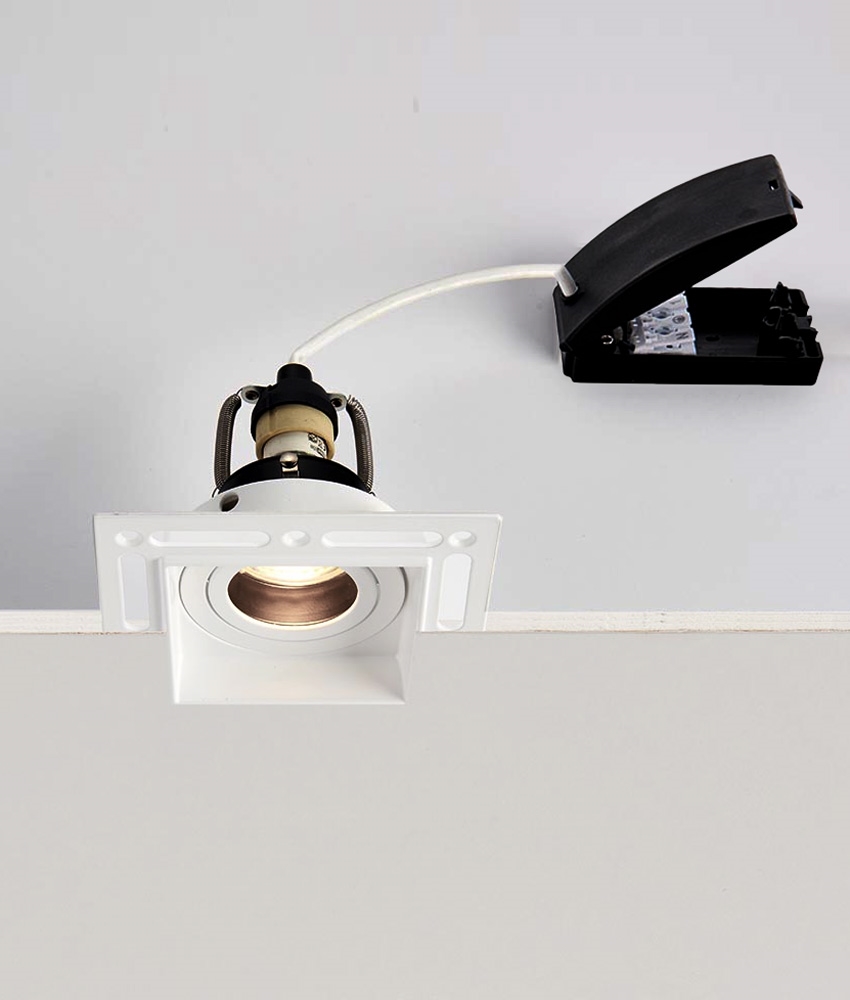

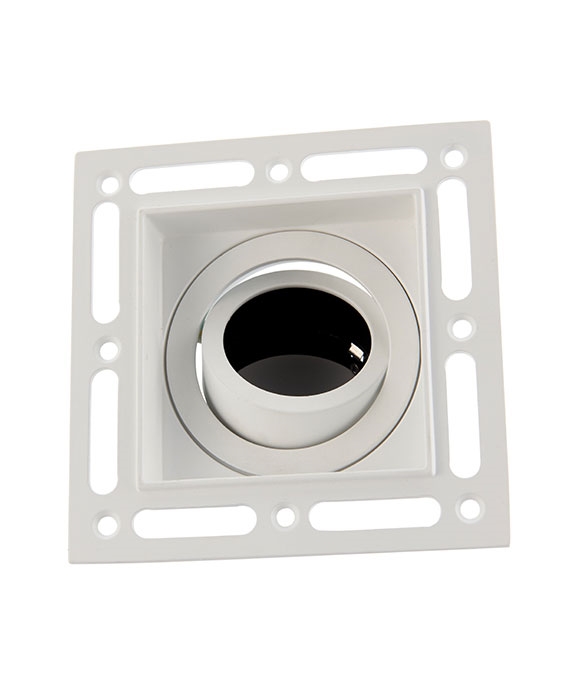

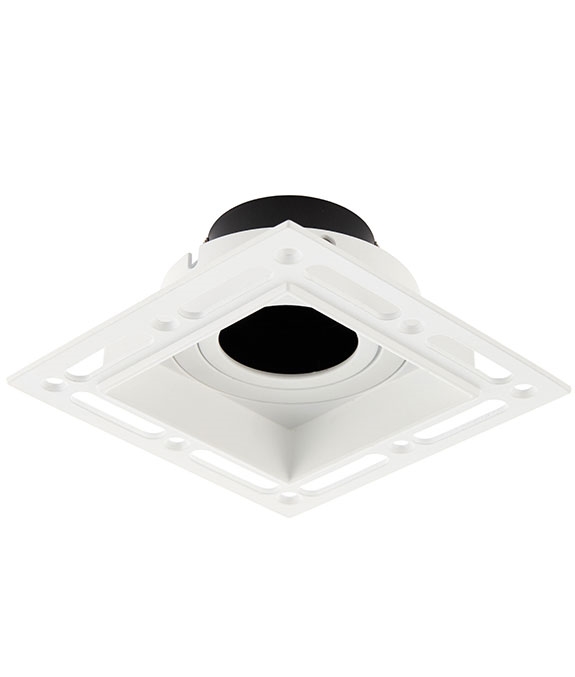

A square plaster-in downlight fully adjustable with a 20 degree tilt. The light is built from a die cast aluminium alloy with a clean matt white finish allowing for a seamless look when fitted into a plastered ceiling during the early build.

Kitchens, dining rooms, hallways, all perfect for this fitting, providing superb illumination when fitted with a GU10 lamp.

The installation instructions are able to be viewed on the specification tab.

A circular designed version is also available, see below or click on the link here.

Cut-out Diameter:
85mm
Overall Diameter:
122mm
Lamp TypeGU10 Base Mains Lamps
Lamps IncludedNo
Dimmable?Yes - when used with a dimmable lamp (bulb)
Width122mm
Height122mm
Diameter122mm
Depth/Projection55mm
Suggested Void Depth85mm
Cut-Out Diameter85mm
Wiring DetailsClass 2 - Double Insulated - Requires no Earth Connection
PDF Document(s)Datasheet
Instruction Sheet
Availability: Typically dispatched in 4-7 days
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
SAM78955
Square Trimless Plaster-In Downlight - Adjustable
£13.90
£11.58 exc VAT
