Angled Lightcaster for Low-Level Lighting - Skim Coat required
Easy Installation and maintenance in Plasterboard Walls
2700°K - Soft Warm White
Product Ref: 6624
£56.02 inc VATThese wall recessed light fixtures are specifically designed to provide low-level lighting in corridors, hallways and on staircases.
The hidden design makes the most of your architecture but the seamless integration does require a little planning so that necessary works are built-in when constructing or remodelling your space.

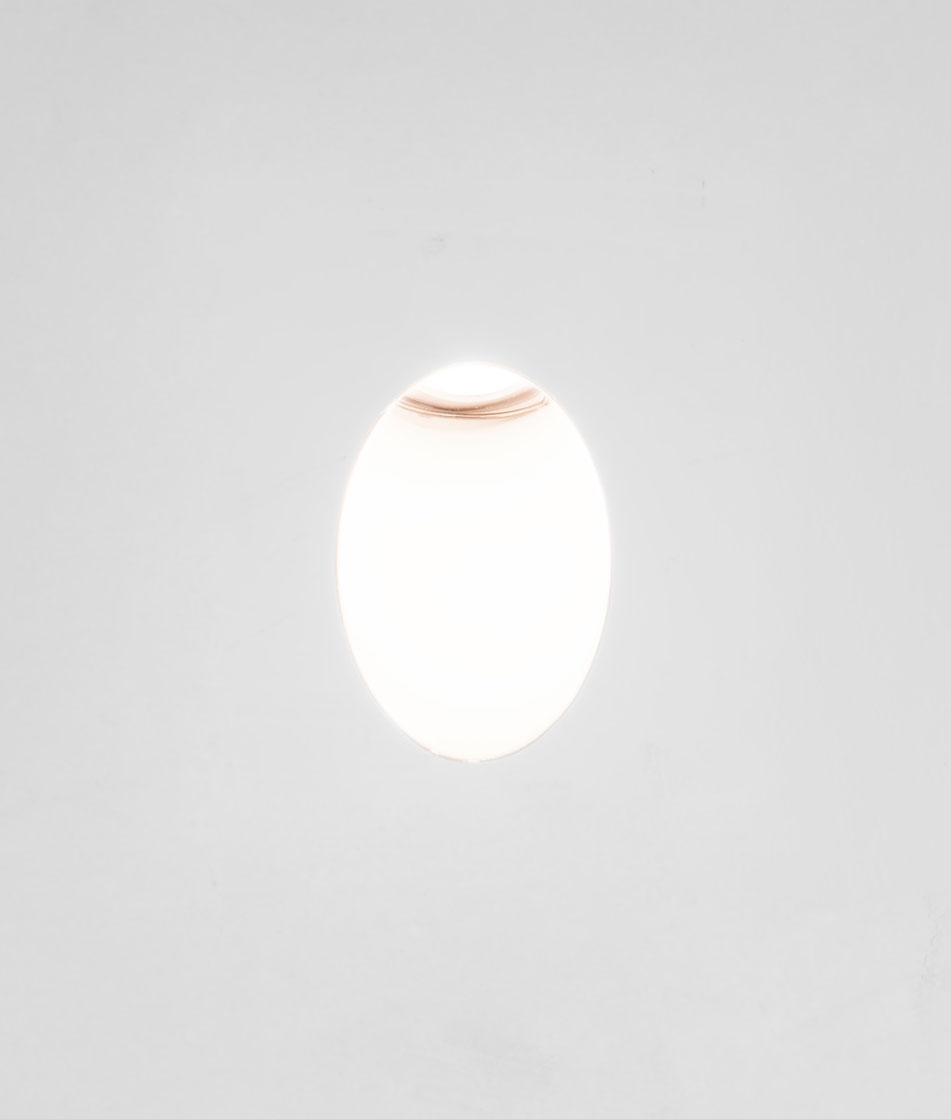

Featuring an oval face, the light is angled down and no glare from the LED lamp nor housing detracts from the light effect.

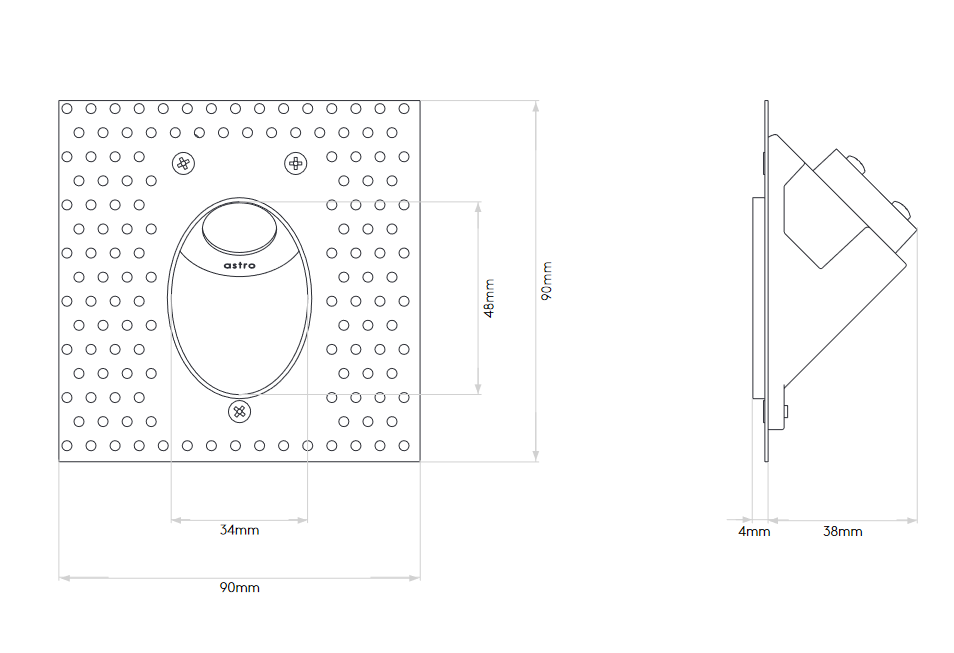

Dimensions of the oval recess once fitted are height: 48mm, Width: 34mm.
Light is provided by a 1W LED lamp with an output of 80 lumens. The LED casts a warm white (2700°K) light.

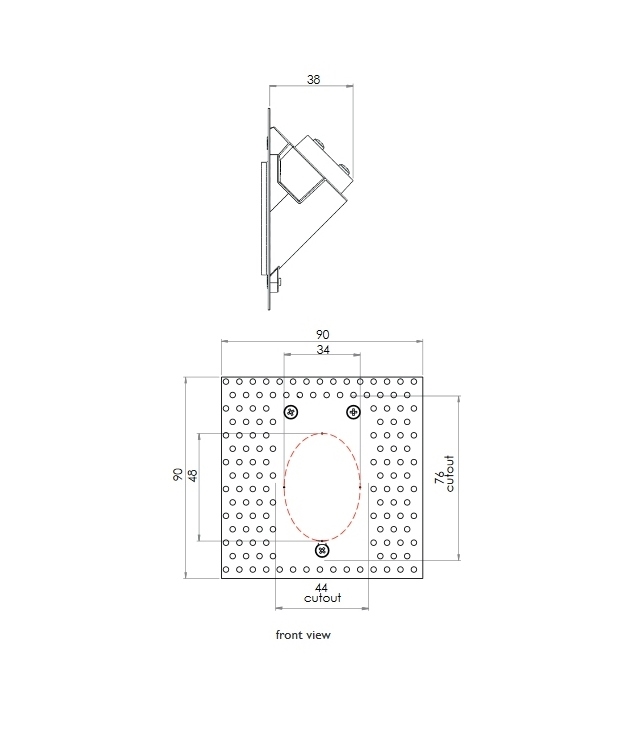

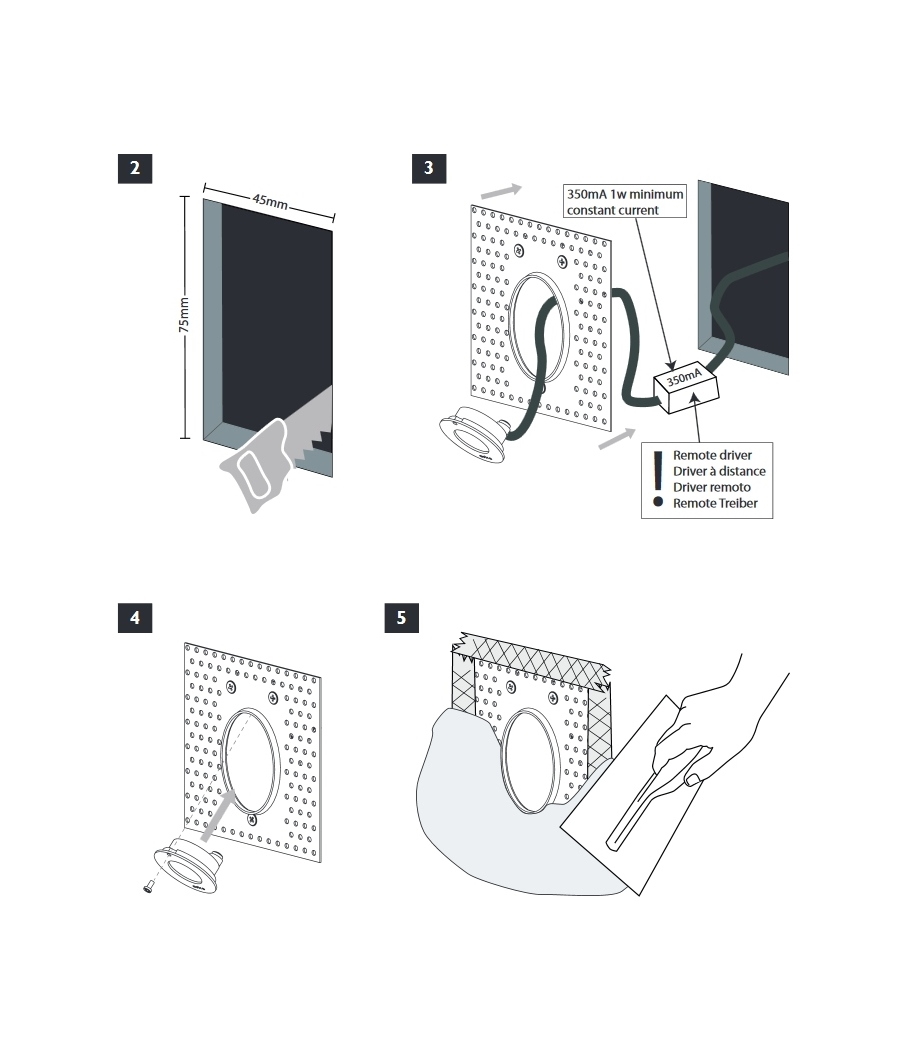

Requires a 75mm x 45mm hole to be cut into your plasterboard.

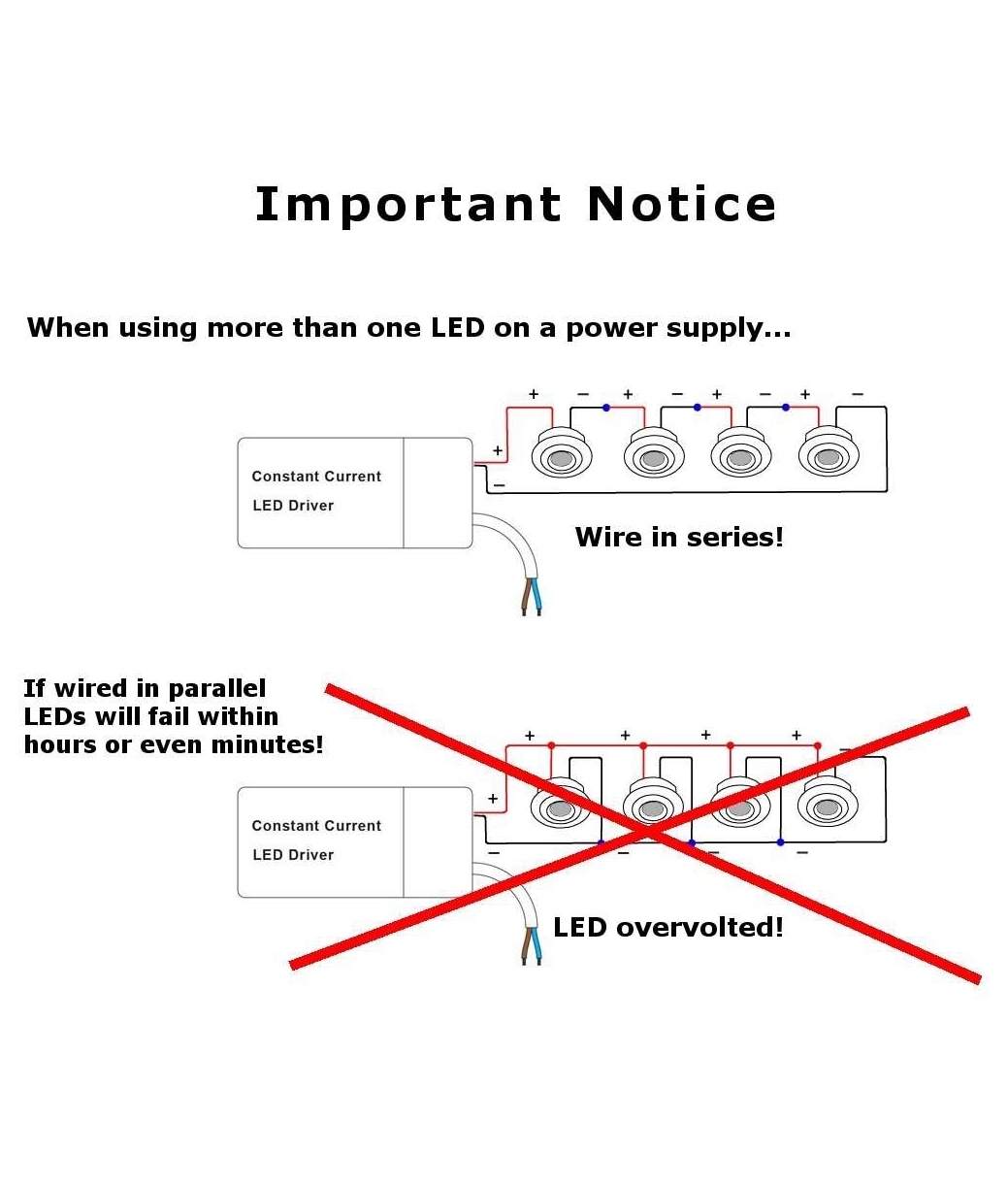

An LED driver is required for use - operating without one will irreparably damage your lights. When installing two or more fixtures on a single driver the wiring must be made in series.

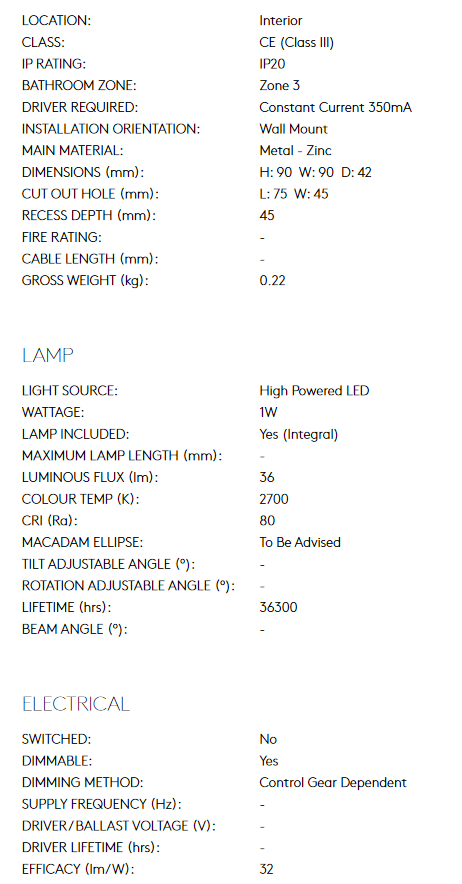

| Lamp Type | Long Life LED light source |
| Lumens Per Watt | 80 |
| Lamps Included | Yes |
| Dimmable? | Yes - when using the specified equipment |
| Total Wattage | 1w |
| Width | 34mm |
| Height | 48mm |
| Construction | Plaster |
| Wiring Details | Class 3 - Requires a low voltage supply |
| IP Rating | IP20 |
| Kelvin | 2700°K - Soft Warm White |
| Driver | No driver or transformer is supplied with this fixture (sold separately) |
| PDF Document(s) | View PDF |
