Fixed Round Trimless Downlight - Mains

Name: Fixed Round Trimless Downlight - Mains
Brand: Lighting Styles
SKU: 4705
Price: 44.82 GBP
Availability: InStock
Rating: 4.7 (19 reviews)

For Any Ceiling Depth - Ceiling Must Be Skimmed

Suitable for Zone 1 - protected from water jets

Class 2 – This fitting is double insulated and does not require an earth.

Yes, this product is dimmable - See the specifications tab for more details

No driver or transformer is supplied with this fixture (sold separately)

Product Ref: 4705

£44.82 inc VAT

Description

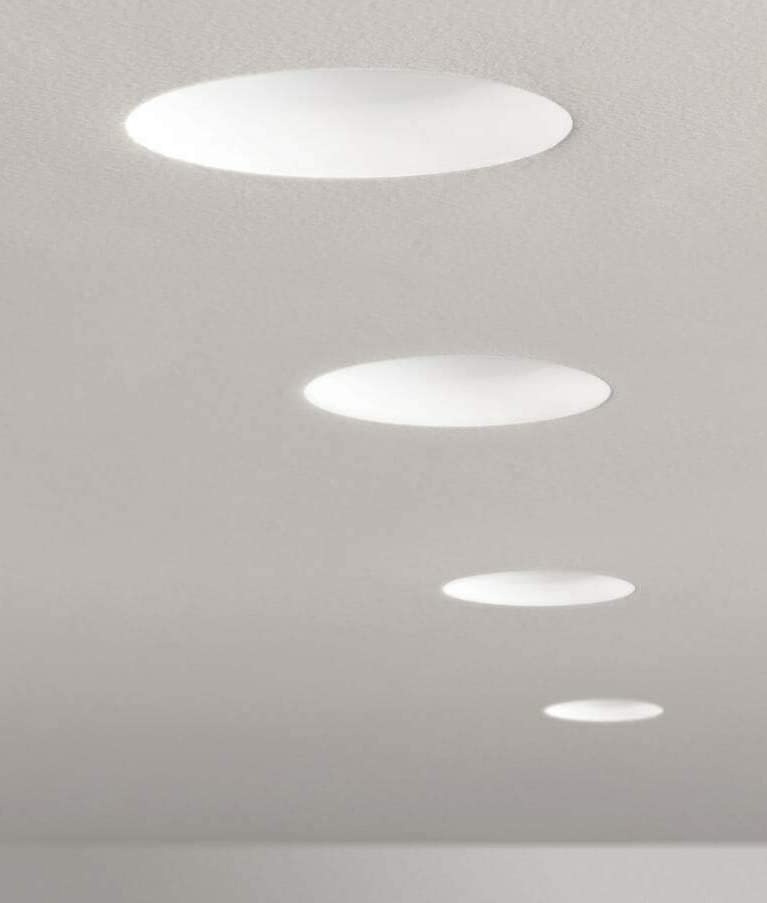

Here is an easy to install trimless, fire rated downlight for use in new ceilings or in areas where a plaster skim is to be applied.

Installation is relativity easy:

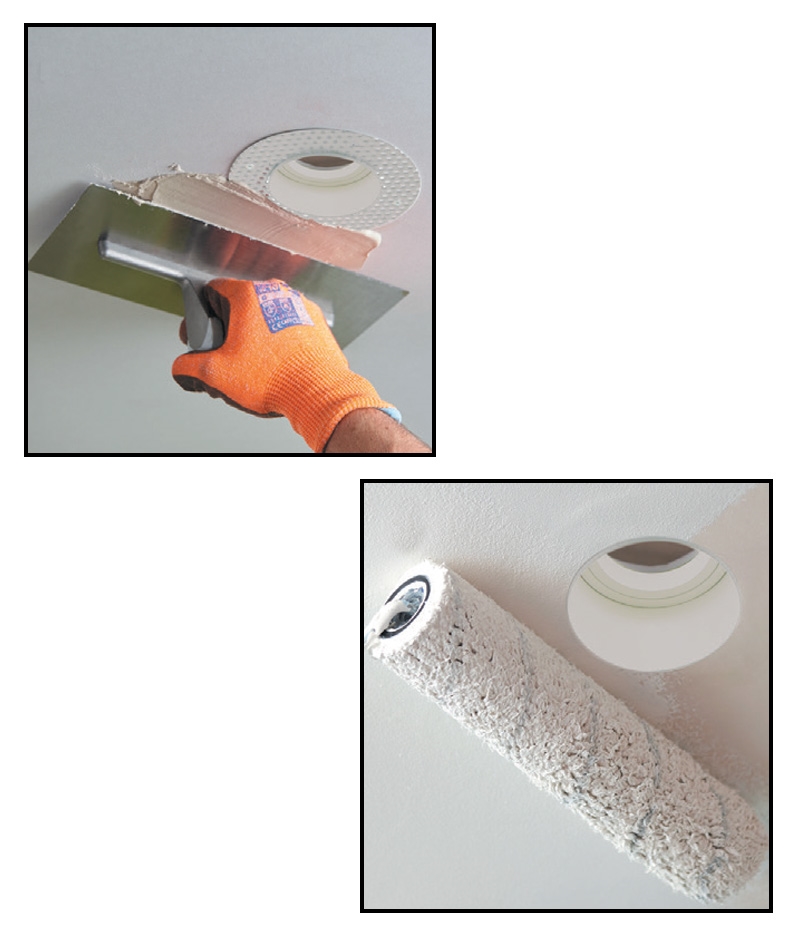

Cut a 86mm diameter hole. Install the top hat housing in the hole and fix the perforated rim to the plasterboard. Plaster with a skim coat to the circular bead, paint then install the rear housing, lamp and retaining bezel. Full instructions are provided in the PDF document.

IP65 rated, suitable for bathroom zones 1, 2 and 3 offering protection from water projected from a nozzle.

Desired recess depth 150mm

Cut-out Diameter:
86mm

Overall Diameter:
141mm

Specification

Number Of Lamps	1
Lamp Type	Varies - See Description
Lamps Included	No
Dimmable?	Yes - on standard dimmer (TRIAC or leading edge)
Max Wattage	50w
Diameter	141mm
Depth/Projection	117mm
Suggested Void Depth	150mm
Cut-Out Diameter	86mm
Construction	Steel - Powder Coated
Wiring Details	Class 2 - Double Insulated - Requires no Earth Connection
IP Rating	IP65
Driver	No driver or transformer is supplied with this fixture (sold separately)
PDF Document(s)	View PDF

Bulbs

	Pro HD Dimmable GU10 LED Lamp Warm White 520 Lumens - FOX05963
	Pro HD GU10 LED Lamp Warm White 520 Lumens - FOX05960
	Pro HD Dimmable GU10 LED Lamp Daylight White 520 Lumens - FOX05965
	Pro HD Dimmable GU10 LED Lamp Neutral White 520 Lumens - FOX05964
	Pro HD GU10 LED Lamp Daylight White 520 Lumens - FOX05962
	Pro HD GU10 LED Lamp Neutral white 520 Lumens - FOX05961
	MR16 Radium Mega 50w 10º Professional Dichroic lamp - Narrow Spot RAD22311512
	MR16 Radium Mega 50w 60º Professional Dichroic lamp RAD22311515
Click here to choose your bulbs

Frequently Asked Questions

What is the diameter of this light fitting?
The diameter of this fitting is 79mm.

Is the transformer on your 12 volt model suitable for MR16 LED lamps and is the transformer dimmable?
The transformer is dimmable and can be used with LED lamps, The minimum load for this transformer is 20w

Are these fire rated?
These are not fire rated. We do sell firehoods which can be used. Search FIREHOOD in the search box to see our range.

Can your mains fixed round trimless with LED GU10 be installed over a shower?
These are IP65 rated making them suitable for bathroom zones 1, 2 and 3. In short, yes they can.

Can this light be used in United States with 110 volts?
These are are mains fitting but do require 230/240v. So in short no.

Please can you confirm whether or not these fitting are able to house a GU10 LED lamp? I have read a number of articles that say that a standard GU10 generates too much heat and causes cracking and discolouration, and that trying to rectify this with a GU10 LED (less heat) does not work as the lamps do not fit.
Mains halogen lamps generate more heat than 12v lamps. CFL (compact fluorescent lamps) are cooler than 12v lamps and LED lamps generate the least heat. We offer a wide range of LED lamps including several that are the exact dimensions of a mains halogen GU10 lamp. Search for idealfit.

AT A HEIGHT OF 2.4M HOW MUCH SPLAY WILL THE LIGHT HAVE?
The fitting comes in two versions: one uses mains GU10 lamps which typically come with a 40 degree beam angle. The other uses MR16 12v lamps which are available in narrow beam (starting at 6 degrees) right up to very wide (60 degree) floods. We can run a calculation and produce a 3D plot if you call us with room size/height/layout.
