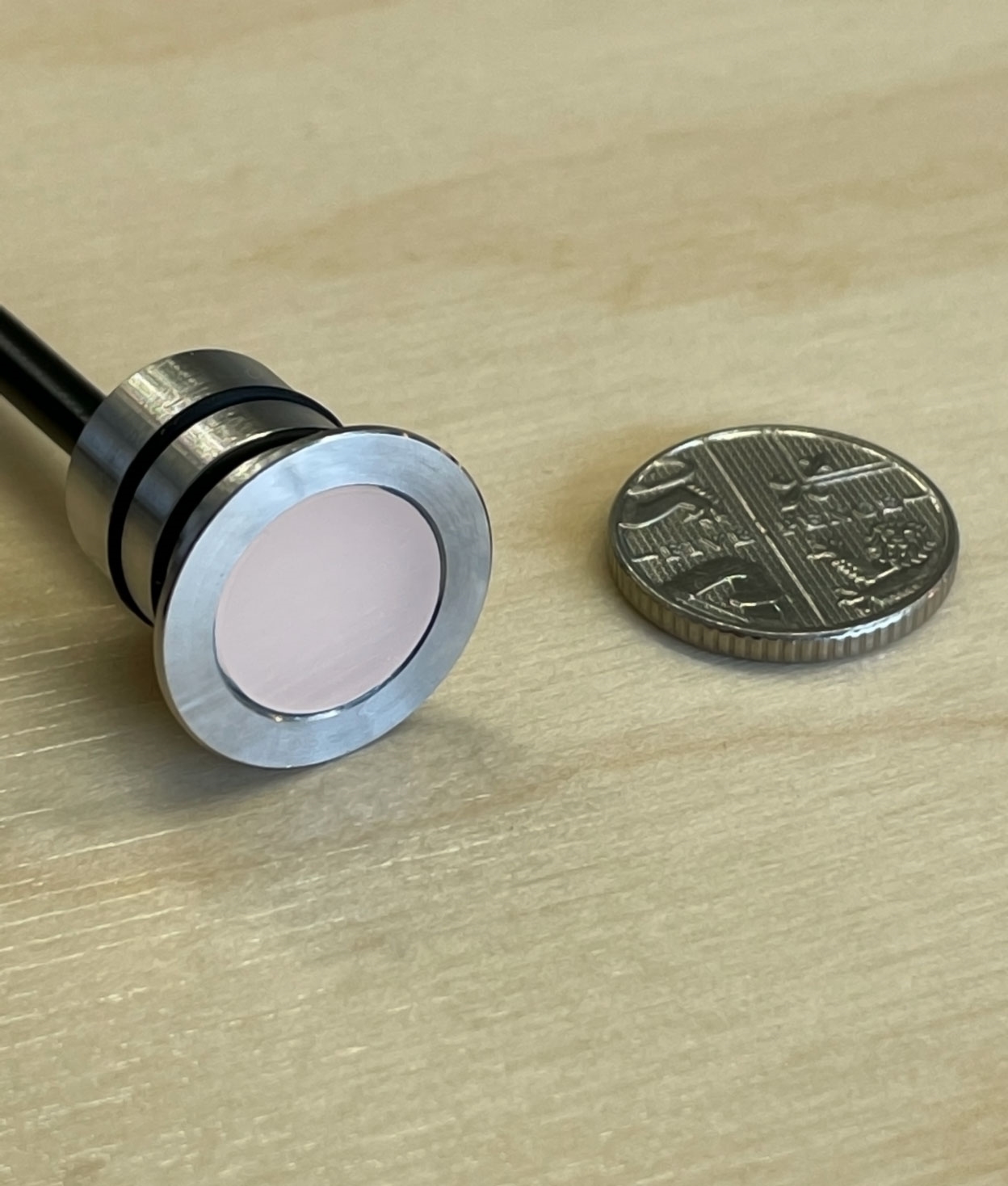

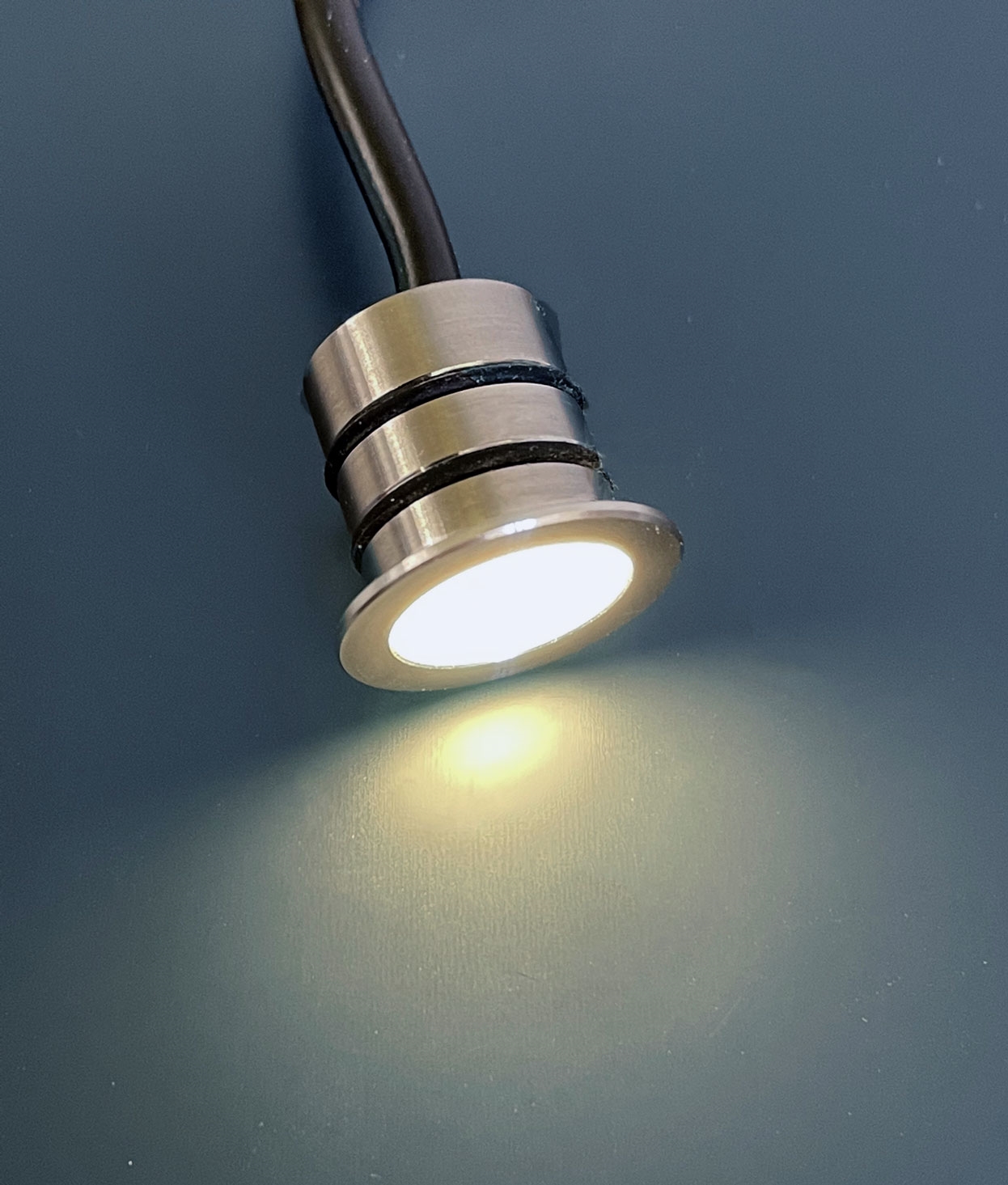

Small and discrete, this 20mm diameter LED marker light packs a punch bigger than its diminutive size. Professionals and end users alike need not worry about installation issues as this fixture simply connects to a 12 volt DC supply, no need to wire in series, no need to daisy-chain. Simply run all the marker lights you install back to a single power supply.

Suitable for use in bathrooms, wet rooms, kitchens and outdoors. Great in niches, as a plinth light, in floor and wall tiles or around planters in decks and walls.

316 marine grade stainless steel.

IP67 high resistance to water ingress and suitable for use in very wet areas.

Details
0.2 watts - 35 lumens
LED Colour temperature 3000°k warm white
Hole saw size 13mm-15mm

Lead length 500mm as standard, bare wire which can be easily extended.

3 year warranty

Cut-out Diameter:
15mm

Overall Diameter:
20mm

Lamp Type	Long Life LED Light Source
Lamp Lumens	35
Lamps Included	Yes
Dimmable?	Yes - when using the specified equipment
Max Wattage	0.2w
Diameter	20mm
Depth/Projection	24mm
Cut-Out Diameter	15mm
Construction	Stainless Steel marine grade 316
Wiring Details	Class 3 - Requires a low voltage supply
IP Rating	IP67
Kelvin	3000°K - Warm White
Driver	No driver or transformer is supplied with this fixture (sold separately)

Hi, is this fitting dimmable? we have this driver, is that compatible with this product? "Single output switching LED driver (constant current), 4W 700mA"
Thank you for your enquiry. This marker light fitting can be dimmed if it is installed with a compatible dimmable LED driver. The driver you mentioned, a "single output switching LED driver (constant current), 4W 700mA", is not suitable for two reasons. Firstly, it is a constant current driver, which is not compatible with this fitting. Secondly, “switching” drivers are generally not dimmable. You will need to use a constant voltage 12V driver, and if you would like the lights to be dimmable, the driver itself should be dimmable. The driver at the bottom of this page [JGDRV12D10WTB] is dimmable and will work without issue on appropriately rated dimmers i.e. one that can accommodate the minimal wattage of LED lamps.

Will one driver work three lights?
The driver has a maximum wattage of 6 watts and the fitting itself is 0.5 watts (x 3 = 1.5 watts) so yes this driver power supply is sufficient for three fittings.

How many hours of life do these lights have approximately?
These fittings have an approximate life span of around 30,000 hours and come with a 3 year warranty should they fail within that timeframe.

What length of cable does each light fitting come with as standard.
Lead length 500mm as standard, bare wire which can be easily extended.

How many drivers would I need for 5 marker lights?
You would only need one 12w driver. Each light is 0.5 watts each.

I’m looking to use these as under cabinet style lighting from a shelf. Can they be hard wired in at all?
The fixtures are low voltage and D.C. The power supply (driver) can be hard wired to a switched circuit, a fused spur or a 3-pin plug to suit your installation.

Would this light be suitable for internal stair lighting or are other lights more suited for that application?
It is suitable for both internal and external use. We do offer other ranges of stairwell lighting too.

what is the CRI and warranty on this light please
These are CRI 80 and come with a 3 year warranty.
