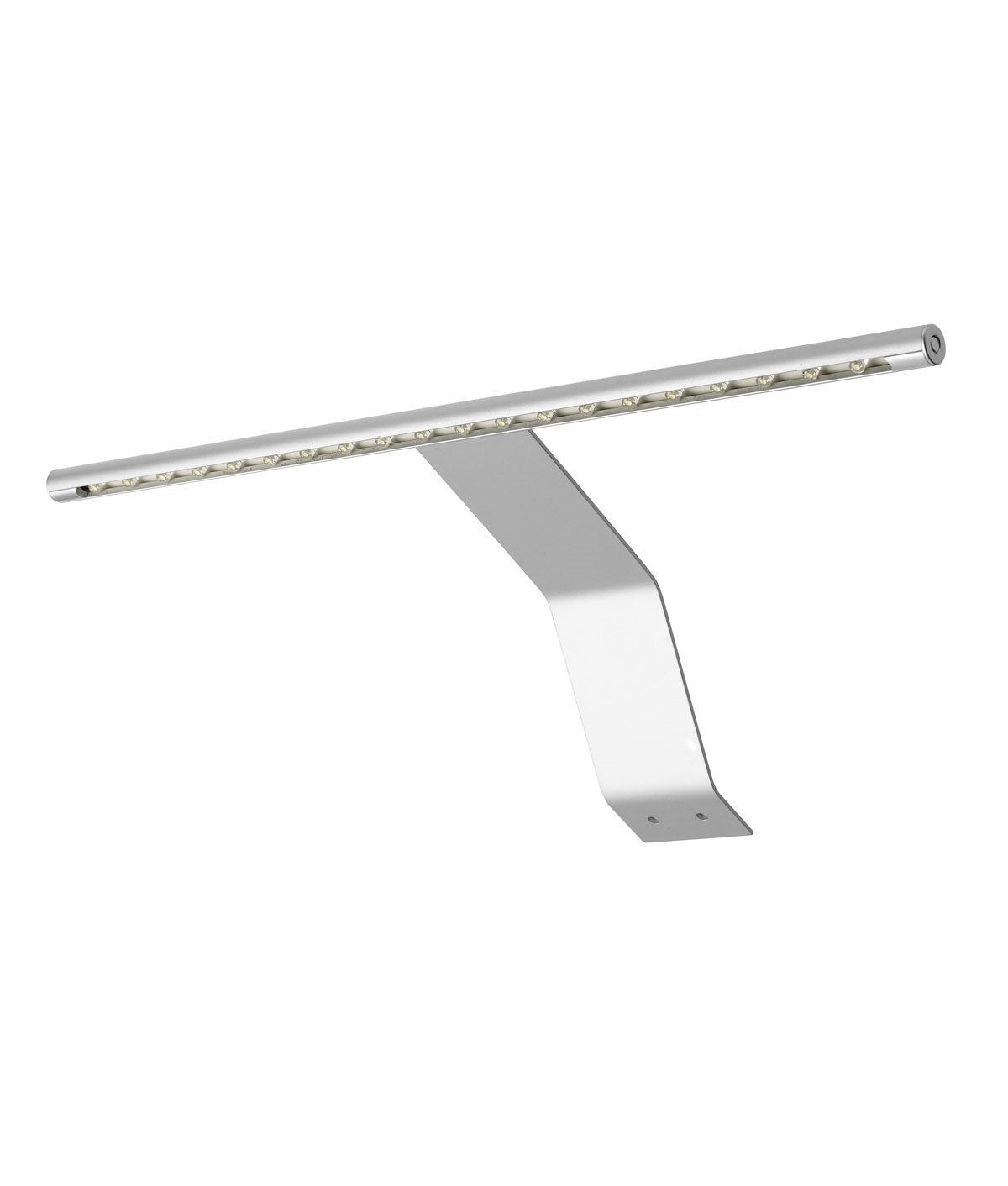

A sleek and modern over cabinet light with a pristine satin silver finish. Running at only 1.2W and containing 20 high powered HD LED diodes this fitting offers an economical and practical lighting solution. The fitting emits the equivalent light output to that of a 20W halogen which is impressive for its low power consumption.

Suitable for illuminating cabinets, display units and above wardrobes.

Rated input DC12V

20pcs SMD LEDs integrated
Fitting runs at 1.2W
1.5m cable attached

Dimensions

Length 350mm x depth 180mm x height 45mm

Requires 12v Constant Voltage power supply.

LED light source, no UV rays, no flicker and no noise
Low power consumption
Available in 6500°K (cool white) with approx lifespan 60,000hrs

Complete with a TOP connector - recommended drivers listed below. Can also be manually wired to increase the number of fittings that can be connected as long as it does not exceed total wattage.

Lamp Type	Long Life LED Light Source
Lamps Included	Yes
Total Wattage	1.2w
Width	45mm
Length	350mm
Depth/Projection	180mm
Construction	Cast Aluminium - Satin Nickel Plated
Wiring Details	Class 3 - Requires a low voltage supply
Kelvin	6500°K - Daylight
Driver	No driver or transformer is supplied with this fixture (sold separately)

What is the wiring connection for this?can it connect into a junction box??
This fitting requires a Driver which can be wired into a junction box, if required.

Is this one unit or two
Are components are sold separately; buy one, and you get one.

How many drivers do I need for two of these lights
A single 6 watt power supply will operate two of these light fixtures.

Can these be connected to a plug?
Yes, you can connect a plug - this would then have to be wired into the driver.
