Stainless Steel LED Plinth Light Starter Kit – 4 Heads, Expandable to 10
12.5mm low-profile bezel with plug-and-play installation
Product Ref: 6392
From £39.00 inc VATDesign and Style

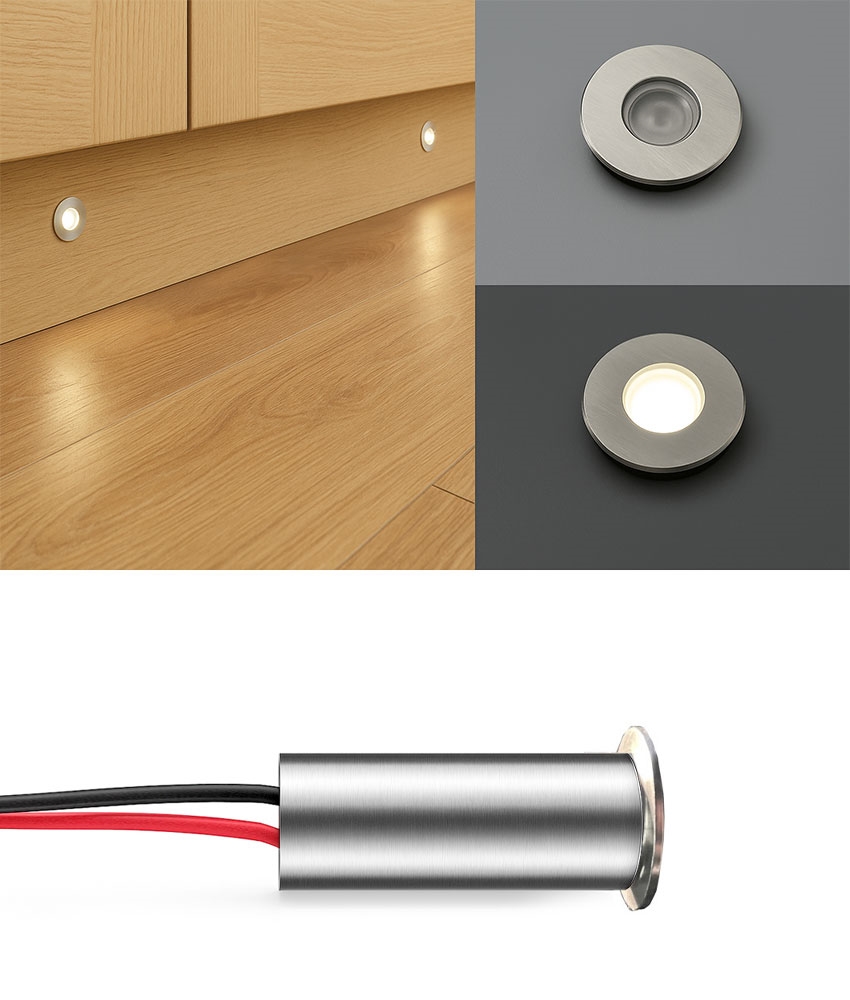

This plinth light kit offers a step up from budget deck lights, with a quality 0.7mm brushed stainless steel bezel and a neat 12.5mm diameter profile. The slim design sits almost flush with the mounting surface, making it an ideal choice for modern kitchens, hallways, and walkways. The stainless steel finish provides durability and a contemporary look while complementing a range of flooring styles.
Usage
Designed for use along kitchen plinths or in other low-level locations, these lights add subtle guidance and accent lighting. Choose from warm white for wood and other warm-toned floors, or cool white for white, grey, or slate finishes. The compact heads are discreet when off and provide a clear, even light when illuminated. Suitable for indoor use only.
Key Features
The starter kit contains four LED heads, each using just 0.2 watts, and a 3.6-watt DC LED driver. Additional heads can be purchased and connected in sequence, with up to 10 heads powered from a single driver. Installation is straightforward — simply drill a 10mm hole, connect each light in turn, and plug into the driver.
Each head is supplied with a 1.5-metre lead, allowing spacing of up to 3 metres between lights when connected in a chain. The driver features a 1-metre output cable for flexible placement.
Specification:
Bezel diameter: 12.5mm
Drill hole size: 10mm
Bezel thickness: 0.7mm brushed stainless steel
Wattage per head: 0.2W
Voltage: 12V DC
Kit contents: 4 LED heads, 3.6W driver
Maximum heads per driver: 10
Head cable length: 1.5m each
Driver output cable: 1.0m
Colour temperature options: Warm White 3000°k or Neutral White 4000°k
IP rating: Indoor use only
Lamp Type | Long Life LED Light Source |
Lamps Included | Yes |
Dimmable? | No |
Width | 13mm |
Length | 28mm |
Cut-Out Diameter | 10mm |
Construction | Stainless Steel |
Wiring Details | Class 3 - Requires a low voltage supply |
IP Rating | IP20 |
Driver | Includes integral driver/transformer suitable for 230 - 240v supply |
Does the driver comes with a 3 pin plug |
Do these have a UK plug on them and can you incorporate a PIR? |
If I use a bigger driver, any problems with daisy-chaining more than 10 lamps? I'm replacing a set containing 16 lamps |
what is the IP rating of these lights? |
Is this kit direct to 240v or is there a driver supplied? |
