Compact Multi-Purpose LED Lights - Pack of Ten with CCT Colour Temperature Control

Name: Compact Multi-Purpose LED Lights - Pack of Ten with CCT Colour Temperature Control
Brand: Lighting Styles
SKU: 4816
Price: 55.99 GBP
Availability: InStock
Rating: 8.4 (7 reviews)

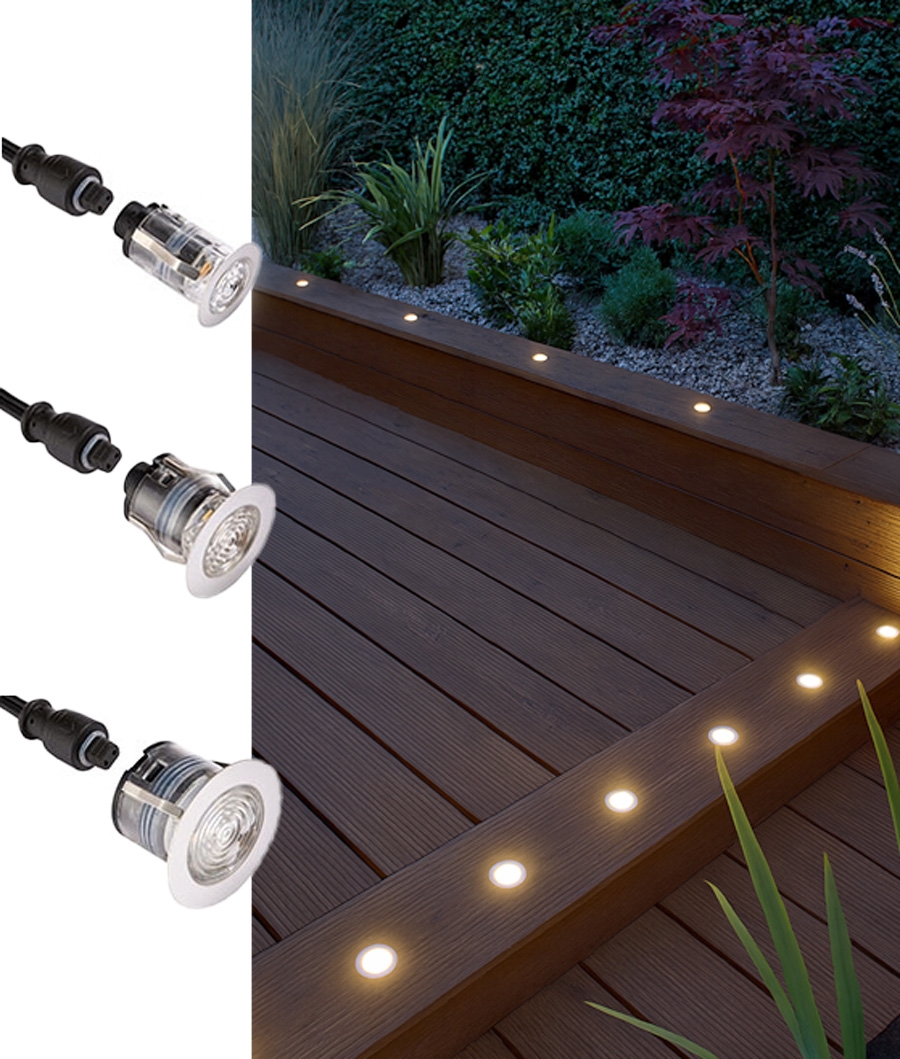

Great for Decking - Three Sizes

Suitable for Zone 0 - protected against immersion in water

Class 3 - This fitting is low voltage and will require a transformer or driver.

Includes integral driver/transformer suitable for 230 - 240v supply

Kelvin Chart

Product Ref: 4816

From £55.99 inc VAT

Description

A pack of 10 LED lights which provide a pleasant lighting effect ideal for providing low level lighting with CCT functionality. Changeable from 3000K or 4000K colour temperatures, allowing you to decide the perfect light wherever it is installed.

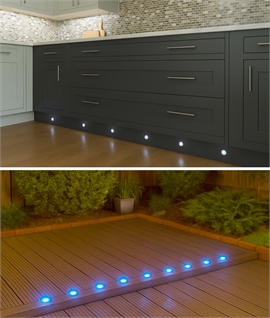

Ideal for use in bathrooms and exterior decking areas.

Supplied as a kit containing 10 lights each with 3 metres of cable, an in-line power supply and junction box with 15 metres of cable.

All connections are push-fit so no tools are required.

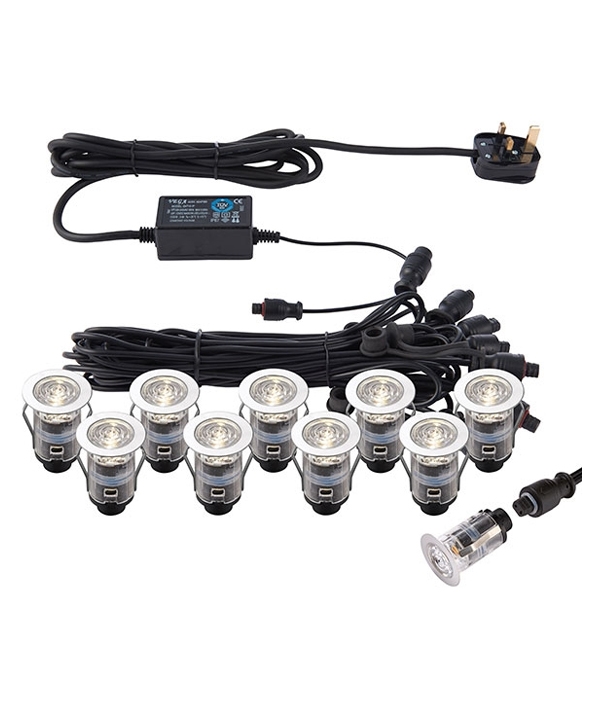

25mm
Diameter 25mm x Projection 1mm
20mm cut out hole
Requires a void of at least 80mm
10 x 0.75w LEDs in White - changeable from 3000K and 4000k colour temperatures.

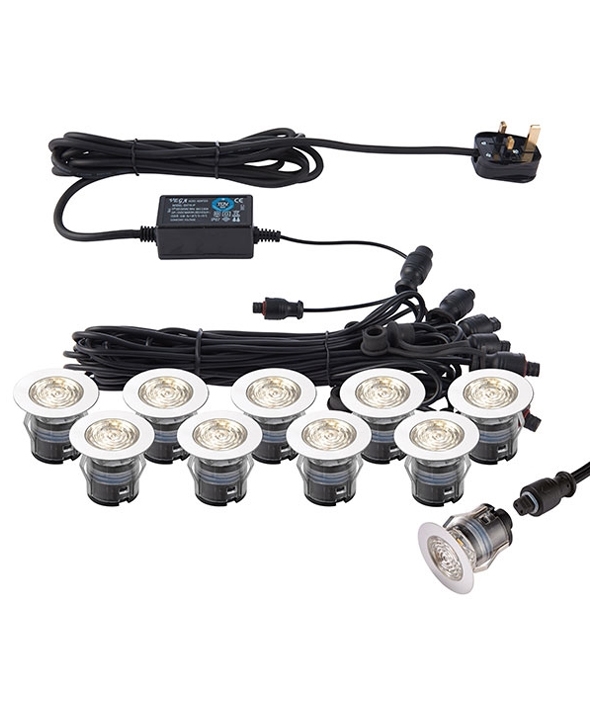

35mm
Diameter 35mm x Projection 1mm
25mm cut out hole
Requires a void of at least 80mm
10 x 0.75w LEDs in White - changeable from 3000K and 4000k colour temperatures.

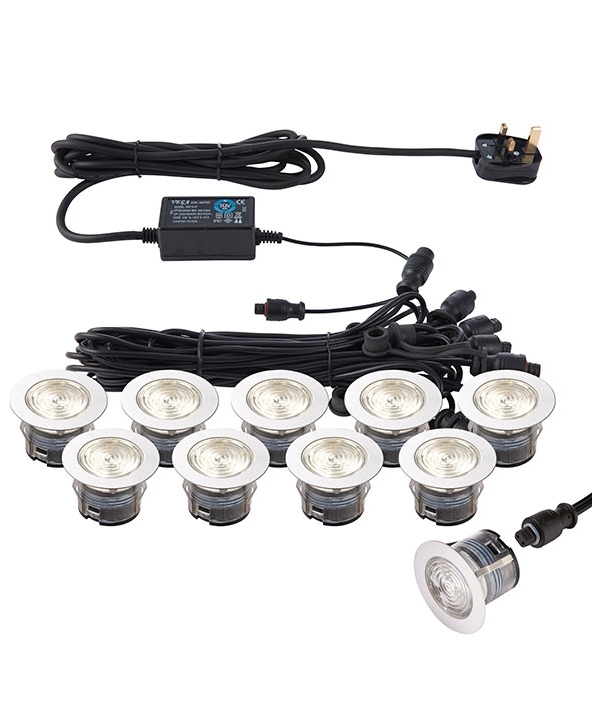

45mm
Diameter 45mm x Projection 1mm
32mm cut out hole
Requires a void of at least 80mm
10 x 0.75w LEDs in White - changeable from 3000K and 4000k colour temperatures.

The maximum distance between each head is 1500mm

The power supply is in line so the 3 pin plug can be removed if wired into a fused spur.
IP67 rated providing protection from water and dust, making these perfect for outdoors.

A movement and twilight detector are also available for purchase on this listing.

Specification

Number Of Lamps	10
Lamp Type	Long Life LED light source
Part L Compliant Luminaire	No
Lamps Included	Yes
Dimmable?	No
Construction	Polished Steel
Wiring Details	Class 3 - Requires a low voltage supply
IP Rating	IP67
Driver	Includes integral driver/transformer suitable for 230 - 240v supply

Frequently Asked Questions

Can these be used in the perimeter of a bathroom floor?
Yes, these are suitable for bathroom zone 0, 1 and 2 - and are IP67 rated.

Are they dimmable ?
This 10 light kit is not dimmable.

Can i purchase additional transformers and manifolds for these kits? I have a customer who wants these lights installing in the soffit around there roof, but i need to put 4 lights here, 3 there, 2 there etc so i would like to supply each location from a seperate transformer but do not want to have to buy a complete kit each time
Unfortunately these kits are only available as a kit, and separate transformers, heads cant be bought.

I have two sets of these lights getting hard wired in the same area on the same light switch. Can I add the second manifold (additional set) to the first, does a single transformer have enough capacity to run the two sets of lights?
No the transformer isn`t sufficient to power two sets of LED`s, overloading it will cause it to overheat and switch itself off. Of course two transformers can be wired into a single fused spur and be controlled by one switch.

Availability: IN STOCK 2-3 working day dispatch
