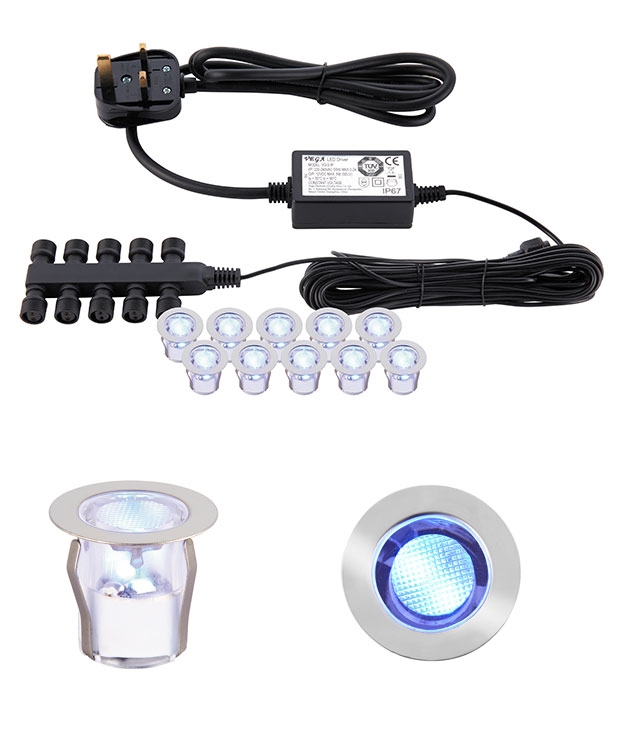

A pack of 10 LED lights which provide a pleasant lighting effect ideal for mood lighting your bathroom.

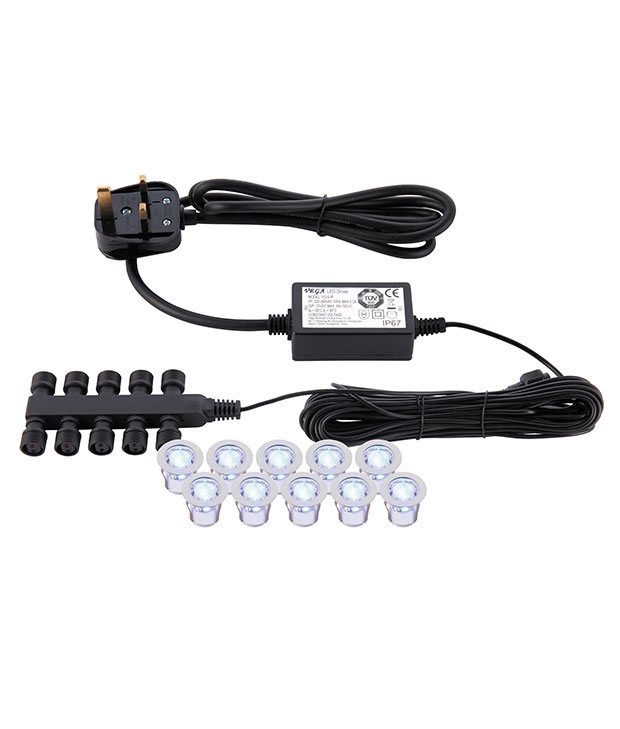

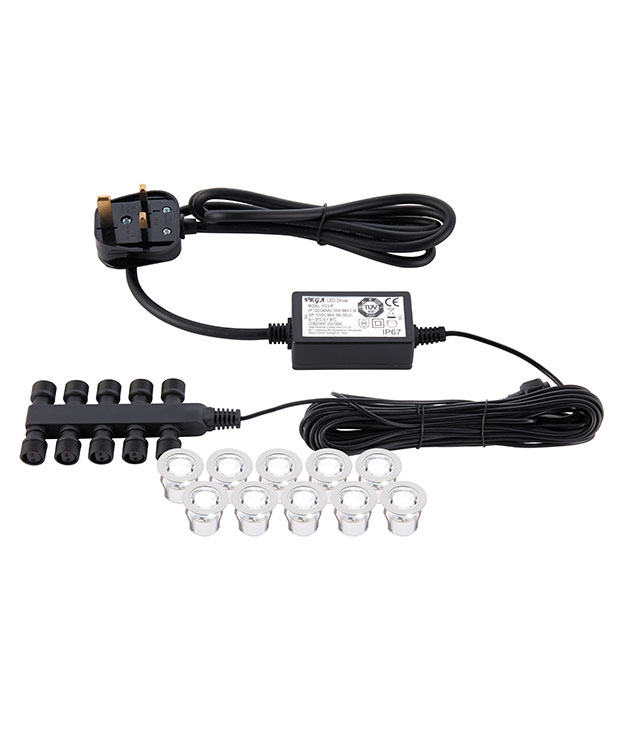

Supplied as a kit containing 10 lights each with 3 metres of cable, an in-line power supply and junction box with 15 metres of cable. All connections are push-fit so no tools are required.

Smaller heads contains a single LED diode. Medium heads contains 3 LED diodes. Large heads contain 6 diodes.

Requires a void of at least 30mm. Hole size: 32mm.

Light output: large 60 lux at 0.5m.

The power supply is in line so the 3 pin plug can be removed if wired into a fused spur.

IP67 rated.

If you wish to use less than the full ten lights on this kit this is fine, there is no issue with minimum loads on the power supply.

Also very effective when used as plinth lights.

Number Of Lamps	10
Lamp Type	Long Life LED Light Source
Part L Compliant Luminaire	No
Lamps Included	Yes
Dimmable?	No
Construction	Polished Steel
Wiring Details	Class 3 - Requires a low voltage supply
IP Rating	IP67
Driver	Includes remote driver/transformer suitable for 230 - 240v supply

Do you know the beam angle for these?
The beam angle is 120º.

I want to use 5 lights each on two separate ceiling panels (one to the side of the bath and one to the left of the wash hand basin). Can I set the lights along the wiring or do the 10 lights have to be all together and will I need two sets?
You dont have to use all 10 at once, so you could use just 5 if you wanted too. Each head is supplied with 3 metres of cable. It all depends on the distance between the 2 locations that these are being installed in. 2 sets would be easier if you think the distance is too much.

Can lights be added to the ten (10) light kit. I have a total kitchen plinth length that requires fourteen (14) lights.
Unfortunately these kits can not be added to. They are sold as a 10, and there is only enough space on the transformer for 10 lights. you can use less lights, but you can not add.

Do these lights constantly change colour or can they be set to a colour ?
These light provide a solid colour either blue or white. At the very bottom of the page you can find a multi colour option.

Are the white lights warm or cool
They are bright. They are described as daylight.

My main query is do these units clamp into a hole or are they push fit? I`m a sparky and cabling and locating blind holes are not a problem? I just want confirmation these lights will stay put in a carpet instalation, not float on top of the carpet?
These are a push fit and held in place by friction. Cut the hole too big or attempt to hold down too much carpet and underlay and they will pop up. You need to use something with screws or a threaded collar (or just don`t install lights into a carpet)

if I intend to mount these in a wooden floor are they able to be clamped securely into the floor such that they compress the carpet down into a tidy round?
Hmm this would be down to trial and error. If you cut a hole and then laid the carpet how would you find the hole and connect all the cables? I don`t think we would suggest this as being an easy installation.

I note that these can be used in Zone 1, could they be used in the wet room floor, directly below the shower?
They have a IP rating of 67, so they a protected against immersion. Your issue is making the installation i.e. the hole in the floor watertight. We would suggest something in a higher price bracket.

I wish to mount the lights in to the floor along the side of the skirting not a walk area is this ok?
Yes, they are fine for recessing into the floor.

Can these be used within a bathroom. I have some recessed shelving built into the walls around the bath & shower areas. I would like to use these as mini downlighters within the shelving recesses to act as feature lights.
With a IP67 Rating they are more than suitable in the bathroom and can be used in zone 1,2 and 3.

Can you just use 7 led lights instead of the 10 with the led driver/transformer?
There is no issue with minimum loads on the power supply so any number of LED heads will work just fine.

Are these dimmable?
These LED fittings are not dimmable.
