IP67 Colour Changing Ten Light LED Kit - 3 Sizes
Perfect for Plinths, Bathrooms or Outside Decking
Product Ref: 5129From £104.00 inc VAT

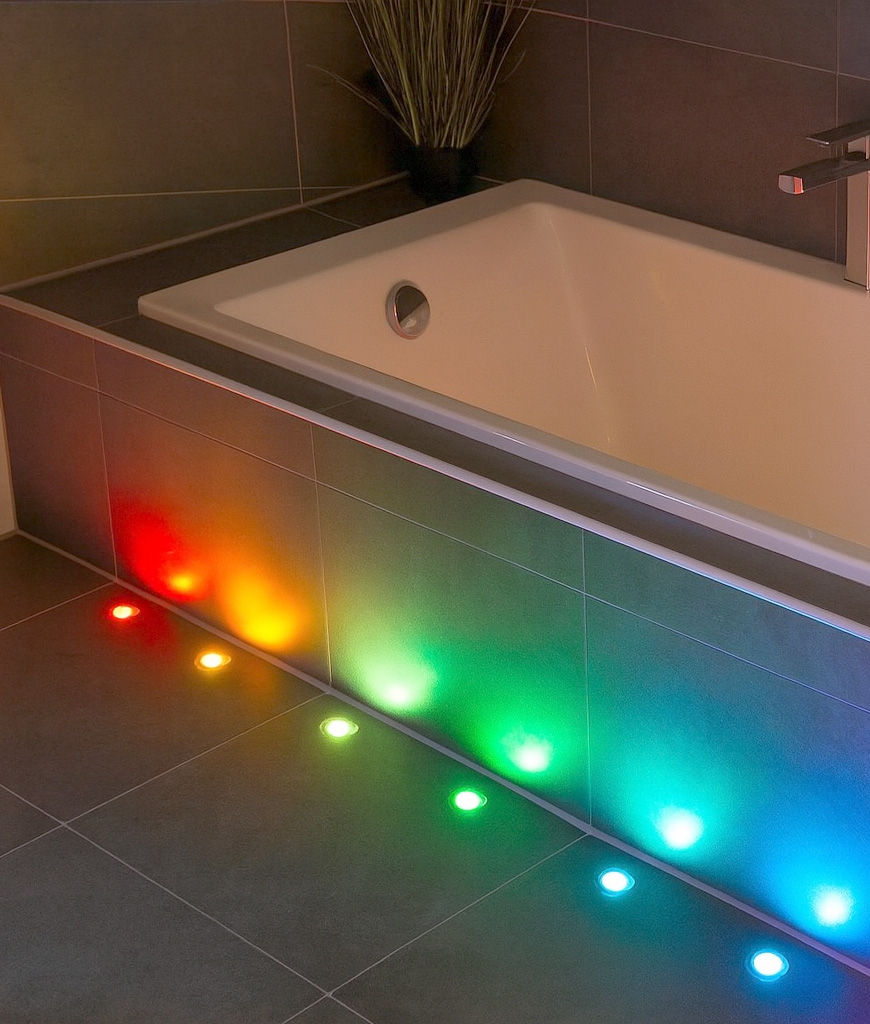

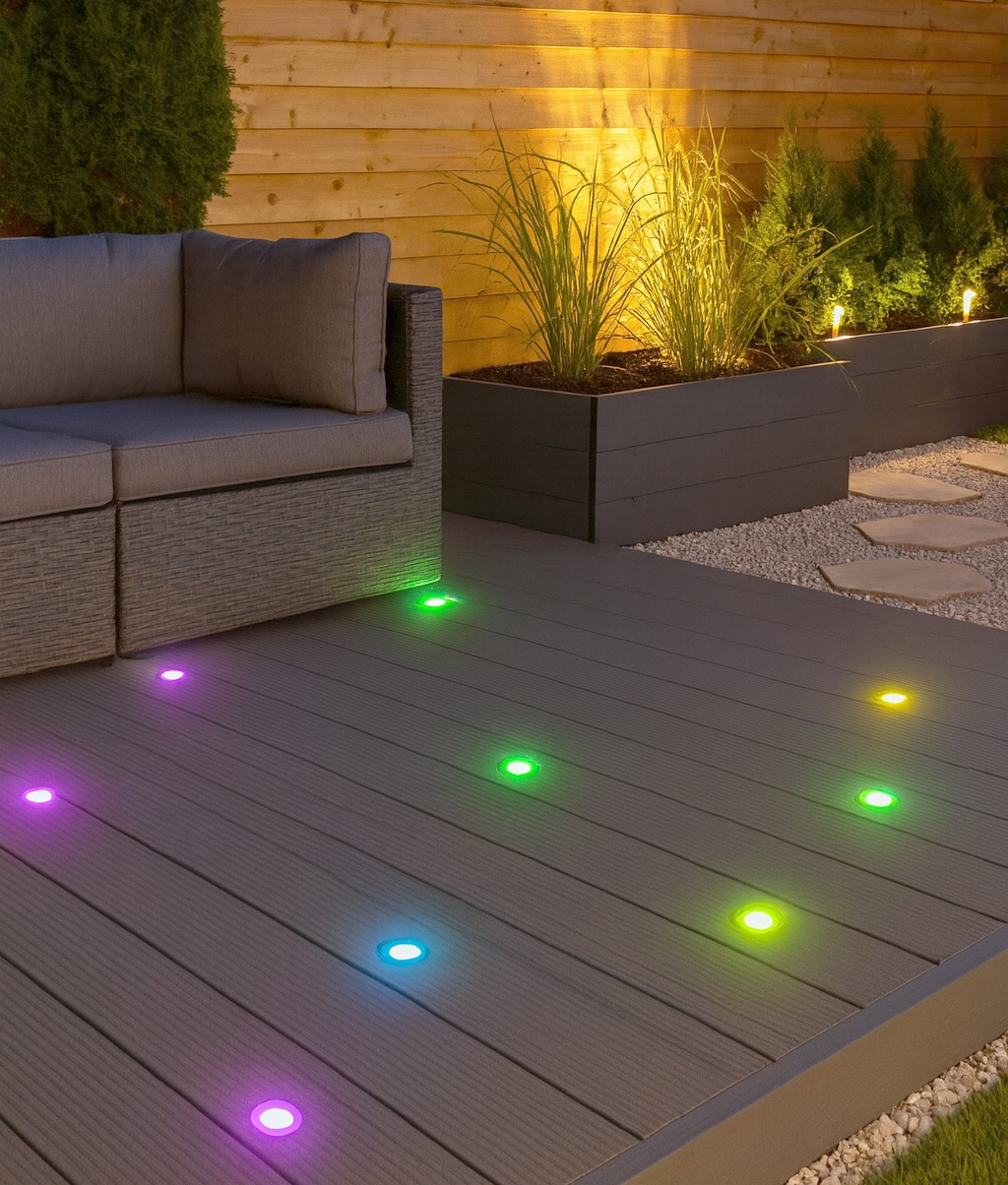

This LED lighting solution provides a synchronised colour output. All heads work and change colour at the same time, there is no delay and they do not go out of synch. The image just shows some of the colour that can be achieved. Available in three sizes choose 25mm, 35mm and 45mm. Each kit contains 10 LED heads which have a extremely low profile design making them discreet and suitable for indoor or outdoor use so ideal for kitchen plinths, bathrooms, exterior decking or anywhere across the home and garden where you want to add mood lighting.
With flexibility in mind the 12 volt power supply is in-line meaning that the 3 pin plug can be removed enabling the kit to be wired into a fused spur. The power supply has two LED indicator lights: one shows mains power is connected and the second shows when a signal has been received from the hand held remote control.
The RF controller switches the lights on, allows you to select a variety of fixed colours. It also allows you to raise or lower the output of these fixed colours and allows you to select one of the two colour change modes. This fitting will remember which light setting it is on so you can turn them off knowing that when you turn them on, it will be as you left them. These are not to be installed in pairs as they will not sync with each other.
This is a colour changing product - there are seven individual colours: yellow, white, red, green, blue, purple and light blue and two variable modes rapid switching and colour phase giving a slower colour shift between colours.
This system is not suitable for use with a dimmer switch, but can be dimmed using the remote.
Small 0.75w. 25mm diameter lights = 20mm cutter hole
Medium 0.75w. 35mm diameter lights = 25mm cutter hole
Large 1.5w. 45mm diameter lights = 32mm cutter hole
The light heads must be linked together with the leads supplied to operate. Maximum suggested spacing is 1.3 metres.
Can be fitted and wired during the decking build stage without the heads. The Mains plug must be situated inside. If this is not possible you can wired into a IP67 external terminal block.
Supplied with a 5 year warranty.
|Number Of Lamps||10|
|Lamp Type||Long Life LED light source|
|Wiring Details||Class 3 - Requires a low voltage supply|
|Driver||Includes remote driver/transformer suitable for 230 - 240v supply|
|PDF Document(s)||View PDF|
Is it possible to have use the kit with either 4 or 5 lights rather than all 10 or is 10 or none at all?
is it possible to use a different remote to control the lights?
what is the depth of these lights under the floor
Are these lights suitable for a bathroom floor and what are the dimensions?
I would like to put these lights in a walk in shower around the base of the walls, approx 10mm up from floor. Are these lights suitable.
Can the cables between the lights be lengthened
I am very interested in these lights but I have 2 questions.
1. Are they suitable for zone 1? My new bath will be installed under a sloped ceiling and I wanted to put these shining down onto the bath. The height of the lights will be about 1.5m hence zone 1. I think IP44 meets zone 1.
2. Is it ok to leave the power supply continuously powered and switch the lights on and off with the remote control?
Can these be fitted externally to down light by fixing into the soffit board of the roof?
Do you have any photo````s of the lights working or can you give the approximate area that the LED would wash?
Can you by replacement LEDs?
I am wanting to use these in my bathroom ceiling and powering them from a switch. is it possible to buy 20 lights and have them all wired up together.
I`m thinking of fitting these lights onto my bath panel, would the remote work if the power unit was behind the panel?
Please can you tell me if these lights will display normal white light as well as the advertised colours. Would this be the default setting from turning on at the light switch?
Do these bulbs have to be switched on with the remote or will switching on the power supply immediately switch the bulbs on at the last setting?
Can these be used in zone two of a bathroom?
Do you sell the power supply and remote separately?
I require two kits each with 5 lights. I was thinking buying one full kit and power and remote and splitting the lights
What power (ie how many leds) is each unit - how does it compare with the medium 10 unit white or blue kit?
What is the length of each linking light head cable?
Can these colour changing LED lights not be available with IP67 protection instead of IP44 ?
Other options you supply like ````Ten Square LED Light Kit```` offer this higher water protection.
I require colour changing LED lights but they are to be mounted near an overhead shower unit.
Thanks in advance for your assistance.
