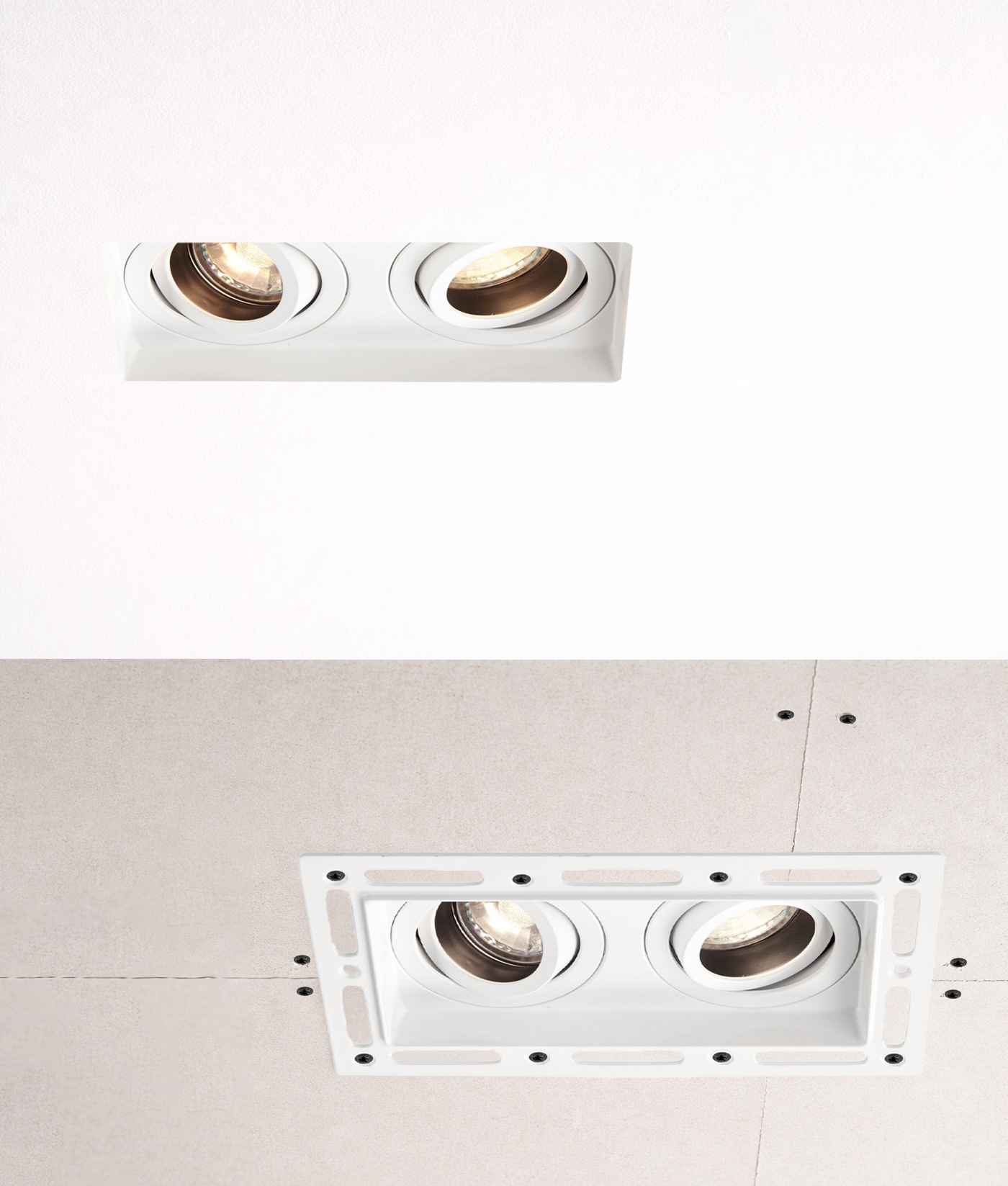

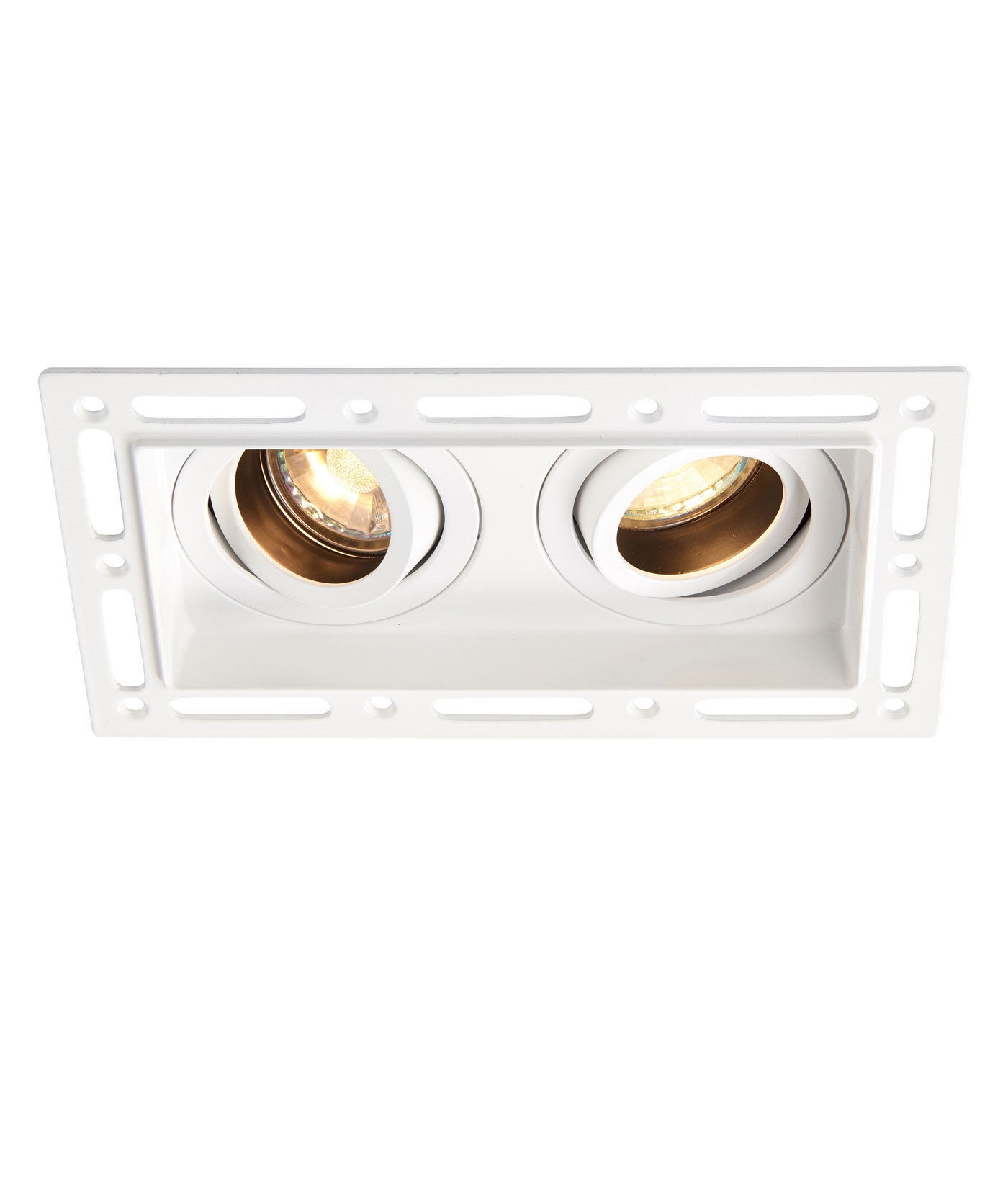

Twin Lamp Trimless Plaster-in Downlight
Easy to Install Design - Suitable for DIY-ers
Product Ref: 6266
£15.50 inc VATA twin lamp, fixed downlight for mains GU10 base lamps, halogen or LED. A deep lamp recess and trimless looks create a modern, low profile style lighting effect.
Twin lamp downlight gives maximum light in your space.
This fixture can be installed without a plaster skim coat; the simple design means you can joint fill the gap with plasterboard joint tape and filler, rub down and paint. Some trimless downlights can be a bit of a fiddle to install. This is the easiest of those on the market with a simple spring clip holding the lamp in place.
Installation is easy for end users and contractors...
- Put on some clean gloves!
- Wire in the mains supply and pull the lamp holder through the fixture so it can be accessed after installation.
- Cut a square hole, angle the fixture and insert into the ceiling.
- Lower the fixture and the lugs sit on top of the plasterboard.
- While holding the fixture down put two screws through the plasterboard, through the lugs and fix in place.
- Plaster or fill the gap, allow this to dry.
- When dry insert lamp and position spring clip to retain the lamp.
- Take off gloves and pat yourself on the back.
Desired recess depth 150mm - to ease installation.
NOTE: because this downlight is designed for plasterboard ceilings up to 12.5mm thick. The fixed brackets cannot be adjusted for deeper ceilings.
Number Of Lamps | 2 |
Lamp Type | GU10 Base Mains Lamps |
Lamps Included | No |
Dimmable? | Yes - on standard dimmer (TRIAC or leading edge) |
Max Wattage | 50w |
Total Wattage | 100w |
Width | 120mm |
Length | 188mm |
Depth/Projection | 140mm |
Suggested Void Depth | 150mm |
Construction | Plaster |
Wiring Details | Class 1 - Requires an Earth Connection |
IP Rating | IP20 |
PDF Document(s) | View PDF |
Once fitted how do the light bulbs fit? |
I`m currently going through a Reno and would like to plan in these lights. However the details state it is designed for 12.5mm plasterboard. We are going to overboard current ceiling with 12.5mm can I still install these lights? |
Do you need a firehood for this lamp even if we are going to use a LED lamp? We live in Norway and I think it is accuired here. What is the lampbox made of? Is it of a heat and flameproof material? Is the voltage 230V? |
