Trimless Plaster-in Downlight - Square

Easy to Install Design - Suitable for DIY-ERS

Offers no protection from splashed or sprayed waterClass 1 – This fitting will require an earth connection.Yes, this product is dimmable - See the specifications tab for more detailsBulbs Not Included

Product Ref: 6267

£24.63 inc VAT

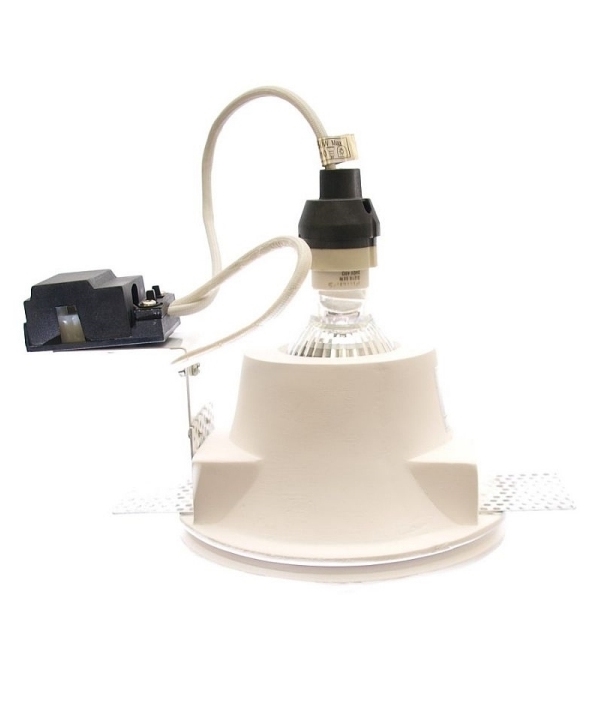

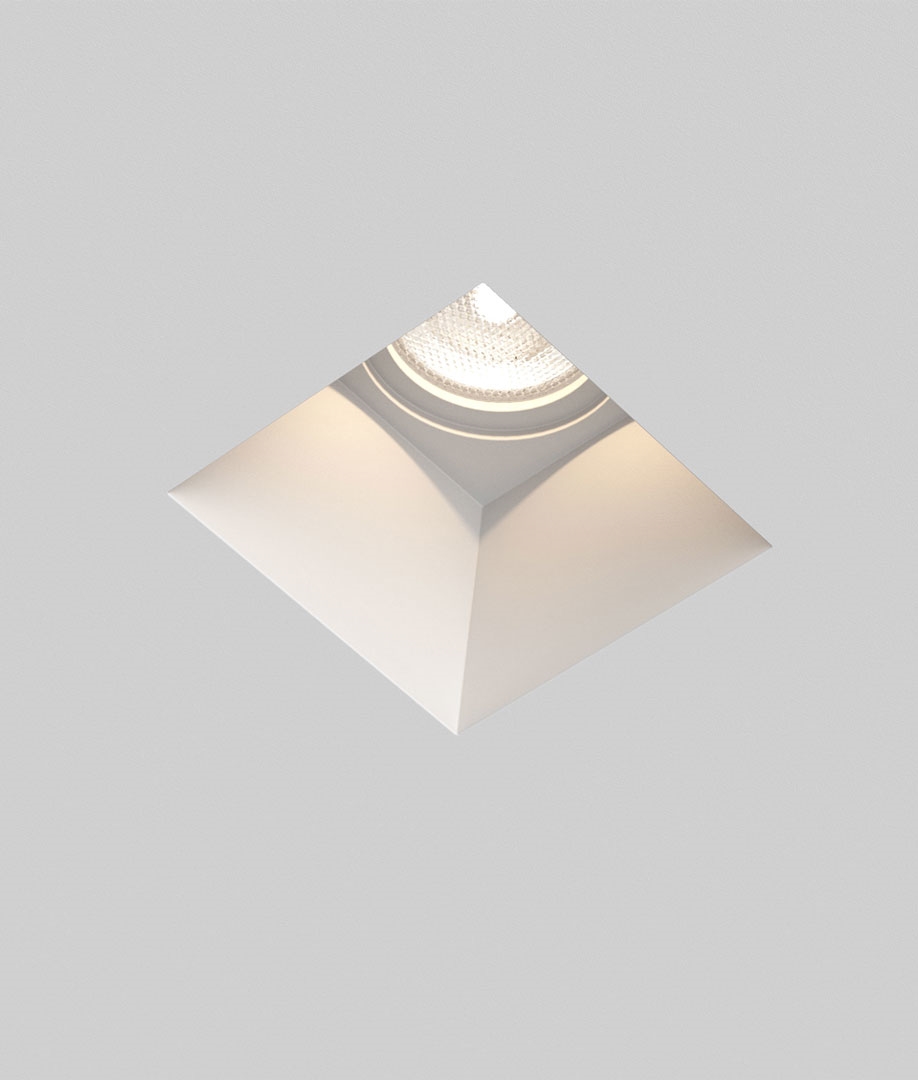

A fixed square downlight for mains GU10 base lamps - halogen or LED. A deep lamp recess and trimless looks create a modern, low profile style lighting effect.

This fixture can be installed without a plaster skim coat; the simple design means you can joint fill the gap with plasterboard joint tape and filler, rub down and paint. Some trimless downlights can be a bit of a fiddle to install. This is the easiest of those on the market with a simple spring clip holding the lamp in place.

Installation is easy for end users and contractors...

  1. Put on some clean gloves!
  2. Wire in the mains supply and pull the lamp holder through the fixture so it can be accessed after installation.
  3. Cut a square hole, angle the fixture and insert into the ceiling.
  4. Lower the fixture and the lugs sit on top of the plasterboard.
  5. While holding the fixture down put two screws through the plasterboard, through the lugs and fix in place.
  6. Plaster or fill the gap, allow this to dry.
  7. When dry insert lamp and position spring clip to retain the lamp
  8. Take off gloves and pat yourself on the back!

Desired recess depth 150mm - to ease installation.

NOTE: because this downlight it designed for plasterboard ceilings up to 12.5mm thick. The fixed brackets cannot be adjusted for deeper ceilings.

Number Of Lamps1
Lamp TypeGU10 Base Mains Lamps
Lamps IncludedNo
Dimmable?Yes - on standard dimmer
(TRIAC or leading edge)
Max Wattage50w

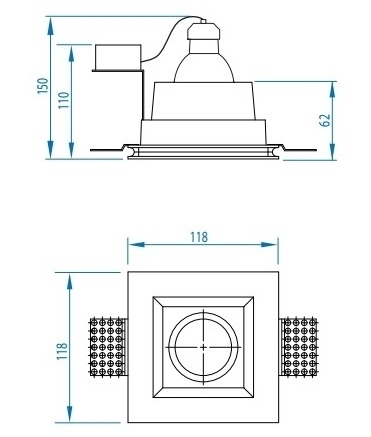

Width118mm
Length118mm
Depth/Projection140mm
Suggested Void Depth150mm
ConstructionPlaster
Wiring DetailsClass 1 - Requires an Earth Connection
IP RatingIP20
PDF Document(s)View PDF
Availability: IN STOCK 2-3 working day dispatch
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
MIK1253002
Trimless Plaster-in Downlight - Square
RRP £37.10
You save £12.47
£24.63
£20.53 exc VAT
