Low-Glare Trimless Plaster-In Recessed Downlight For GU10 Mains Lamps

For use with GU10 Lamps - Halogen or LED

Offers no protection from splashed or sprayed waterClass 2 – This fitting is double insulated and does not require an earth.Bulbs Not Included

Product Ref: 41011

£16.85 inc VAT

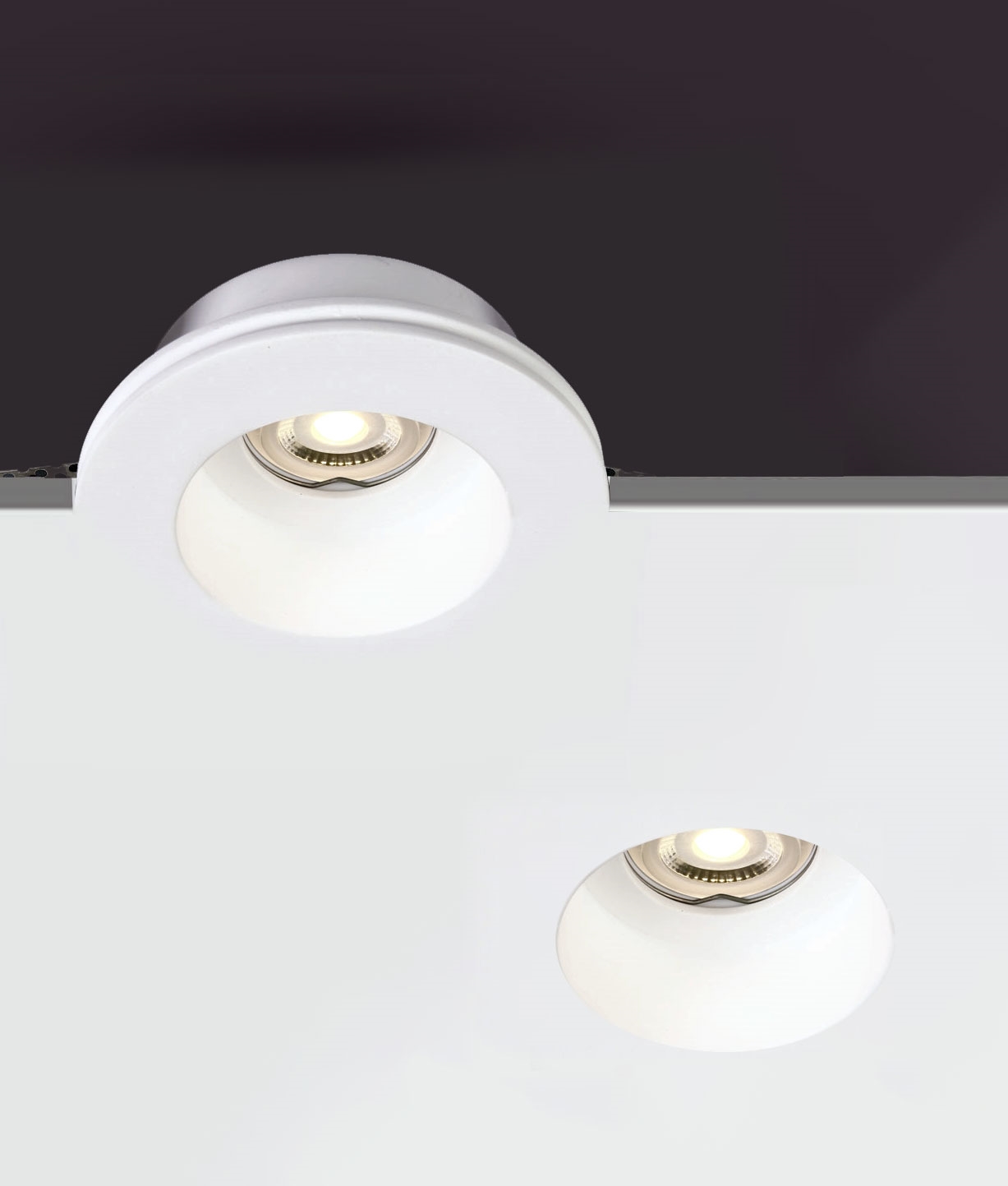

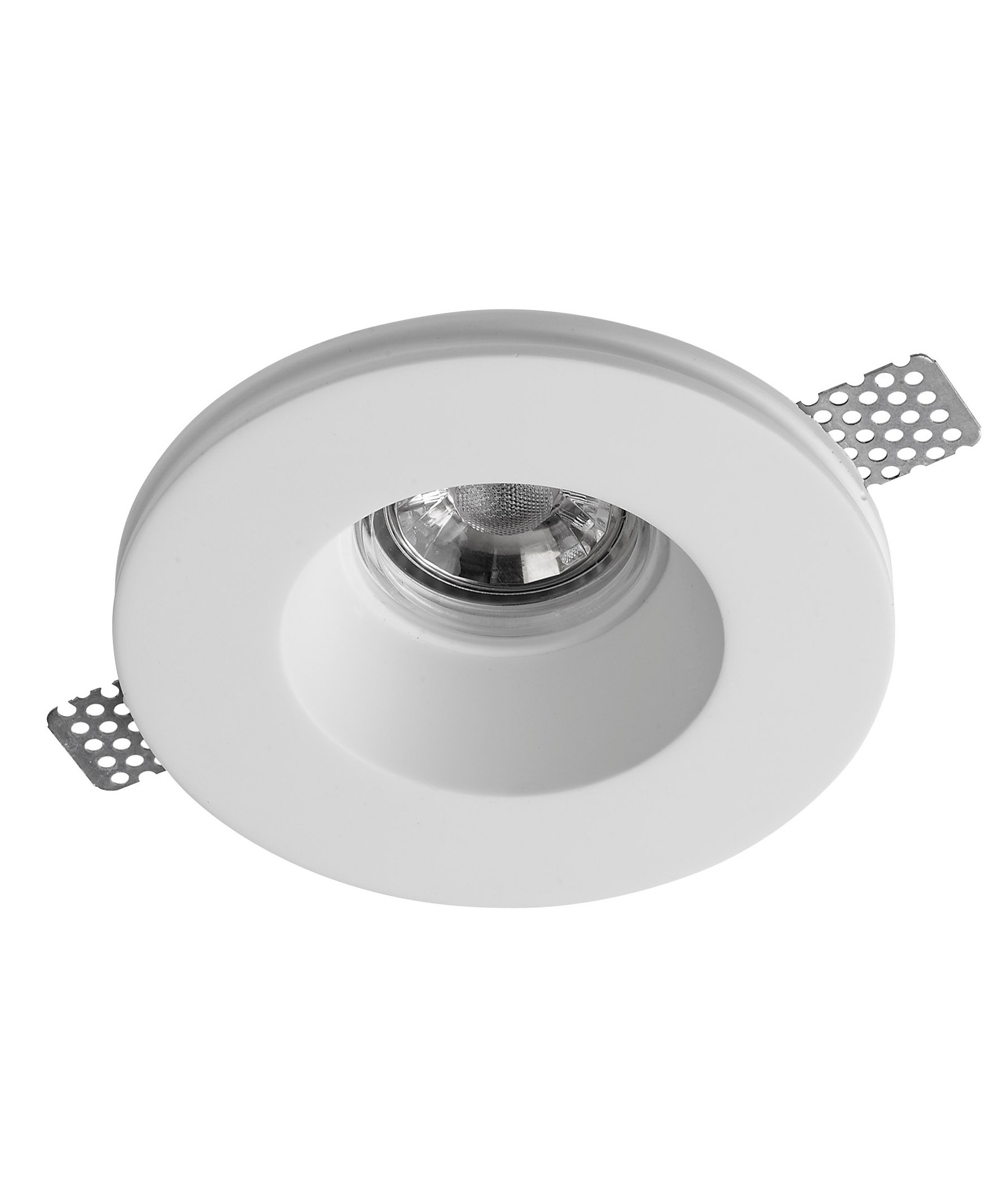

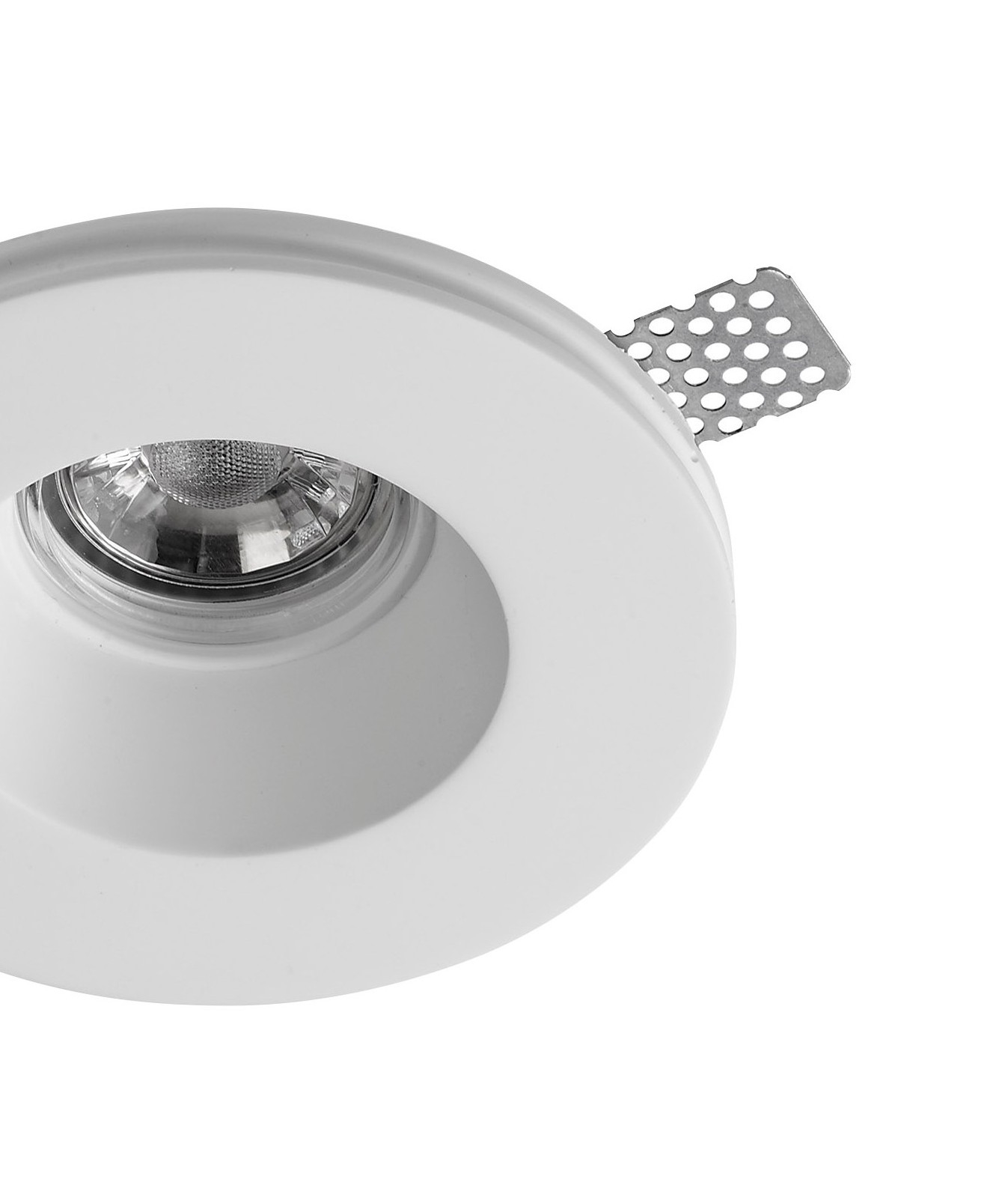

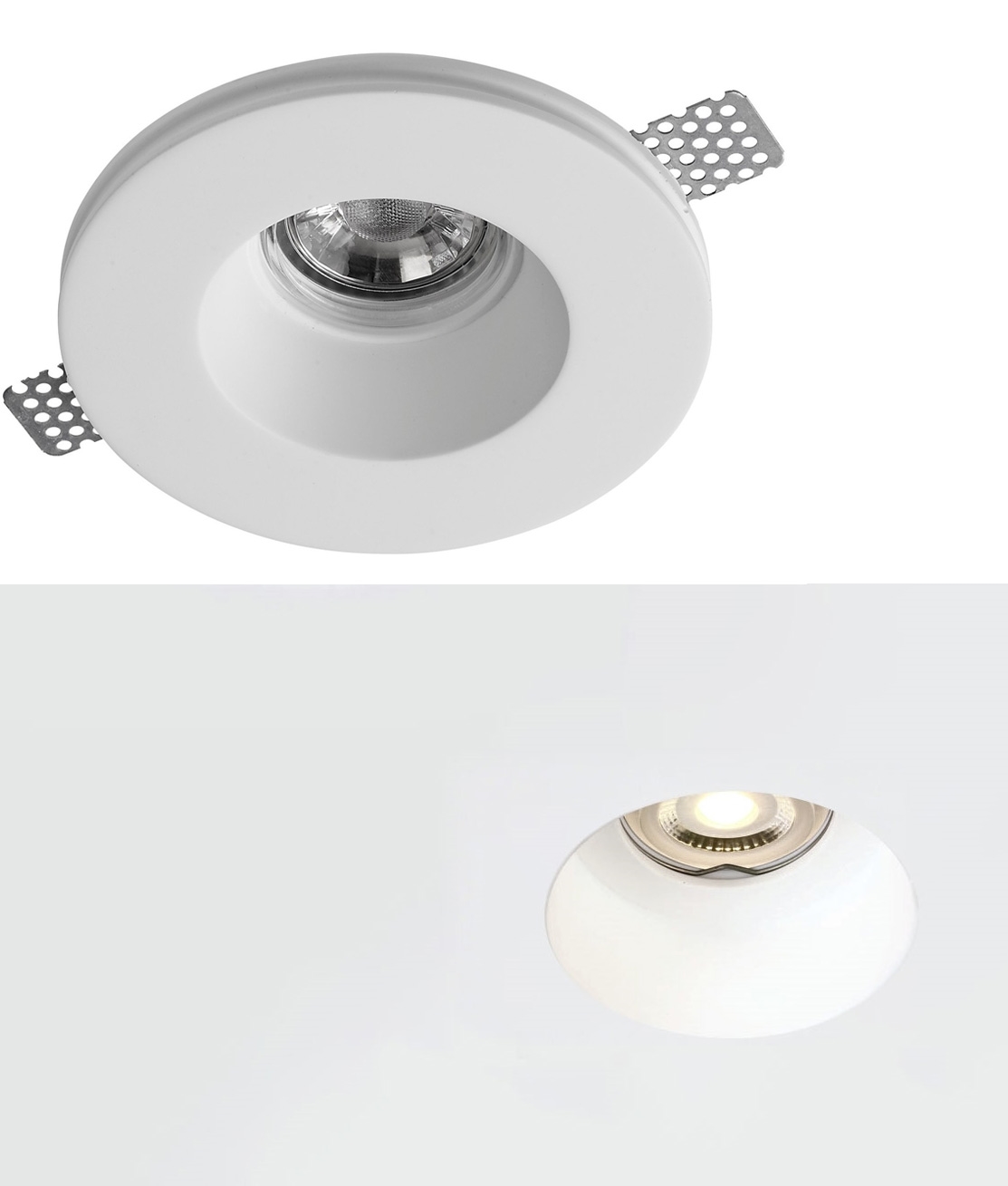

These low glare fixed gypsum plaster-in recessed downlights are for use with mains GU10 base lamps, either halogen or LED.

Often described as baffle downlights, as the lamp is positioned higher than the ceiling line to reduce discomforting glare.

For longer lamp life and energy efficiency, we would recommend using the LED lamp which can be purchased in standard or dimmable options.

These downlights create a modern, low profile style lighting effect and are very popular in the modern home.

This downlight is designed for use in 12.5mm single sheet plasterboard ceilings.

Installation is easy for first-time users and contractors:

  1. Put on some clean gloves!
  2. Wire in the mains supply and pull the lamp holder through the fixture so it can be accessed after installation
  3. Cut a round hole, angle the fixture and insert into the ceiling
  4. Lower the fixture and the lugs sit on top of the plasterboard
  5. While holding the fixture down put two screws through the plasterboard  through the lugs and fix in place
  6. Plaster or fill the gap, allow this to dry
  7. When dry insert lamp and position spring clip to retain the lamp.
  8. Paint the ceiling and surround.
  9. Stand back and admire your work.

Lamps are not included giving you the freedom to choose the type of bulb you would like to use.

Cut-out Diameter:
130mm
Overall Diameter:
130mm
Number Of Lamps1
Lamp TypeGU10 Base Mains Lamps
Lamps IncludedNo
Max Wattage35w
Diameter130mm
Depth/Projection45mm
Suggested Void Depth180mm
Cut-Out Diameter130mm
ConstructionPlaster
Wiring DetailsClass 2 - Double Insulated - Requires no Earth Connection
IP RatingIP20
Availability: IN STOCK 2-3 working day dispatch
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
JGGPVIGO
Low-Glare Trimless Plaster-In Recessed Downlight
£16.85
£14.04 exc VAT
