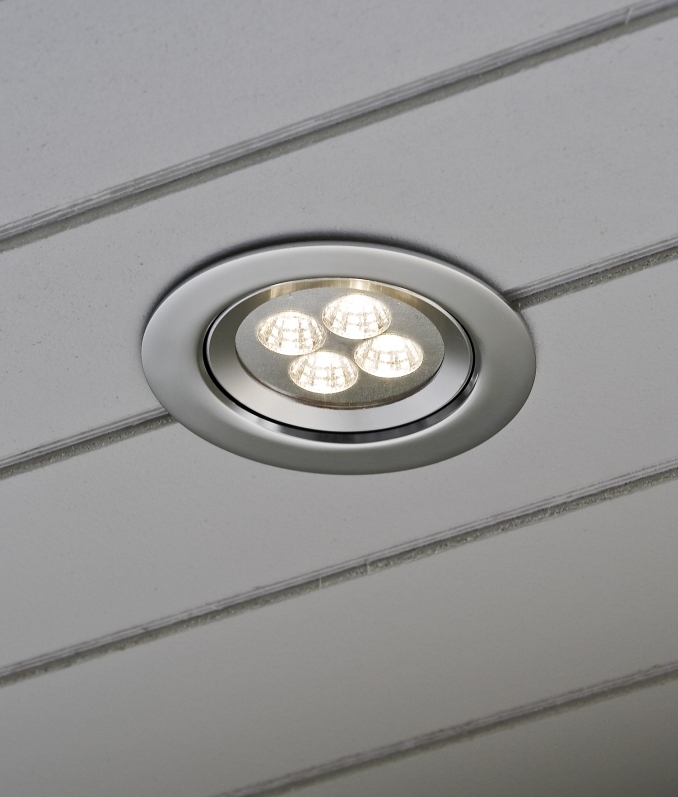

A versatile recessed spotlight for use outside. Simple yet stylish with modern looks.

With a wide 85° beam angle this works extremely well as recessed soffit downlight.

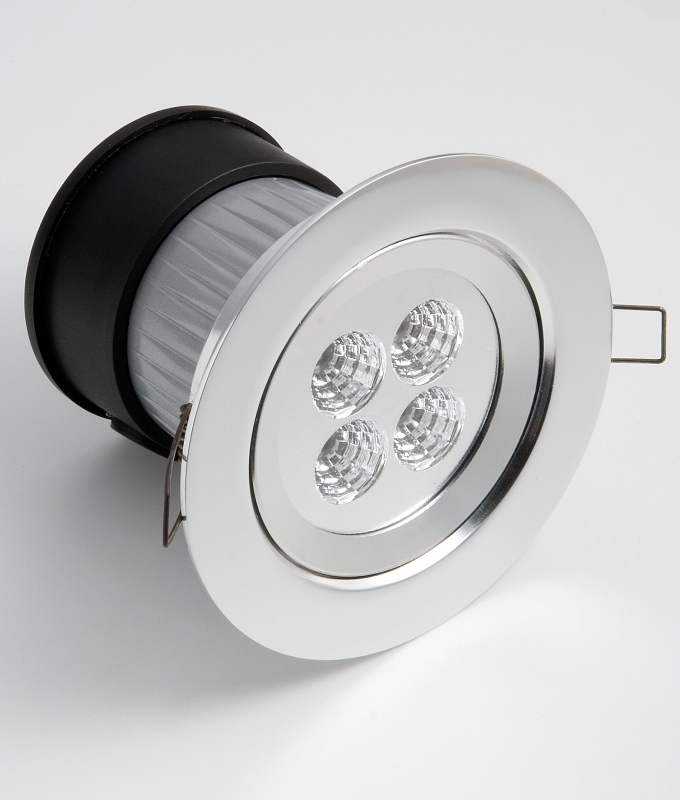

The housing is hard anodised aluminum, with an aluminium heatsink and four 1 watt LED chips giving 280 lumens of crisp white light (3500°k)

The built-in LED has an average lamp life of 30,000 hours.

IP44 rated provides protection from sprayed water from any direction.

Cut out 100mm. Suggested void depth 100mm.

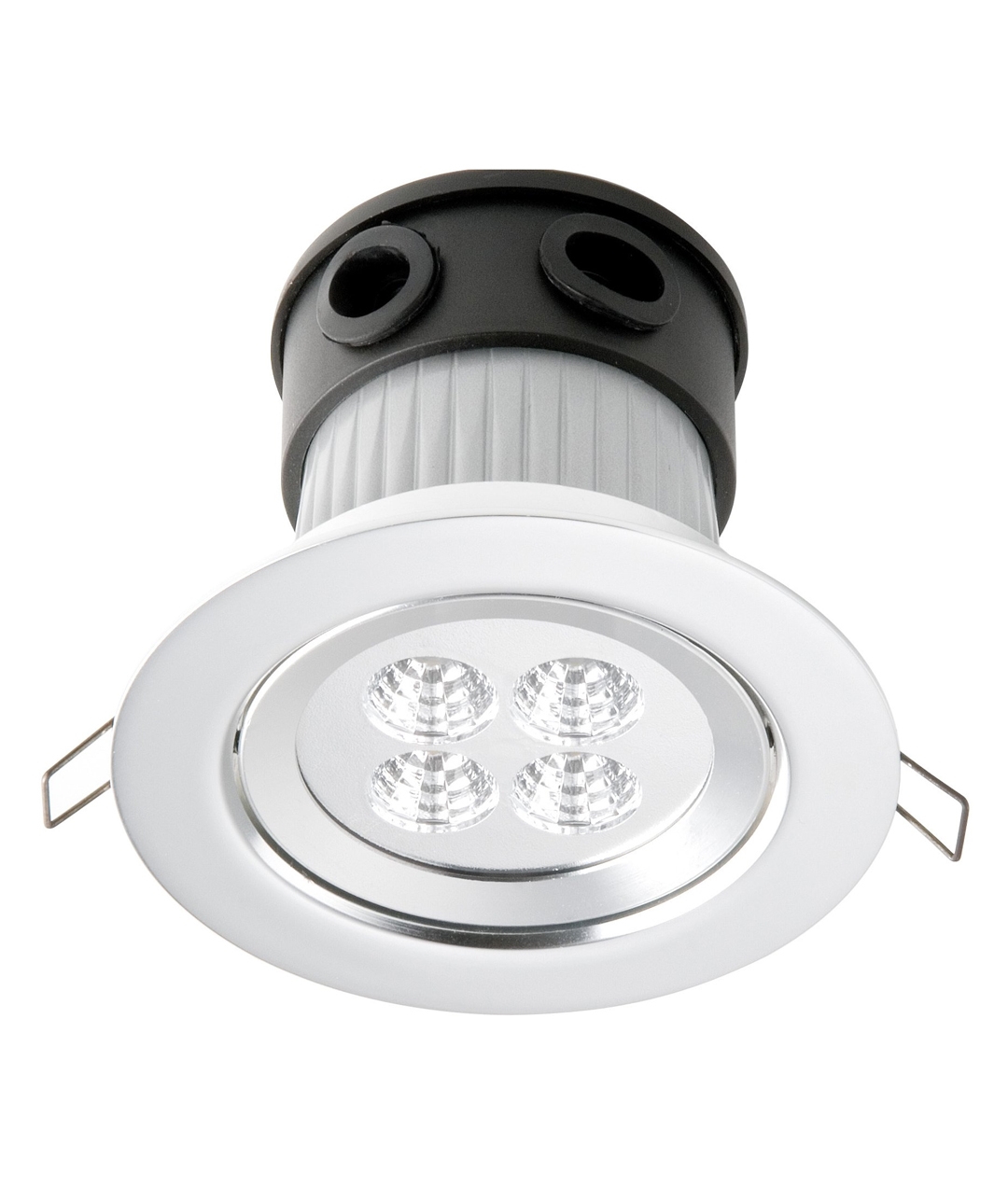

Top cap feature loop-in-loop-out wiring capability.

You can buy a cheaper product, but the quality of this product is exceptional.

View more items from this supplier

Number Of Lamps	1
Lamp Type	Long Life LED light source
Lamp Lumens	280
Lamps Included	Yes
Dimmable?	No
Max Wattage	4w
Width	125mm
Length	125mm
Height	100mm
Diameter	125mm
Depth/Projection	100mm
Cut-Out Diameter	100mm
Construction	Metal & Glass
Wiring Details	Class 1 - Requires an Earth Connection
IP Rating	IP44
Kelvin	3500°K - Neutral White
Driver	Includes integral driver/transformer suitable for 230 - 240v supply

Could you tell me if this fitting is suitable for installation in a wooden material? Also, can you tell me if it is fire-rated and if so to what duration?
This product is F rated (suitable for installation into normally flammable materials). It is not however fire rated.

I want to install these, but want them linked to a PIR so when I drive out the driveway the lights come on.
These can be wired to any of our external PIR so when you drive out the lights would come on.

Is the price stated for one?
Yes, The price on the website is for one fitting.

Can a sensor be used with these down lights?
Yes, A sensor/ PIR can be used with these lights.

Can this be used with a dimmer switch?
This particular fitting is non-dimmable.

My soffit is only 3" wide what is the width of the lights please?
The overall width is 125mm.

What spacing would you recommend for these as soffit lighting in a downstairs extension to a patio area?
This is based on personal preference, but we would say no more than 1 metre part.

Does these soffit LED give off a cool white light?
Yes, the colour temperature is 3500k.
