Mains IP65 Round Frosted Glass Downlight - 3 Finishes

Name: Mains IP65 Round Frosted Glass Downlight - 3 Finishes
Brand: Lighting Styles
SKU: 1210
Price: 29.99 GBP
Availability: InStock
Rating: 9.2 (4 reviews)

Great for Bathrooms and Soffit Lighting

Suitable for Zone 1 - protected from water jets

Class 2 – This fitting is double insulated and does not require an earth.

Yes, this product is dimmable - See the specifications tab for more details

Product Ref: 1210

£29.99 inc VAT

Description

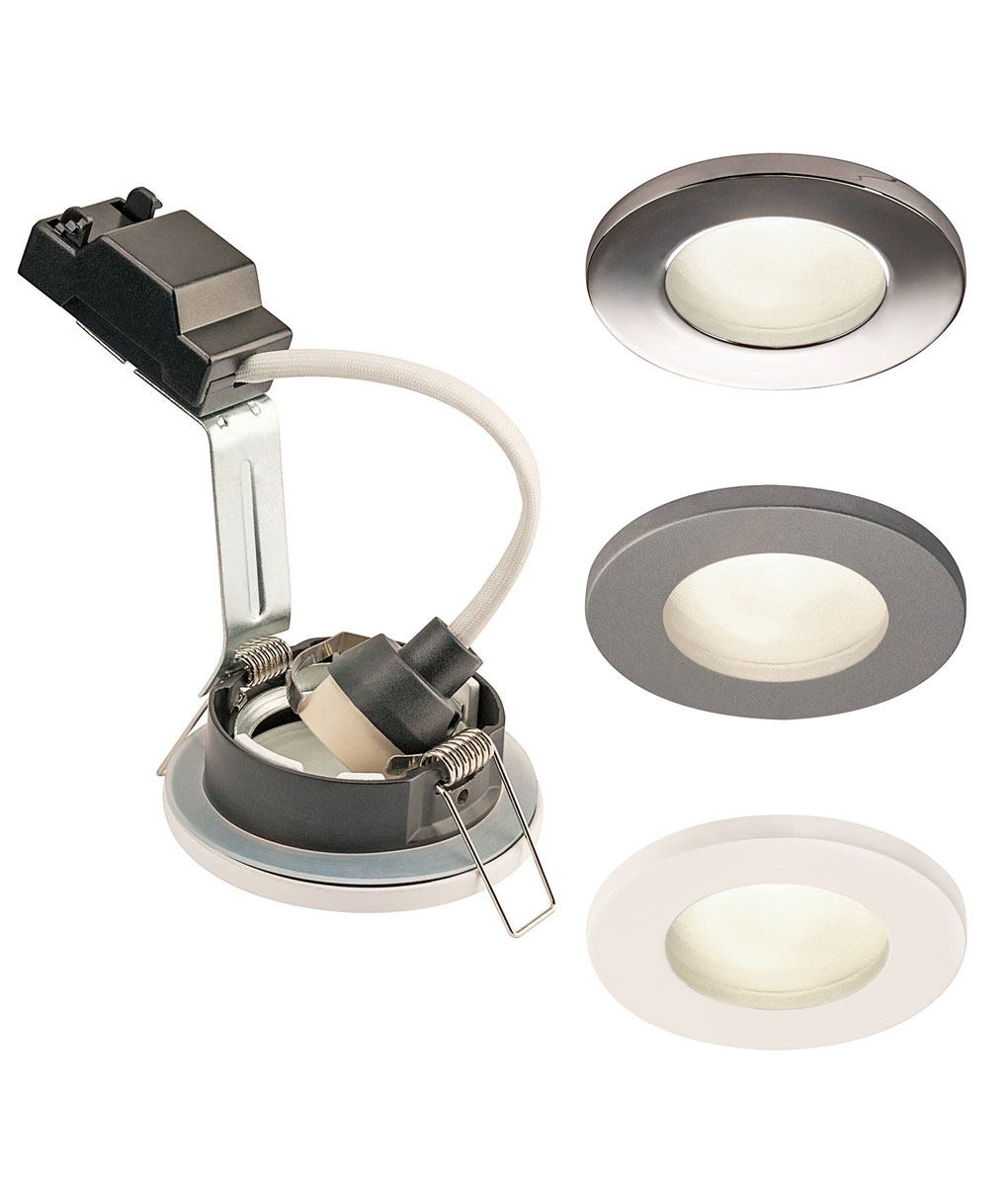

Two piece solid construction aluminium round downlight with an IP65 rating with frosted lamp glass. Ideal for the bathroom or as soffit lighting due to the high IP rating.

You will get a slightly softer diffused light from this IP65 downlight because the front glass is acid etched and the lamp above this. The housing is a two-piece construction and the outer component with retaining clips stays in place when the fixture is removed for lamp replacement.

No tools are required to change the lamp, Designed for GU10 lamps up to 50W.

A diagram and instruction sheet can be found in the specification tab.

Available in white, chrome and grey.

Specification

Number Of Lamps	1
Lamp Type	GU10 Base Mains Lamps
Lamps Included	No
Dimmable?	Yes - when used with a dimmable lamp (bulb)
Max Wattage	50w
Diameter	82mm
Depth/Projection	110mm
Suggested Void Depth	130mm
Cut-Out Diameter	68mm
Construction	Aluminium and Glass
Wiring Details	Class 2 - Double Insulated - Requires no Earth Connection
IP Rating	IP65
PDF Document(s)	Diagram Instructions

Bulbs

	Pro HD GU10 LED Lamp Neutral white 520 Lumens - FOX05961
	Pro HD GU10 LED Lamp Daylight White 520 Lumens - FOX05962
	Pro HD Dimmable GU10 LED Lamp Neutral White 520 Lumens - FOX05964
	Pro HD Dimmable GU10 LED Lamp Daylight White 520 Lumens - FOX05965
	Pro HD GU10 LED Lamp Warm White 520 Lumens - FOX05960
	Pro HD Dimmable GU10 LED Lamp Warm White 520 Lumens - FOX05963
Click here to choose your bulbs

Frequently Asked Questions

can I put a low volt led light in these fittings ?
In theory you can put an LED in this fitting. The transformer to power the fitting has a minimum load of 20 watts though and therefore you need to hit at least 20 watts.

Is it really easy to remove the casing to change the bulb?
Yes the silver bezel and glass unscrew to reveal the lamp for easy lamp change.

What is the total depth of this downlight?
The installation depth for this fitting is 130mm.

Is IP65 Soffit Downlight - 12v Silver Grey Zone 1 compliant? (bathroom)
Yes. Zone 1 requires an IP rating of 44 minimum, this fitting is in fact IP65 rated.

What is the exact size of the bezel diameter?
The bezel diameter is 80mm.

Can you give me any idea of the spread of light from these, as an indication of how far apart to position them?
The spread of light you get from a fitting like this is dependent upon the beam angle of the lamp that you install in it. The typical beam angle for an MR16 lamp is 38º however we often supply soffit kits with 60º wide angle lamps. Using a little bit of Pythagoras you can work out that a 60º lamp mounted at 4 metres is going to cover an area of 6 metres at ground level (if the lamp is powerful enough to reach the ground!). Realistically we would generally suggest placing these fittings every 2-3 metres, especially as they have a frosted diffuser.

Availability: Typically dispatched in 4-7 days
