Slimline 25mm Linkable LED Strip Light - Easily Installed in and under Kitchen Cabinets

Warm White Linear LED Lighting for Kitchen Cabinets, Shelves or Niches

  • Linkable Lighting Solution
Offers no protection from splashed or sprayed waterClass 3 - This fitting is low voltage and will require a transformer or driver.Yes, this product is dimmable - See the specifications tab for more detailsNo driver or transformer is supplied with this fixture (sold separately)

3000°K - Warm White

3000°K - Warm White

Product Ref: 51864

From £17.50 inc VAT

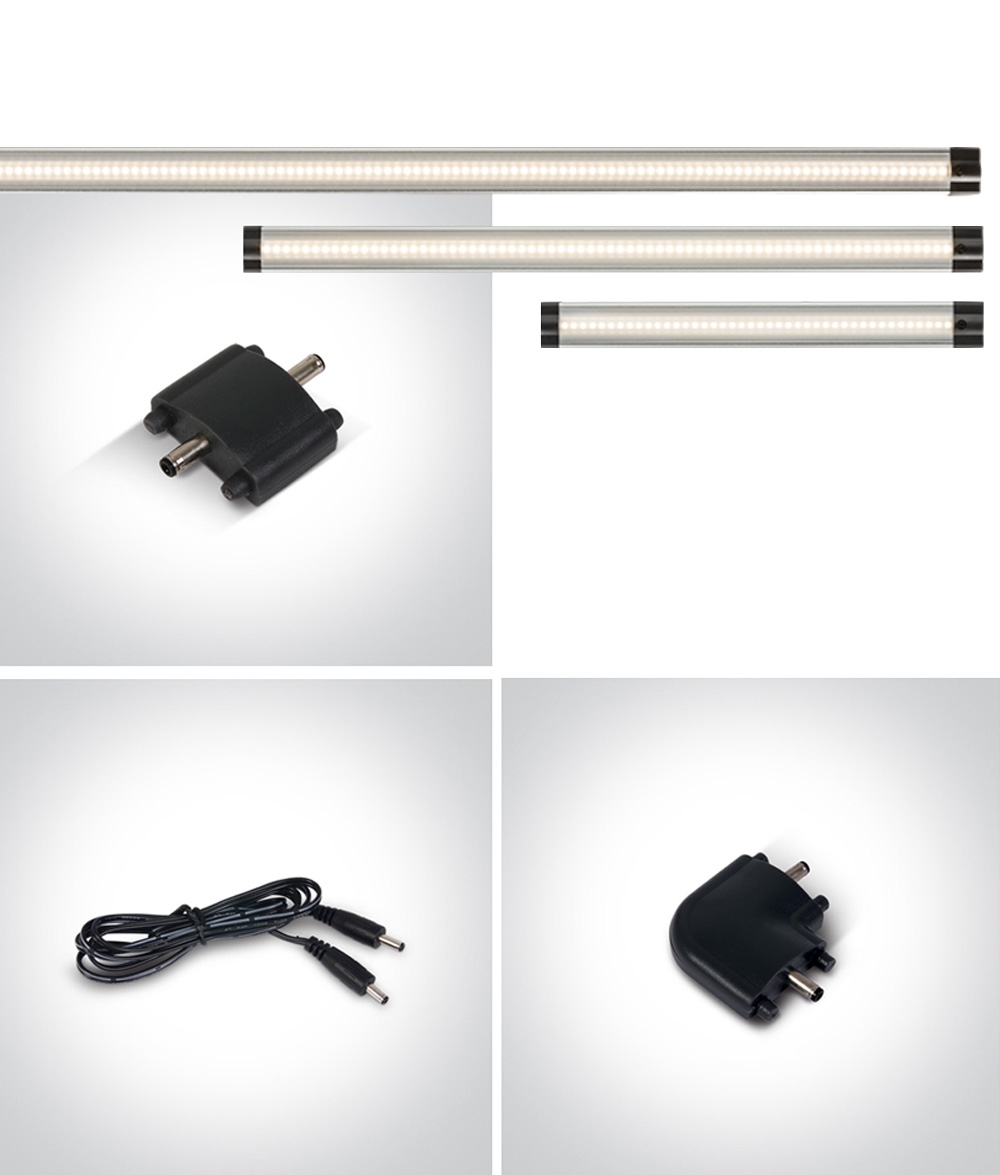

A great stylish choice for providing stylish lighting under kitchen cabinets. Anodised aluminium extrusion with polycarbonate clear cover in fixed lengths that allow for easy through wiring.

These lights have a DC jack socket connector at each end. So they can be individually connected or through wired - using a single drop to provide power for all lights; whether straight, around a corner or either side of a cooker hood or extractor fan.

All LED lengths come complete with spring steel mounting clips (2 on the shorter lengths and 3 on the longer).

At one end you may choose to use a localised switch to avoid having to go to a wall switch...

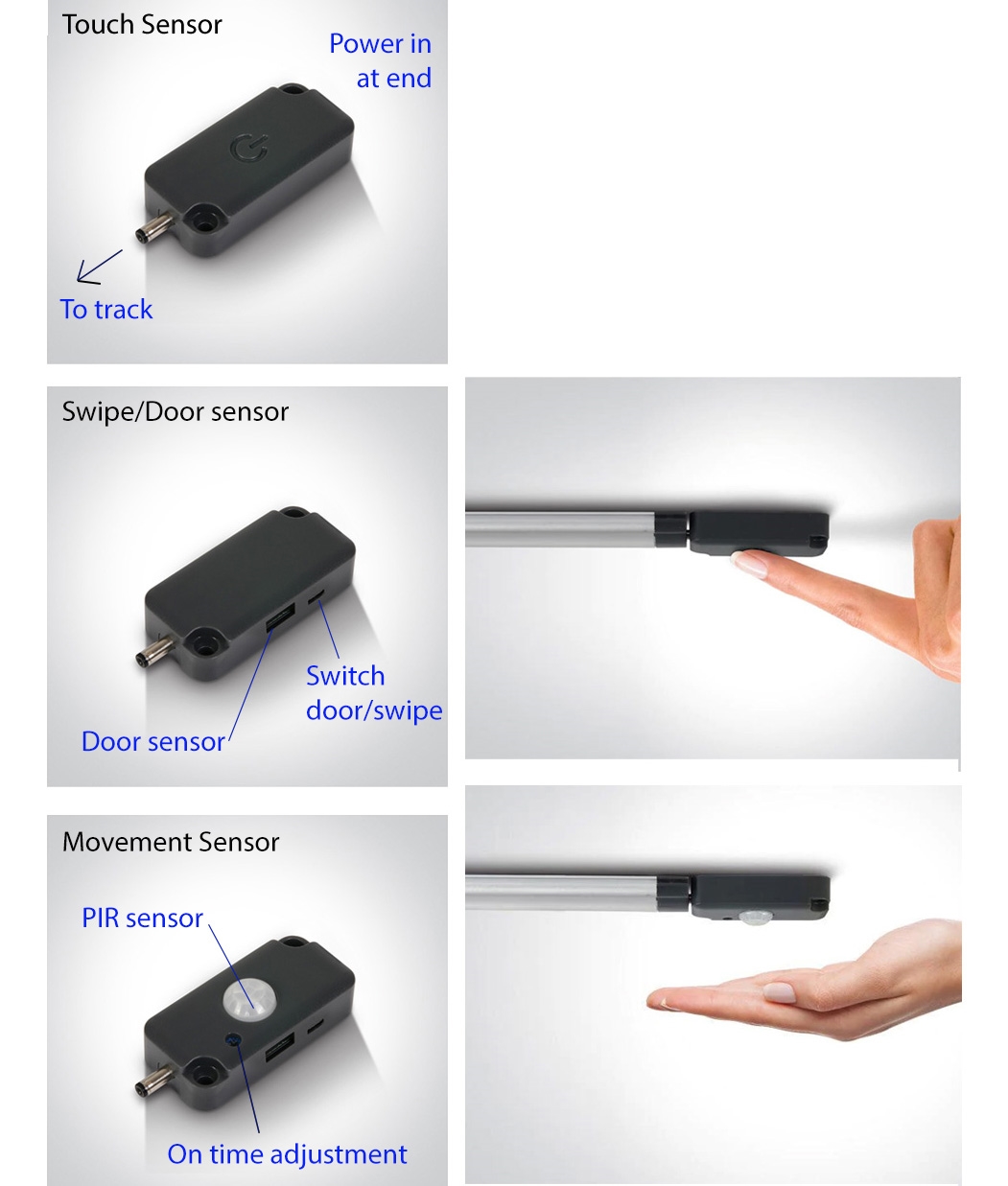

  • Touch On/Off and Dimmer - touch the button to switch the lights on or off. Hold your finger to adjust the intensity of the light.
  • Wave Hand & Door Sensor - swipe your hand within a few inches of the sensor to turn the lights on or off. Can also be used as a door operated sensor in cupboards.
  • PIR sensor - detects movement and switches the light on for a period. Move away and the lights switch themselves off.

3014 SMD High-definition LEDs are used that give a warm white light 3000°k.

This discreet fitting is great for a more contemporary kitchen design.

A nice neat option with a width of only 25mm and a depth of 9mm

Sizes/Output

300mm - 3 watts, 225 lumens

500mm - 5 watts, 375 lumens

1000mm - 10 watts, 750 lumens

To power a single or multiple length of this LED product use a CY38101C lead, cut the end off and connect to a 24v DC constant voltage power supply.

If you wish to dim this light via a standard wall dimming please choose a dimmable driver.

Availability: 6-10 working day dispatch
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
Aluminium LED Shelf Lights - with Diffuser & Clips
CY38103
300mm LED Shelf Light
£17.50
£14.58 exc VAT
CY38105
500mm LED Shelf Light
£23.70
£19.75 exc VAT
CY38110
1000mm LED Shelf Light
£41.30
£34.42 exc VAT
Sensors & Switches
CY38102A
Touch - On Off & Hold To Dim
£17.50
£14.58 exc VAT
CY38102B
Wave - Hand or Door Operation
£17.50
£14.58 exc VAT
CY38102C
PIR - Movement Sensor
£17.50
£14.58 exc VAT
Connection Components
CY38101A
Rigid Straight Connector
£5.10
£4.25 exc VAT
Cy38101B
Rigid Corner Connector
£5.10
£4.25 exc VAT
CY38101C
1000mm Lead & Extension Cable
£5.10
£4.25 exc VAT
This product requires a driver or transformer - Suitable items can be found below
JGDRV12D30WTB
Dimmable 30 watt 12 Volt Constant Voltage LED Driver
£46.80
£39.00 exc VAT
ML24VDCA
24V 12W LED Constant Voltage Driver
£26.75
£22.29 exc VAT
SAM79682
20w 24v Constant Voltage Driver
£20.40
£17.00 exc VAT
ANGTAG24V30W
30W 24V LED Driver with Terminal Block - Non-Dimmable
£33.00
£27.50 exc VAT
SAM79332
Dimmable 25W 24V LED Driver IP20
£35.00
£29.17 exc VAT
SAM79333
Dimmable 50W 24V LED Driver IP20
£48.90
£40.75 exc VAT
