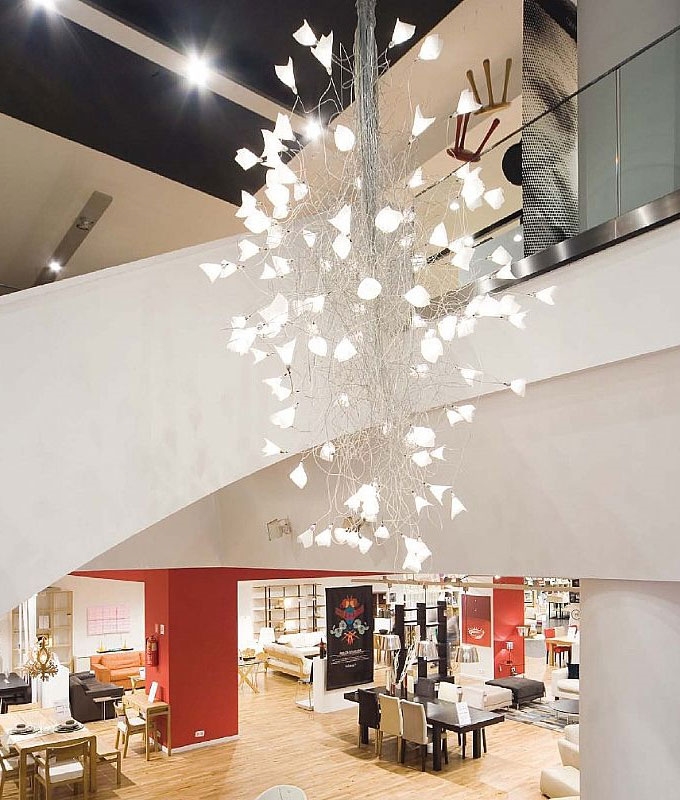

Jogg Chandelier for Large Spaces

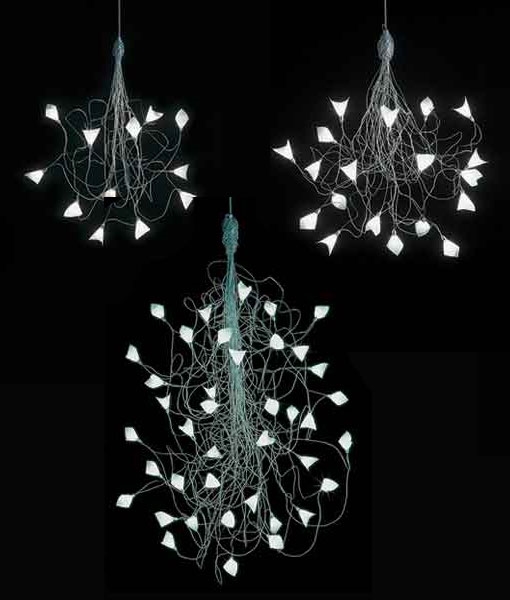

Sizes 30, 40 and 60 Arm Halogen Light Versions

Offers no protection from splashed or sprayed waterClass 1 – This fitting will require an earth connection.Bulbs IncludedIncludes integral driver/transformer suitable for 230 - 240v supply

Product Ref: 1236

From £895.00 inc VAT

Classic Jogg chandeliers, malleable and ductile steel with polycarb film shades.  We often hold these fittings in stock but please call to check availability if you require a fitting urgently.

The original design from Switzerland uses a malleable or ductile steel wire to support a light with a diffuser polycarbonate film. By twisting or scrunching the shape of the wire the resulting shape is formed to suit your mood. If your mood changes simply change the position of the wires to suit your needs. These elegant chandeliers have a ceiling mounted fixing plate that houses a wire wound transformer so all it requires is a mains supply.

Dimming is possible but only with good quality dimmer suited for inductive loads preferably with hard firing technology.This ceiling mounted fitting comes complete with high temperature white polycarbonate that surround miniature 5 watt 12v halogen lamps.

The length of the 1500mm suspension cables can be reduced as required to suit lower ceilings but these large fixtures are not designed for average height ceilings. Equally we can supply longer suspensions - please contact us with your requirements.

If you wish to use this style of light in smaller spaces see the smaller version at the bottom of the page.

This light tries to be copied but this is the original superior light as first sold by Habitat.  A great chandelier that can be adjusted to fit your space by moulding and moving the arms.

Dimensions & Sizes:

Ceiling rose dimensions (same for all sizes) diameter: 230mm

30 Light Jogg Pendant
Suspension from rose to top of light fitting: 1500mm
Depth excluding suspension: 1200mm
Total drop 2700mm
Diameter approx: 1000mm
Weight: 5.5 kgs

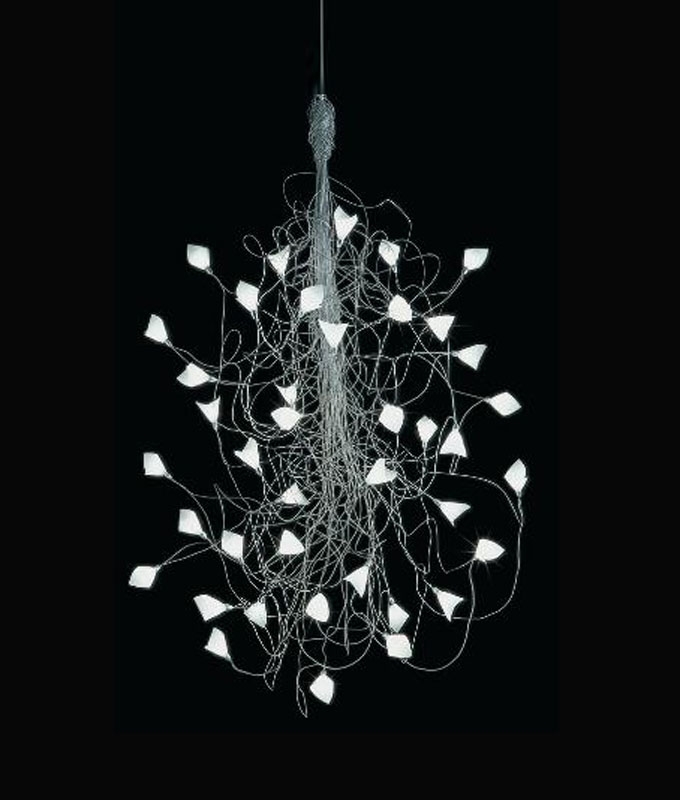

40 Light Jogg Pendant
Suspension from rose to top of light fitting: 1500mm
Drop of light excl suspension 1600mm
Total drop 3100mm
Diameter approx 1200mm
Weight: 7.2 Kgs

60 Light Jogg Pendant
Suspension from rose to top of light fitting 1500mm
Drop of light excl suspension 2000mm
Total drop 3500mm
Diameter approx 1300mm
Weight: 13 Kgs

We also sell replacement shades, please contact us if you require a price and availability.

Lamp TypeG4 - 12v Halogen Capsule
Part L Compliant LuminaireNo
Lamps IncludedYes
Max Wattage5w
Suspension1500mm
ConstructionMixed
Wiring DetailsClass 1 - Requires an Earth Connection
IP RatingIP20
DriverIncludes integral driver/transformer suitable for 230 - 240v supply
PDF Document(s)View PDF

Is the driver mains dimmable?
The 12v power supply is dimmable and we can offer assistance on selecting a suitable dimmer module.

I am interested in the 30 light Jogg chandelier. Would our electrician able to alter the height of the cable to the light?
The length of the 1500mm suspension cables can be reduced as required to suit lower ceilings by your electrician.

Can you use LED lamps instead?
The Jogg Chandelier has a built in transformer and using LED lamps would alter the load and you would risk not reaching the minimum load and so we would not recommend it.

What is the weight of these fittings please.
The 30 Light model is 5.5kg, the 40 light is 7.2kg and the 60 light is 13kg.

I have a hall which is double height and this lamp looks ideal, however, it is impossible to change bulbs without erecting scaffolding. Is there any way the light could have some sort of pulley system to lower it to ground level to clean and change bulbs etc?
We would suggest using good quality lamps and using a dimmer. This means the lamps avoid the shock of an inrush current which means they will last longer. Chandelier hoists are available bit many have to be positioned below the ceiling and are quite ugly. those that can be installed in the ceiling void are okay but cost start at around £1,500.

I have one of the jogg pendants, regretfully the transformer has burnt out, as I have two of these I really don`t want to replace them both. Is it possible to get a replacement transformer?
Yes. Contact us with your details and let us know the model and age.

I`ve had my jogg up for about six years now and the heat and dust means the shades aren`t white any more. I love the fixture can I get replacement shades?
Yes we can supply spare shades - while replacing these it`s always best to change the lamps too for that extra sparkle. Call us for more information.

Could you tell me the diameter of length of the Jogg 40arm pendant?
Being a product that is shaped by your own artistic flair, the diameter is dependant on the way in which the arms are twisted. On average a little over a metre tends to look about right.

Availability: IN STOCK immediate dispatch
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
ASO253070300
Jogg 30 Light Modern Chandelier
£895.00
£745.83 exc VAT
ASO253070400
Jogg 40 Light Modern Chandelier
£1,395.00
£1,162.50 exc VAT
ASO253070600
Jogg 60 Light Modern Chandelier
£1,780.00
£1,483.33 exc VAT
ASO3119251101000
Jogg Spare Shade
£8.00
£6.67 exc VAT
