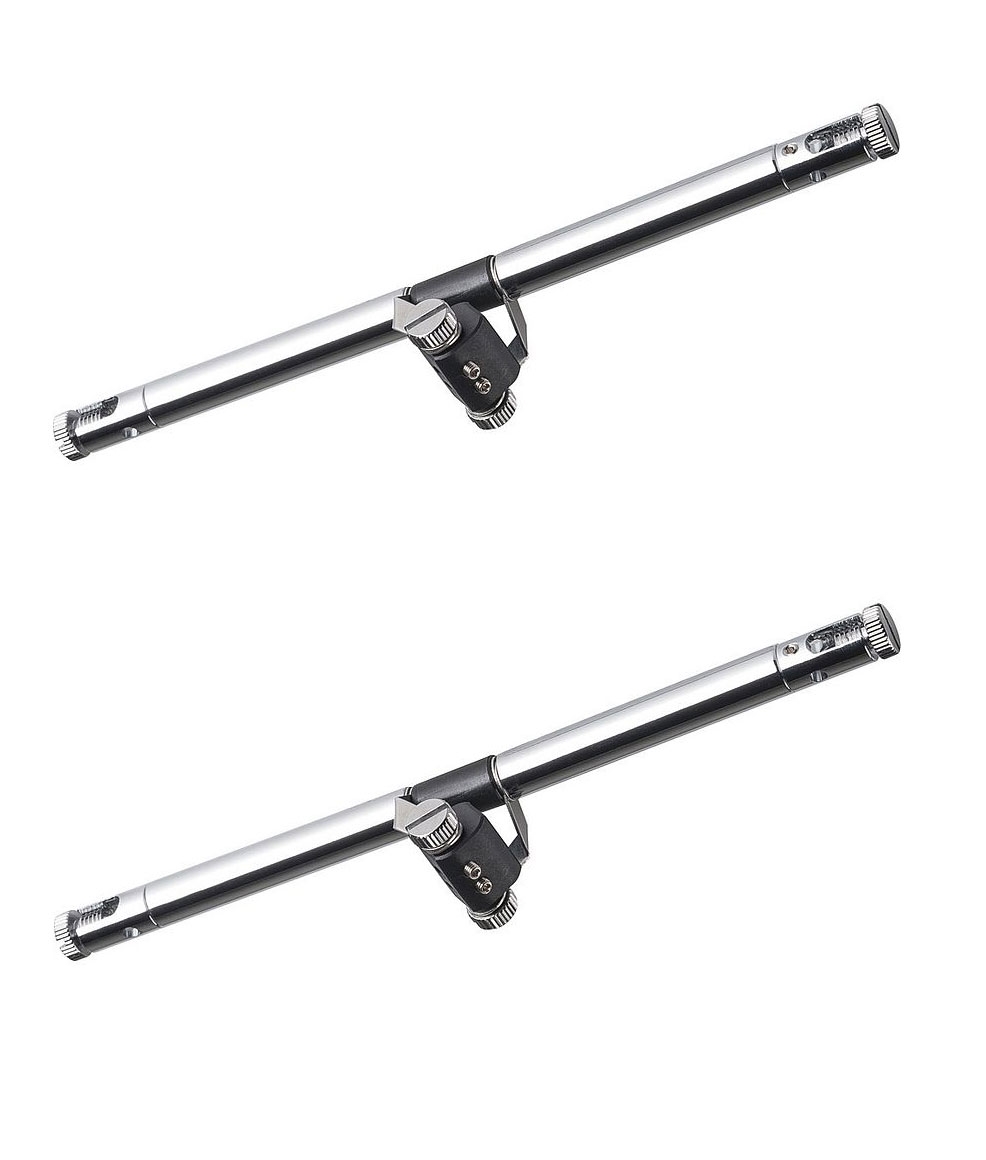

These simple stripped-back spotlights consist of a solid bar that holds an adjustable lamp holder. A knurled nut at each end pierces the outer insulation of the tension wire system and makes electrical contact.

These spotlights are sold in pairs and come without a lamp. This means you are free to choose a lamp that suits your needs and budget.

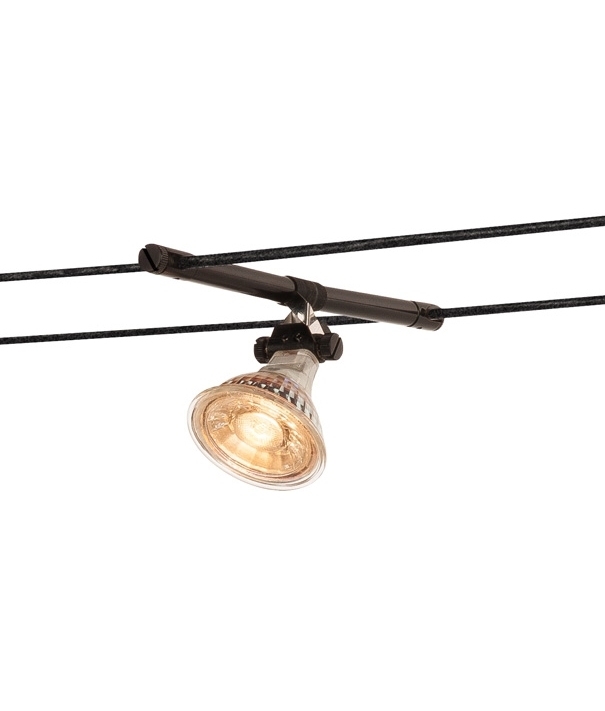

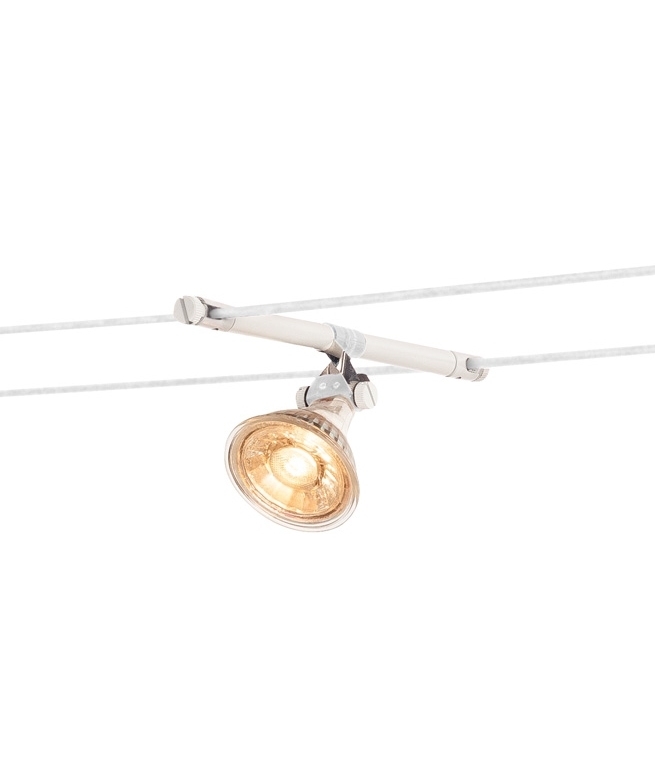

Offered here in polished chrome and two powder coated polyester paint colours.

Offers 90º tilt in the vertical allowing you to direct light where you need it when you need it.

Designed for use with 12v halogen reflector lamps (MR16) up to 35 watts. 12v LED lamps with a GU5.3 lamp base may also be used.

The cables under tension should be spaced at around 150mm centres for this fitting.

Track Compatibility
	Aesthetic Domestic Track System
	Basic Mains Track
	Ceiling Mounted 3 Circuit Track Lighting
	Elegant Mains Lighting Track - Black
	Low Voltage Tension Wire Track Lights
	Signature Recessed Track System
	Signature Single Circuit Track System
	Track for Suspending Pendants

Number Of Lamps	1
Lamp Type	MR16 - 12v
Lamps Included	No
Dimmable?	Yes - when using the specified equipment
Max Wattage	35w
Total Wattage	35w
Width	182mm
Height	30mm
Depth/Projection	31mm
Construction	Steel
Wiring Details	Class 3 - Requires a low voltage supply
Driver	No driver or transformer is supplied with this fixture (sold separately)

Please can you advise which bulbs best suit tension wire fittings. I looked at list but still not sure. I know M16 but not sure on wattage as I will be needing 8 fitting and same number of bulbs.
MR16 is the generic term for Metal Reflector 16 (eights of an inch = 50mm). I would use the best LED MR16 lamp, that provides the widest beam angle and highest colour rendering. The wide beam angle is more important when the installation is in a lower ceiling and matters less when mounted 3.0m or higher. As it happens THIS would be perfect.

How long are the wires in this kit?
There are no wires supplied, This is just for the fitting. If you need help please call us.

Can these be fitted to an existing wire light system that we have i.e. are the spotlights universal?
So long as your cables under tension are at around 150mm centres then yes it will work.

What is the ideal cable spacing for the light fitting?
The exact cable spacing is 155mm, but it'll be okay to have some variation to this size.

Are these "spots" suitable for use with LED lamps as well as halogen, and are they supplied complete with the lamps?
These fittings can use Halogen or LED MR16 lamps up to 35 watts. They are supplied without lamps.

	MR16 Osram 5W LED - in Very Warm White RAD4008597195211
	MR16 Radium Super Bright 50w 10º narrow spot RAD22312459
	MR16 Radium Super Bright 50w 24º spot RAD22312460
	MR16 Radium Super Bright 50w 36º wide spot RAD22312461
	MR16 Radium Mega 35w 10º Spot 4000hr - Dichroic Lamp RAD46865SP
	MR16 Radium Mega 35w 24º 4000hr - Dichroic Lamp RAD46865FL
Click here to choose your bulbs

Simple Adjustable Spotlights for Tension Wire System - Twin Pack

Available in chrome, black and white
