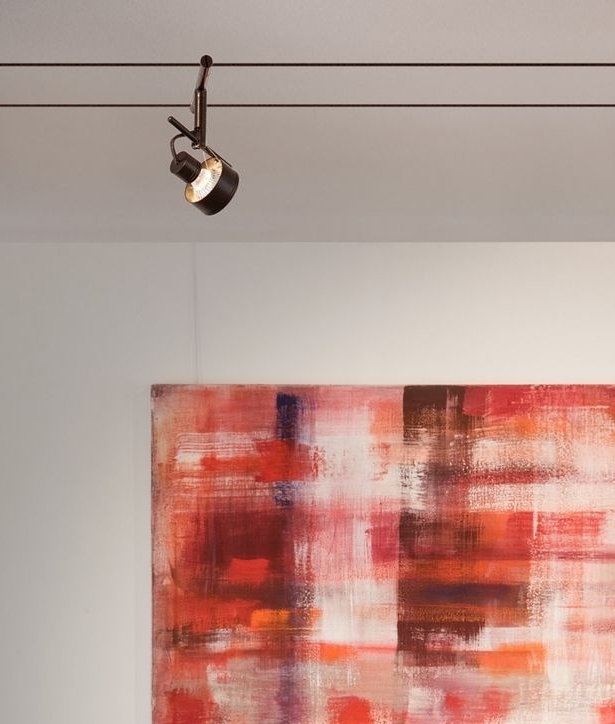

A two-part adjustable spotlight for use on tension wire lighting system. The front of the lamp sits in a baffle that reduces both 'rim spill' and glare, making this great for domestic environments and equally good for lighting artwork.

Thermally tested for extended use with halogen lamps up to 50 watts, but also accommodates most if not all Gx5.3 base 12 volt LED lamp (including those with a longer body)

Offered here in polished chrome and black or white polyester paint finishes.

Adjustable, Offers 350º rotation and 90º tilt. This allows you to direct the light exactly where you need and require it.

The distance between the cables under tension should be around 155mm centres for this fitting.

Designed for MR16 low voltage lamps up to 50w, contact us if you need assistance on lamps, wattages and beam angles.

Track Compatibility
	Aesthetic Domestic Track System
	Basic Mains Track
	Commercial-Grade 3-Circuit Track Lighting System
	Low Voltage Tension Wire Components
	Luxury Magnetic Light Track 48v
	Signature Recessed Track System
	Signature Single Circuit Track System
	Track for Suspending Pendants

Number Of Lamps	1
Lamp Type	MR16 - 12v
Part L Compliant Luminaire	No
Lamps Included	No
Dimmable?	Yes - when using the specified equipment
Max Wattage	35w
Total Wattage	35w
Width	180mm
Height	125mm
Diameter	55mm
Construction	Steel
Wiring Details	Class 3 - Requires a low voltage supply
Driver	No driver or transformer is supplied with this fixture (sold separately)

How close together should these lamps be positioned, please?
The two wires under tension should around 155mm centres. If you are asking how close should the spots be, that is called commissioning and you, just like a lighting designer, are free to play around, with spacing to suit the object you wish to illuminate and the distance the lighting is from that object or space.

Is it possible to add hanging pendants to the suggested tension wire tracking ....if the 4 spotlights are not enough? Am I able to add ANY pendant?
Product ref 51703 allows you to add a pendant, but the weight of the pendant must not exceed 0.5kg.

What IP rating is this spot?
This tension wire spot head is IP20.

Would these fittings take LED lamps?
Yes the 12v Philips perfect fit lamp will work on this system. But be sure to match the load to the minimum load of the transformer - call us if unsure.

I have exisitng, installed tension wire lighting but would like to replace the lights with WIM181080. Could you advise if all these systems are the same width in terms of the distance between each of the wires?
Systems may vary in width. This fitting is made for systems with wires spaced by 115mm.

	MR16 6w Warm White LED Retro Fit Lamp 420 Lumens - FOX05525
	MR16 6w Cool White LED Retro Fit Lamp 420 Lumens - FOX05526
	MR16 6w Daylight White LED Retro Fit Lamp 420 Lumens - FOX05527
	MR16 4.9w Osram Warm White Dimmable LED RADMR16DIM353K
	MR16 4.9w Osram Neutral White Dimmable LED RADMR16DIM354K
	MR16 8w Osram Warm White Dimmable LED RADMR16DIM503K
	MR16 8w Osram Neutral White Dimmable LED RADMR16DIM504K
Click here to choose your bulbs

Decorative Adjustable Spotlight for Tension Wire Lighting Systems - 3 Finishes

Chrome, Black or White - Stylish Practicality and Low Glare
