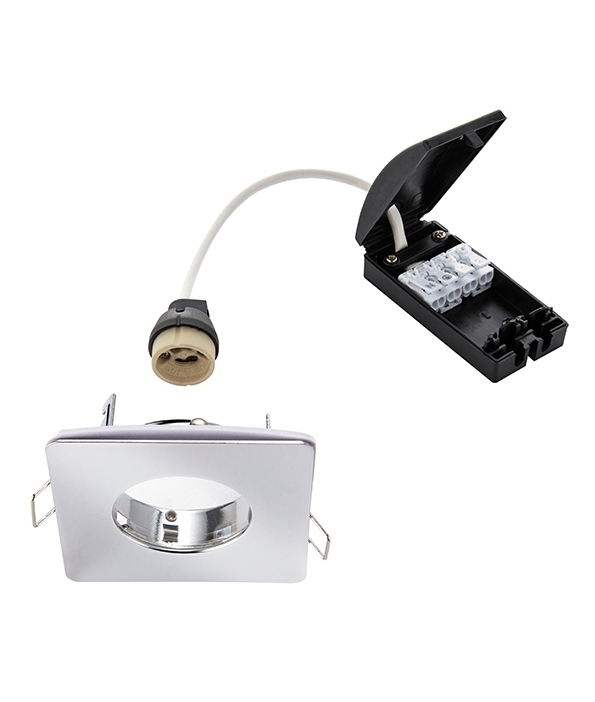

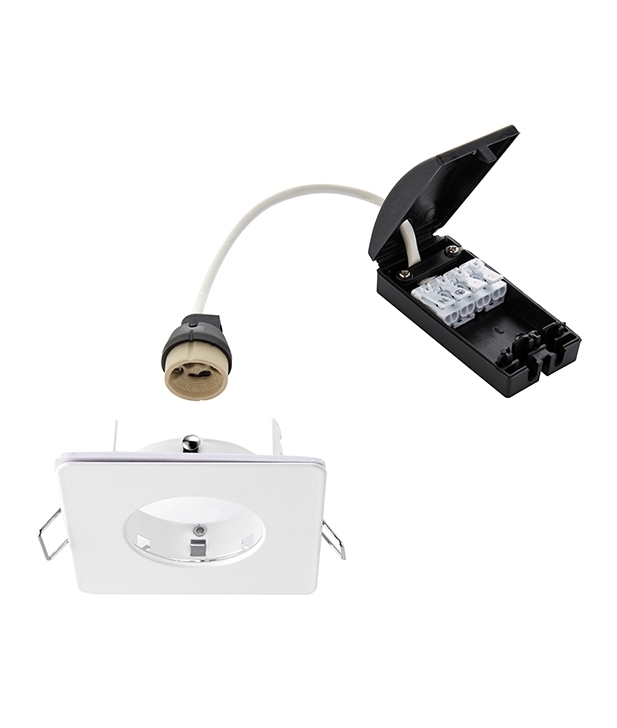

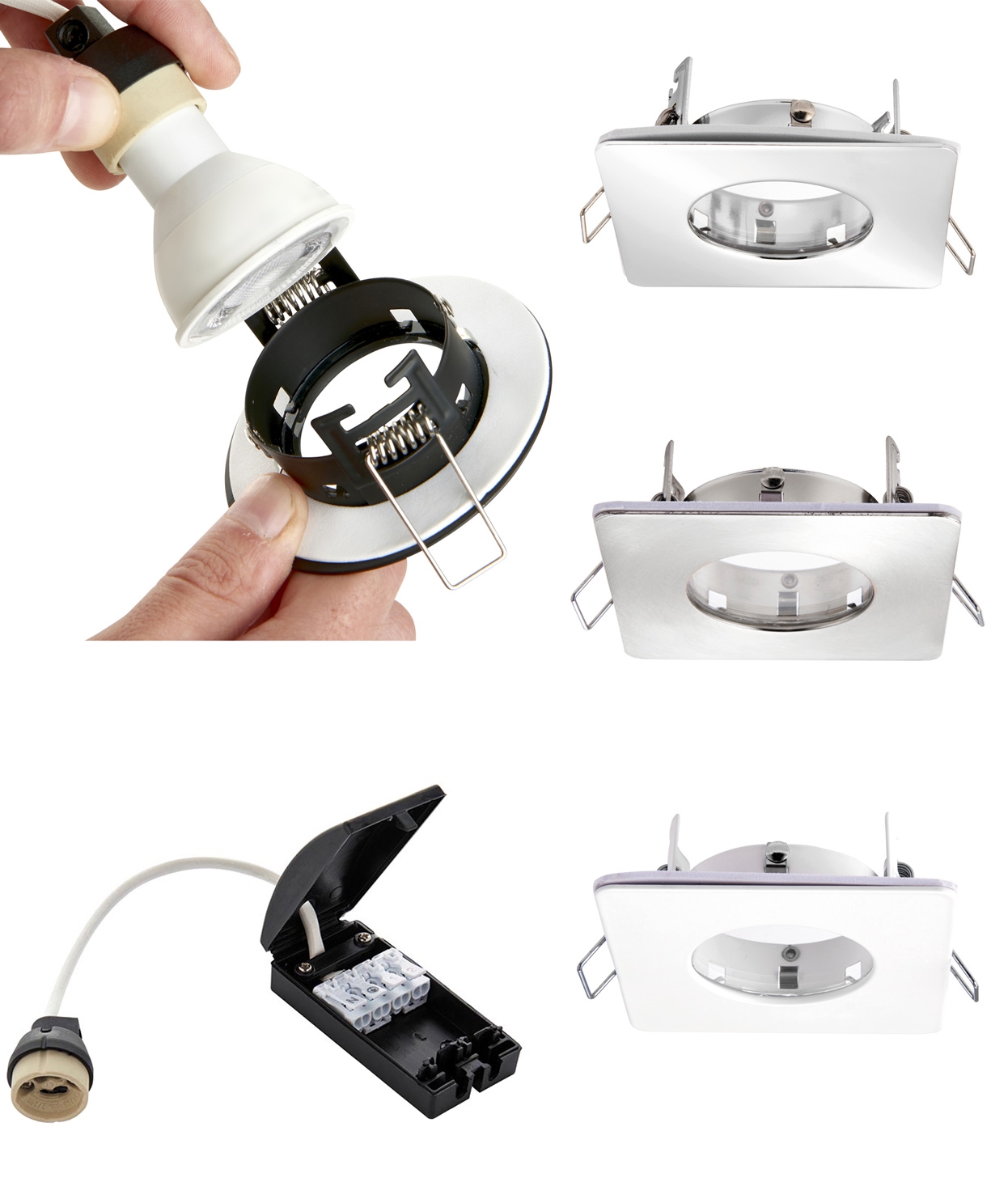

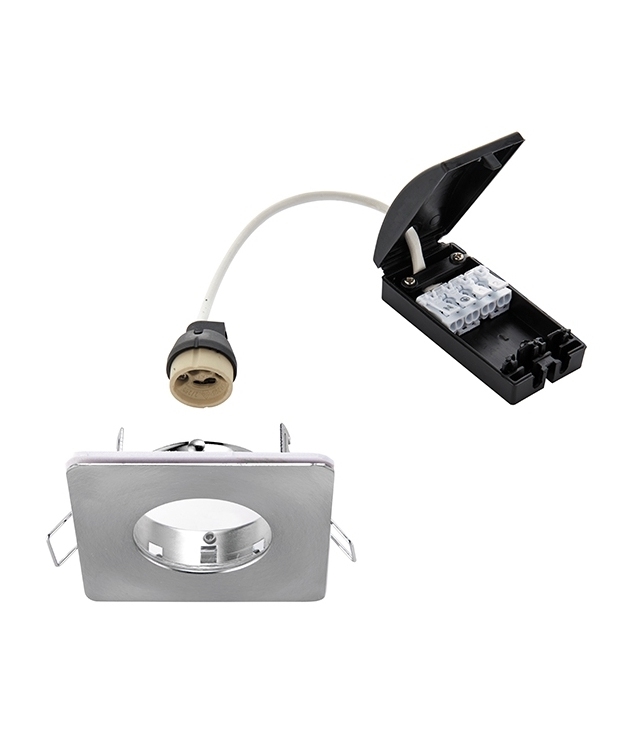

This is a square, IP65 and fire rated downlight. Do not let the low price deter you - this is excellent value for money and the engineering quality is top notch with a choice of chrome, brushed chrome, or white downlight for use with a GU10 lamp.

Suitable for bathroom zone 2 and suitable for bathroom zone 1 if used in conjunction with a 30MA RCD.

Constructed from steel and glass that can withstand high temperatures without the need of a can at the back of the fitting. Fire rated to 30, 60 & 90 minutes.

This fully enclosed wet location downlight is excellent choice for lighting food service areas and where the fitting could be exposed to condensation and splashes of water.

Areas of use include commercial, residential, especially for bathrooms, external canopies and soffits.

Cut out 70mm.

All fittings comes supplied with a double insulated mains GU10 lampholder.

Designed for GU10 base energy saving LED lamps up to 7 watts.

Number Of Lamps	1
Lamp Type	GU10 Base Mains Lamps
Part L Compliant Luminaire	No
Lamps Included	No
Dimmable?	Yes - when used with a dimmable lamp (bulb)
Max Wattage	50w
Width	85mm
Length	85mm
Height	36mm
Suggested Void Depth	100mm
Construction	Steel and Glass
Wiring Details	Class 2 - Double Insulated - Requires no Earth Connection
IP Rating	IP65
PDF Document(s)	SAM80244 Datasheet

Can the bulbs be changed from above?
While possible, the bulb is typically changed from below.

What is the depth with the bulb connected?
Just under 100mm with the lamp holder included.

Can they be fitted outdoors (i.e. under soffit boards, eaves)?
Yes they may, but if you live an area close to the coast the finish will deteriorate quickly.

Can these be wired for dusk to dawn?
Yes - you can use a separate Dusk to Dawn sensor and wire it up to the fitting.

Re the driver question, the spec says dimmable when used with a dimmable LED driver. So if used these fittings with LED GU10 bulbs and want them dimmable, would i need a driver also?
Apologies for the oversight, this fixture uses mains GU10 lamps use dimmable lamps if you wish to dim the light.

Do these require a separate LED driver?
These fixtures use a mains lamp with a GU10 base, so no driver and you can simply swap out the lamps when and if they fail.

Hi, are the white square downlights matt or gloss?
It is matt white.

If my bathroom is 2m x 2m, how many lights would you suggest I need?
For a room that size, with our pro HD lamps, we would recommend using 6 downlights.
