Small Recessed Bathroom Suitable LED Spotlight

Name: Small Recessed Bathroom Suitable LED Spotlight
Brand: Lighting Styles
SKU: 41141
Price: 39.55 GBP
Availability: InStock
Rating: 9.2 (7 reviews)

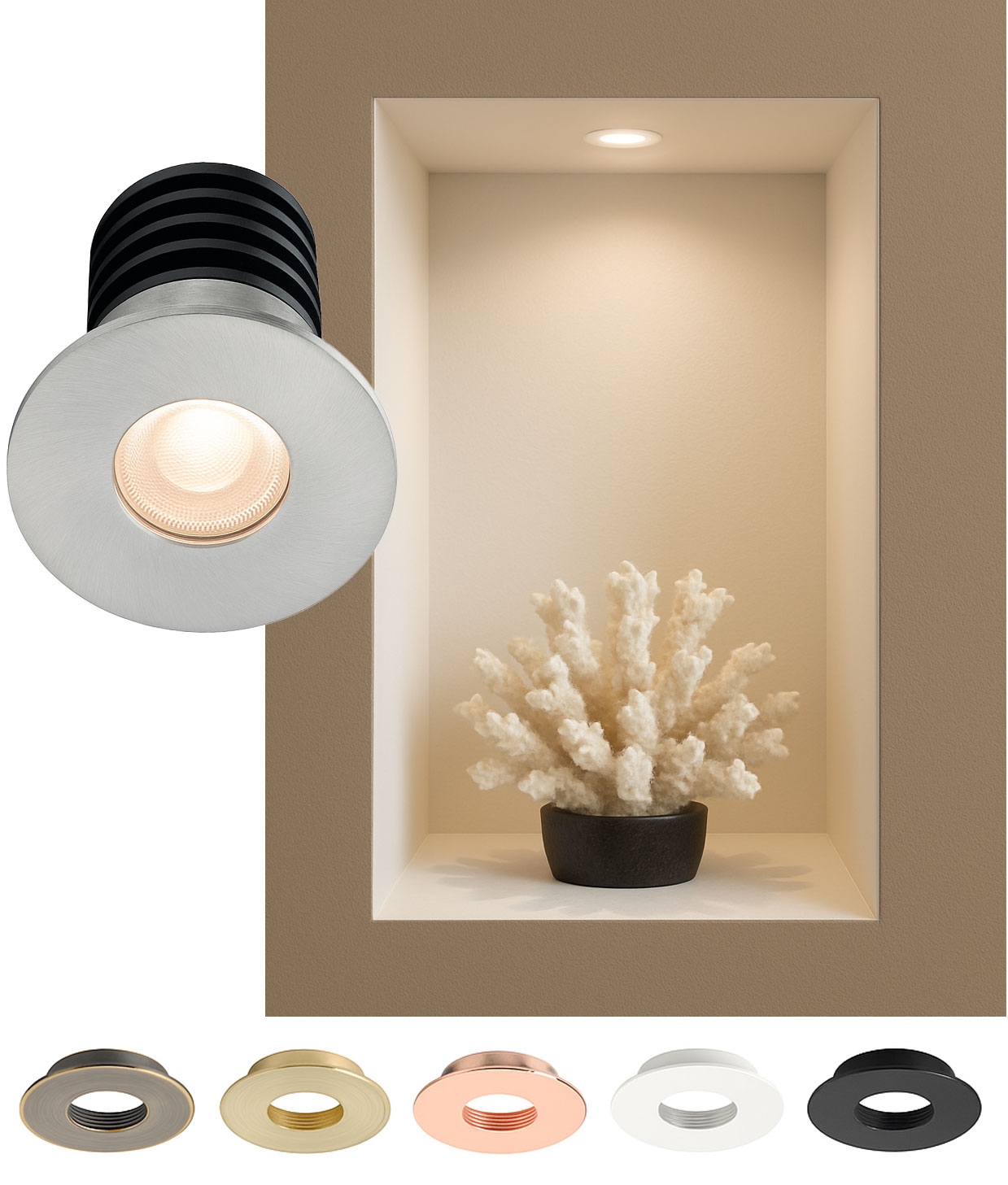

Perfect for Alcoves or Niches

Suitable for Zone 0 - protected against immersion in water

Class 3 - This fitting is low voltage and will require a transformer or driver.

Yes, this product is dimmable - See the specifications tab for more details

No driver or transformer is supplied with this fixture (sold separately)

3000°K - Warm White

Product Ref: 41141

£39.55 inc VAT

Description

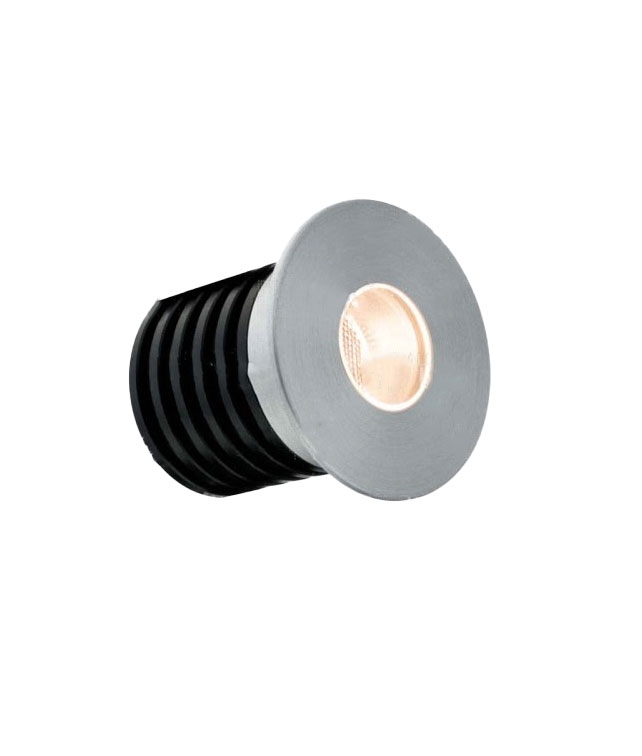

Small and discreet spotlights are ideal for lighting up alcoves and niches'.

These little spots are available in a round or square shape, and either polished chrome or stainless steel.

Versatile in nature this fitting is ideal for placing indoors or outdoors. Whether it be shower areas or path guide lights. These fittings have a 320kg walkover limit, making them safe to use in flooring.

IP67 rated for use in bathrooms or outdoor areas, with protection from water.

Can also be used with as a compact recessed ground light. A ground tube is supplied, Cut out required for the ground tube is 39mm.

Complete with 1 x 3w integral LED, 3000k, 110 lumens and a beam angle of 20º.

Due to their small size, these luminaires do not have space for an integral power supply. These need to be purchased in addition and can be found below.

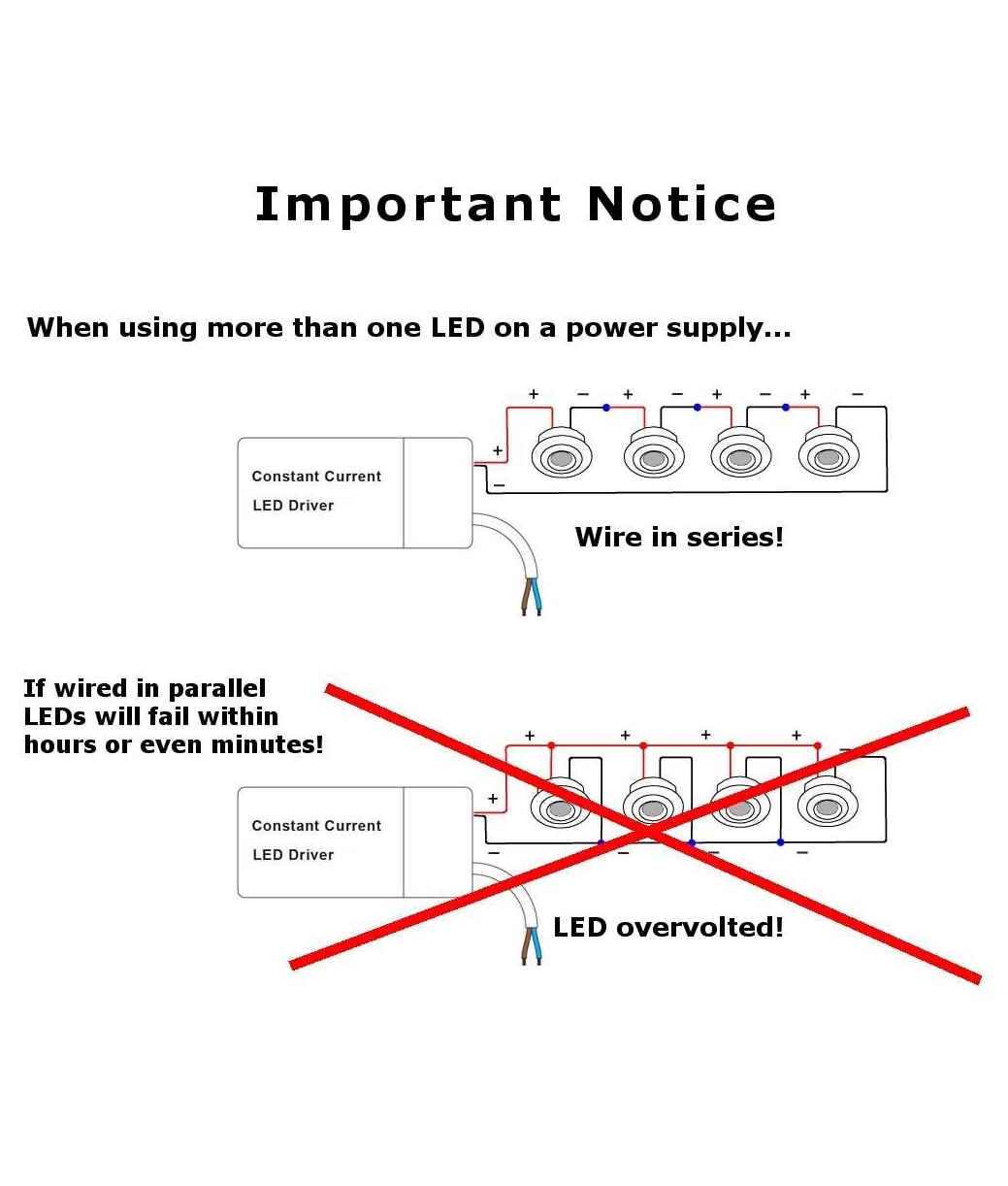

Driver Information:

1 - 3w 700mA Ultra-Compact LED Driver - Suitable for 1 fitting.

6 - 10w 700mA LED Power Supply - Suitable for 2-3 fittings.

Dimmable 1 -10w mA Constant Current Driver - Suitable for 1 to 3 fittings.

Dimmable 27 -36w mA Constant Current Driver - Suitable for 9 to 12 fittings.

Specification

Lamp Type	Long Life LED light source
Lamp Lumens	110
Lamps Included	Yes
Dimmable?	Yes - when using the specified equipment
Max Wattage	3w
Width	40mm
Length	40mm
Diameter	40mm
Suggested Void Depth	55mm
Cut-Out Diameter	36mm
Construction	Aluminium
Wiring Details	Class 3 - Requires a low voltage supply
IP Rating	IP67
Kelvin	3000°K - Warm White
Driver	No driver or transformer is supplied with this fixture (sold separately)

Frequently Asked Questions

is the TSDR7003 driver dimmable?
That driver is not dimmable, for a dimmable driver you would need UAULEDD7010.

Is this product suitable for zone 1 and can it be replaced.
This can be used in zone 1, however it is a non replaceable LED chip.

How many drivers I need for 3 led spotlights for bathroom niche?
These fittings are 3 watt each, and so you can either have 1 fitting on its own separate driver MIK6008001. Should you wish to wire in 2 or more into the same driver you would need MIK6008016.

Could you please let me know the length of the lead supplied with the light?
The cable supplied is 1400mm.
