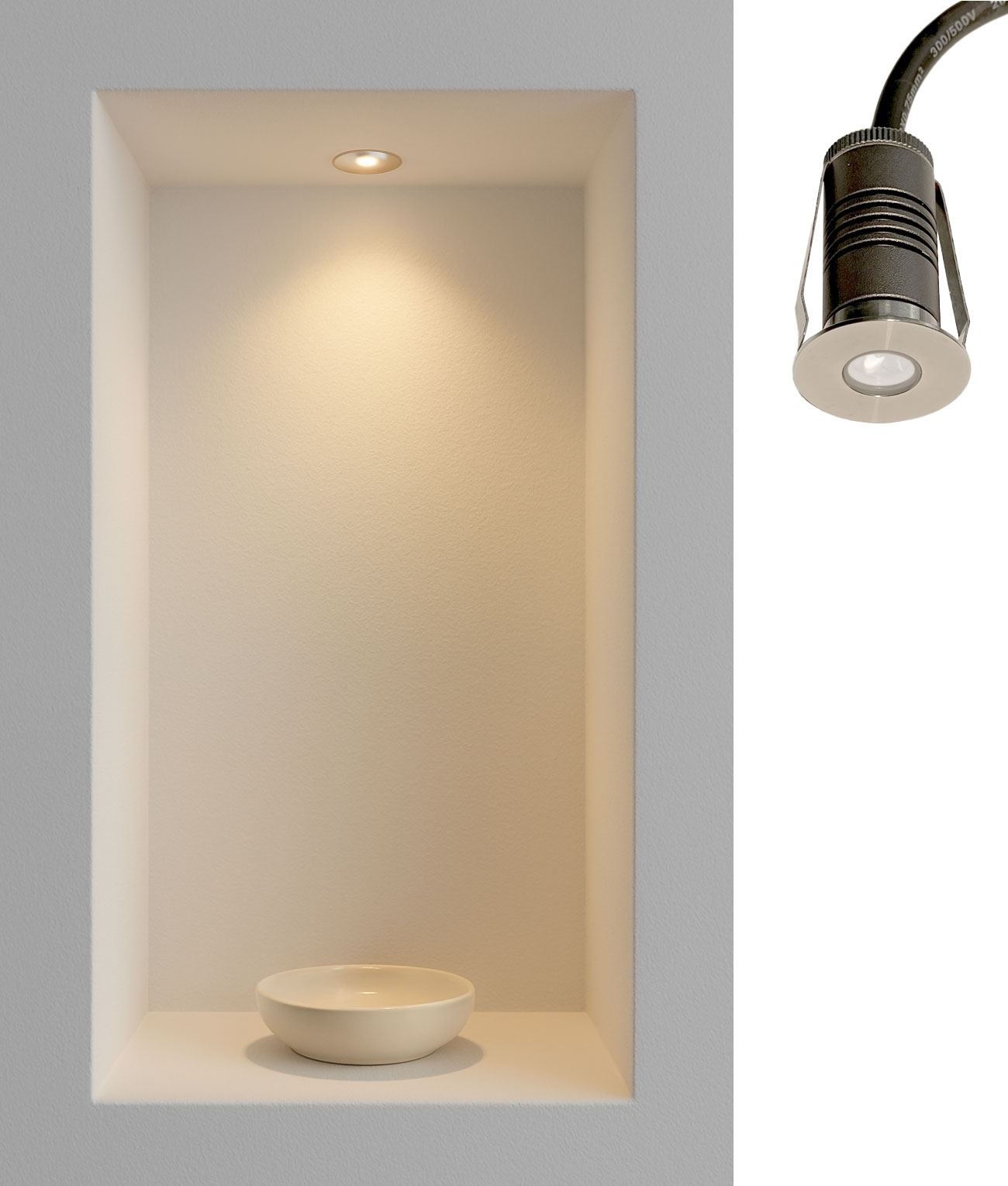

A small and discreet stainless steel niche light is available as a round or square fitting.

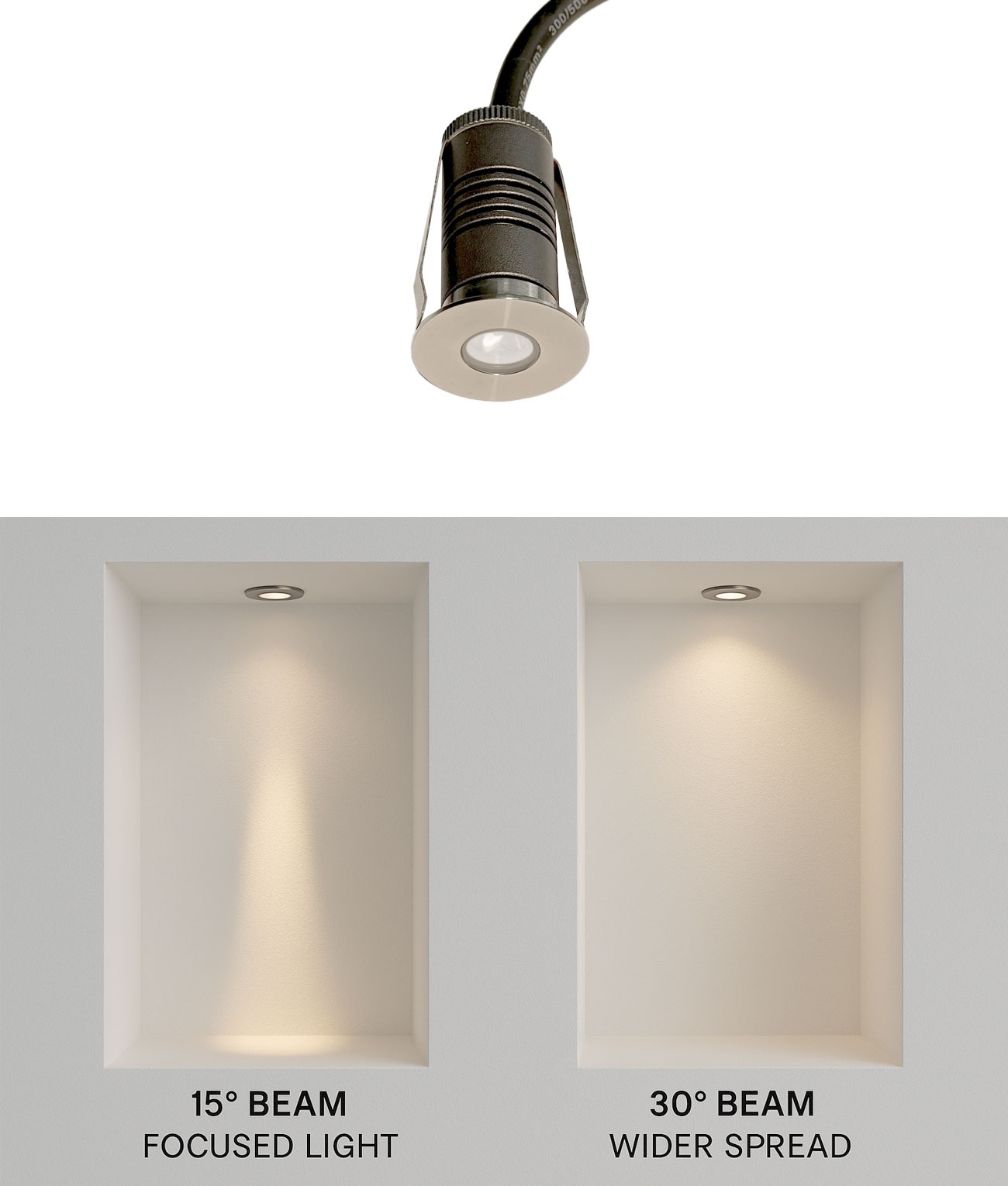

With a choice of beam angles; 15º is ideal for tall niches, or picking out a specific spot directly under the light, whereas the 30º beam gives a wider wash of light.

Versatile in nature this fitting is ideal for placing indoors or outdoors. Whether it be shower areas or path guide lights.

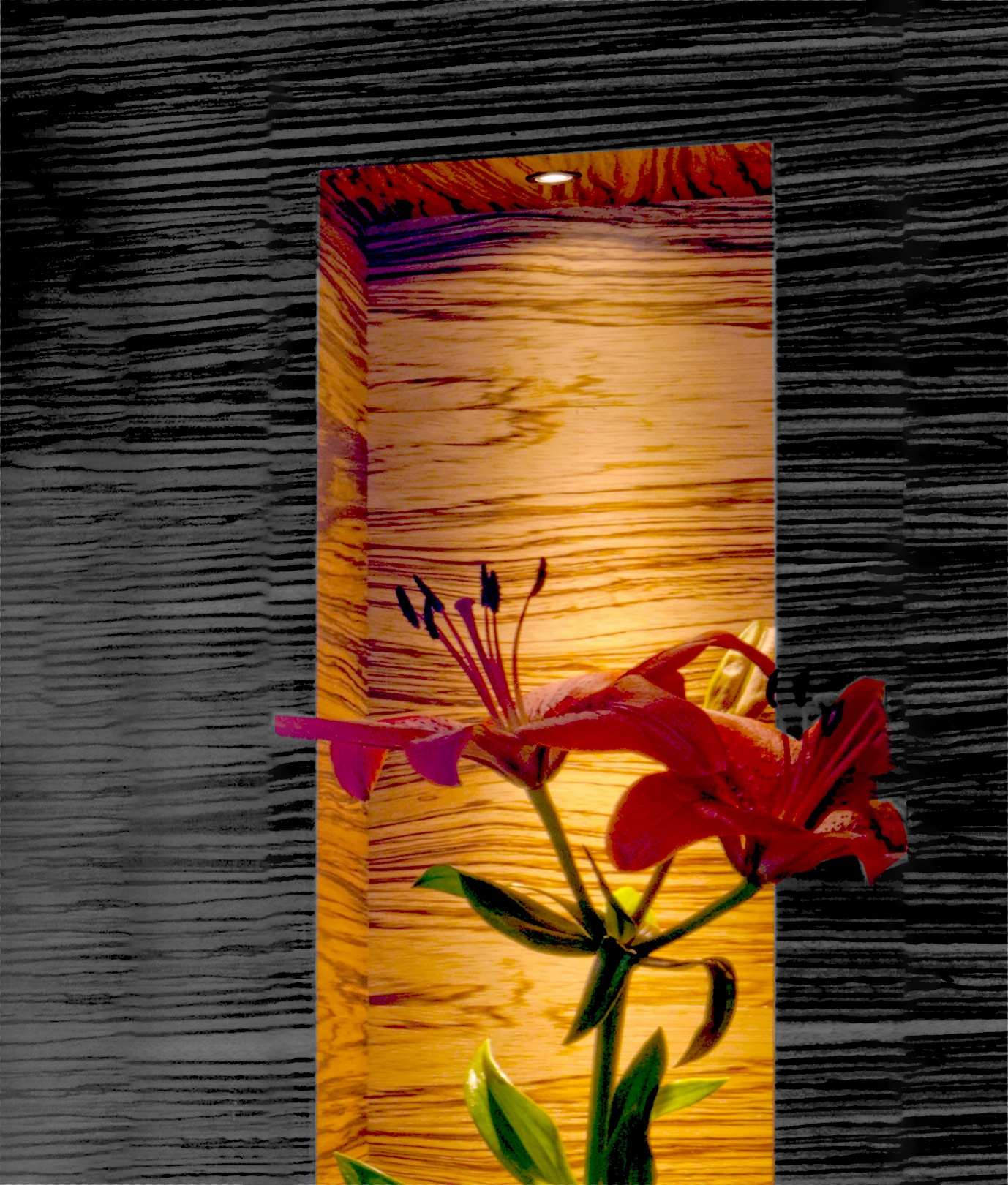

IP67 rated for use in bathrooms or outdoor areas, with protection from water immersion up to 150mm. Ideal installed in niches and alcoves, to highlight those important ornaments or beloved possessions.

These Niche lights come with a 5 year guarantee.

Springs on either side hold the light in position when installing in plasterboards or ceramic tiles. A small plastic tube is included for easy ground installation into cast concrete, resin or mortar. These fittings have a 320kg walkover limit, making them safe to use in decking areas too!

Due to their size, these luminaires do not have space for an integral power supply. They must be used with a 350mA constant current driver (power supply). The drivers will not fit through the hole.

We suggest that LED power supplies are located remotely where access can be gained if replacement is required.

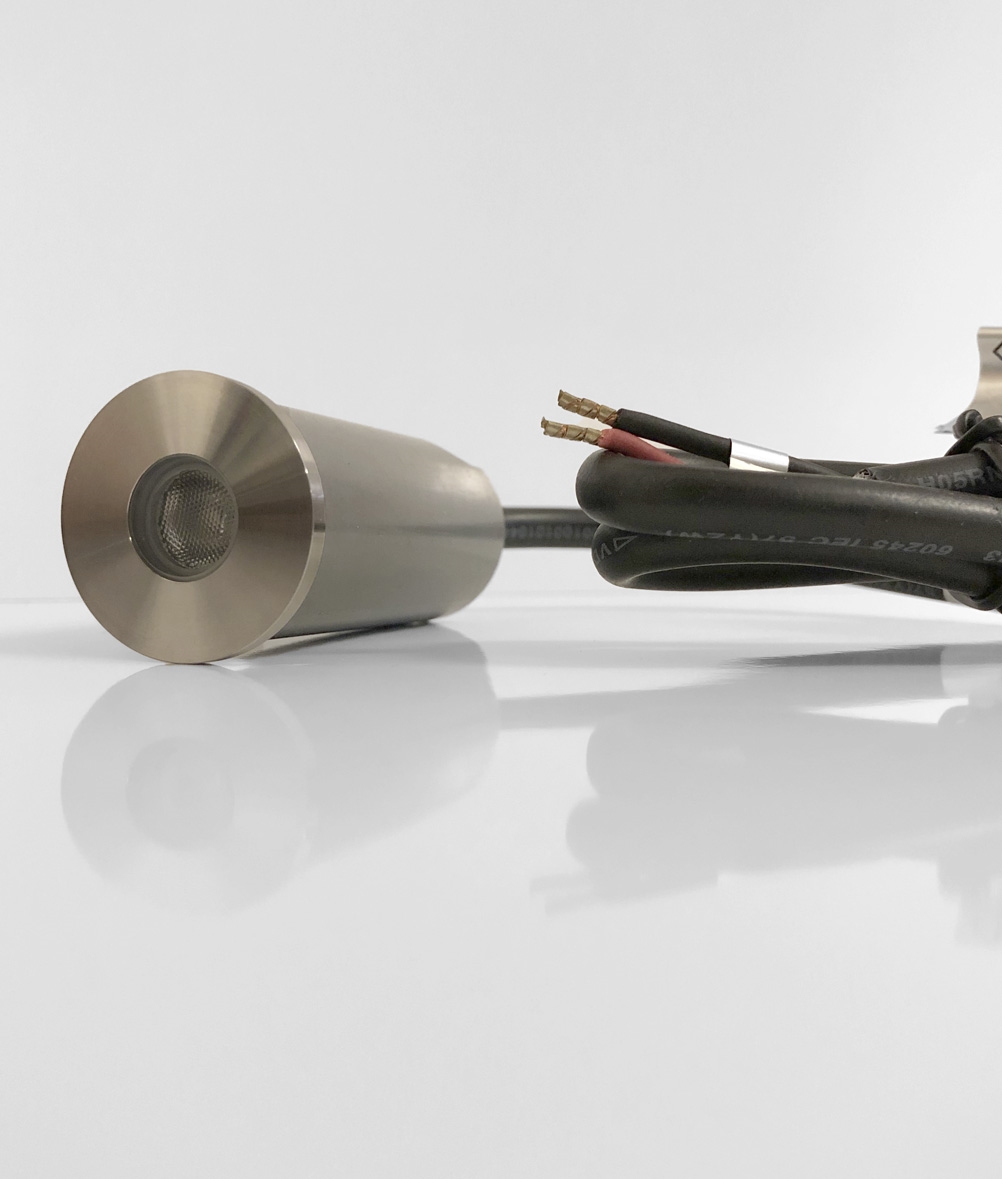

The fixtures come with a 50cm rubberised .75mm 2-core flex. This can be extended as required

NB These lights require a 3-volt 350mA supply and must be wired in series when connecting two or more to higher capacity drivers - failing to do so will overvolt and destroy the LED.

Please ensure you order the correct driver for the appropriate number of fittings - Listed below.

Cut-out Diameter:
21mm

Overall Diameter:
28mm

Number Of Lamps	1
Lamp Type	Long Life LED Light Source
Lamp Lumens	90
Lamps Included	Yes
Dimmable?	Yes - when using the specified equipment
Max Wattage	1w
Width	28mm
Length	28mm
Diameter	28mm
Suggested Void Depth	44mm
Cut-Out Diameter	21mm
Construction	Aluminium & Steel
Wiring Details	Class 3 - Requires a low voltage supply
IP Rating	IP67
Kelvin	3000°K - Warm White
Driver	No driver or transformer is supplied with this fixture (sold separately)

Could you please provide the driver details for this niche (Mini Stainless Steel IP67 LED Niche Light). Also, can you let me know the lead length (i.e. Wire)?
Images with the dimensions of the drivers are included in the listing. The lead is 50cm long but can be extended. Voltage drop can occur over long distances - use a larger conductor flex to minimise this.

Are you able to confirm the CRI for this unit please?
At this price point the CRI is only given as >80

For use in a bathroom niche could you suggest a suitable distance between fittings ?
12 inches or thereabouts as a minimum, beyond that spacing depends on the height of the niche and what you want to illuminate.

Will the power supply fit through the aperture of the niche light?
After checking the dimensions of the three we recommend they do not fit through the cutout - as it is incredibly small.

Is this suitable for 350mA constant current circuit?
Yes.

Is it possible to install these in a horizontal wall so that they shine out horizontally?
You can install these horizontally.

Once the LED lamp goes, how do you change it?
When the fitting goes, you would need to replace the whole fitting with a new one. These LED chips do have a very long life.

Please could you inform me if they are to be fitted in series or parallel. Do they come with instruction of how they are to be installed?
If you wish to use several lights on a single power supply they should be wired in series. Please follow instructions supplied with the LED drivers to ensure your installation works without any issues.

I was just wondering what the difference between the TSIPRPADRSS30 and theTSIPRPADSSS30 was? and if you do the same range in a cool white as I'm not overly keen on the look of the warm white light.
One is round and one is square. These niche lights are only offered in warm white.

How long is the fly lead to the light?
The fly lead has a 500mm length.

Hi, is it possible to install this light as downlighter in the ceiling of the niche ?
Yes, This is suitable for installation in a niche.
