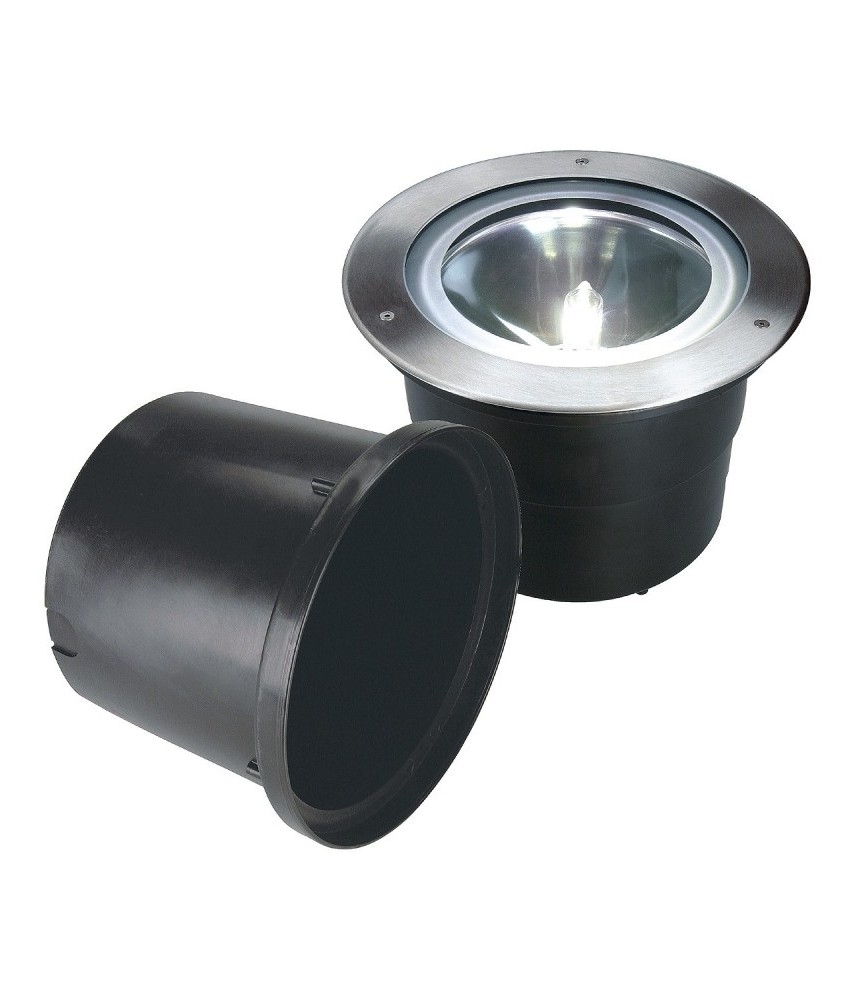

This fitting is ideal for use below trees which will uplight with a crisp white lighting through the main boughs and creating a point of interest. Remember also this fitting can use with coloured metal halide lamps for more dramatic lighting effects.

This buried up light could be used in commercial or domestic lighting schemes.

Adjustable internal lamp holder with 15° tilt. Drive over safe with 5 tonne weight limit, 5 Joule impact resistance.

Wire diameter 12mm, through-wiring compatible.

Beam distribution is symmetric (POLAR)

Designed for use with a 70 watt max G12/HIT-CE metal halide.

Constructed from Stainless steel 304. Glass temperature achieves 100°C

Round Dimensions

Dia 265mm x height 200mm

Mounting pot and conventional ballast included. Requires a 175mm deep burial hole.

Number Of Lamps	1
Lamp Type	Metal Halide
Part L Compliant Luminaire	No
Lamps Included	No
Dimmable?	No
Max Wattage	70w
Height	200mm
Diameter	265mm
Cut-Out Diameter	245mm
Construction	Cast Aluminium
Wiring Details	Class 1 - Requires an Earth Connection
IP Rating	IP67

We wish to replace 4 units that light the exterior frontage of a church. Are they waterproof units?
These are IP67, so yes are waterproof and fine to be used outside.

I want to illuminate a sculpture which is 4m tall. would this work?
Yes, This would illuminate a 4m tall sculpture.

We have existing floor sunken uplights measuring 175mm internal diameter with 260mm diameter across the top & approx 500mm deep, do you have anything similar preferably with LED, the depth is not important providing it`s the same or shorter
We`ll need to know how bright and what beam angle is required. So we will contact you via email for more details...
