Reduced Glare In-Ground COB LED Uplight with Externally Adjustable Tilt - 316 Marine Grade Stainless Steel

Design and Function

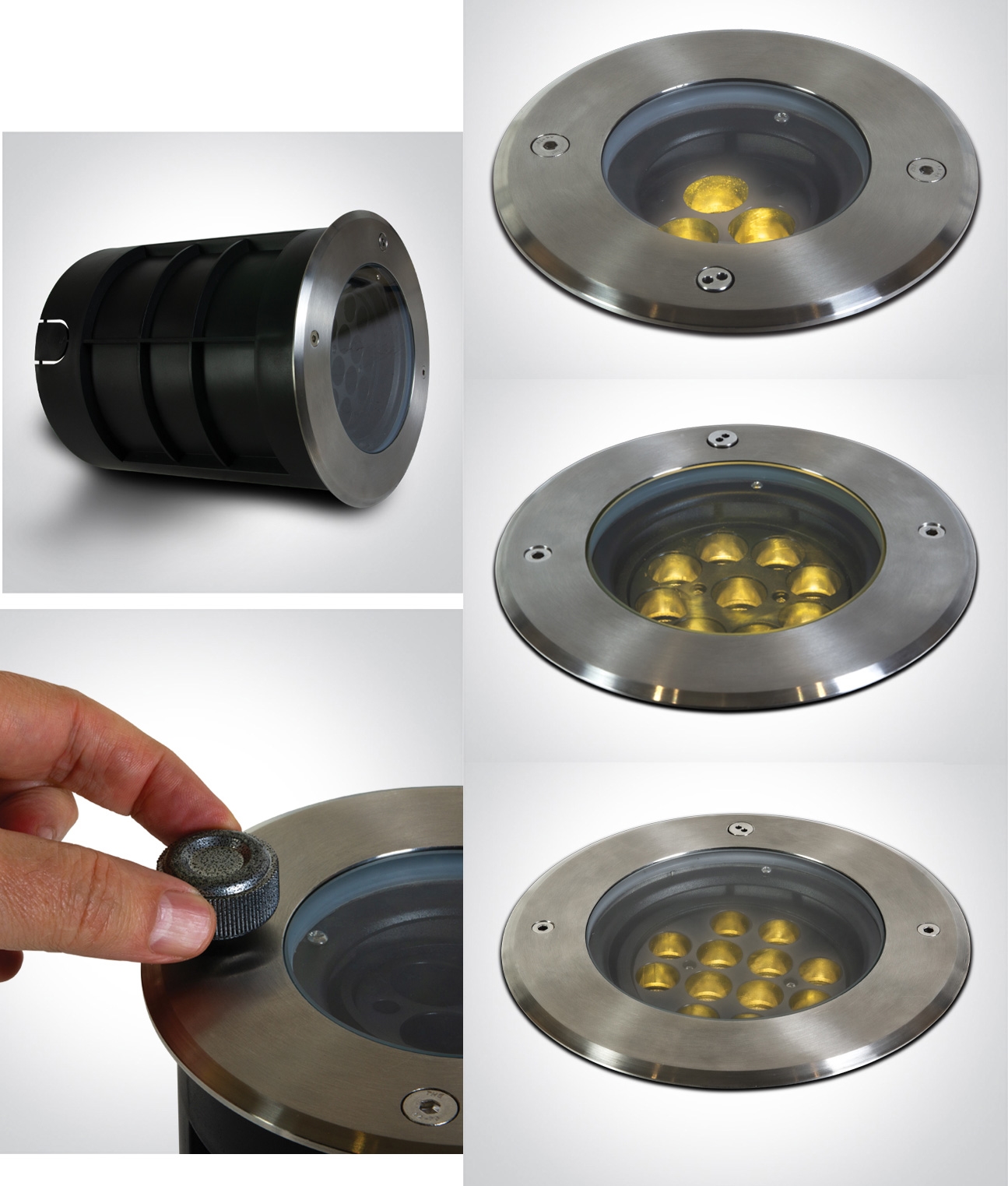

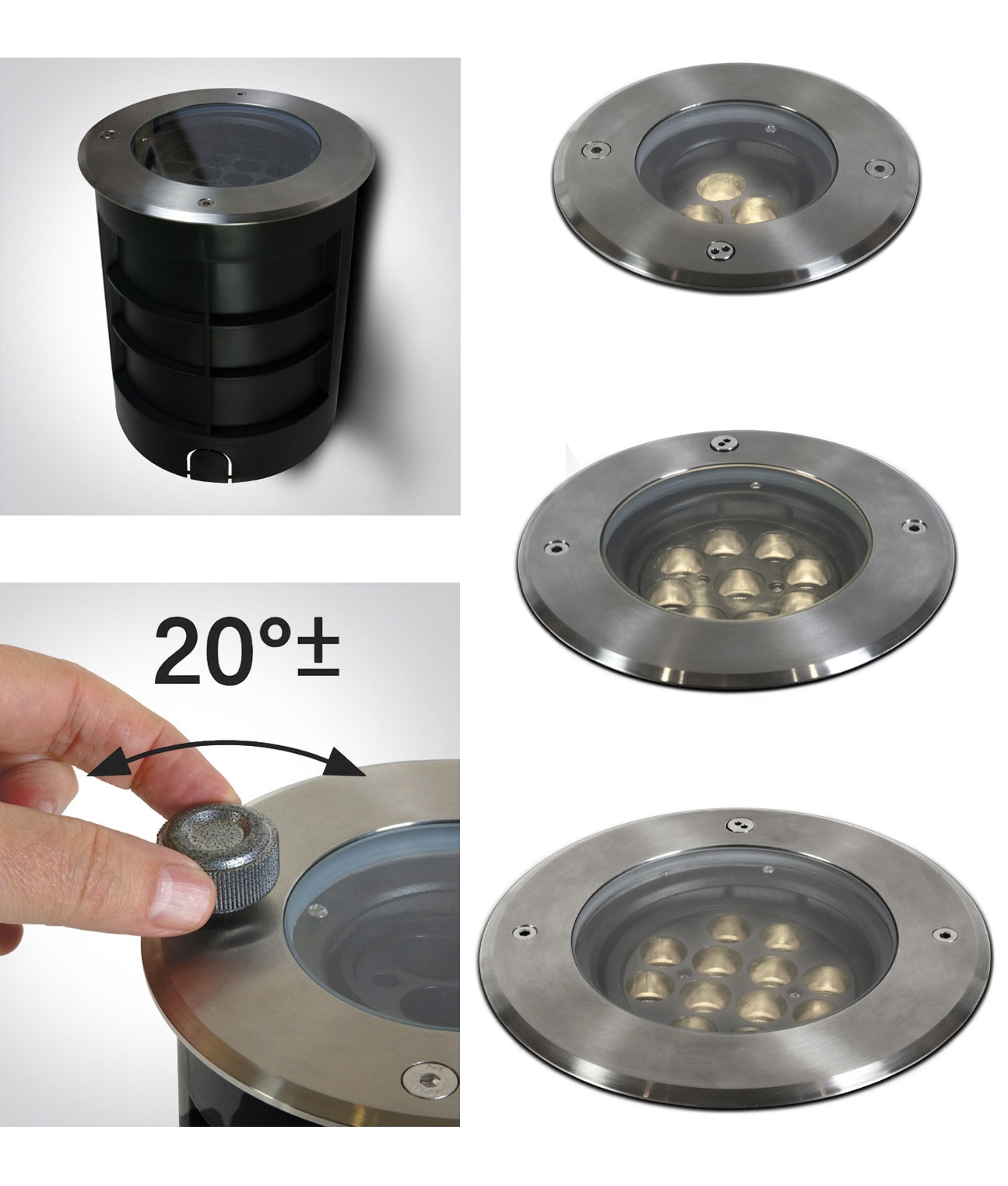

Manufactured from 316-grade stainless steel, this in-ground uplight is designed for exterior applications such as driveways, terraces, and building façades. The LED module sits within an adjustable cradle that allows the beam to be tilted ±20° on site using the “pig-nose” control at the top and the supplied tool. The adjustment is external, so the fitting remains sealed and watertight throughout commissioning.

Each fitting is supplied prewired with a 2-metre cable, meaning there is no internal wiring required during installation. The tempered glass lens and stainless-steel bezel sit flush with the ground to create a strong, unobtrusive finish suitable for long-term use in all weather conditions.

Usage
Ideal for both residential and commercial projects, the uplight provides precise illumination for façades, trees, columns, and pathways. The 36° beam gives a controlled spread of light, while the adjustable tilt enables fine on-site alignment for accurate highlighting. A non-dimmable LED driver and recessed box for concrete installation are included.

Specification

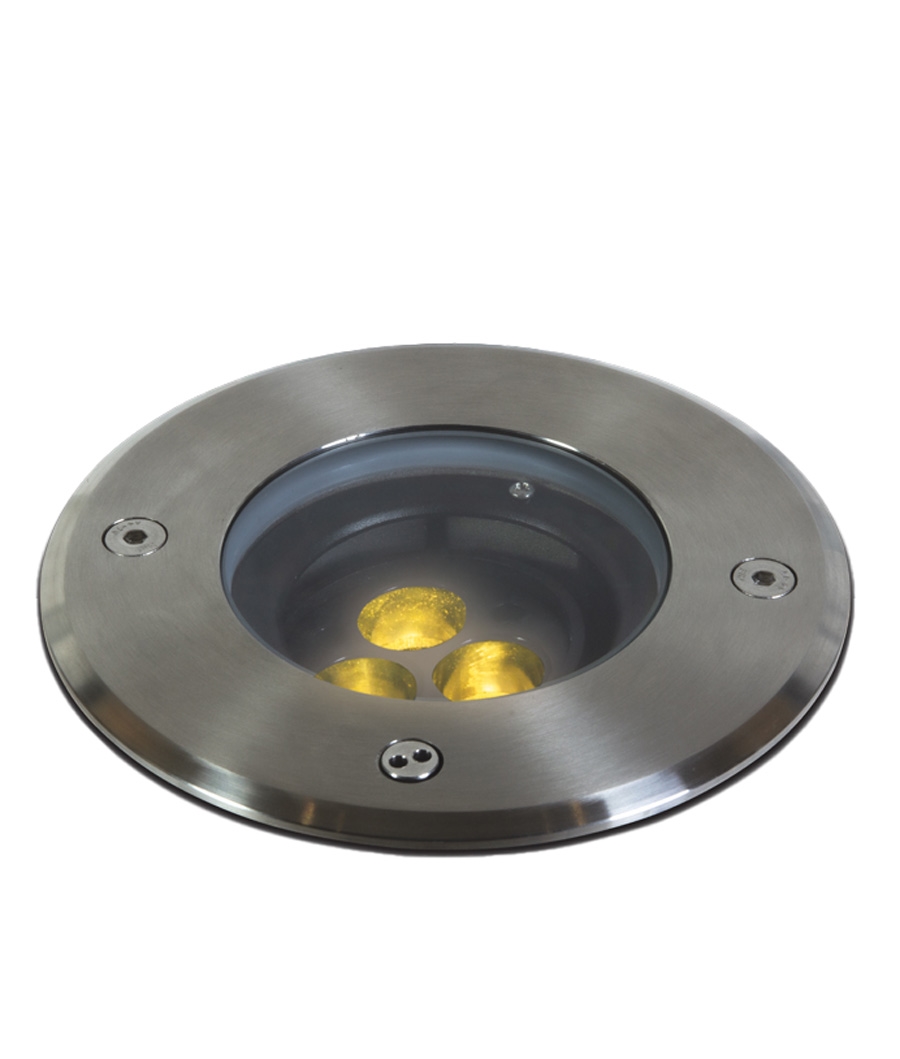

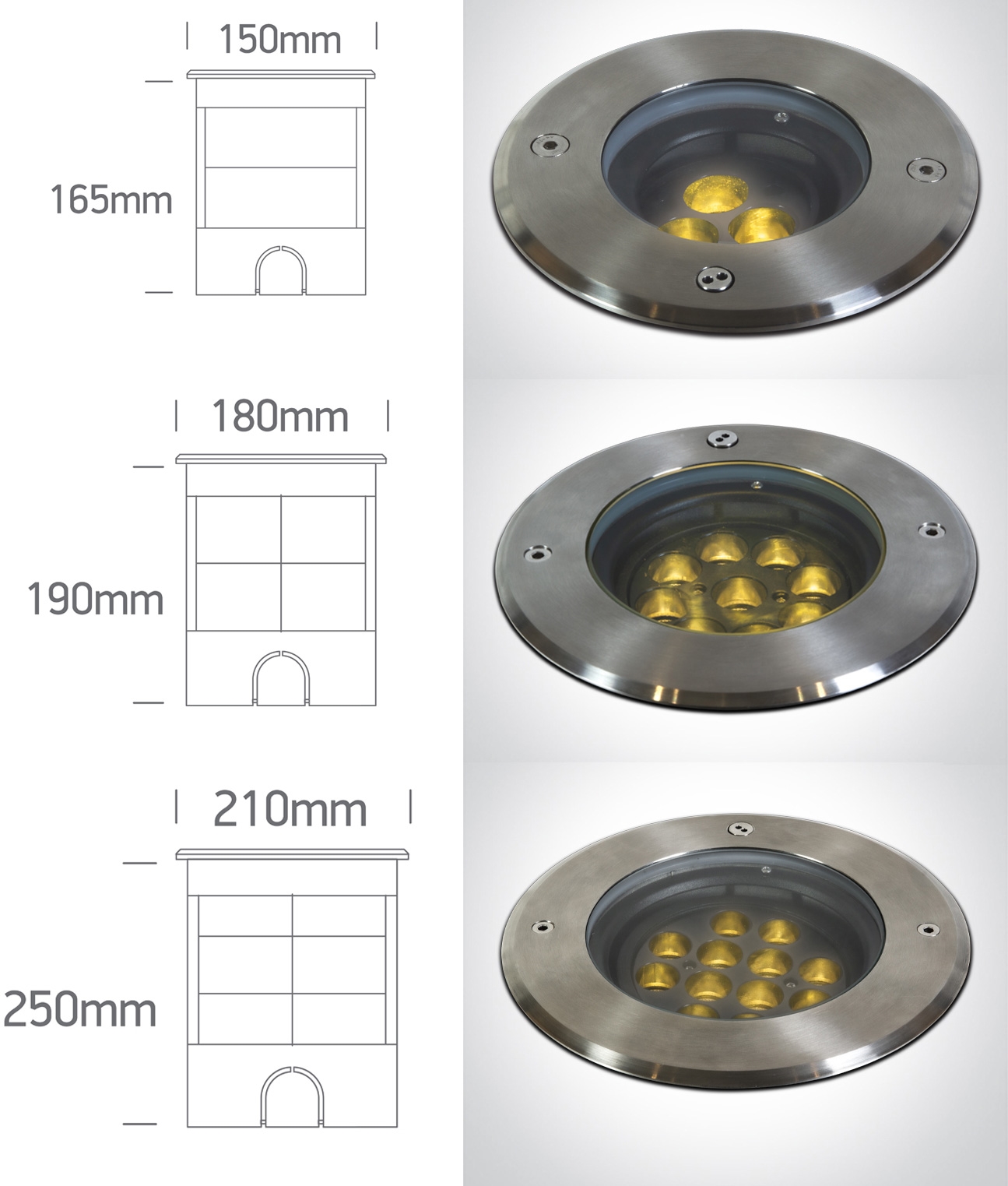

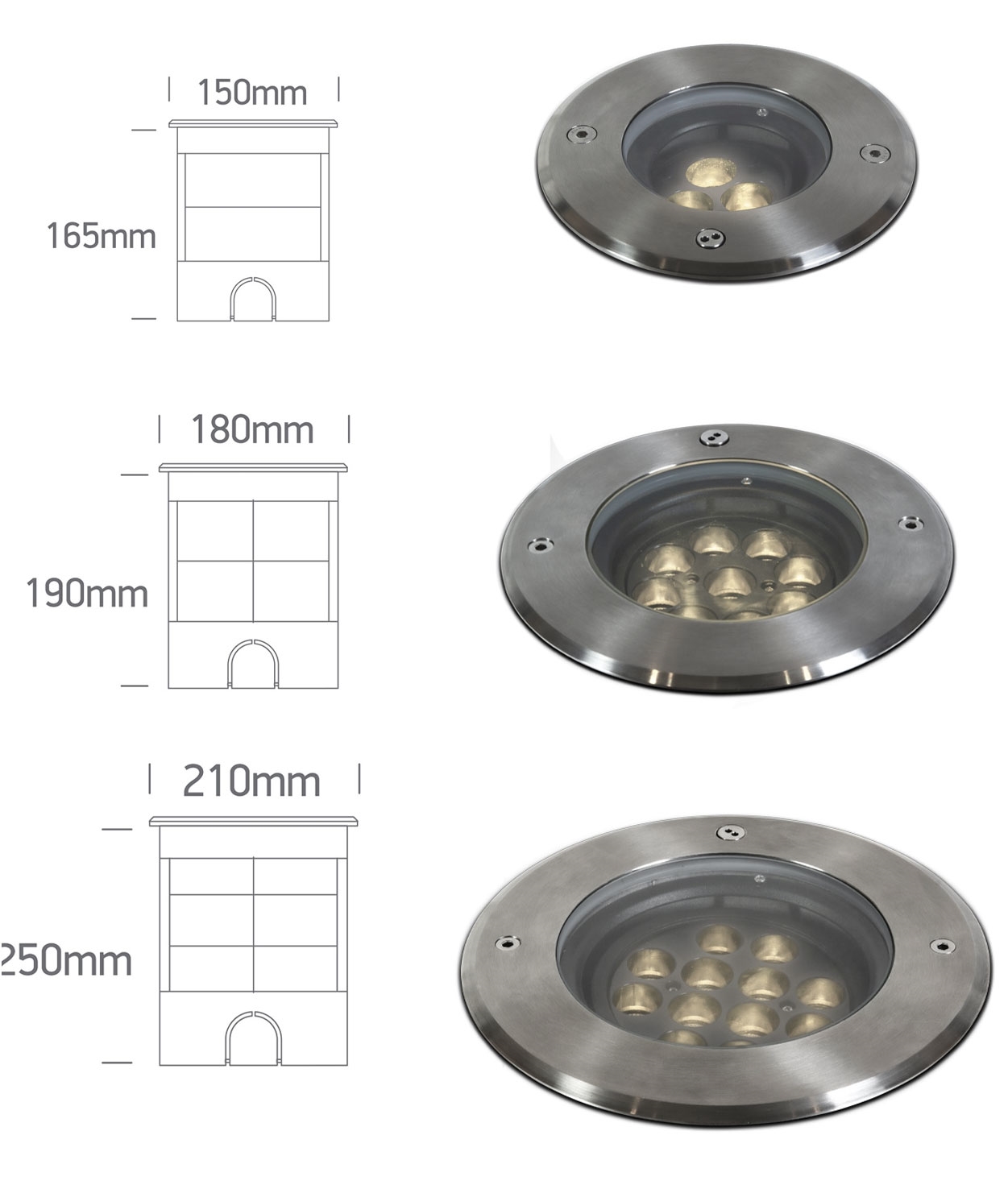

150 mm diameter × 165 mm height
Cut-out 140 mm – Depth required 185 mm + 300 mm drainage

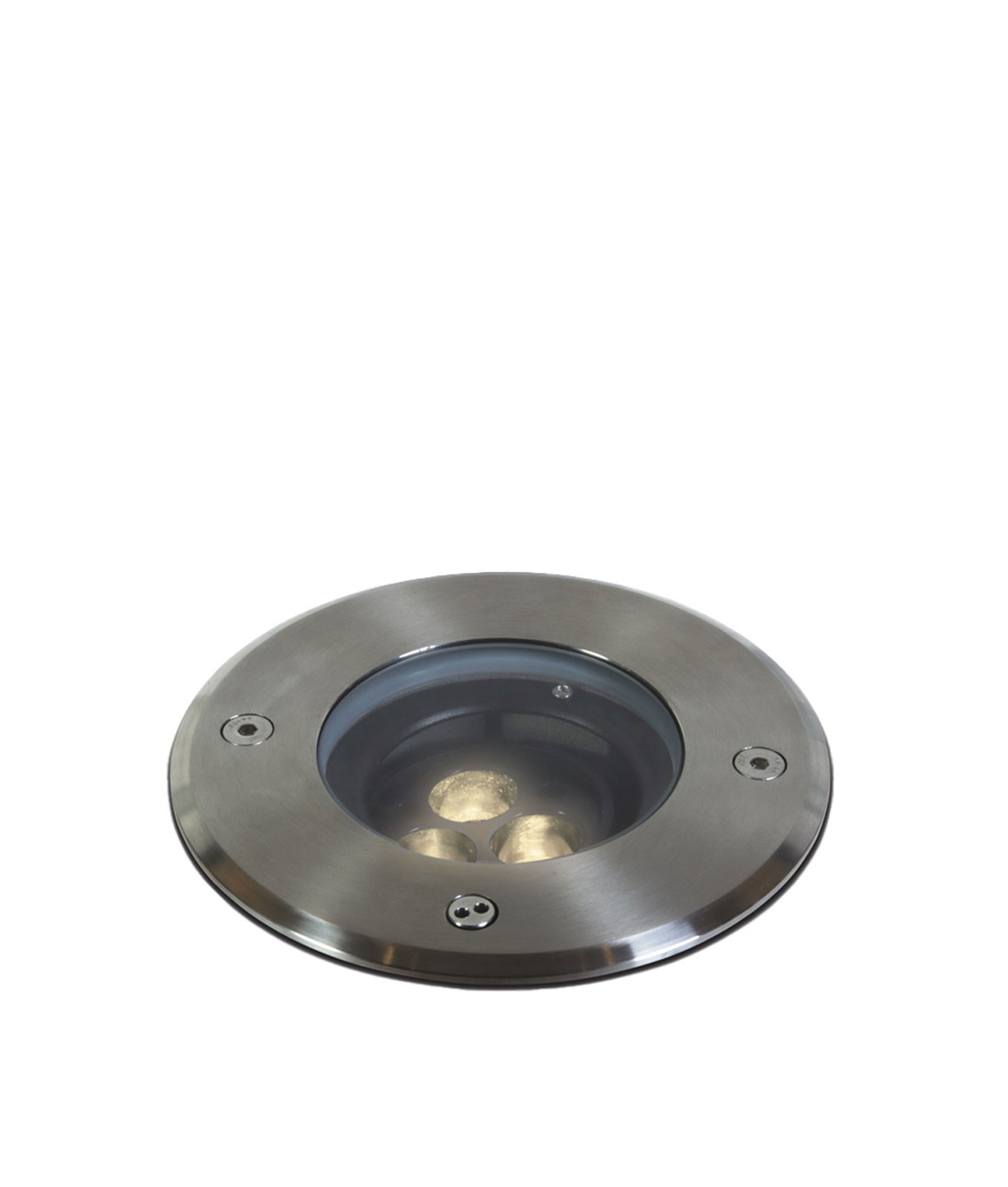

3 × 1.5 W warm white LEDs (3000 K, 320 lumens)

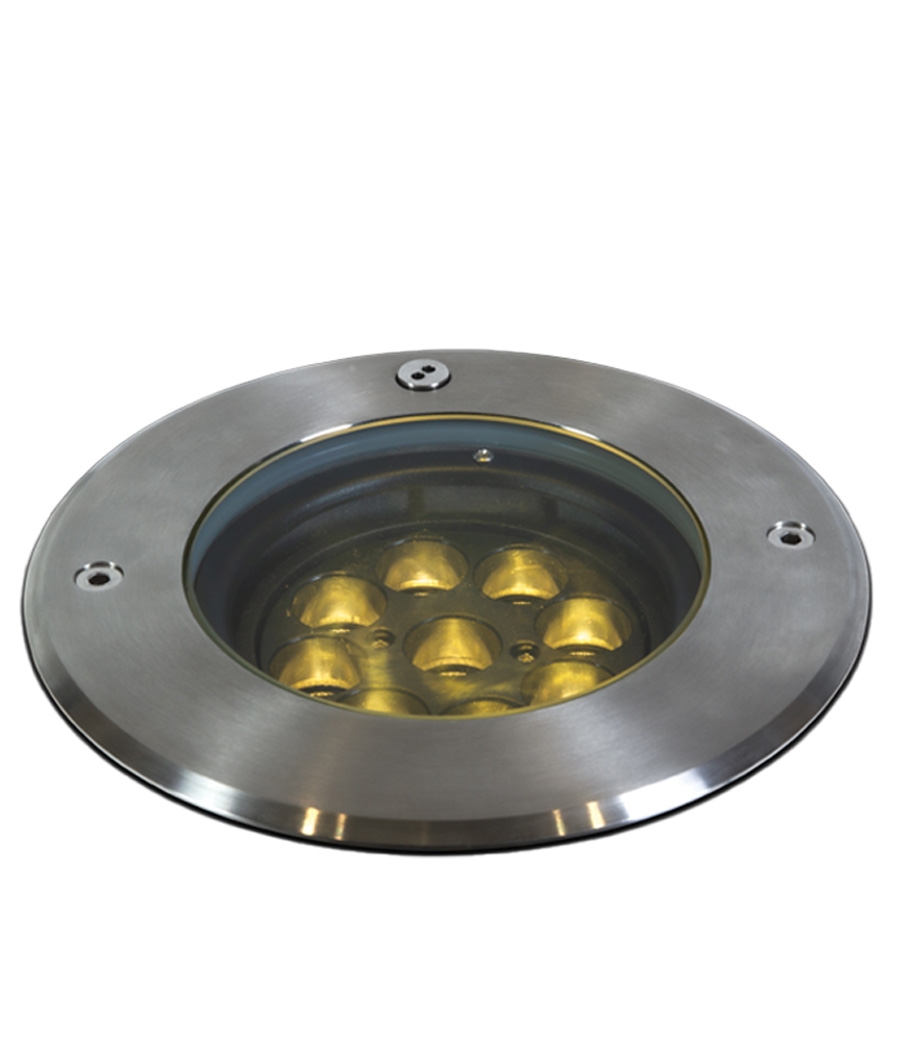

180 mm diameter × 190 mm height
Cut-out 170 mm – Depth required 210 mm + 300 mm drainage

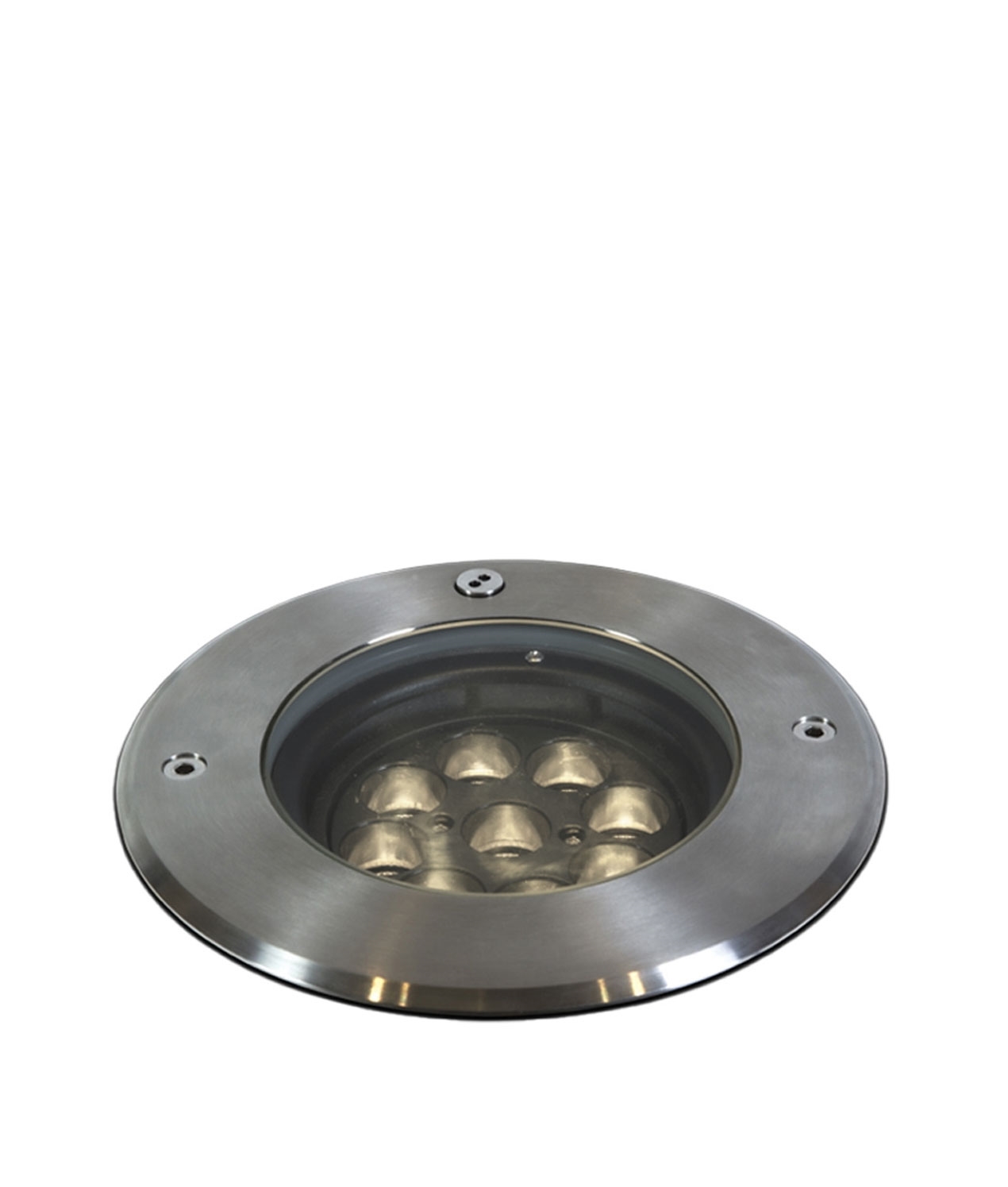

9 × 1.5 W warm white LEDs (3000 K, 1,000 lumens)

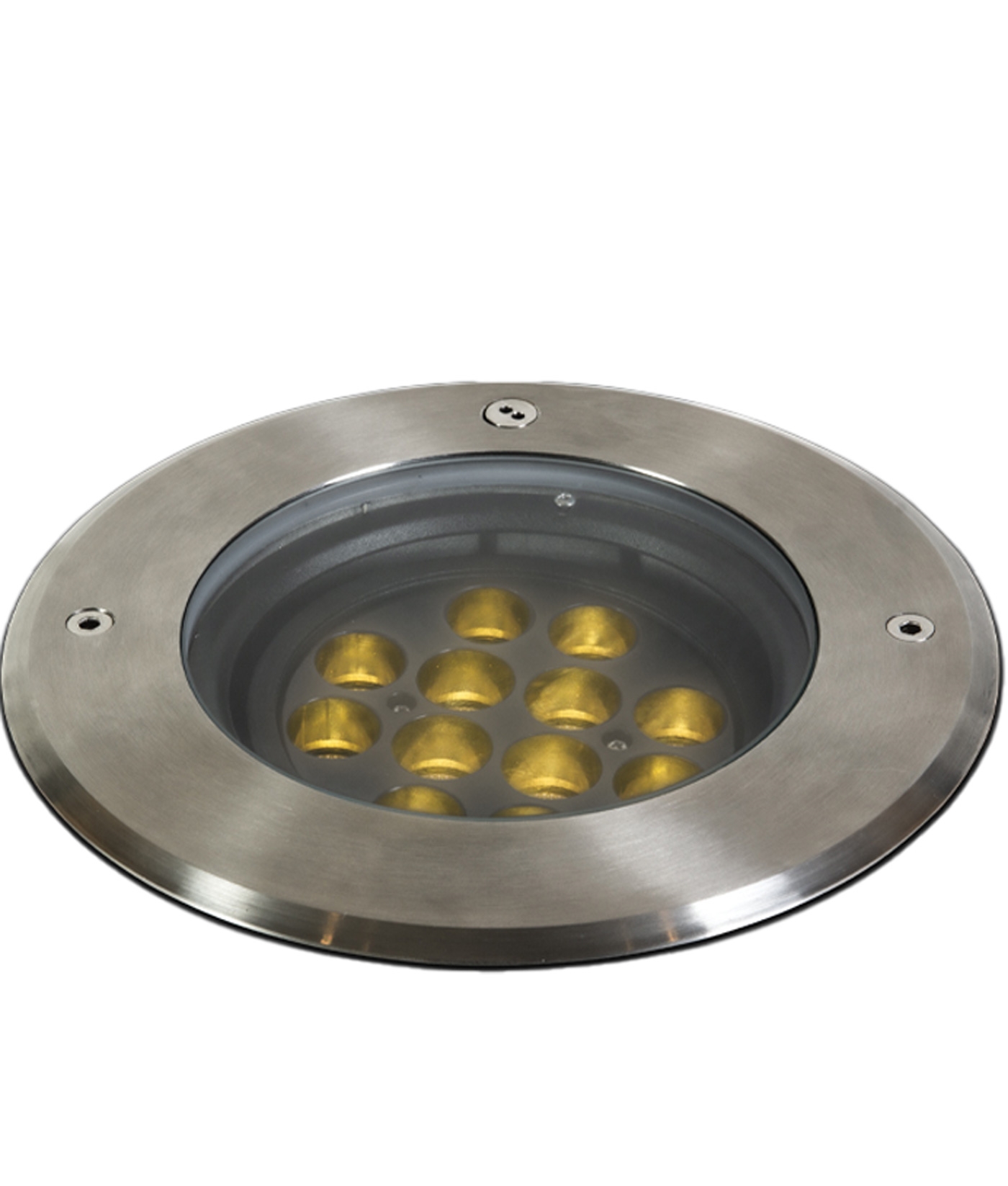

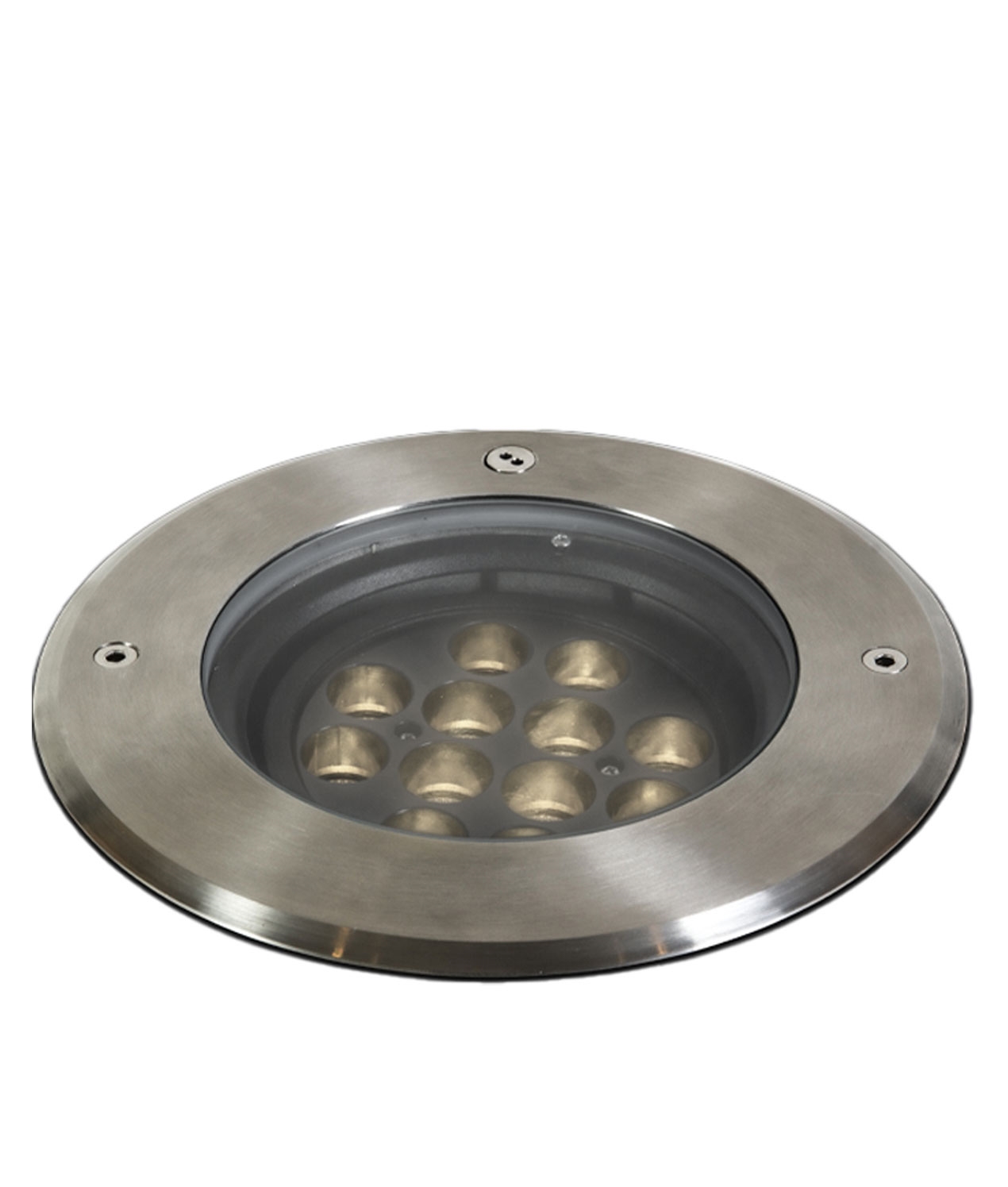

210 mm diameter × 250 mm height
Cut-out 200 mm – Depth required 270 mm + 300 mm drainage
12 × 1.5 W warm white LEDs (3000 K, 1,250 lumens)

Weather-resistant construction with tempered glass lens and 316 stainless-steel bezel.
Prewired with 2-metre lead. Supplied with intgral LED driver and installation pot.
Warranty: 2 years.
