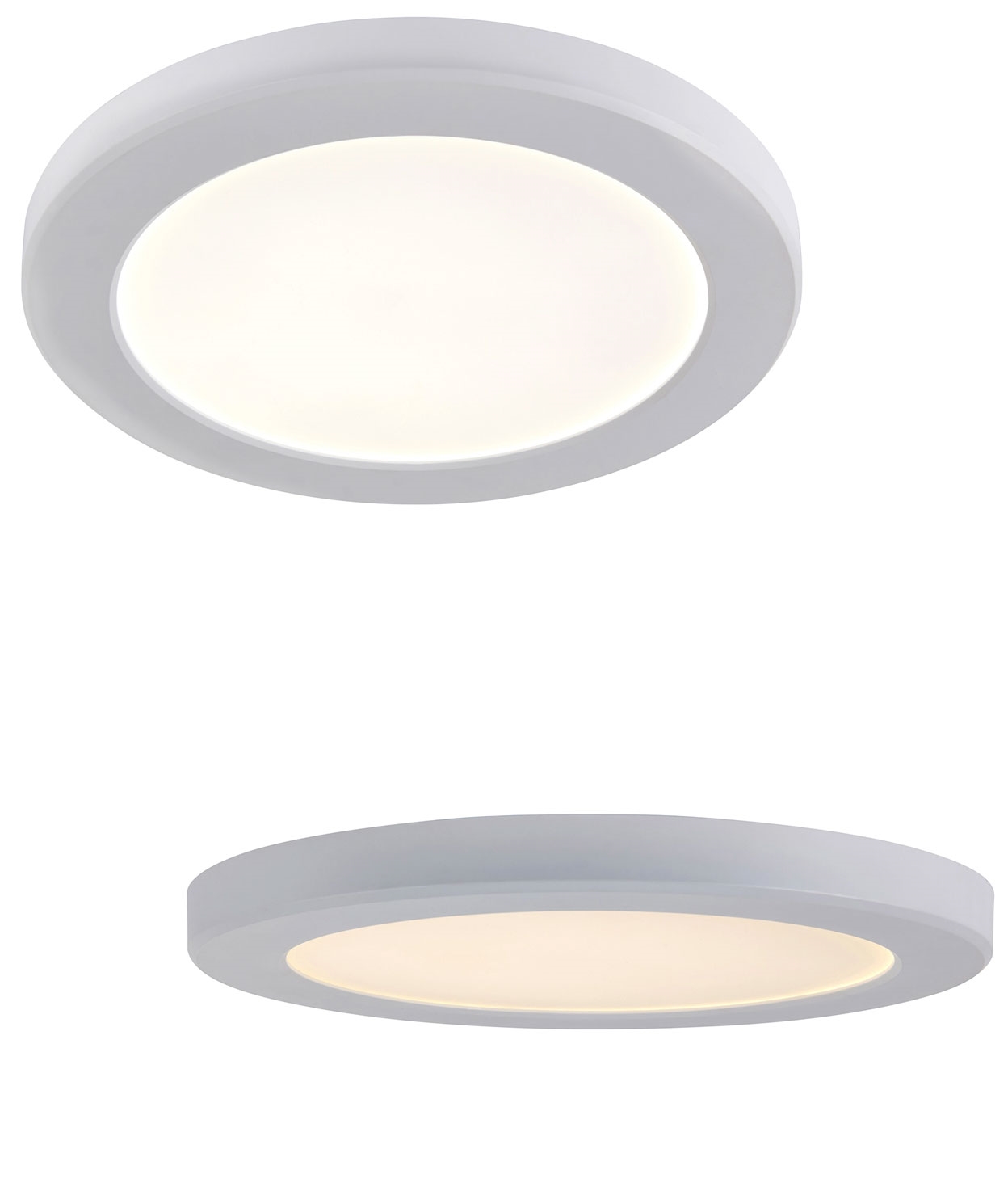

LED Oversize Downlight - Cover Holes from 50mm to 180mm
Comes with Unique Configurable Bracket Allowing for Installation in Large Cutouts
Product Ref: 52147
£19.00 inc VATThis LED fixture solves problems
Old downlights are becoming harder to replace. PL compact fluorescent fittings in commercial spaces, and domestic favourites like low voltage recessed spots or R63 and R80 eyeball downlights, are no longer in production. That leaves you with cut-outs that don’t match modern fittings or with ceilings in need of repair. This fixture is designed to solve that.

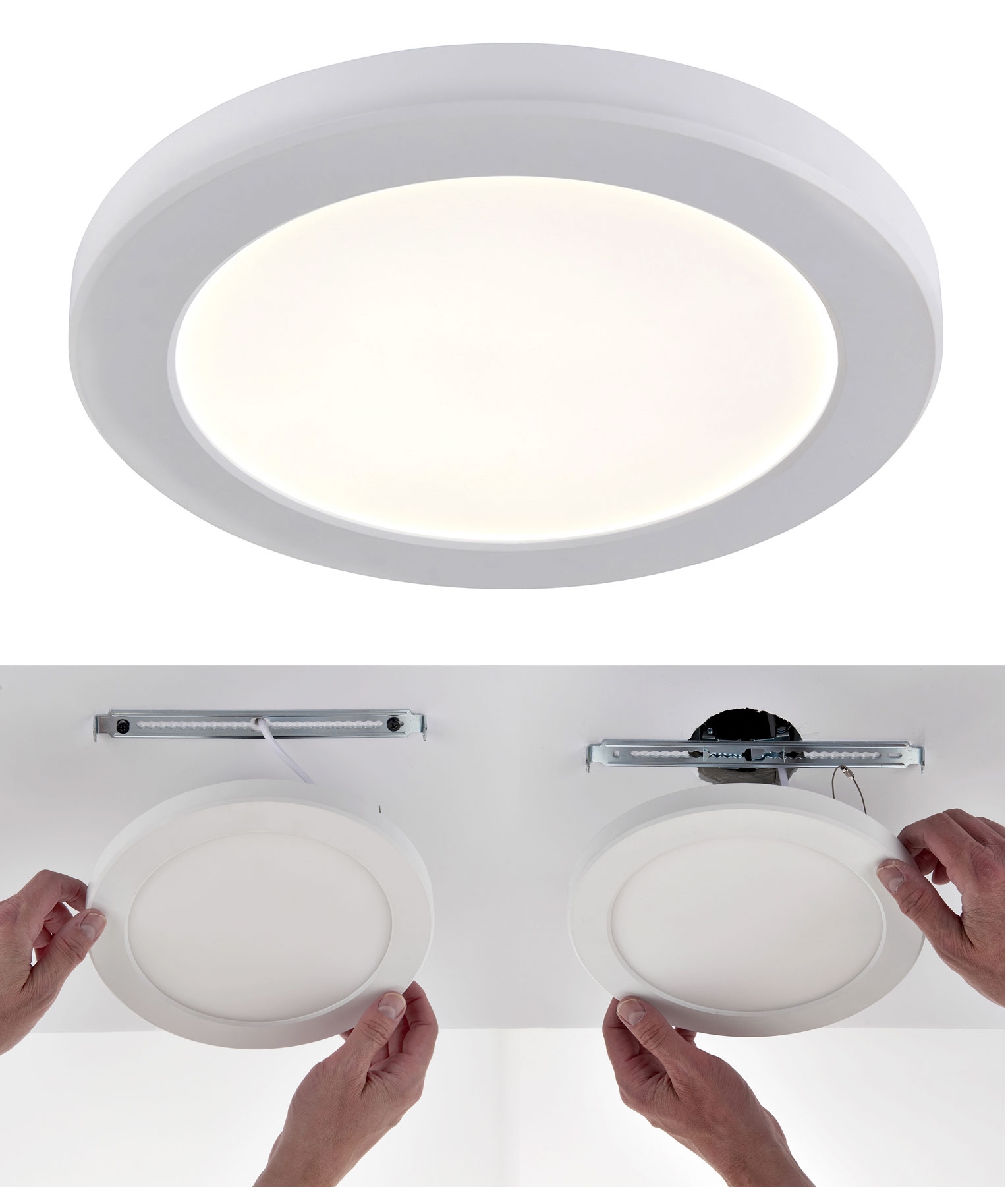

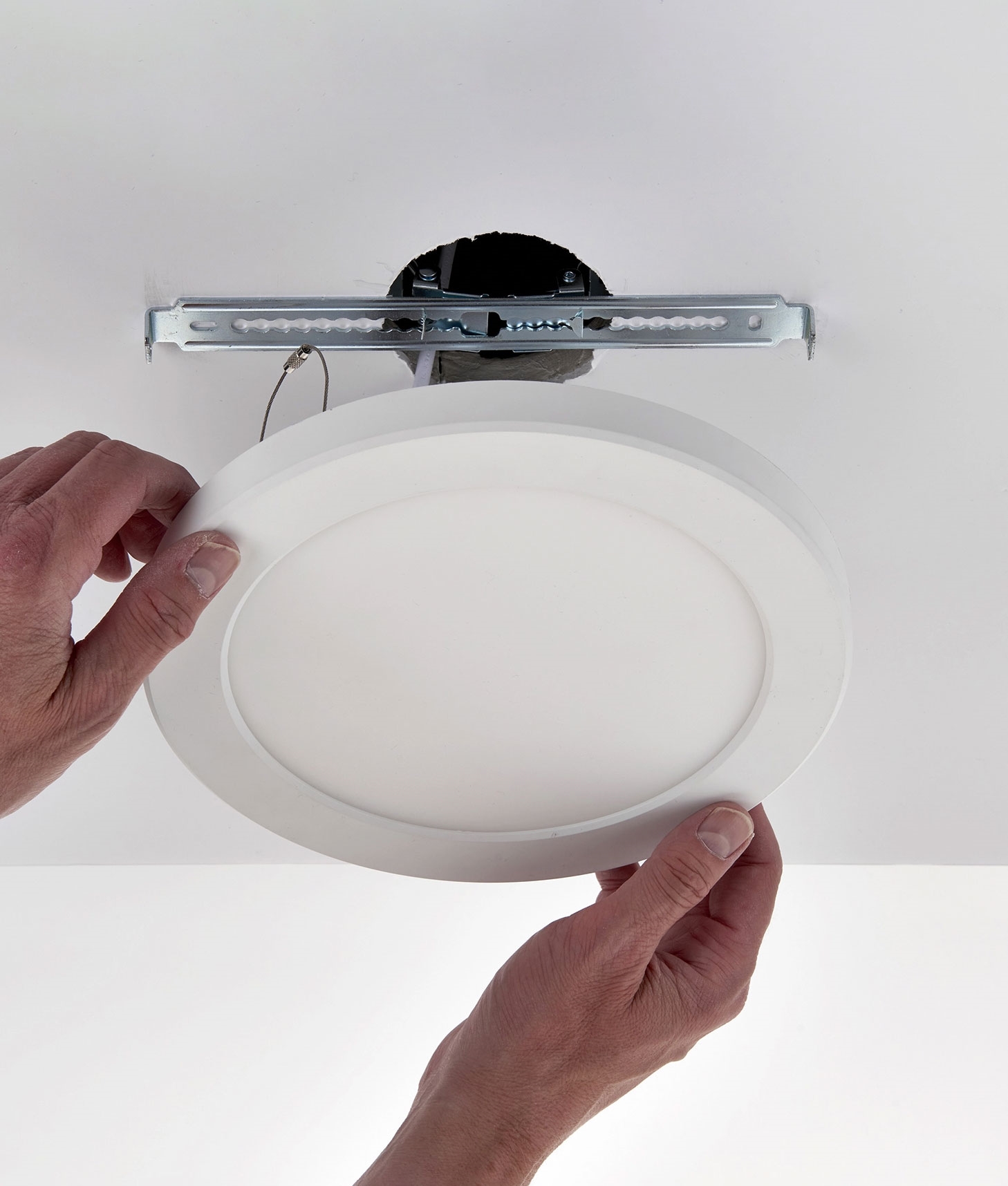

It covers openings from 65mm to 205mm and adapts to most situations. The adjustable bracket uses sprung tabs to grip existing cut-outs between 50mm and 180mm. Where no hole exists, you can omit the tabs and simply screw the bracket to the ceiling. This is useful when replacing older fittings and also installing new ones nearby. No hole saw required. Just bring the flex through, screw the bracket in place and push the light on.
There is a switch on the back to select your colour temperature: 3000K for warm white, 4000K for neutral or 6000K for task areas.

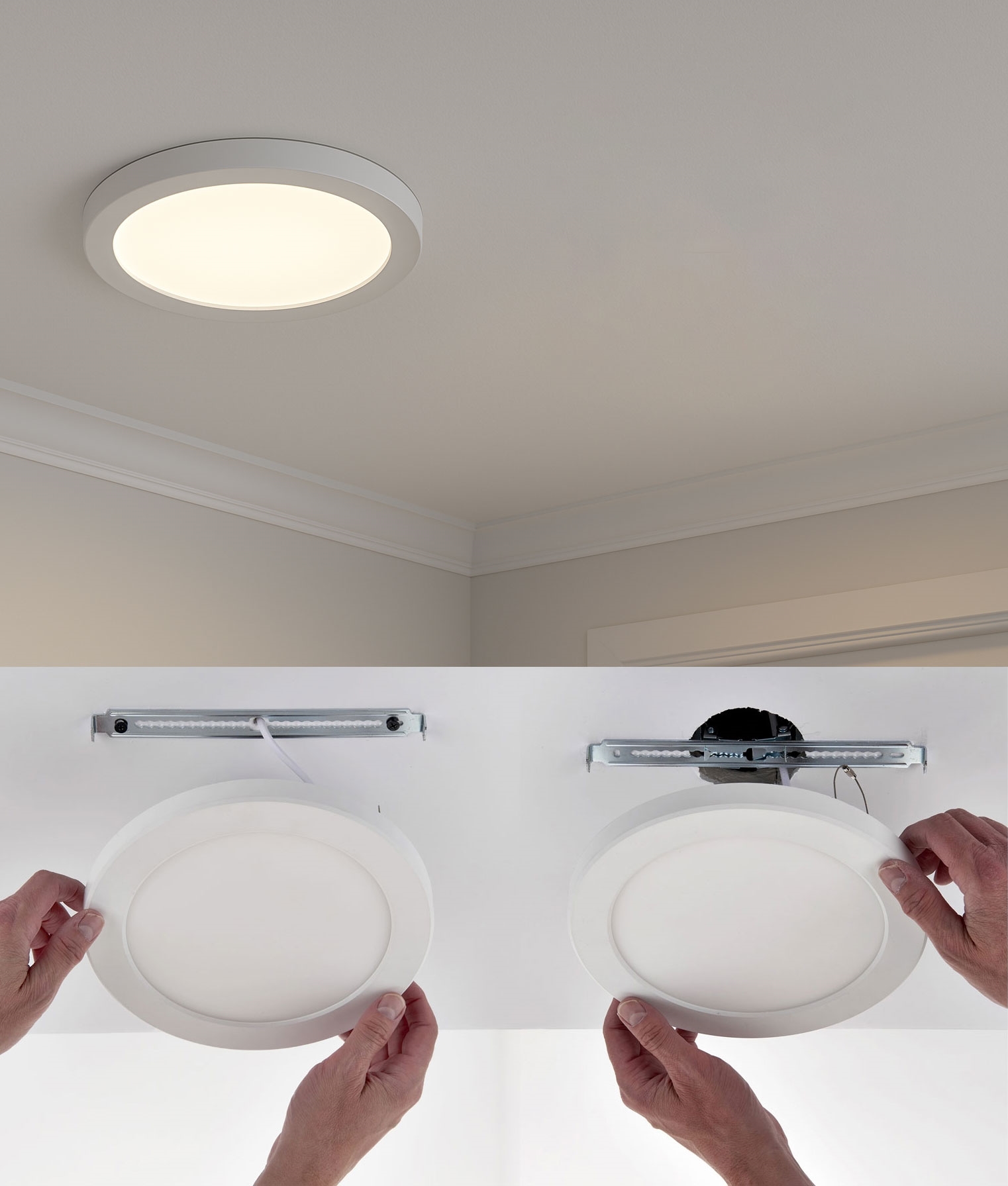

The fitting is IP44 rated, making it suitable for bathrooms and other splash-prone spaces. It is also Class II, so no earth connection is required. You can install it recessed or surface-mounted depending on your ceiling depth and layout.
The integrated SMD LED delivers 1800 lumens of bright, energy-efficient light and includes its own power supply. There is nothing else to buy and no compatibility issues to consider.
Whether you're working in commercial ceilings, refitting a kitchen or updating bathroom lighting, this fitting makes the job easier.
220mm
Lamp Type | Long Life LED Light Source |
Lamp Lumens | 1800 |
Lumens Per Watt | 100 |
Lamps Included | Yes |
Dimmable? | No |
Total Wattage | 18w |
Height | 18mm |
Diameter | 220mm |
Construction | ABS Polycarbonate |
Wiring Details | Class 2 - Double Insulated - Requires no Earth Connection |
IP Rating | IP44 |
Driver | Includes integral driver/transformer suitable for 230 - 240v supply |
Can I use these lights to replace my old Par38 downlights. Is the light source replaceable |
Can these be changed over with the standard hanging light home fixtures? I confirm there is a void in the ceiling. |
