LED Jogg Chandelier - 5 Sizes

12, 19, 30, 40, and 60 Arm Options

Offers no protection from splashed or sprayed waterClass 1 – This fitting will require an earth connection.No, this product is NOT dimmableFlex can be shorted at the time of installation.Bulbs IncludedIncludes remote driver/transformer suitable for 230 - 240v supply

Product Ref: 41208

From £447.55 inc VAT

Classic Jogg chandeliers, malleable and ductile steel with polycarb film shades.  A great chandelier that can be adjusted to fit your space by molding and moving the arms.

The original design from Switzerland uses a malleable or ductile steel wire to support a light with a diffuser polycarbonate film. By twisting or scrunching the shape of the wire the resulting shape is formed to suit your mood. If your mood changes simply change the position of the wires to suit your needs while the fitting is in-situ. These elegant chandeliers have a ceiling mounted fixing plate that houses a wire wound transformer so all it requires is a mains supply.

This ceiling mounted fitting comes complete with high temperature white polycarbonate that surrounds miniature 2 watt 12v halogen lamps.

The length of the suspension cables can be reduced as required to suit lower ceilings but the 30, 40 and 60 light fixtures are not designed for average height ceilings.

The smaller 12 and 19 arm versions are ideal in smaller spaces, such as dining rooms or entrances.

Dimensions & Sizes:

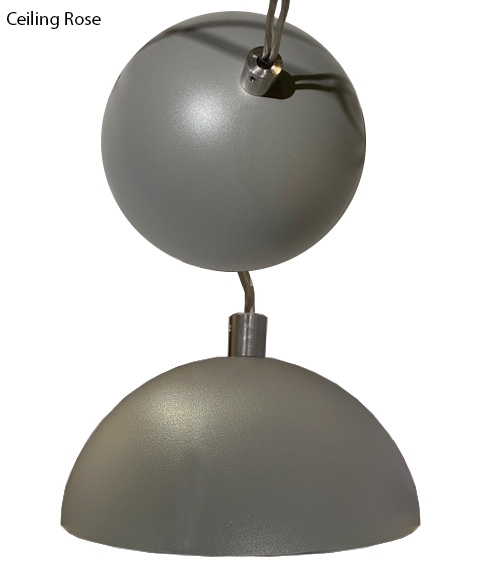

Ceiling rose dimensions (same for all sizes) diameter: 230mm

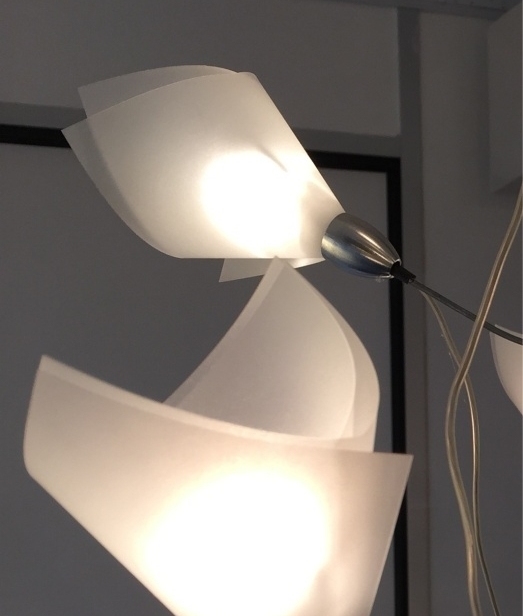

12 Light Jogg Pendant
Depth excluding suspension: 900mm
Diameter approximate: 900mm
Transformer Diameter: 180mm
Suspension is nickel wire with clear PVC insulation
Weight: 3kg

19 Light Jogg Pendant
Depth excluding suspension: 1000mm
Diameter approximate: 900mm
Suspension is nickel wire with clear PVC insulation
Weight: 4kg

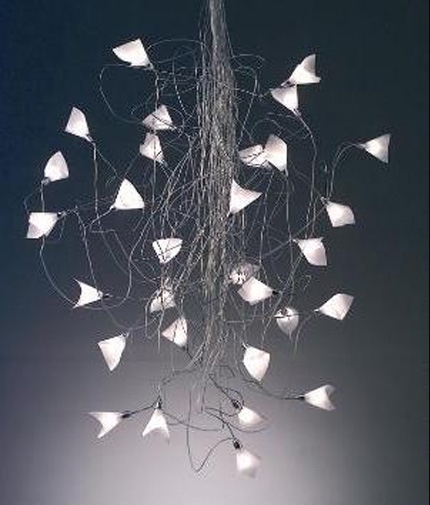

30 Light Jogg Pendant
Suspension from rose to top of light fitting: 1500mm
Depth excluding suspension: 1200mm
Total drop 2700mm
Diameter approx: 1000mm
Weight: 5.5 kgs

40 Light Jogg Pendant
Suspension from rose to top of light fitting: 1500mm
Drop of light excl suspension 1600mm
Total drop 3100mm
Diameter approx 1200mm
Weight: 7.2 kgs

60 Light Jogg Pendant
Suspension from rose to top of light fitting 1500mm
Drop of light excl suspension 2000mm
Total drop 3500mm
Diameter approx 1300mm
Weight: 13 kgs

Each fitting is supplied as standard with warm white 3000k lamps, a cooler 5000k option is available, please call the sales department for details.

Lamp TypeIntegral LED
Lamps IncludedYes
Dimmable?No
Max Wattage2w
Suspension1500mm
Adjustable HeightYes – at time of installation
ConstructionMixed
Wiring DetailsClass 1 - Requires an Earth Connection
IP RatingIP20
DriverIncludes remote driver/transformer suitable for 230 - 240v supply

How bright over all is the 19 LED Jogg Chandelier - how many lumens do 19 x 2watt LEDs give?
We do not have an exact measurement, but we estimate roughly 200 lumens per lamp, and so in this case 3800 lumens.

Availability: MADE TO ORDER delivery typically 4-6 weeks
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
ASO253370120
LED Jogg 12 Light Modern Chandelier
£447.55
£372.96 exc VAT
ASO253370190
LED Jogg 19 Light Modern Chandelier
£644.00
£536.67 exc VAT
ASO253370300
LED Jogg 30 Light Modern Chandelier
£1,020.31
£850.26 exc VAT
ASO253370400
LED Jogg 40 Light Modern Chandelier
£1,562.88
£1,302.40 exc VAT
ASO253370600
LED Jogg 60 Light Modern Chandelier
£1,978.46
£1,648.72 exc VAT
ASO3119251101000
Jogg Spare Shade
£8.00
£6.67 exc VAT
