Fire Hoods for Downlights – Single, Twin, Triple, and Square Options

Overview
Fire hoods allow you to install recessed downlights of your choice into fire-rated ceilings while maintaining the required fire protection. These versatile, intumescent fire hoods are suitable for a range of ceiling types and available in multiple sizes, including single, twin, and triple configurations.

Design and Performance
Manufactured from a fully breathable intumescent material, each hood features a patented instant-release envelope and an adjustable, self-supporting fixing method. This innovative design allows heat from the lamp to dissipate safely, helping to prevent the downlight and terminal block from overheating, while expanding in the event of a fire to seal the ceiling cut-out.

Lightweight and flexible, these fire hoods can be installed from either above or below the ceiling. Installation is quick using the self-supporting design, with optional screw fixing if preferred.

Suitable Applications
Designed for use in plasterboard, suspended, or concrete ceilings with a thickness of 9–35mm. Perfect for residential and commercial projects where recessed downlights are used within fire compartments.

Product Variants and Dimensions

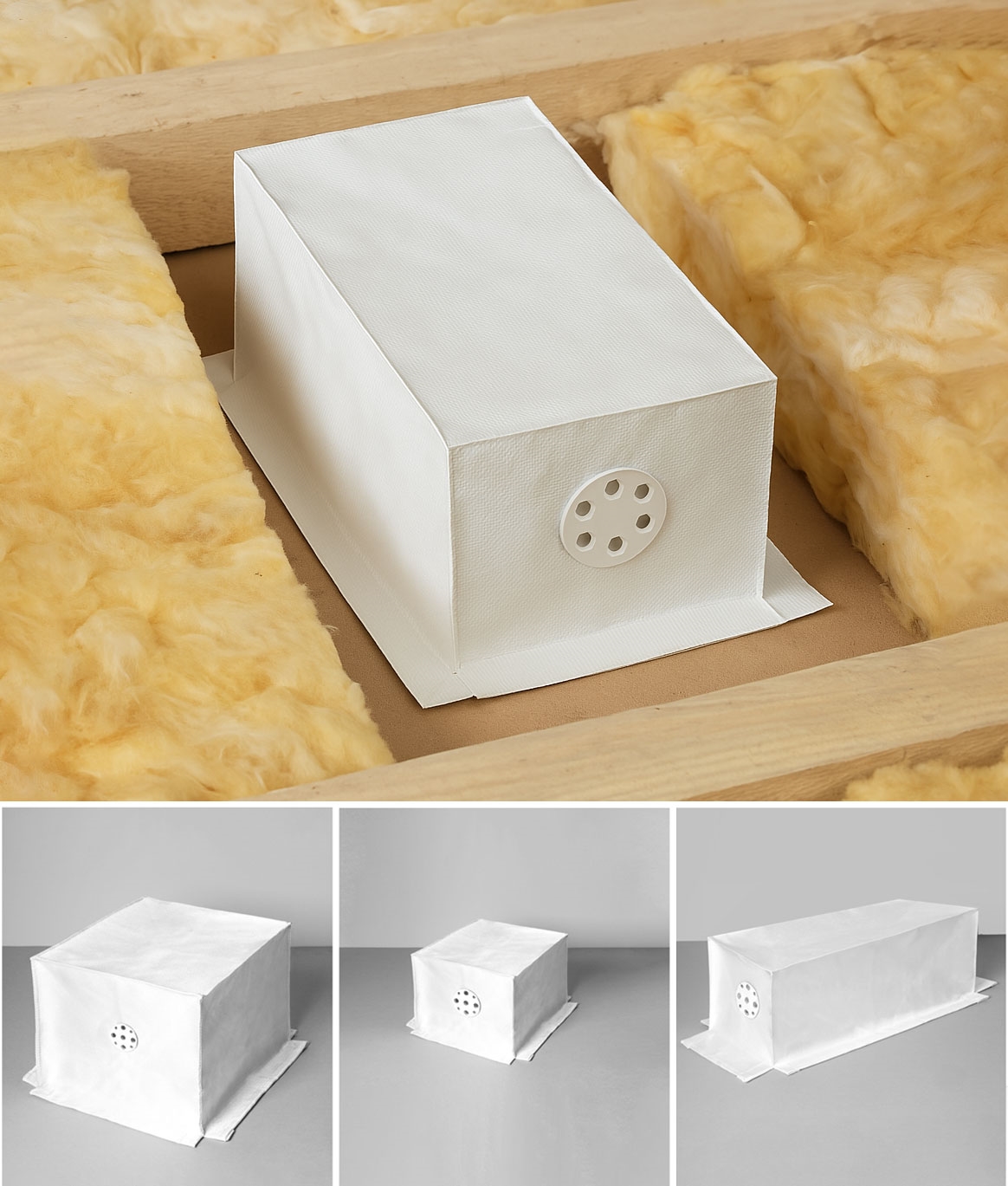

Square Fire Hood
Length: 150mm
Width: 150mm
Height: 100mm

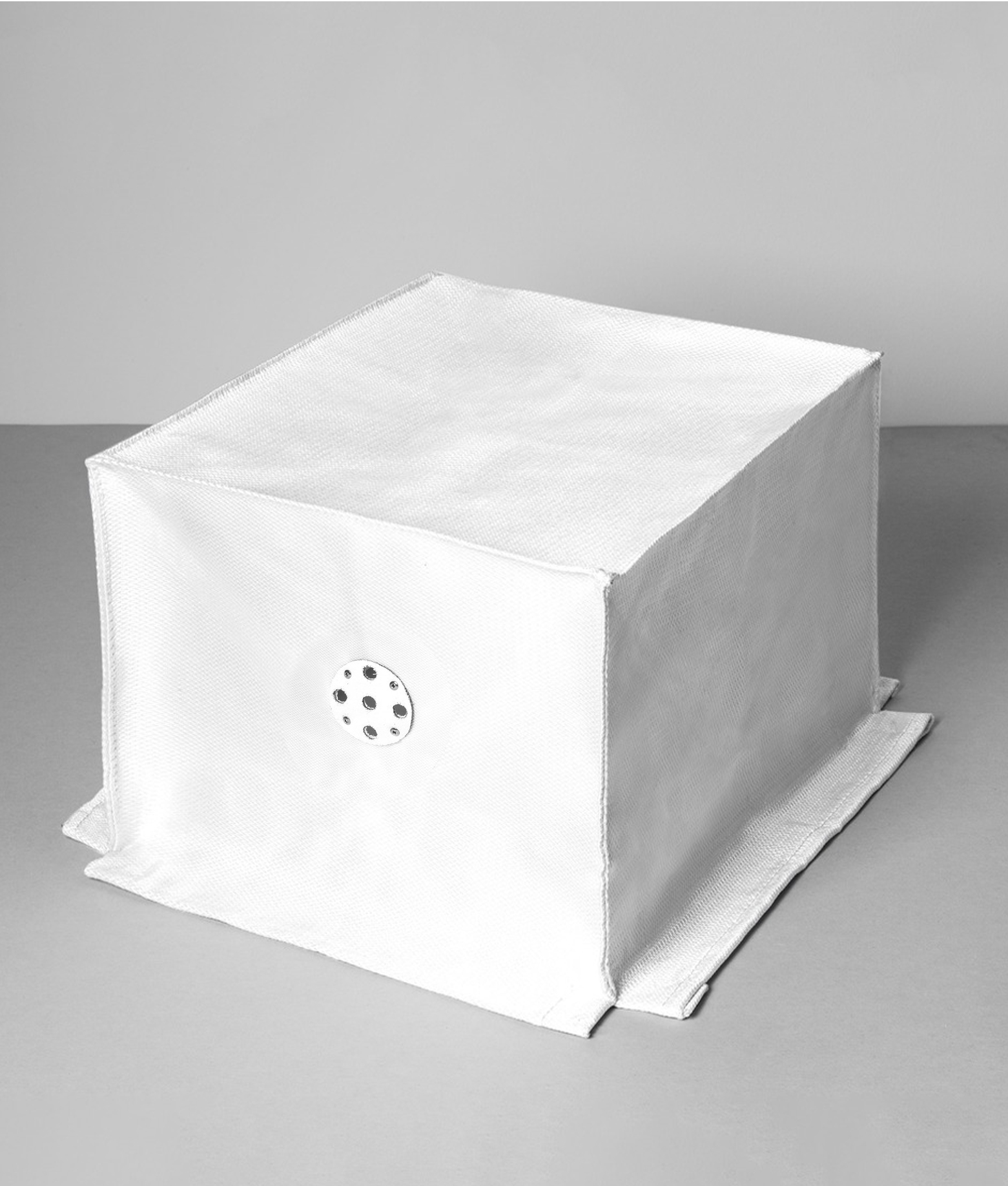

Larger Square Fire Hood
Length: 250mm
Width: 250mm
Height: 170mm

Twin Downlight Fire Hood
Length: 300mm
Width: 150mm
Height: 120mm

Triple Downlight Fire Hood
Length: 410mm
Width: 190mm
Height: 170mm

Fire Testing and Compliance
Fully tested to BS 476 Part 21 – Fire Tests on Building Materials and Structures.
Maintains ceiling fire integrity for a minimum of 60 minutes, in line with Building Regulations Document B and the I.E.E Wiring Regulations (BS7671 – Regulation 527.2.1).
