Adjustable Trimless LED Downlight - Integrated Pro-Grade LED

For Any Ceiling Depth - Ceiling Must Be Skimmed

Offers no protection from splashed or sprayed waterClass 3 - This fitting is low voltage and will require a transformer or driver.Yes, this product is dimmable - See the specifications tab for more detailsBulbs IncludedNo driver or transformer is supplied with this fixture (sold separately)

2700°K - Soft Warm White

2700°K - Soft Warm White

Product Ref: 52330

From £52.85 inc VAT

Here is an easy to install trimless downlight for use in new ceilings or in areas where a plaster skim is to be applied. Provide a neat and discrete built-in look.

Installation is relativity easy...  Cut a round/square hole. Install the top hat housing in the hole and fix the perforated rim to the plasterboard. Plaster with a skim coat to the circular bead, paint then install the rear housing, lamp and retaining bezel. Full instructions are provided in the PDF document.

Available in round or square, White finish which is easily painted.

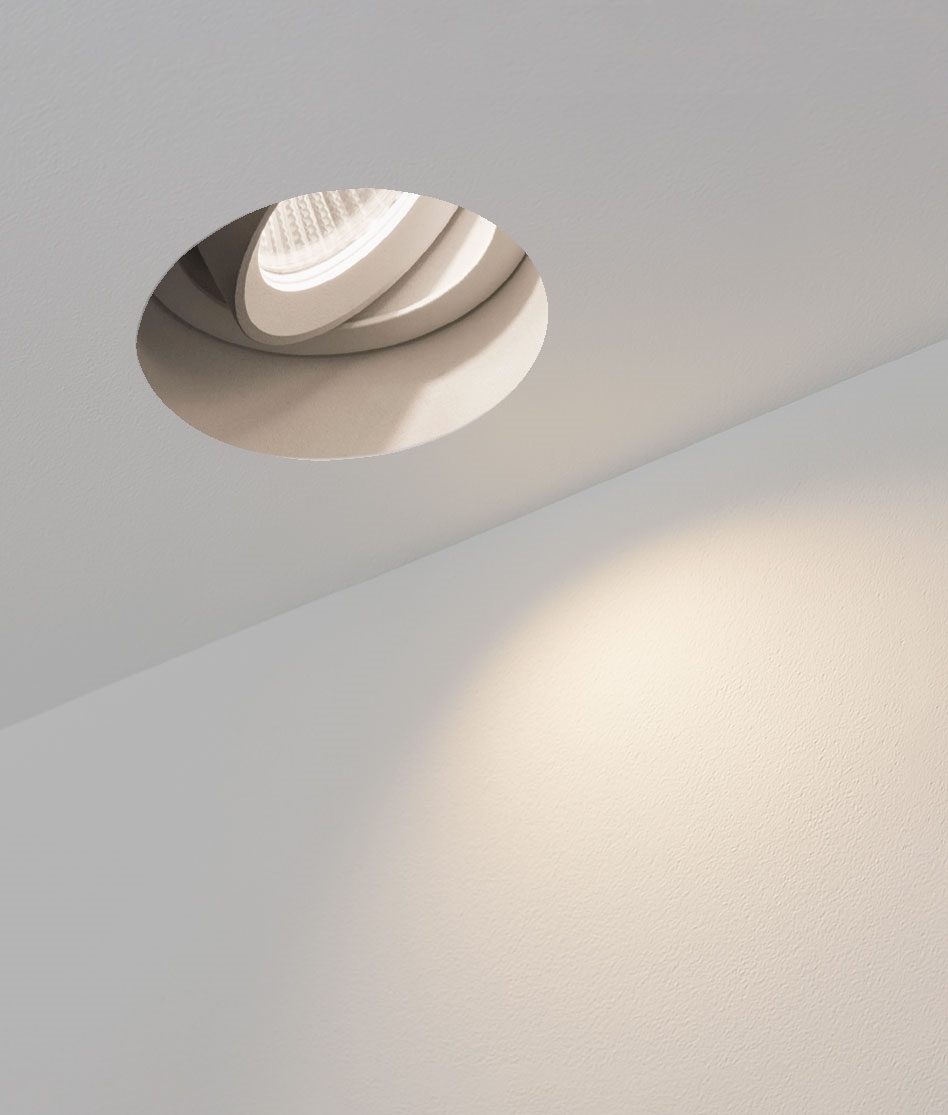

Offers a 30° tilt from horizontal. The deep lamp recess reduces glare for a soft lighting effect.

Round
Height 74mm x Diameter 74mm
Cutout 80mm
6.8w, 2700k LED lamp supplied
528 Lumens, 37º Beam angle
Requires driver

Square
Height 80mm x Diameter 93mm x Width 93mm
Cutout Length 95mm x Width 100mm
6.8w, 2700k LED lamp supplied
544 Lumens, 35º Beam angle
Requires driver


The drivers recommended can power 1 fitting.

Lamp TypeLong Life LED light source
Lamps IncludedYes
Dimmable?Yes - on standard dimmer
(TRIAC or leading edge)
Max Wattage6.8w
ConstructionZinc
Wiring DetailsClass 3 - Requires a low voltage supply
IP RatingIP20
Kelvin2700°K - Soft Warm White
DriverNo driver or transformer is supplied with this fixture (sold separately)
PDF Document(s)Instructions
Availability: IN STOCK 2-3 working day dispatch
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
MIK1248010
Round Adjustable Round Trimless Downlight
RRP £77.88
You save £25.03
£52.85
£44.04 exc VAT
MIK1248009
Square Adjustable Round Trimless Downlight
RRP £86.79
You save £27.90
£58.89
£49.08 exc VAT
This product requires a driver or transformer - Suitable items can be found below
UAULEDD7010
Dimmable 1-10w 700mA Constant Current Driver
£31.75
£26.46 exc VAT
MIK6008022
700mA 6-10w LED Power Supply
£26.65
£22.21 exc VAT
