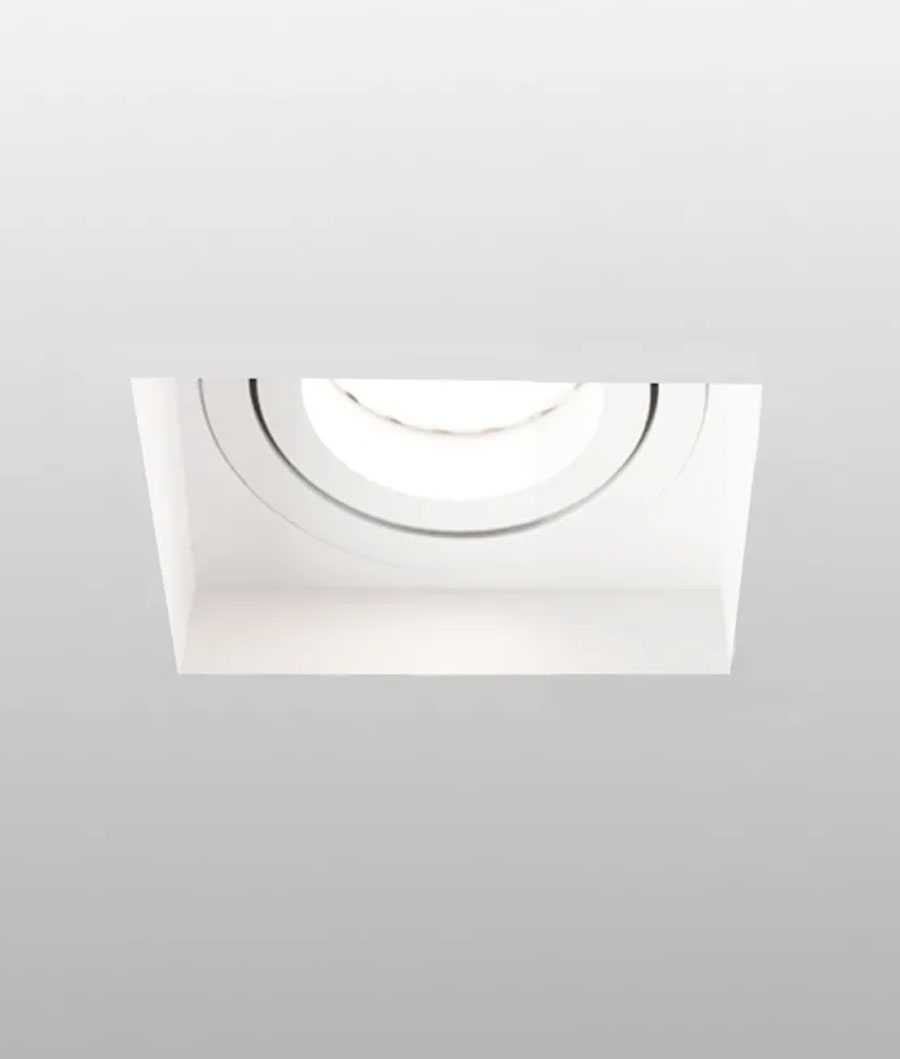

Adjustable Square Fire Rated Trimless Downlight

For Any Ceiling Depth - Ceiling Must Be Skimmed

Offers no protection from splashed or sprayed waterClass 1 – This fitting will require an earth connection.Yes, this product is dimmable - See the specifications tab for more detailsBulbs Not Included

Product Ref: 6708

£50.21 inc VAT

Here is an easy to install trimless fire rated downlight for use in new ceilings or in areas where a plaster skim is to be applied. Provide a neat and discrete built-in look.

Installation is relativity easy...

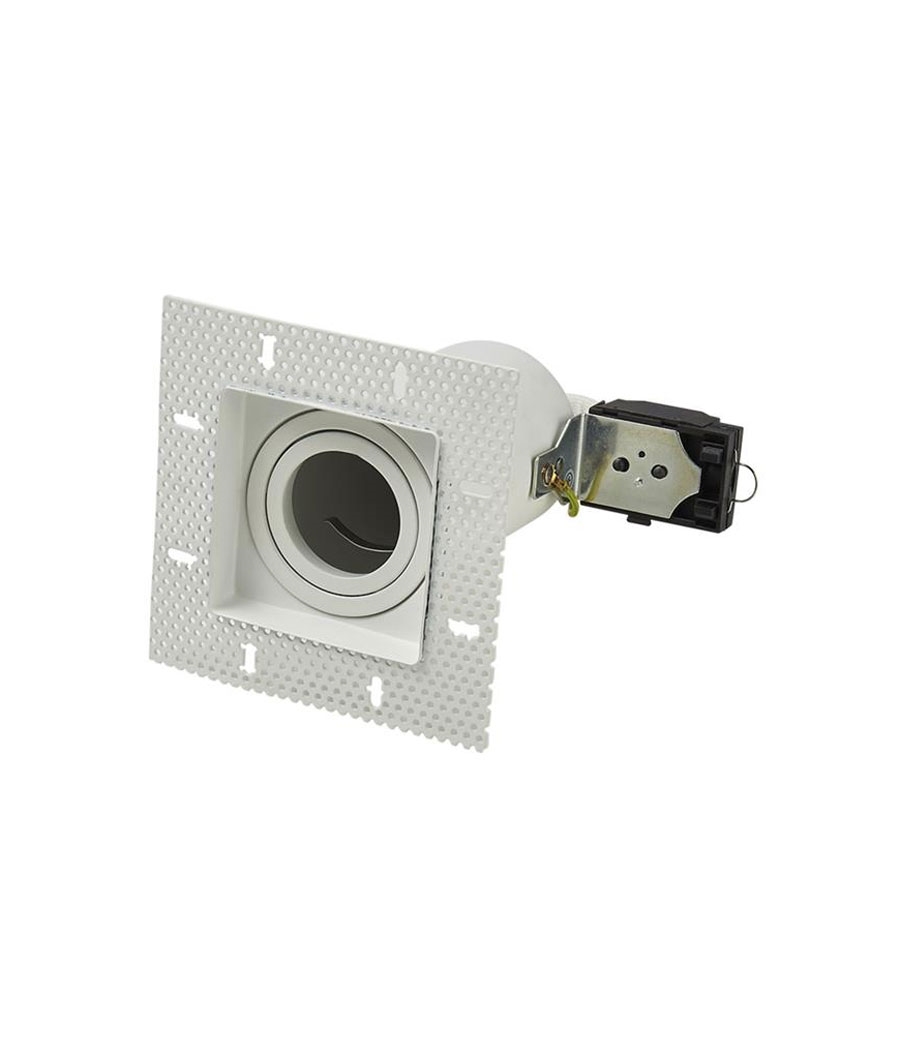

Cut a 111mm diameter square hole. Install the top hat housing in the hole and fix the perforated rim to the plasterboard. Plaster with a skim coat to the circular bead, paint then install the rear housing, lamp and retaining bezel. Full instructions are provided in the PDF document.

White finish which is easily painted.

Offers a 35° tilt from horizontal. The deep lamp recess reduces glare for a soft lighting effect.

Desired recess depth 180mm.

This fitting can also use our LED GU10 lamps, for more energy efficient lighting.

Number Of Lamps1
Lamp TypeGU10 Base Mains Lamps
Lamps IncludedNo
Dimmable?Yes - on standard dimmer
(TRIAC or leading edge)
Max Wattage50w
Width104mm
Suggested Void Depth180mm
ConstructionSteel - Powder Coated
Wiring DetailsClass 1 - Requires an Earth Connection
IP RatingIP20
PDF Document(s)View PDF
Availability: IN STOCK 2-3 working day dispatch
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
MIK1248007
Adjustable Square Fire Rated Trimless Downlight
RRP £75.61
You save £25.40
£50.21
£41.84 exc VAT
