Product Ref: 6707

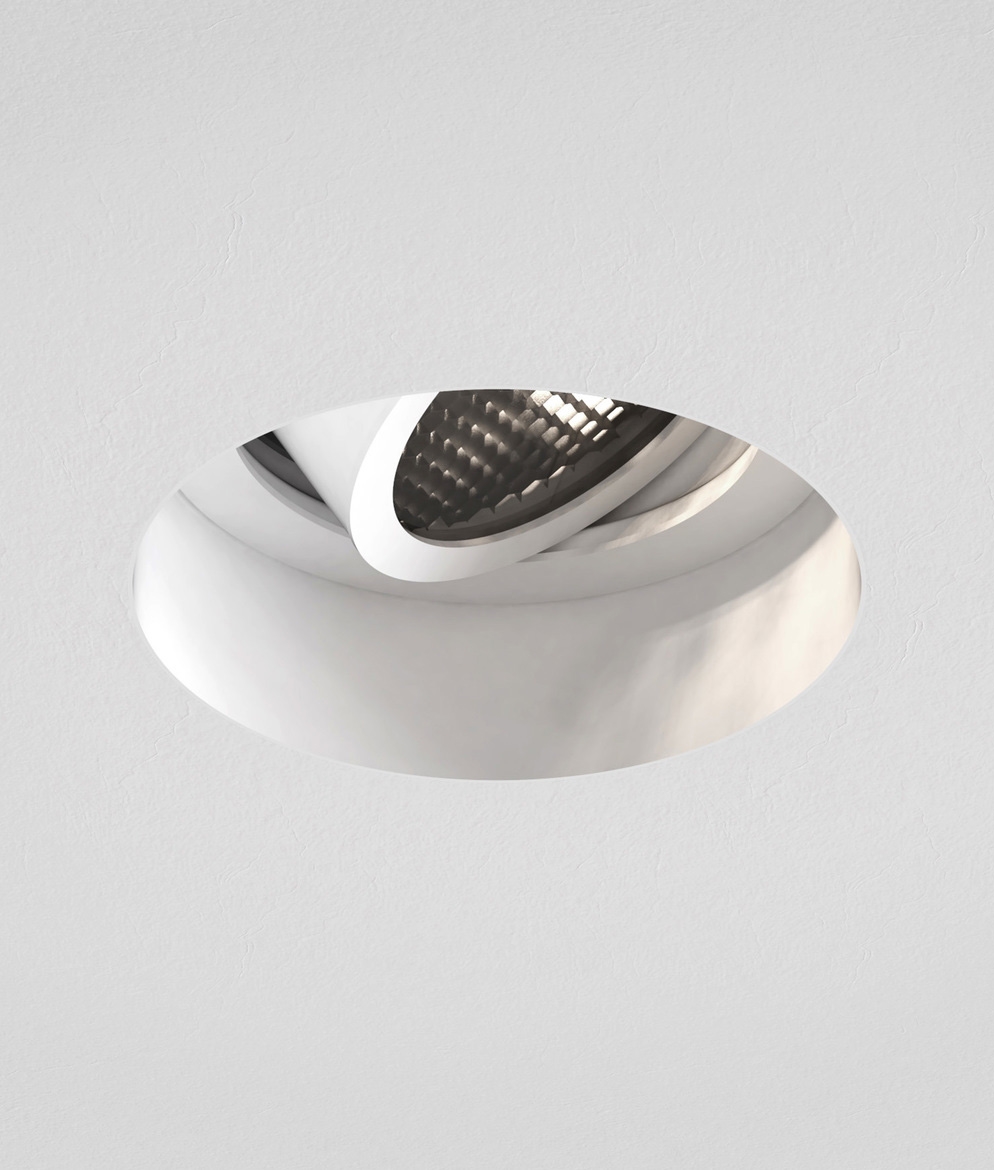

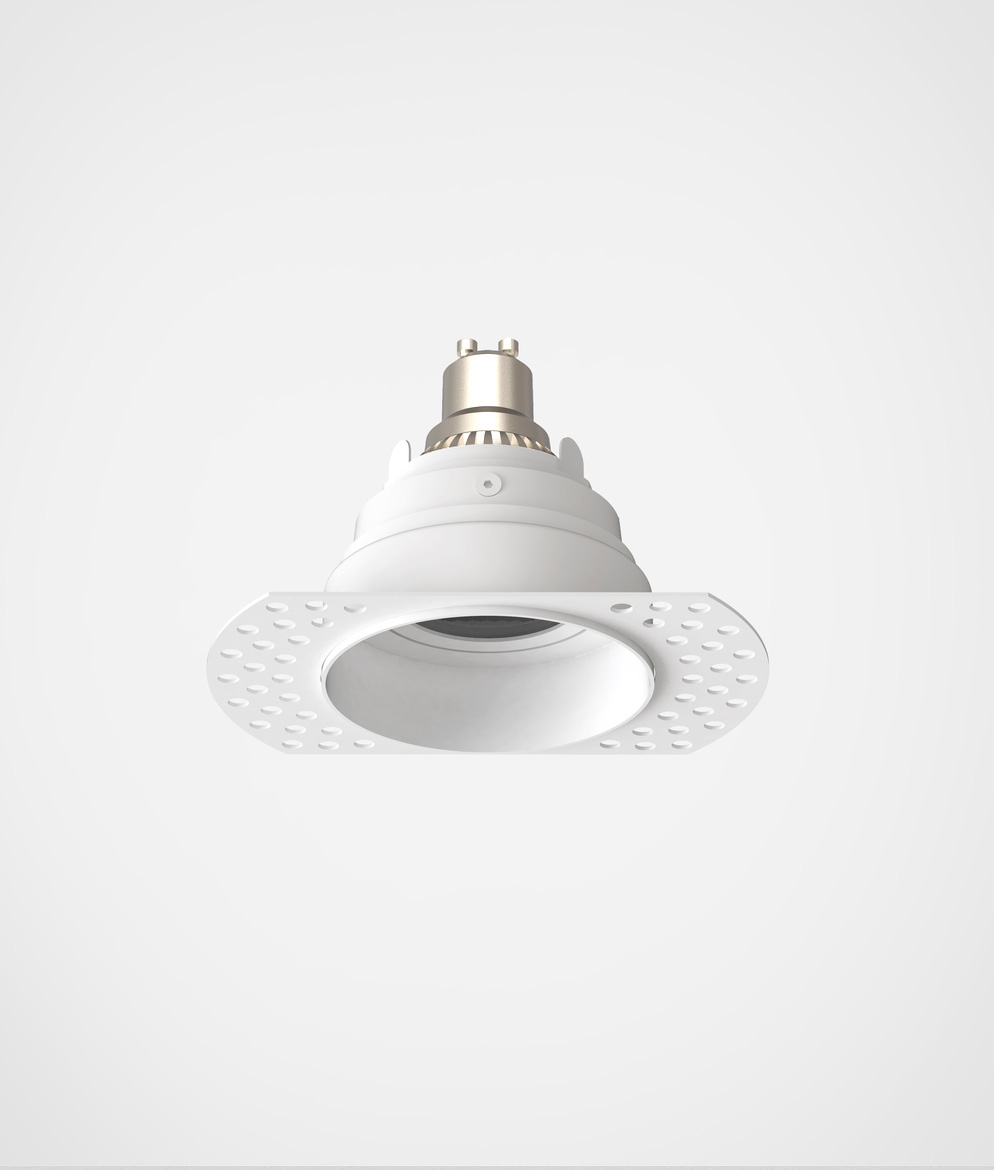

£84.50 inc VATHere is an easy to install trimless Fire rated downlight for use in new ceilings or in areas where a plaster skim is to be applied.

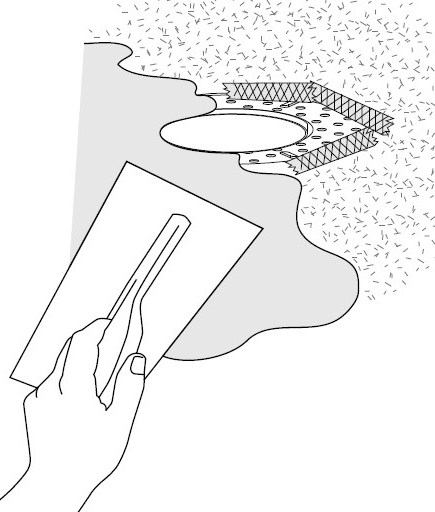

Installation is relativity easy...Cut a 79mm round hole. Install the top hat housing in the hole and fix the perforated rim to the plasterboard. Plaster with a skim coat to the circular bead, paint then install the rear housing, lamp and retaining bezel. Full instructions are provided in the PDF documents

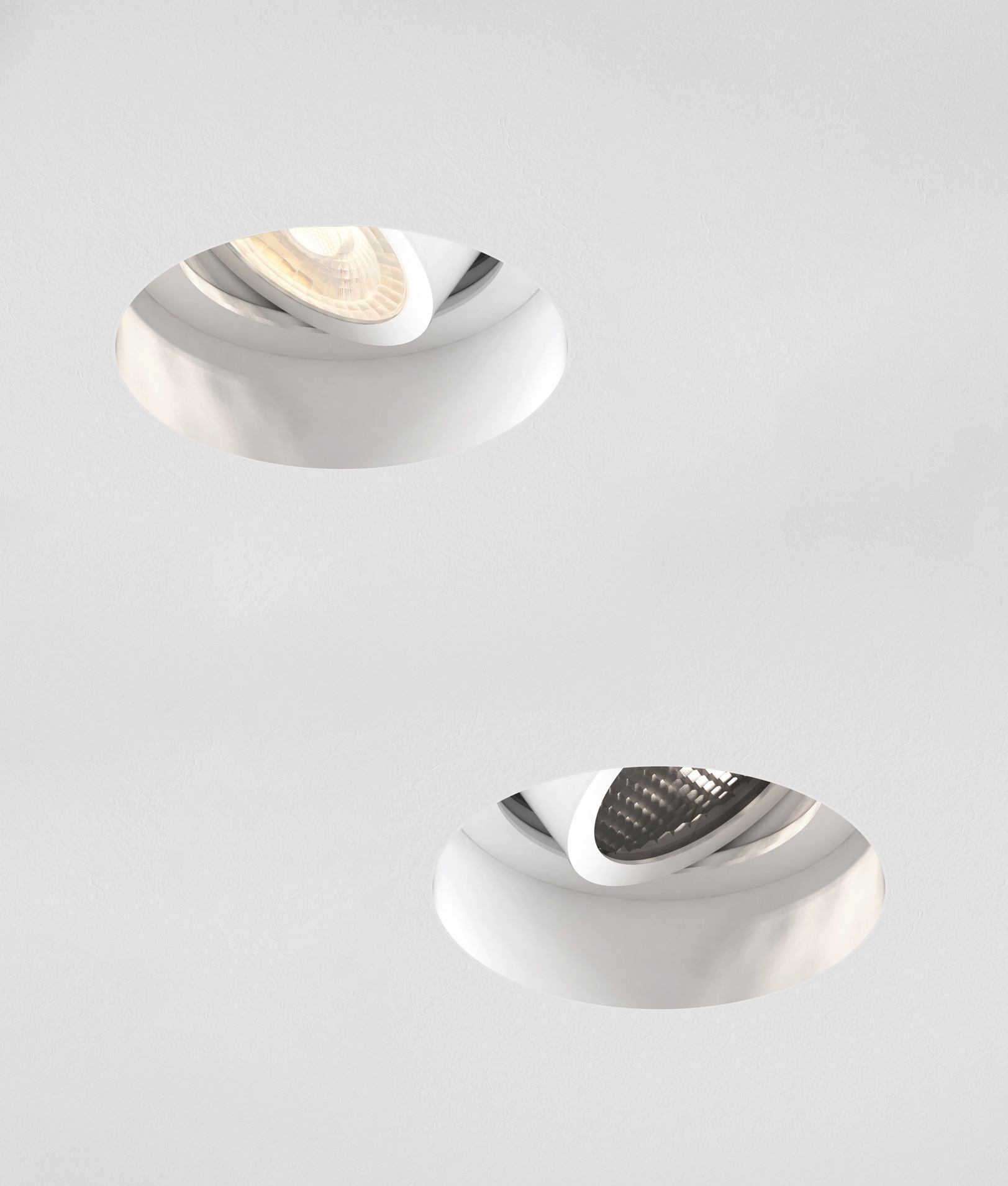

Offers a 30° tilt from horizontal. The deep recess of the lamp reduces glare within the room and help achieve a low profile finish. A honeycomb baffle is provided that reduces glare and narrows the beam angle of your chosen lamp. This may be omitted if desired.
Height 64mm + length of lamp (normally 55mm)
Suggested void depth of 150mm - minimum 120mm
Cutout 79mm
Designed for use with any GU10 LED lamp up to 6w
No driver required, just your mains connection. The use of a double insulated lampholder means the fixture the installation is class II (no earth connection required)
Fire Rated up to 90 minutes
View more items from this supplier
| Number Of Lamps | 1 |
| Lamp Type | GU10 Base Mains Lamps |
| Lamps Included | No |
| Dimmable? | Yes - on standard dimmer (TRIAC or leading edge) |
| Suggested Void Depth | 150mm |
| Cut-Out Diameter | 79mm |
| Construction | Steel - Powder Coated |
| Wiring Details | Class 2 - Double Insulated - Requires no Earth Connection |
| IP Rating | IP20 |
| PDF Document(s) | GU10 Instructions |
