Product Ref: 6883

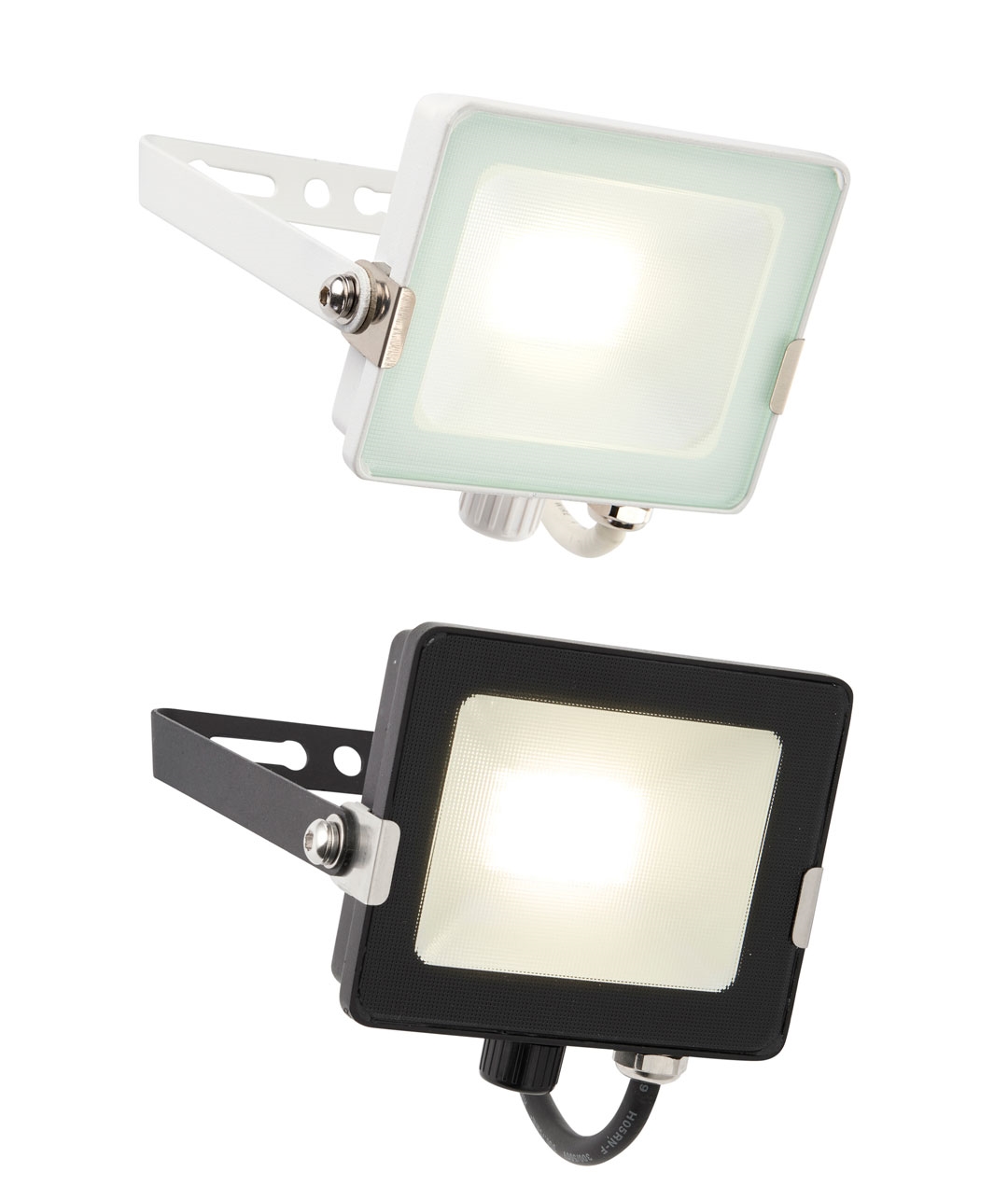

From £13.00 inc VATA selection of LED floodlights in four sizes and each with a particular wattage (10, 20, 30 or 50) and a choice of three optional sensors which fit to the bottom of the light.
A sturdy construction using die-cast aluminium and steel, all powder coated for long service in the U.K. weather. The glass is prismatic which allows for enhanced LED illumination and reduced glare.
Each option comes with a mounting bracket which can be angled and installed on a wall or floor.
Perfect to use on outdoor features such as decking, verandas, terraces, paths, walls, or feature lighting in all modern outdoor environments. All have an IP65 rating and are designed to be used with one of the optional sensors. There is a small cap at the bottom of each floodlight which unscrews and the sensor is fitted via this connection.
Notes on sensors: A PIR sensor is a passive sensor which senses infrared signals by various objects specifically a person. A microwave sensor is an active sensor (as it emits microwave signal for detection). PIR sensor is passive sensor as it senses infrared signal emitted by various objects including human body. A photocell sensor can be used if you require the light to switch on at dusk and switch off again at dawn.
Dimensions
10 watt LED Neutral White
Height 173mm x width 105mm x Projection 320mm
4000k 800 lumen
Weight 0.3Kg
20 watt LED Neutral White
Height 186mm x width 126mm x Projection 330mm
4000k 800 lumen
Weight 0.3Kg
30 watt LED Neutral White
Height 206mm x width 155mm x Projection 320mm
4000k 2400 lumen
Weight 0.5Kg
50 watt LED Neutral White
Height 235mm x width 209mm x Projection 320mm
4000k 4000 lumen
Weight 0.8Kg
All floodlight options come with with 1 metre and angled mounting bracket.
Sensor Options

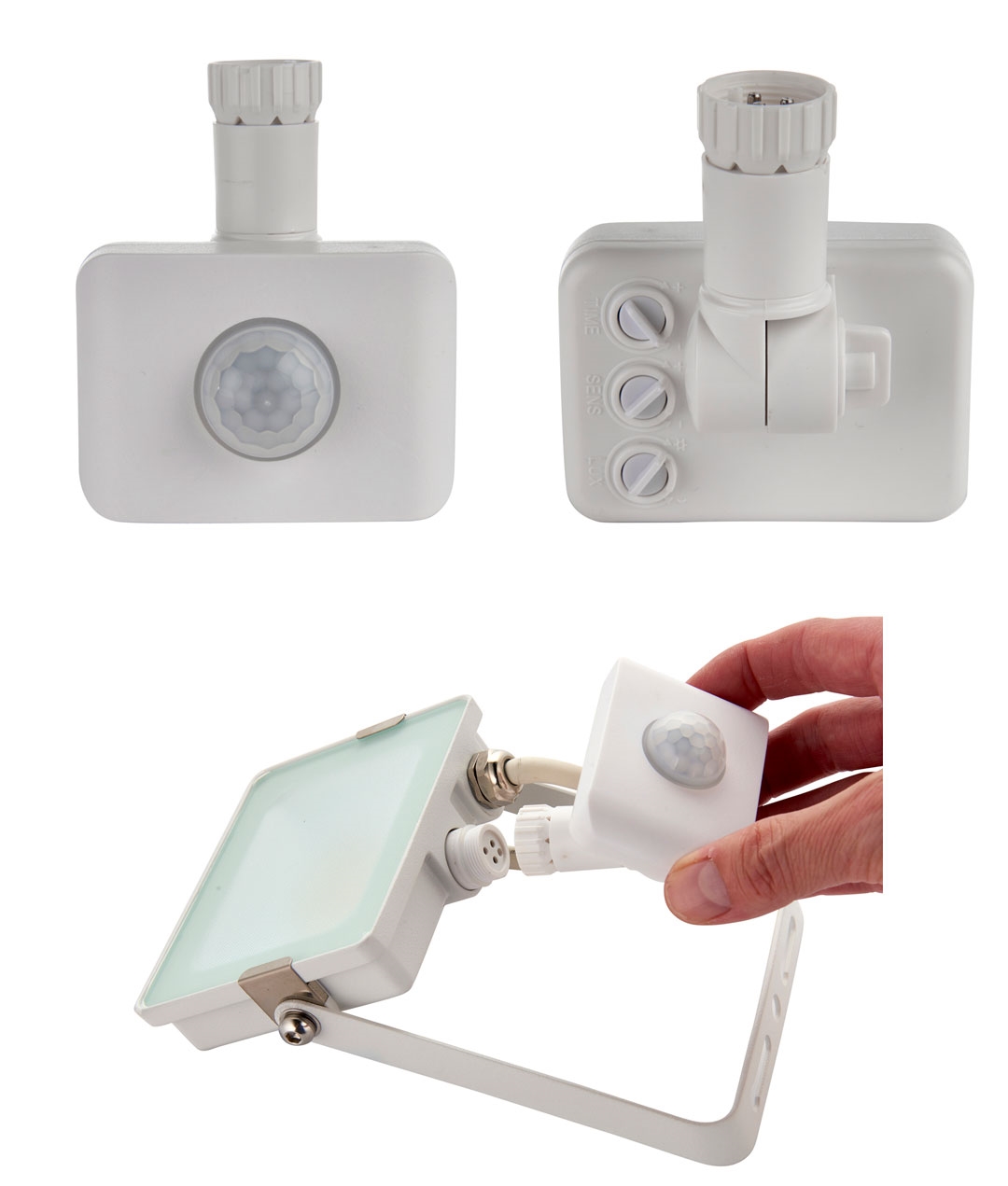

PIR Sensor - Black or White
Complete with built in manual override
Detection Range: 120°
Detection Distance Max 2-10m (adjustable)
Time delay 10Sec-7Min (adjustable)
Rated load 100 watts max
Ambient Light <10Lux~2000 Lux (adjustable)

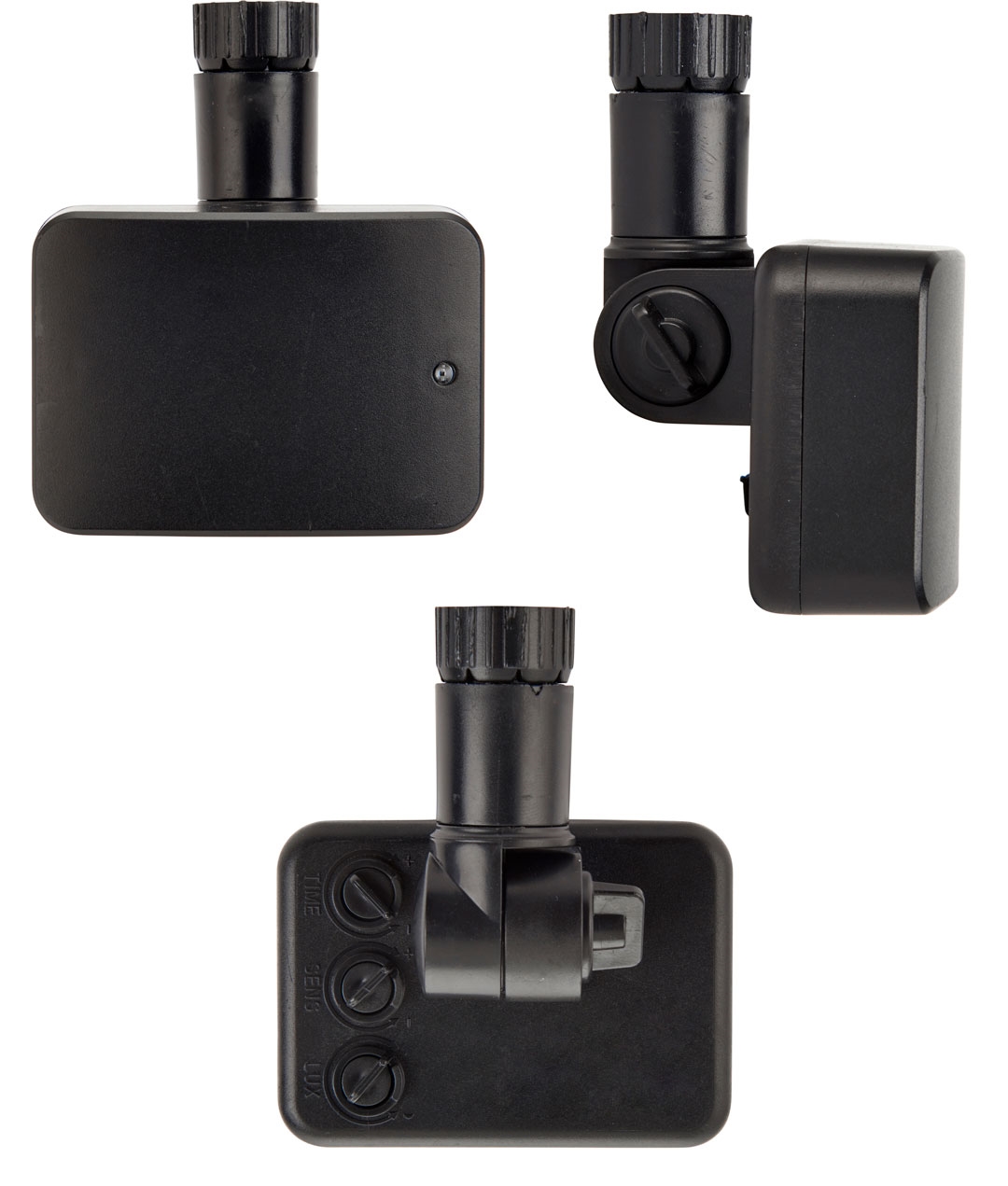

Microwave Sensor - Black Only
Detection Angle: 360°
Detection Range:Max 3-10m radius (adjustable)
Time Setting 10sec-15Min (adjustable)
Rated load 100 watts amx
Ambient Light 10Lux~2000 Lux (adjustable)

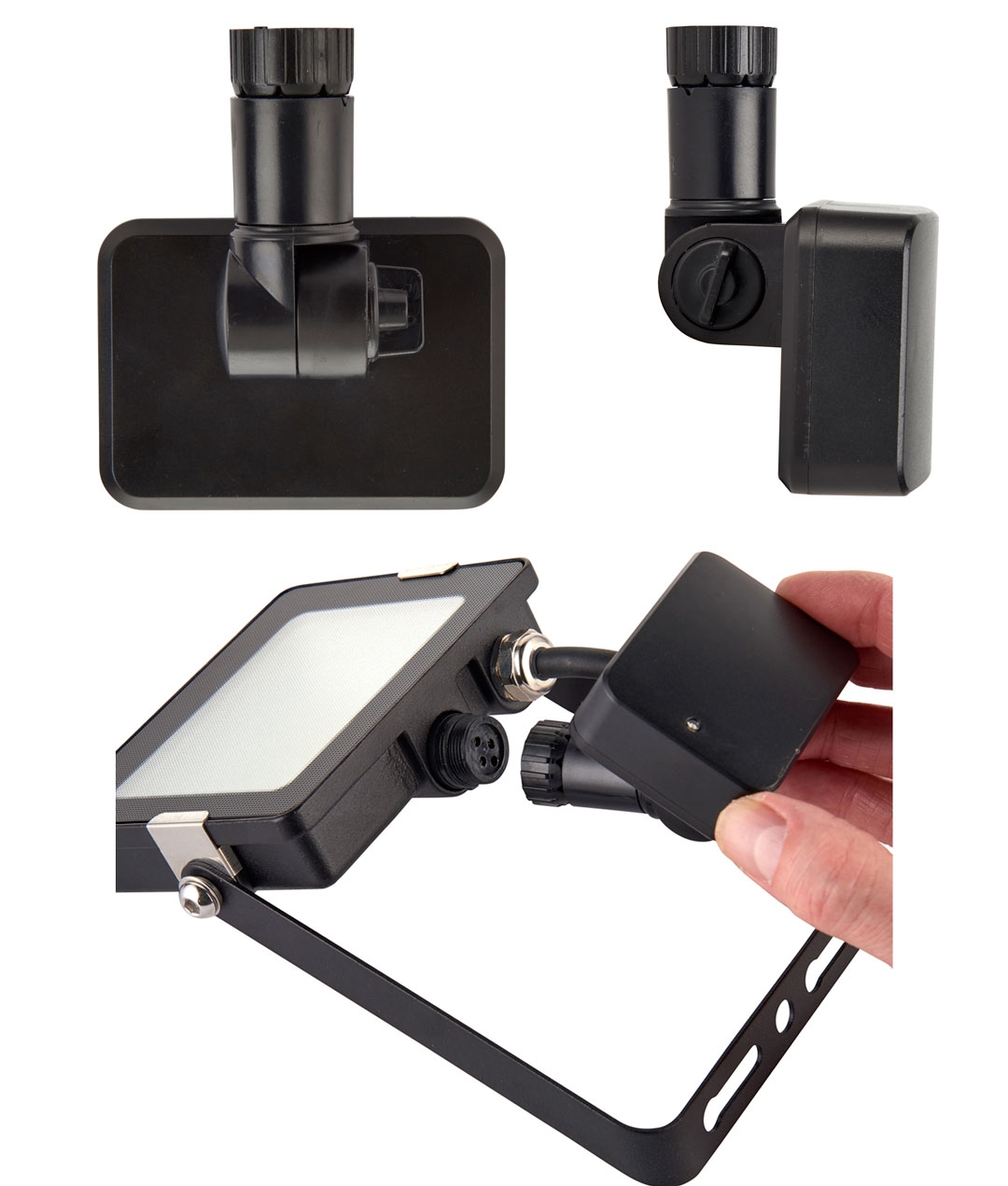

Photocell Sensor - Black Only
Built-in Photocell
<10 lux ON ,>40 lux off
Rated load 100 watts max
Each floodlight Comes with 3 year manufacturers warranty.
Number Of Lamps | 1 |
Lamp Type | Long Life LED Light Source |
Lamps Included | Yes |
Dimmable? | No |
Construction | Cast Aluminium |
Wiring Details | Class 1 - Requires an Earth Connection |
IP Rating | IP65 |
Kelvin | 4000°K - Neutral White |
Driver | Includes integral driver/transformer suitable for 230 - 240v supply |
PDF Document(s) | View PDF View PDF |
Is this product hardwired?
|
