Variable Output Modular Linear Lighting Solutions - Ceiling Fixed or Suspended with UGR Compliance

Mid-Sized Linear Lighting Solution for Versatile Spaces

Enhance your environment with our modular, mid-sized linear lighting solution 35mm wide & 70mm deep. Designed for easy installation, this system can be directly fixed to the ceiling or suspended via wire suspensions, allowing extended lengths to be connected using just one electrical point, reducing installation costs and saving time. Ideal for a variety of settings, from commercial to educational environments, this adaptable lighting solution brings both functionality and style to your space.

Low-Glare UGR for Enhanced Comfort

Unified Glare Rating (UGR) is key to creating comfortable lighting environments. A UGR17 rating is ideal for offices, educational facilities, and other areas that demand excellent visual comfort, minimising eye strain and enhancing visual performance. UGR19, with a moderate glare level, is more suited to public spaces and commercial settings where a balance between glare and lighting intensity is required.

Our linear lighting solution offers a choice between UGR17 mini spot modules or a UGR19 prismatic diffuser, allowing you to manage glare levels to suit the specific needs of your environment.

Direct Lighting Options for Different Installation Needs

Choose from a variety of configurations to meet your direct lighting requirements:

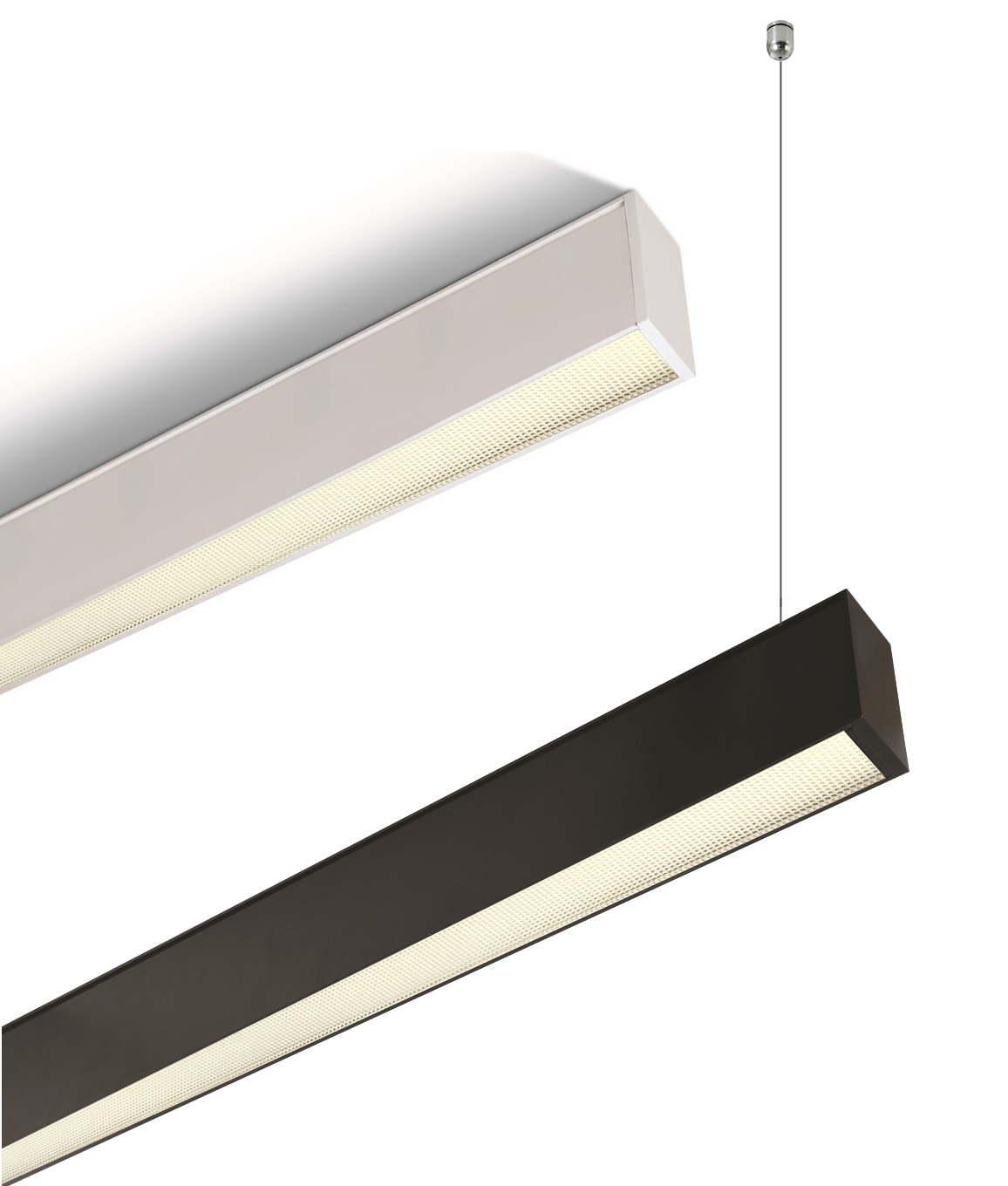

• Surface or Suspended Installation: Select between direct lighting options, available as surface-mounted or suspended.

• 48 Mini Spots in Egg Crate Diffuser: Switchable light output 20W/30W/40W, up to a max of 3800 lumens, measures 1300mm in length.

• Prismatic Module 1200mm: Switchable light output 20W/30W/40W, up to a max of 3400 lumens, providing a softer, evenly distributed light.

  Prismatic Module 1500mm: Switchable light output 30W/40W/50W, up to a max of 4250 lumens, providing a softer, evenly distributed light.

• Combined Direct Lighting: Twelve mini spots at either side of a central 600mm prismatic panel, offering switchable light output 20W/30W/40W, up to a max of 3400 lumens.

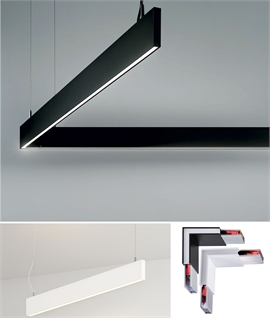

Direct & Indirect Lighting for Enhanced Ambience

For suspended installations, direct and indirect lighting is also available. This option combines 48 mini spots in an egg crate diffuser with an additional upward light through an opal diffuser positioned at the top of the profile. This solution features switchable outputs (20W/30W/40W direct and 16W/20W/25W indirect), measuring 1300mm in length, delivering 3800 lumens downward and an additional 1800 lumens upwards—perfect for accentuating ceiling details while minimising glare.

Flexible Installation and Layout Options

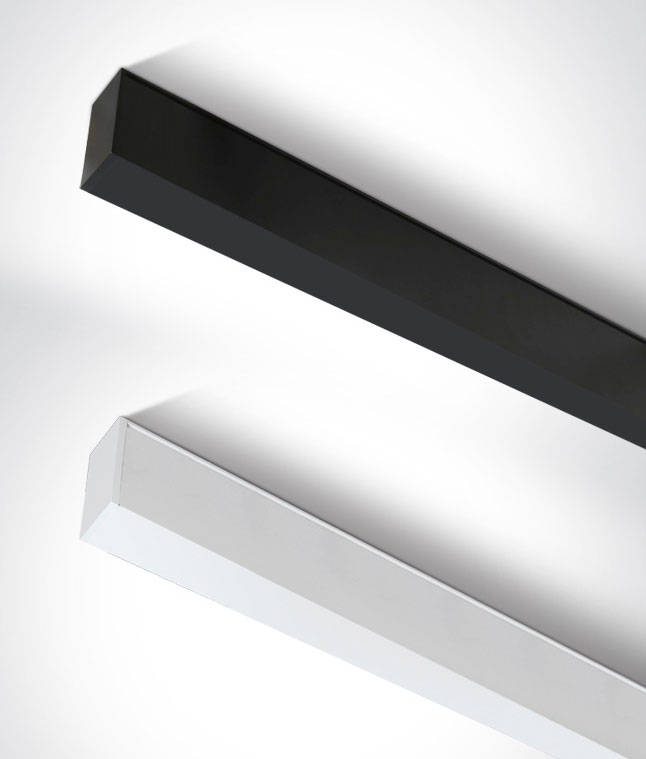

Our modular design allows for extensive customisation. Use single modules for isolated lighting needs or connect multiple units to create extended runs, squares, or rectangles using our corner brackets. For areas that do not require continuous lighting, we also offer 1-metre "blank" sections for added versatility.

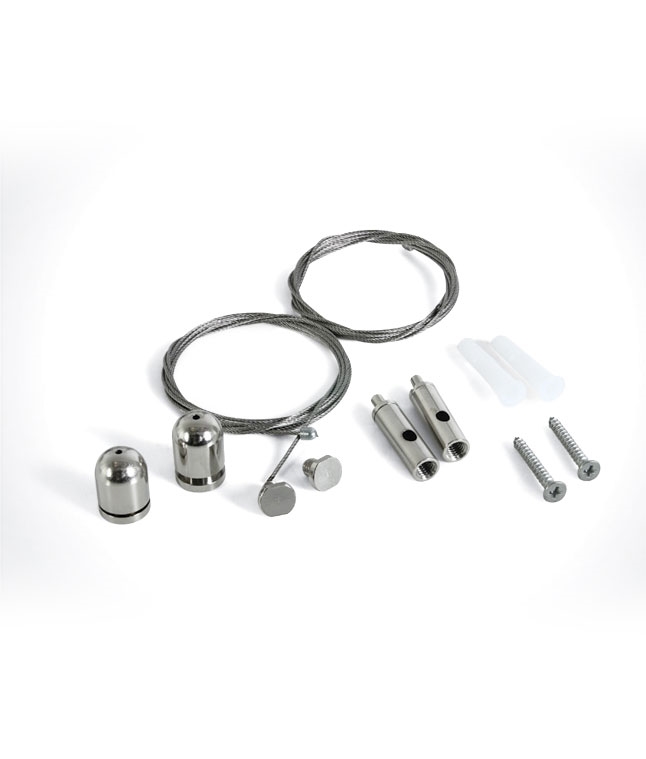

Suspended installations use 3-metre suspension kits, sold in packs of two. All modules require only two suspension points, which can be installed anywhere along the profile's top.

Choice of Finish and Colour Temperature

Available in either black or white, our modules provide flexibility to match your interior decor. Choose your colour temperature with the integral CCT switch, allowing you to select between 3000K, 4000K, or 5000K for the perfect lighting for your space.

Effortless Installation

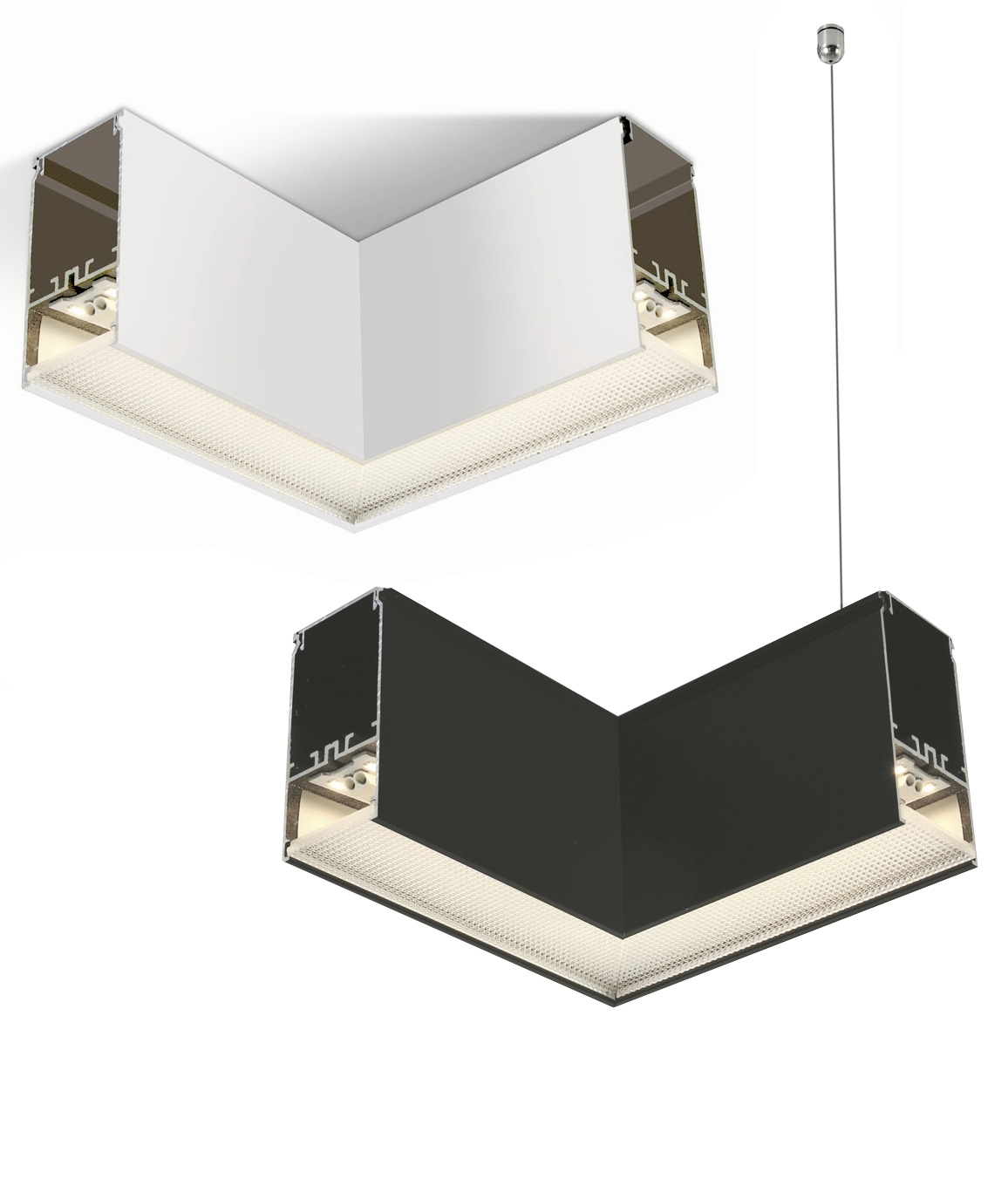

Each module comes complete with end caps and fixing clips for surface mounting, as well as an internal wiring loom with quick connections for easy, stress-free installation. Mechanical connections further simplify the assembly process, ensuring that even complex layouts can be achieved quickly and effectively. Corners are also illuminated with direct light downward, featuring switchable output options of 6W/8W/10W/14W and an integral CCT switch for selecting the ideal colour temperature. The corner length is 128mm, meaning that for a square layout using 1200mm modules, the overall size will be 1456mm (128mm + 1200mm + 128mm).
