UGR17 Linear Spotlight Bar with Low-Glare Miniature Reflectors - Variable Output, CCT, Downlight, Fixed or Suspended

Enhanced Comfort Linear Lighting System - Combination Direct/Indirect Light Output Versions

Offers no protection from splashed or sprayed waterClass 1 – This fitting will require an earth connection.Includes integral driver/transformer suitable for 230 - 240v supply

Kelvin Chart

Product Ref: 62739

From £134.40 inc VAT

This linear lighting system has been developed to provide superior visual comfort in environments where concentration and screen-based work are a priority. Featuring a Unified Glare Rating (UGR) of 17, the system reduces eye strain and helps improve focus—making it well-suited to offices, control rooms, studios, and educational settings.

The optical system uses a dense array of miniature spot reflectors housed within a black louvre, controlling brightness at source and ensuring that glare is kept to a minimum. For areas with more relaxed lighting requirements, a UGR19 version with a white prismatic diffuser is also available.

Product Options and Specifications

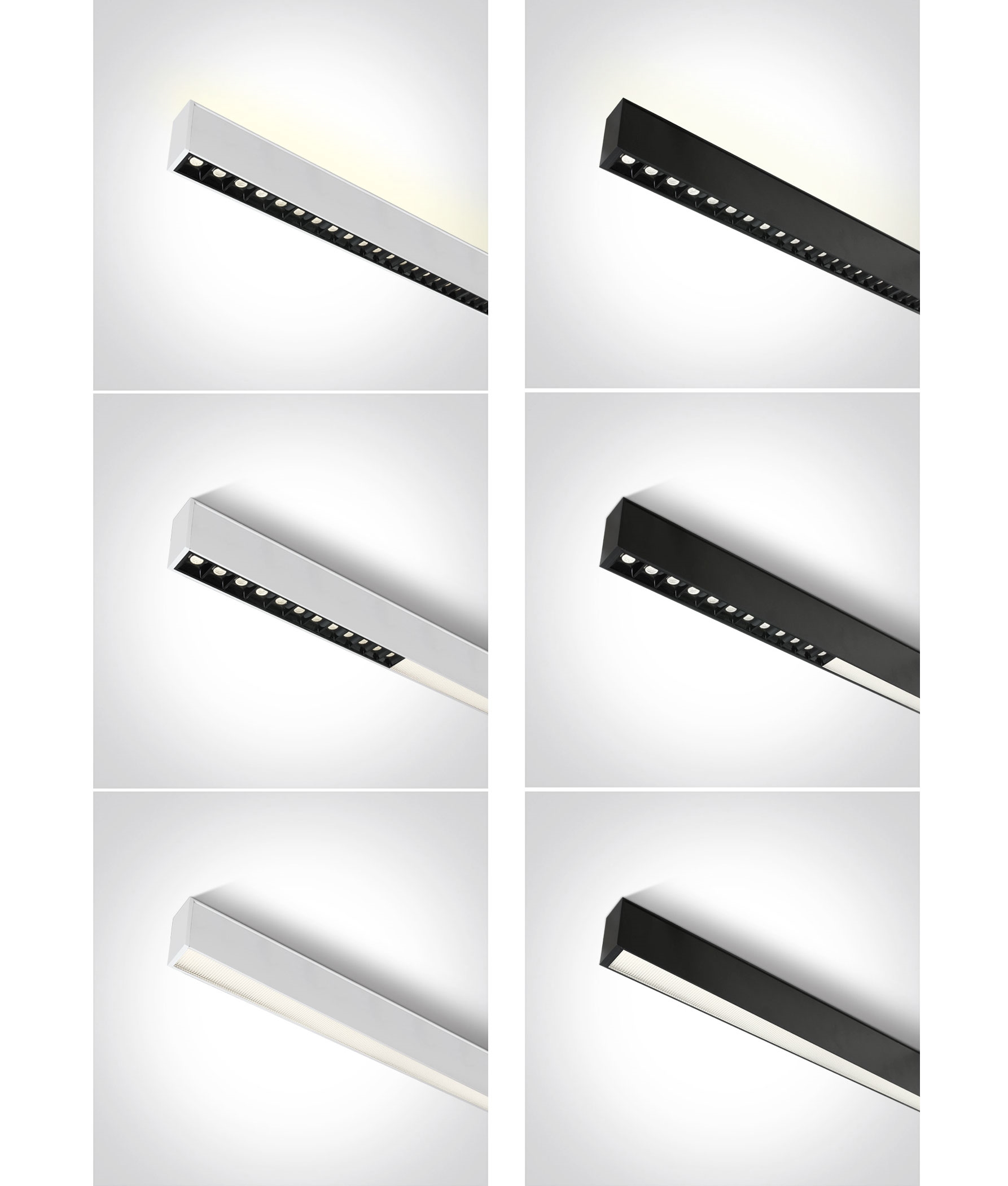

UGR17 Mini Spot Module
1300mm length
48 miniature reflectors in black louvre
Switchable output: 20W / 30W / 40W
Maximum output: 3800 lumens
Mounting: Surface or suspended

Hybrid Module with Prismatic Centre Panel
1300mm length
12 mini reflectors either side of a 600mm central prismatic diffuser
Switchable output: 20W / 30W / 40W
Maximum output: 3400 lumens
Mounting: Surface or suspended

UGR17 Direct/Indirect Module
1300mm length
48 miniature reflectors in black louvre (downlight)
Opal diffuser at top (uplight)
Downlight switchable output: 20W / 30W / 40W
Uplight switchable output: 16W / 20W / 25W
Maximum output: 3800 lumens down / 1800 lumens up
Mounting: Suspended only

Installation Features

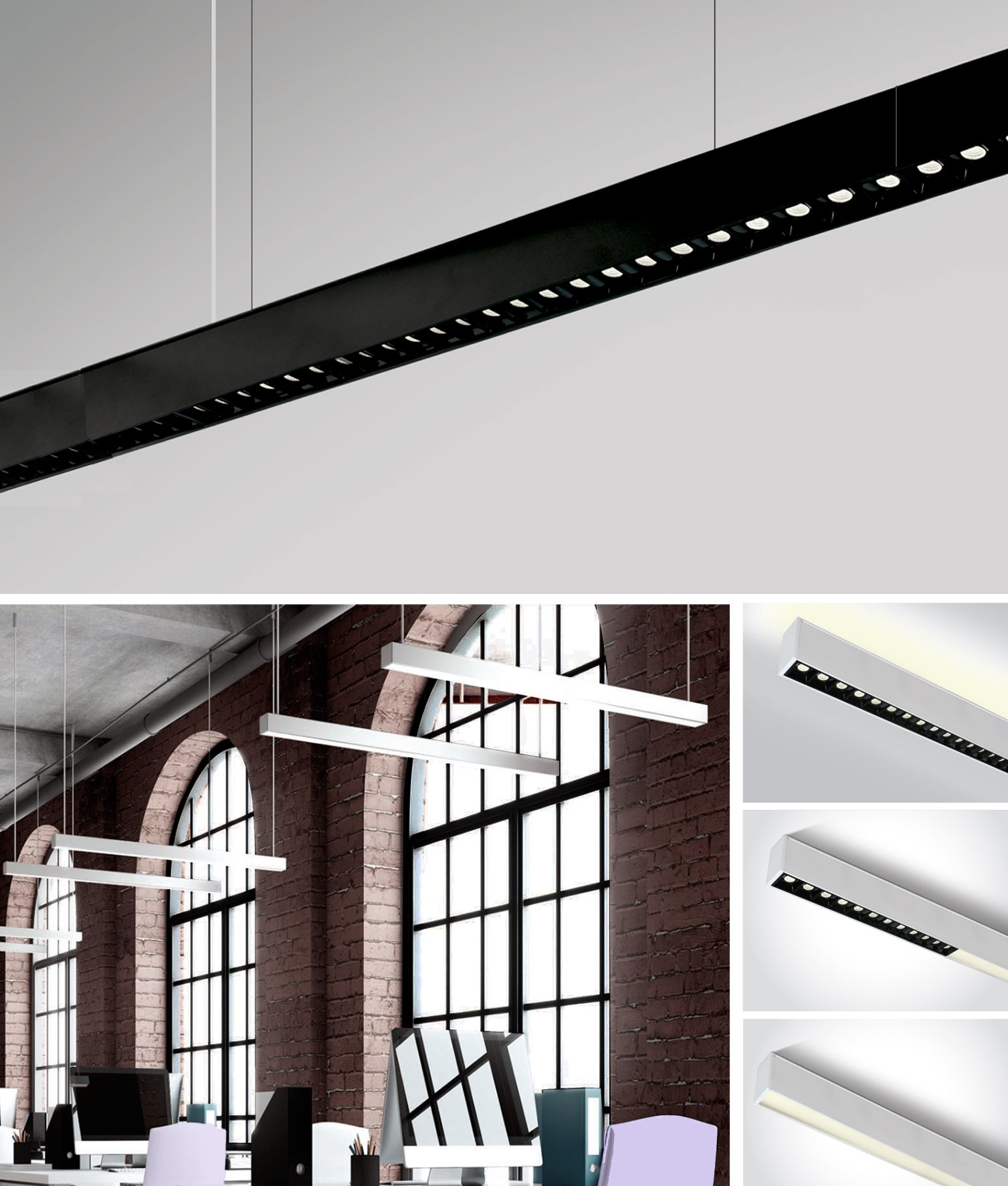

All modules are compatible with surface-mounting kits or 3-metre wire suspension kits (sold in pairs). Each unit requires just two suspension points, which can be positioned anywhere along the profile top for maximum flexibility.

Blank Modules and corner (both illuminated and non-illuminated) are available - please contact us for details.

A version of this light with a prismatic UGR19 diffuser is also available - Find it here

Availability: Typically dispatched in 4-7 days
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
Direct Linear Spot - 1300mm CCT Switchable 20/30/40 watts
CY38150BBV
Black 40w 1300mm Linear LED light CCT Eggcrate UGR17 Module
£134.40
£112.00 exc VAT
CY38150BWV
White 40w 1300mm Linear LED light CCT Eggcrate UGR17 Module
£134.40
£112.00 exc VAT
Direct Combination Diffused & 24 Spot - 1200mm CCT Switchable 20/30/40 watts
CY38150CBV
Black 40w 1200mm Linear LED light CCT Mixed Eggcrate & Prismatic UGR19
£137.30
£114.42 exc VAT
CY38150CWV
White 40w 1200mm Linear LED light CCT Mixed Eggcrate & Prismatic UGR19
£137.30
£114.42 exc VAT
Direct & Indirect Linear Lighting - 1300mm CCT Switchable 20/30/40 watts
CY38150BUBV
Black 60w 1300mm Linear LED light CCT UGR17 Direct & Indirect
£220.00
£183.33 exc VAT
CY38150BUWV
White 60w 1300mm Linear LED light CCT UGR17 Direct & Indirect
£220.00
£183.33 exc VAT
Suspensions - 3 metre long braided stainless steel
CY050170
3 Metre Long Suspensions (Pair)
£22.00
£18.33 exc VAT
Illuminated Corners
CY050170DBV
Black Illuminated Corner 14w CCT 128mm x 128mm
£86.40
£72.00 exc VAT
CY050170DWV
White Illuminated Corner 14w CCT 128mm x 128mm
£86.40
£72.00 exc VAT
