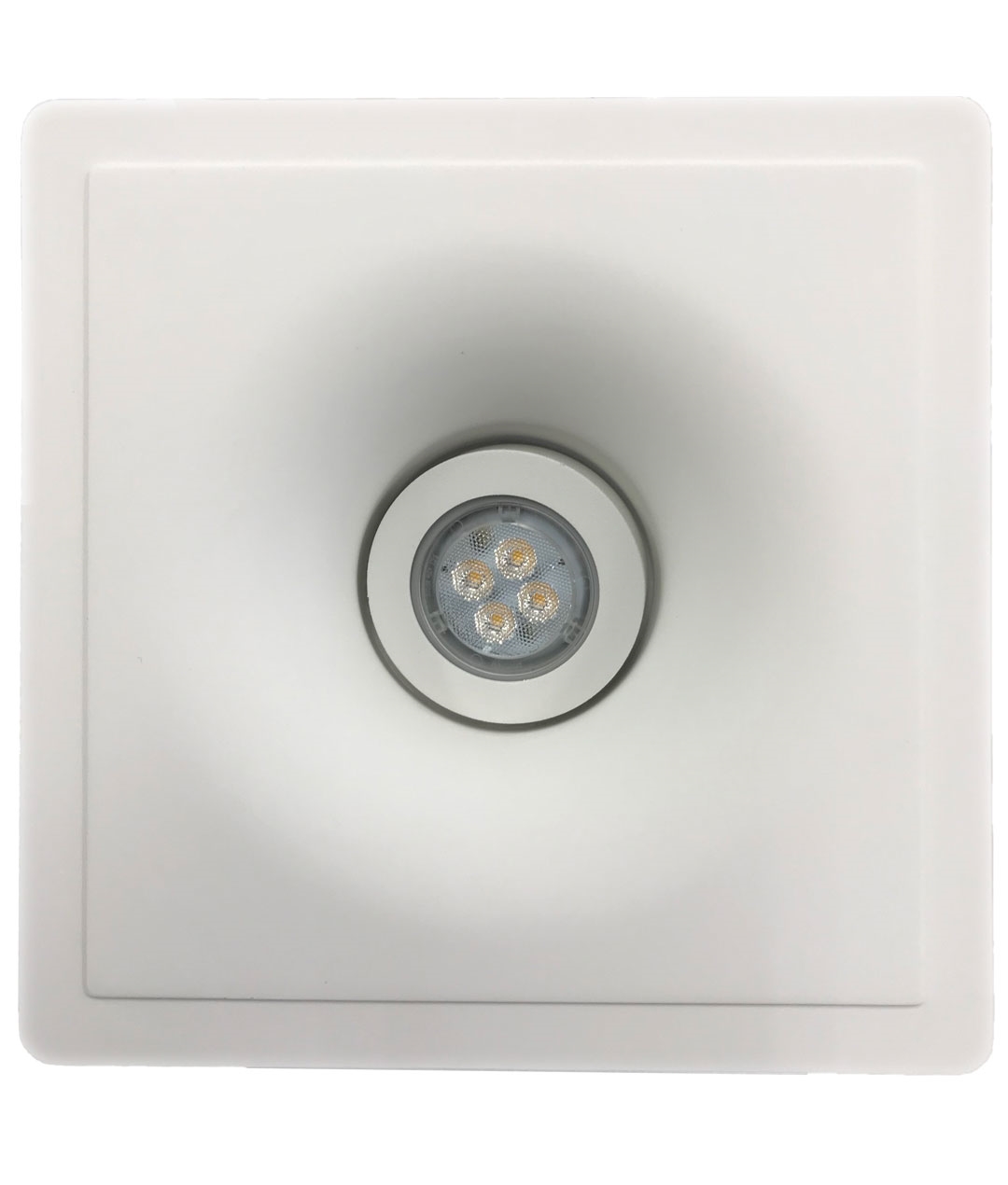

Adjustable Trimless Plaster-in Downlight - Large Curve

Easy to Install Design - Suitable for DIY

Protected from water spray i.e. rainClass 1 – This fitting will require an earth connection.Yes, this product is dimmable - See the specifications tab for more detailsBulbs Not IncludedIncludes remote driver/transformer suitable for 230 - 240v supply

Product Ref: 6666

From £49.98 inc VAT

A recessed plaster downlight with a sleek, curved look. Part of a range of plaster downlights produced in Spain. By fully embracing the flexibility that plaster can provide these products offer a sleek and modern look. Featuring smooth curves and elegant styling these take a step away from the traditional angular design of our other plaster recessed downlights. This fixture can be installed without a plaster skim coat; the simple design means you can joint fill the gap with plasterboard joint tape and filler, rub down and paint.

The lamp holder is adjustable giving rotation and tilt and can be used with LED or tungsten lamps.

Easy lamp installation, remove the bezel and attach the lamp to the bezel, push on your lamp holder then insert bezel into the fitting and twist.

The fixture can be used with either mains or 12-volt lamps and is supplied with either a GU10 lamp holder or a GU5,3 lamp holder and 60va transformer.

Installation is easy for end users and contractors...

  1. Put on some clean gloves (supplied)
  2. Wire in the mains supply and pull the lamp holder through the fixture so it can be accessed after installation.
  3. Cut a square hole, angle the fixture and insert into the ceiling.
  4. Lower the fixture and the lugs sit on top of the plasterboard.
  5. While holding the fixture down put two screws through the plasterboard, through the lugs and fix in place.
  6. Plaster or fill the gap, allow this to dry.
  7. When dry insert lamp and bezel, Take off gloves and pat yourself on the back.

Desired recess depth 170mm - to ease installation.

NOTE: This downlight is designed for plasterboard ceilings between 9 to 15mm thick. The fixed brackets cannot be adjusted for deeper ceilings.

Bulb not included.

Cut-out Diameter:
210mm
Number Of Lamps1
Lamp TypeVaries - See Description
Lamps IncludedNo
Dimmable?Yes - on standard dimmer
(TRIAC or leading edge)
Max Wattage50w
Width204mm
Height204mm
Depth/Projection160mm
Suggested Void Depth170mm
Cut-Out Diameter210mm
ConstructionPlaster
Wiring DetailsClass 1 - Requires an Earth Connection
IP RatingIP23
DriverIncludes remote driver/transformer suitable for 230 - 240v supply
PDF Document(s)View PDF
Availability: IN STOCK immediate dispatch
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
ESP9029031400MAINS
Adjustable Mains Trimless Plaster-in Downlight - Large Curve
RRP £62.47
You save £12.49
£49.98
£41.65 exc VAT
ESP9029031400
Adjustable 12v Trimless Plaster-in Downlight - Large Curve
RRP £68.88
You save £13.78
£55.10
£45.92 exc VAT
