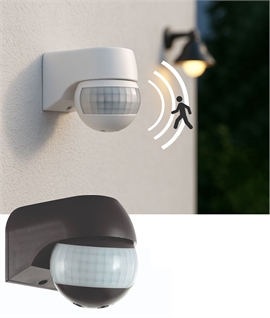

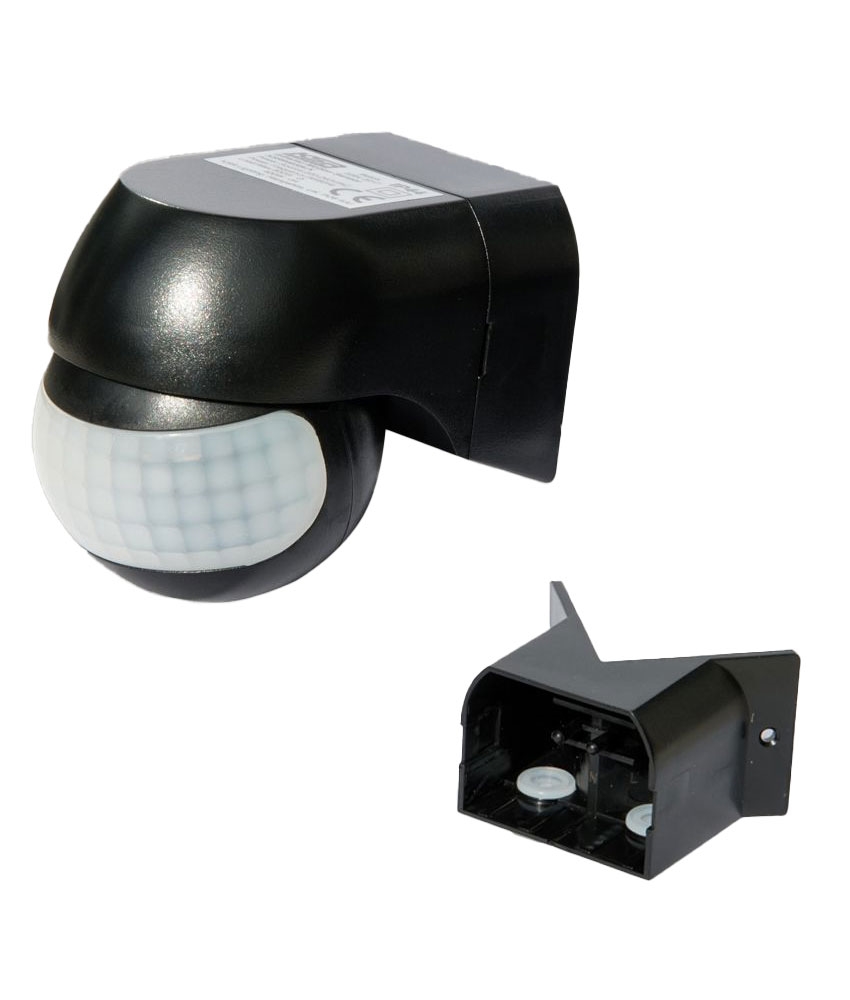

An exterior PIR movement detector supplied with wall and corner mounting bracket.

This sensor automatically switches lighting on when movement is detected, providing convenience and security. It has a 180° detection zone with a maximum range of 12 metres, making it suitable for driveways, paths, and entrances.

Settings are fully adjustable:

Time control allows lights to remain on from 10 seconds up to 15 minutes.
Lux control can be set between daylight and low light (3–2000 lux), so the sensor only operates when needed.

The head is vertically and axially adjustable, allowing accurate positioning. To ensure reliable operation, avoid locating the sensor near heating vents or highly reflective surfaces.

Technical details

Mains input: 220–240V AC
Load: up to 400W LED or 800W halogen
Detection area: 180°
Detection distance: up to 12m
Time setting: 10 seconds to 15 minutes (adjustable)
Lux control: 3–2000 lux (adjustable)
Installation height: 1.8–2.5m
Power consumption: 0.5W (standby)
Construction: ABS casing with gasketed cable entry
IP rating: IP44
Standards: BS EN 60730-2-7

Manually override the sensor by switching the wall switch twice within 5 seconds. This will override the sensor for 8 Hours then it will revert back to automatic control.

Lamp Type
Part L Compliant Luminaire	No
Max Wattage	2000w
Width	80mm
Height	75mm
Depth/Projection	150mm
Construction	Plastic - ABS
Wiring Details	Class 2 - Double Insulated - Requires no Earth Connection
IP Rating	IP44
PDF Document(s)	View PDF

Can I wire this up to 5 LED downlights for the under soffit? Also, what are the time lengths?
Yes - the timing is 10 seconds to 15 mins.

What is the range of the senor and can it be adjusted? The sensor needs to fit on corner of the house facing drive, which is within 7m of the road. Would not want passing traffic to continual activate it.
It has a range of 12 metres and might sense a vehicle driver across the beam. The simplest solution is to tilt the head of the sensor down, thus reducing the range.

Will this work with LED lighting with a load of 40W total? Also what is the power use of this?
It`s "no load" use of electricity is negligible certainly less than a watt. It will switch the 240v primary input (the mains supply of a LED driver or low volt transformers) without problem. It cannot switch the secondary (output) of drivers or transformers - a mains supply is needed to make the sensor work.

can you supply a flat (not corner) PIR in white?
This 360° PIR sensor can be mounted on a flat wall, and on the corner of a wall, or fence post or what have you.

I have eight soffit lights controlled by the PIR 360º. At dusk, sometimes the lights flash on and off repeatedly, maybe for few minutes. Activating the sensor up close turns the lights on and ceases the flashing. What could be causing this?
Oddly enough this issue can often be caused by other lights (or more often controls) on the same circuit. So consider what other lights in your home are on the same mcb or fuse on your consumer unit. If you have a dimmer on any of these lights swap this dimmer for a switch and see if the issue still occurs. If the problem dissapears consider changing the dimmer unit for another make.

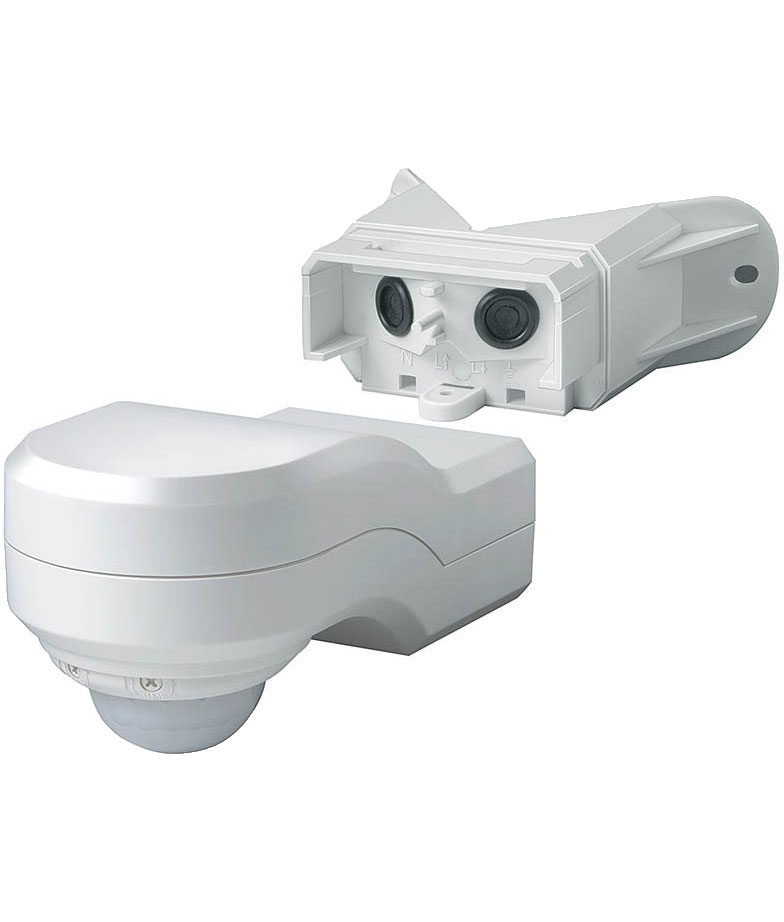

Stand Alone PIR 360º Detection with Corner Bracket

Indoor or Outdoor Use
