Shallow CCT IC and Fire Rated IP65 Downlight

3000k, 4200k or 6000k

Suitable for Zone 1 - protected from water jetsClass 2 – This fitting is double insulated and does not require an earth.Yes, this product is dimmable - See the specifications tab for more detailsSuitable for Bathroom Zones 1,2 and 3Bulbs IncludedIncludes remote driver/transformer suitable for 230 - 240v supply

Kelvin Chart

Product Ref: 52586

From £24.10 inc VAT

This is a shallow fire rated IP65 downlight with a total depth of just 45mm that has loads of features and benefits...

  • Dimmable - these can be dimmed on any standard dimmer system
  • Fire-rated for 30, 60 & 90 minutes - maintains fire integrity
  • IP65 rated - protection from a jet of water
  • 800 lumens - more light as mains 50w halogen GU10 lamp but only 7 watts
  • Wide beam angle - 60º
  • CCT - Choose between 2700°k, 3000°k, 4000°K or 6000°k very warm white, warm white, neutral white or daylight
  • Interchangeable Bezel - white, chrome and satin
  • Can be covered with insulation
  • fits into shallow ceiling voids

IP65 rated jet proof and can be used in any part of a bathroom ceiling (including Zone 1 if used in conjunction with a 30MA RCD).

Dimmable LED Driver Included operates on standard rotary dimmers (phase-cut dimming).

IC Rated this fitting can be covered with insulation.

Shallow in Depth only 45mm depth means it can fit in shallow voids with ease.

CCT Technology by a flick of a switch you can have warm, neutral or daylight white light.

Long-life LED Lamp supplied with a 8w SMD lamp, 800 lumens, 100 Lumens per Watt.

Easy installation comes with a 2-way Plug and Play DC connector which allows you to loop in and out and is safe for covering with loft insulation.

This is supplied with a white bezel as standard.  Please add a chrome, black or satin bezel to your order if you require this finish.

The connector has a simple 4-way CCT switch allowing users to choose between 2700K, 3000K, 4000K or 6000K and a 3-way Watt switch allowing users to choose between 4W, 6W or 8W.



Cut-out Diameter:
70mm
Overall Diameter:
88mm
Availability: Typically dispatched in 4-7 days
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
LED Downlight with White Bezel
SAM102630
Shallow CCT Fire Rated IP65 Downlight
£24.10
£20.08 exc VAT
Additional Bezels
SAM114591
Polished Chrome Bezel for Shallow CCT Fire Rated IP65 Downlight
£3.00
£2.50 exc VAT
OBSAM90377
Discontinued - 2 in Free Stock

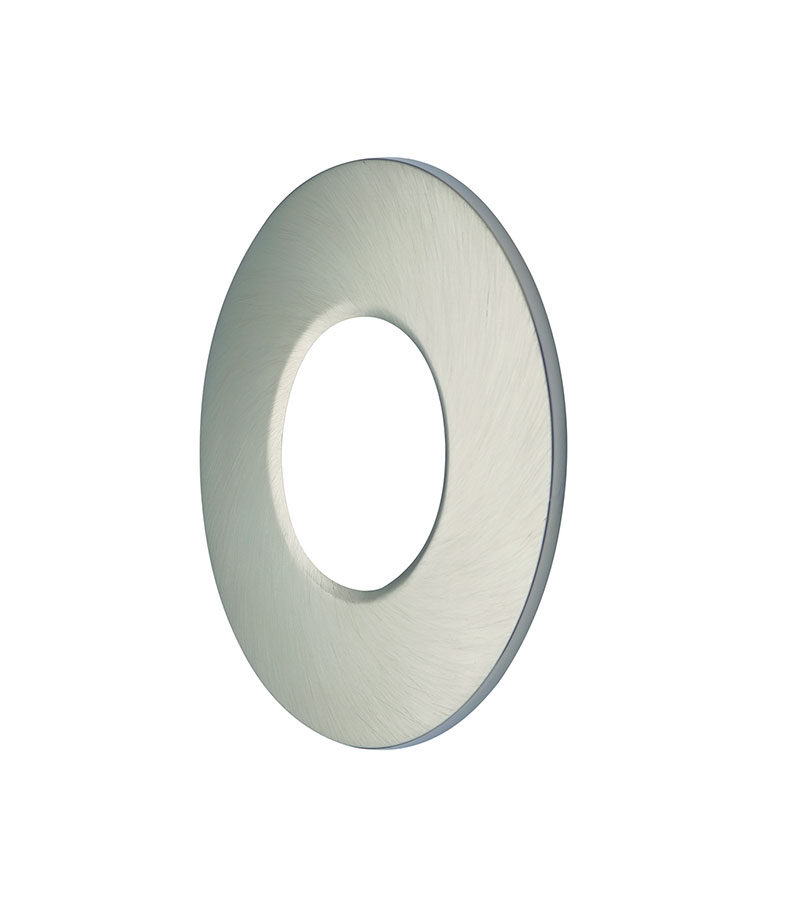

Satin Nickel Bezel for Shallow CCT Fire Rated IP65 Downlight
£3.00
£2.50 exc VAT
SAM114592

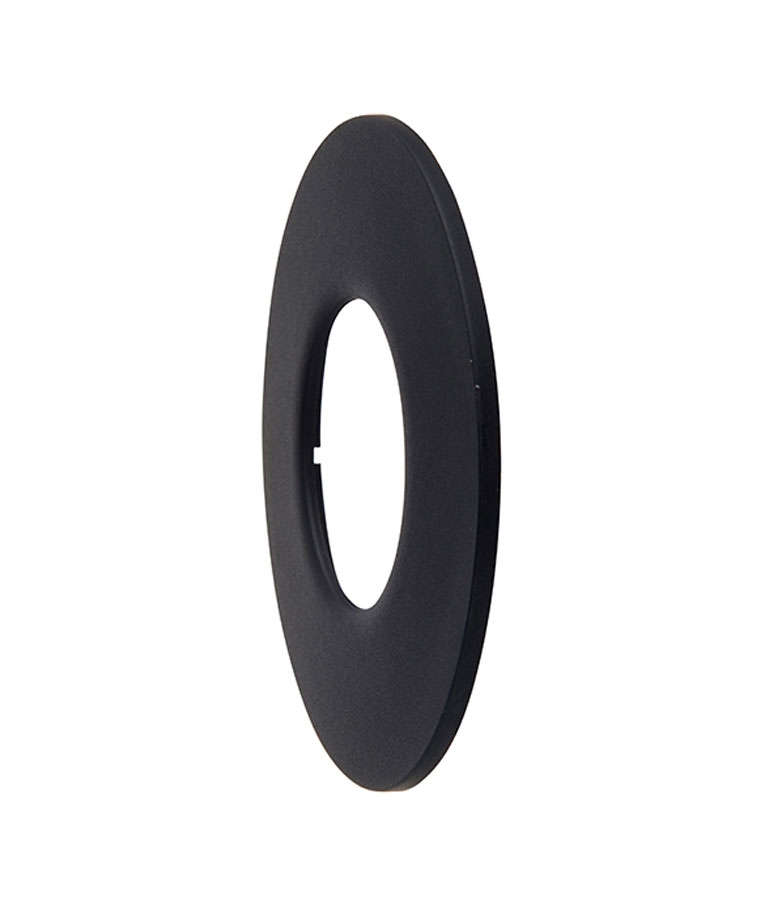

Black Bezel for Shallow CCT Fire Rated IP65 Downlight
£3.00
£2.50 exc VAT
