Dimmable Mains LED Fire-Rated IP65 Downlight

Name: Dimmable Mains LED Fire-Rated IP65 Downlight
Brand: Lighting Styles
SKU: 51544
Price: 10.99 GBP
Availability: InStock
Rating: 8.4 (5 reviews)

White Bezel Included - 4 Optional Bezels Available

Manager's Special Offer

Suitable for Zone 1 - protected from water jets

Class 1 – This fitting will require an earth connection.

Yes, this product is dimmable - See the specifications tab for more details

Includes remote driver/transformer suitable for 230 - 240v supply

Kelvin Chart

Product Ref: 51544

From £10.99 inc VAT

Description

Small yet mighty, this is a brilliant 5 watt COB LED downlight that has loads of features and benefits...

Dimmable - these can be dimmed on any standard dimmer system. Trailing edge recommended.
Fire rated for 30-90 minutes - maintains fire integrity
IP65 rated - protection from a jet of water
3000°k - a warm white light / 4000º a neutral white light.
565 lumens - as much light as a mains halogen GU10 lamp but only 8 watts
45° beam angle
Modern polished chrome finish - complementing most bathrooms
Adjustable spring clips - suitable for ceilings up to 40mm thick

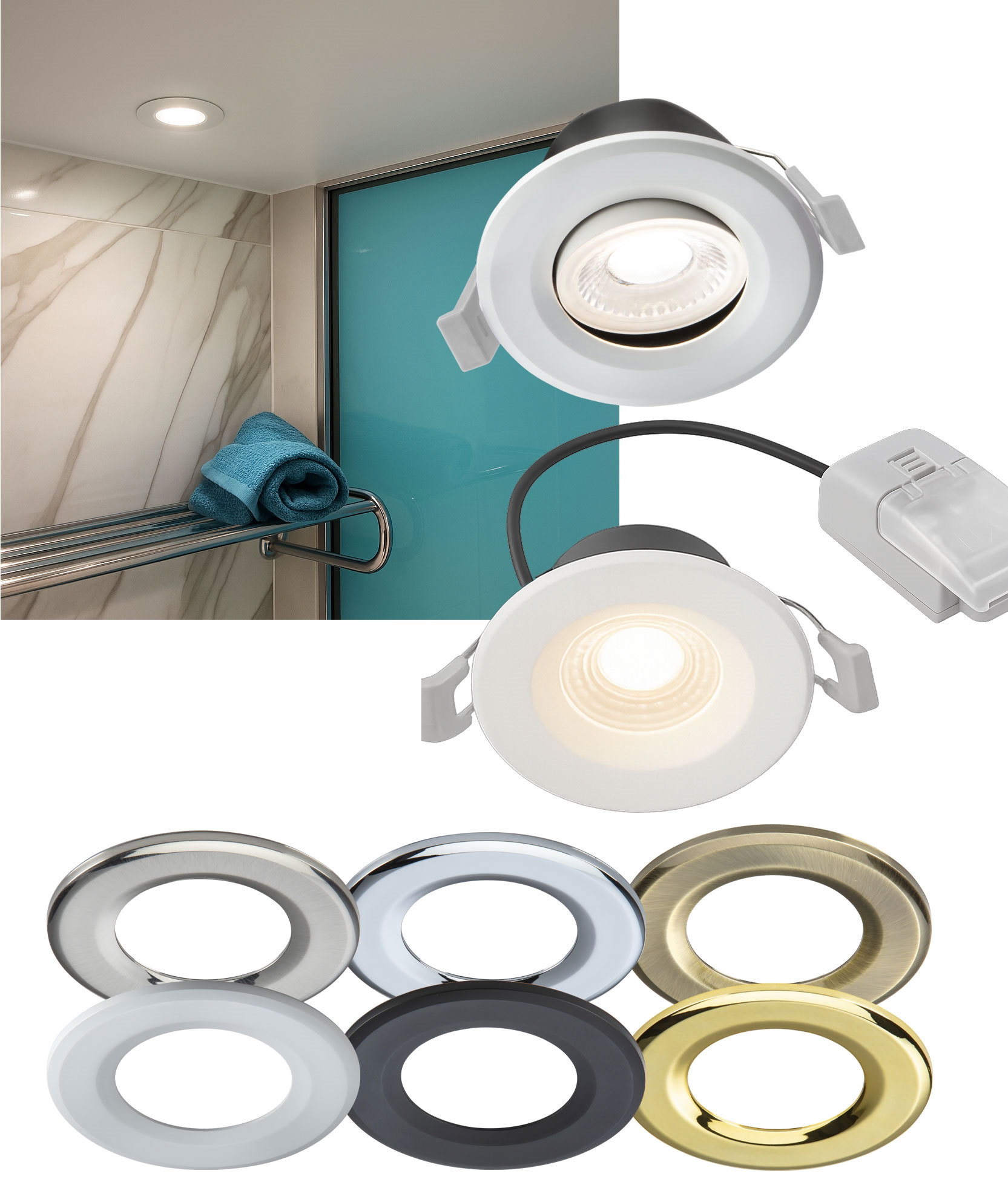

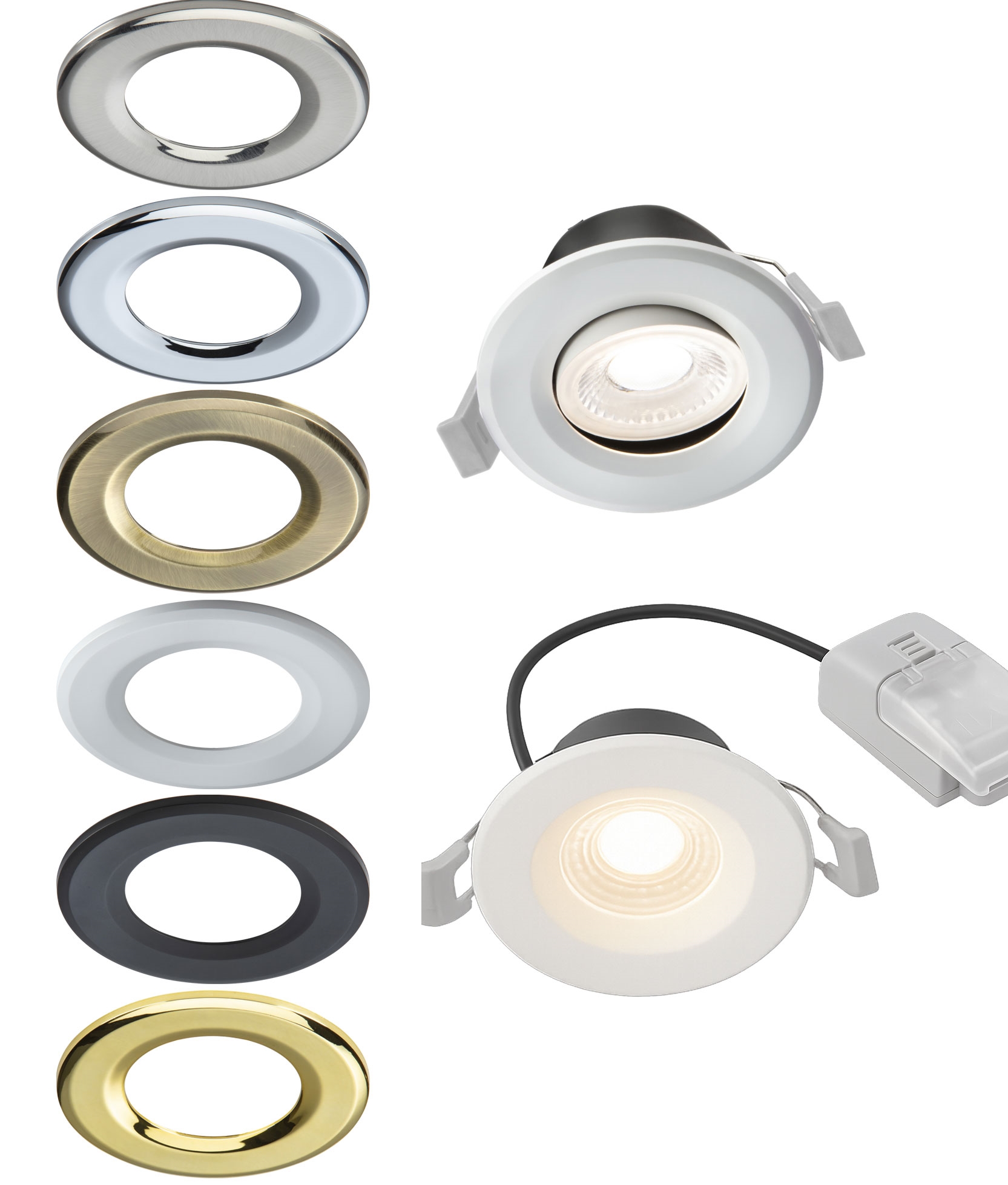

Interchangeable bezel - change the default white bezel with the different variations offered. (See picture)

A great compact design ideal for voids that are reduced in height by services or structure.

IP65 rated jet proof and can be used in any part of a bathroom ceiling (including Zone 1 if used in conjunction with a 30MA RCD).

Peace of mind comes with a 3-year warranty with each light.

Cut-out Diameter:
72mm

Overall Diameter:
85mm

Specification

Number Of Lamps	1
Lamp Type	Long Life LED light source
Lamp Lumens	565
Lumens Per Watt	75
Lamps Included	Yes
Dimmable?	Yes - on standard dimmer (TRIAC or leading edge)
Total Wattage	5w
Diameter	85mm
Depth/Projection	6mm
Suggested Void Depth	120mm
Cut-Out Diameter	72mm
Construction	Die Cast Aluminium and Polycarbonate
Wiring Details	Class 1 - Requires an Earth Connection
IP Rating	IP65
Driver	Includes remote driver/transformer suitable for 230 - 240v supply
PDF Document(s)	Installation Sheet

Frequently Asked Questions

Is this waterproof front and back? What is the voltage?
It is only IP65 rated from the bottom. It takes mains voltage, 230V.

Beam angle of the lamp in this unit please?
The beam angle is 45°

Can these light be used with a 360 PIR sensor. Thanks John
Yes, these can be wired and controlled by a PIR sensor.

Is the driver IP65 rated
No, like most fixtures the IP rating is based on the product in situ, in this case a ceiling. So the IP65 rating indicates that water under pressure cannot get through the bezel, or between the bezel and the ceiling and make contact with mains voltage components.

Are these suitable for outside usage in eaves of house?
Yes - These are IP65 rated which means they are protected against jets of water.

Can you give the dimensions of the driver please? Will it fit through the 57mm cut out for the light body?
The size of the driver is 120 mm x 45 mm x 30mm. This would fit through the cut out.

I notice in your FAQ section that this light does not have a changeable bulb, can you please advise if you have to change the whole light fitting in the event of a failure.
Yes, the whole fitting will need replacing. It will last around 30,000 hours on average before failure.

Can this unit be used with non-dimmable bulb & an off/on switch instead of a dimmer switch
This is a built in LED COB and not a changeable bulb, but yes it can be used as ON/OFF and doesn't have to be dimmed.
