Product Ref: 10092

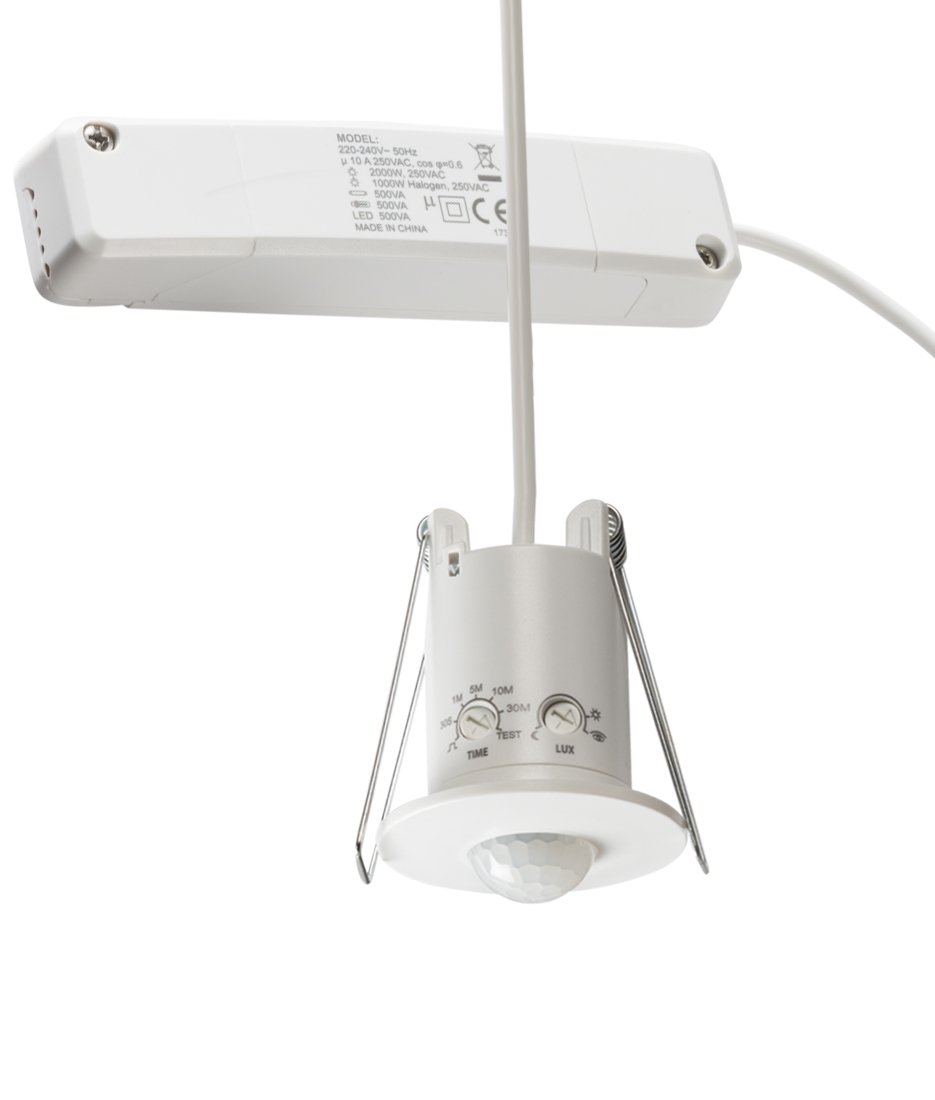

£33.98 inc VATThis is a mini professional PIR ceiling sensor with a detection range of up to 8m at 360°.
Can be used with low wattage LED lamps up to 200w.
Supplied with a separate power module for easy installation.
The time of which the lights stay on can be altered to anywhere between 30 seconds and 30 minutes with 5 settings, options available are 30 seconds, 1 minutes, 5 minutes, 10 minutes and 30 minutes.
Adjustable LUX level is also offered on this mini PIR sensor.
| Lamp Type | |
| Part L Compliant Luminaire | No |
| Max Wattage | 200w |
| Height | 67.5mm |
| Diameter | 52mm |
| Suggested Void Depth | 38mm |
| Cut-Out Diameter | 38mm |
| Construction | Plastic - ABS |
| Wiring Details | Class 2 - Double Insulated - Requires no Earth Connection |
| IP Rating | IP20 |
Is there a power pack for the master? How is the slave to slave wire to or does it has to be home run for all slave to master. |
