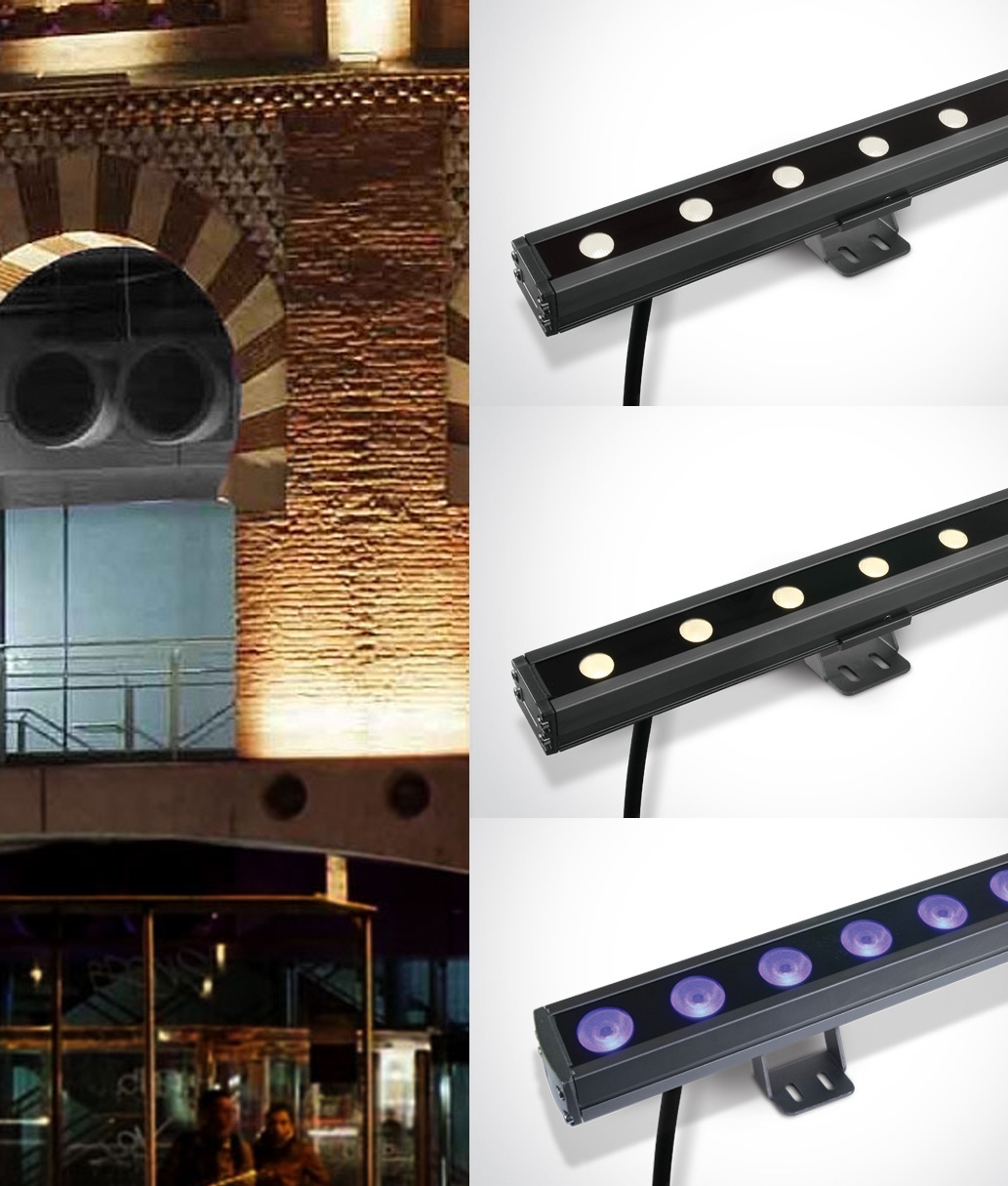

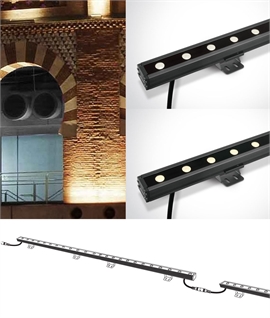

IP66 Linear LED 12w Wall Washer Lights - 3 Options

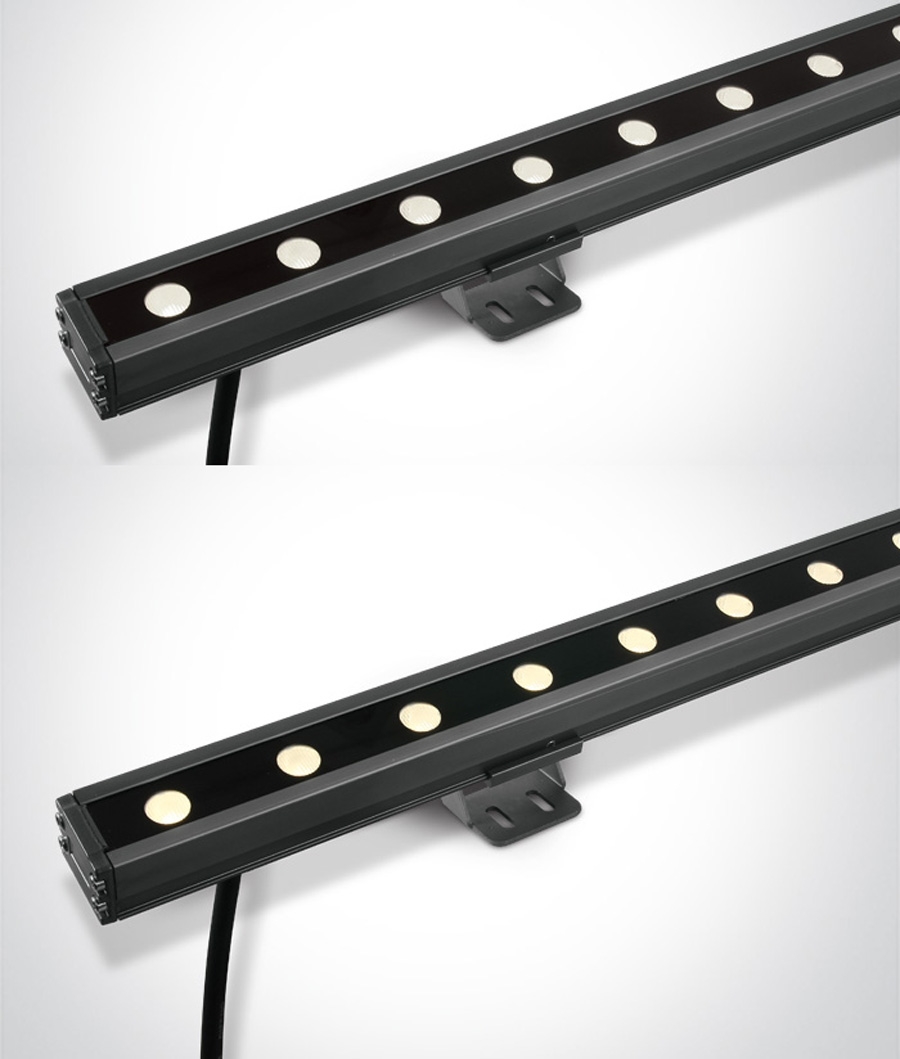

500mm or 1000mm - Cool White 4000k, Warm White 3000k and RGB

Dustproof and protected from powerful water jets from all directionsClass 3 - This fitting is low voltage and will require a transformer or driver.Yes, this product is dimmable - See the specifications tab for more detailsNo driver or transformer is supplied with this fixture (sold separately)

Product Ref: 56596

From £79.00 inc VAT

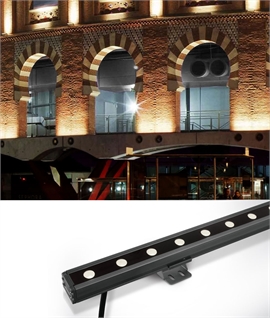

When specifying exterior wall washing, particularly for architectural spaces, it is crucial to select fixtures that offer not only high-quality illumination but also the flexibility to match the unique contours and materials of a building's facade.

This is another great, more budget conscious option, which is available in two sizes allowing it to adapt seamlessly to the architectural profile, whether s following the linear edge of a parapet or accentuating the cascading features of modern architecture. This adaptability ensures that lighting is continuous and cohesive, vital for maintaining design integrity.

Careful positioning is key to achieving the desired wall washing effect. Lights should be placed at a strategic distance from the wall—too close and you may end up with a grazing effect, excellent for textured surfaces but less so for uniform illumination. Too far and you risk inadequate coverage, leaving parts of the wall underlit. The right positioning will create an even, gentle wash of light that highlights the wall's expanse without overpowering it.

Regarding the choice between a 3000°K or 4000°K colour temperature, the selection should reflect the material of the wall. Warmer tones (3k) typically enhance natural materials like stone or wood, giving them a rich, inviting glow, while cooler temperatures (4k) lend a crisp, contemporary feel to materials like metal or glass, ensuring they appear true to their nature under artificial lighting.

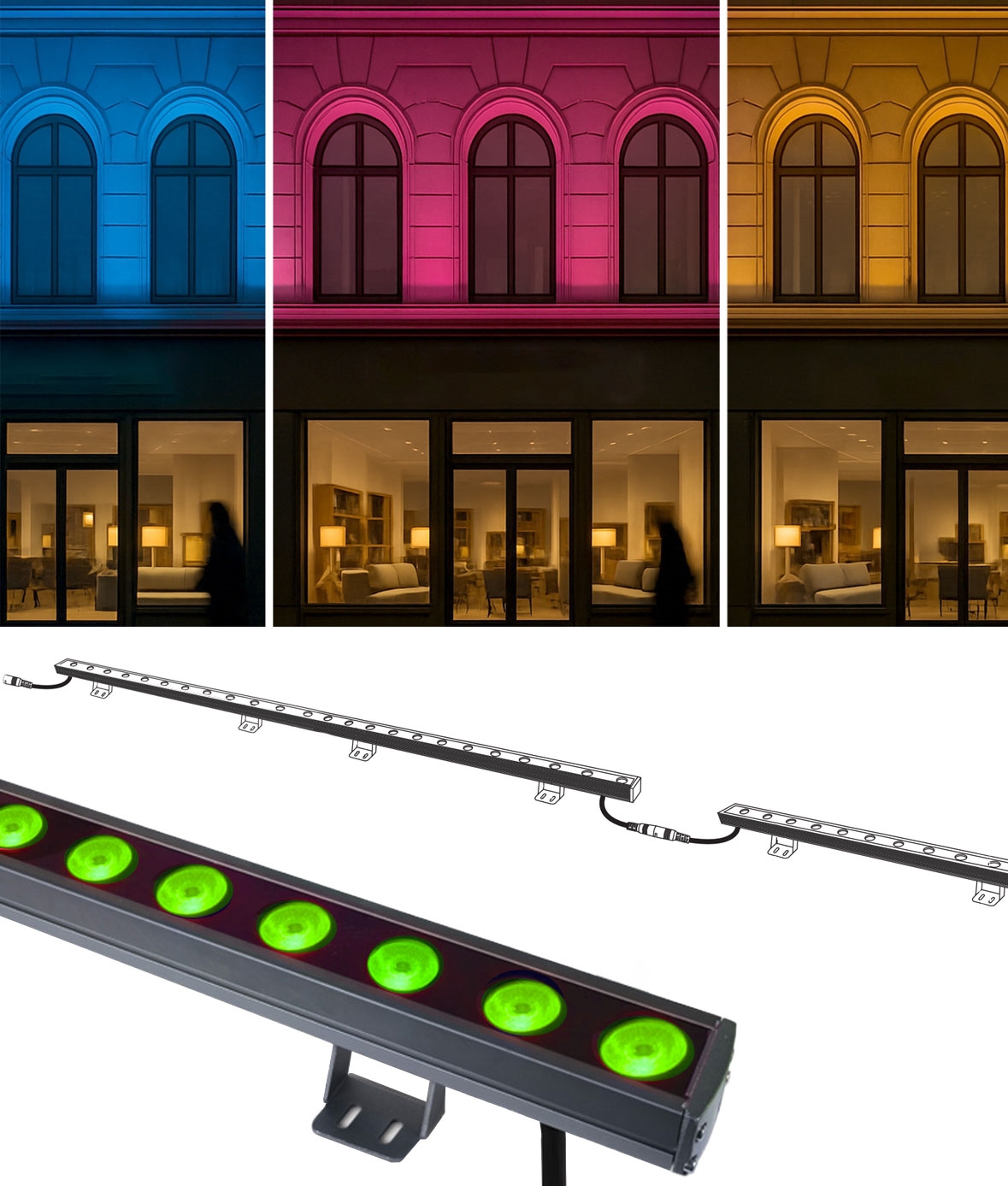

With RGB (Red, Green, Blue) technology, the 1 metre linear lights can produce a wide range of colours, allowing businesses to create dynamic and customised lighting effects. This flexibility is ideal for enhancing brand identity, setting the mood, or creating eye-catching displays.

All are IP66 rated and dimmable, each requires a 24V DC constant voltage LED driver.

Dimensions

500mm Length
Height 31mm x projection 60mm
12 x 1w LEDs warm white 3000k or cool white 4000k
850 lumen

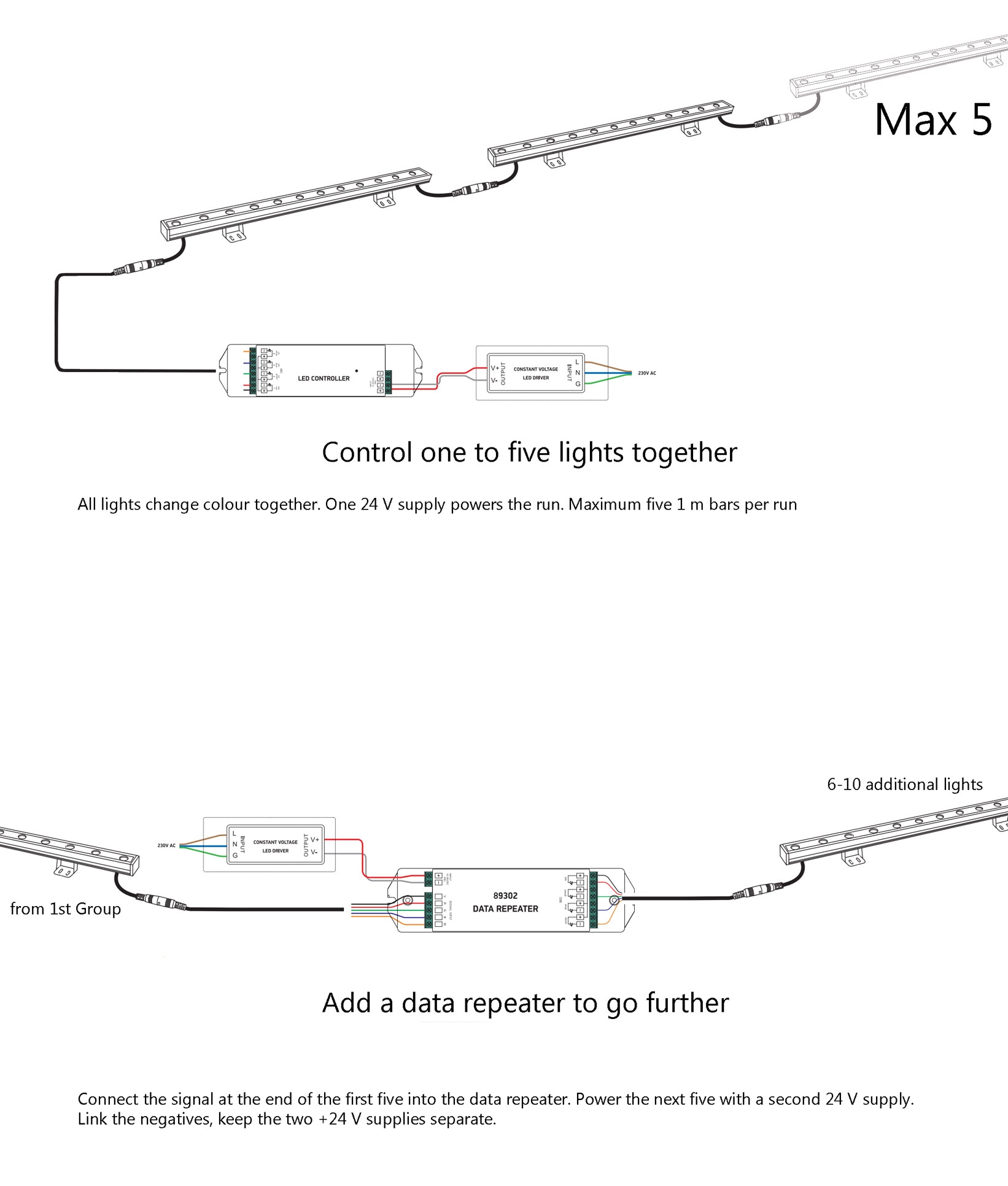

Maximum connection 10

1000mm Length
Height 31mm x projection 60mm
24 x 1w LEDs warm white 3000k or cool white 4000k
1700 lumen
Maximum connection 5

1000mm Length RGB
Height 42mm x projection 70mm
24 x 1.5w LEDs RGB
Maximum connection 5

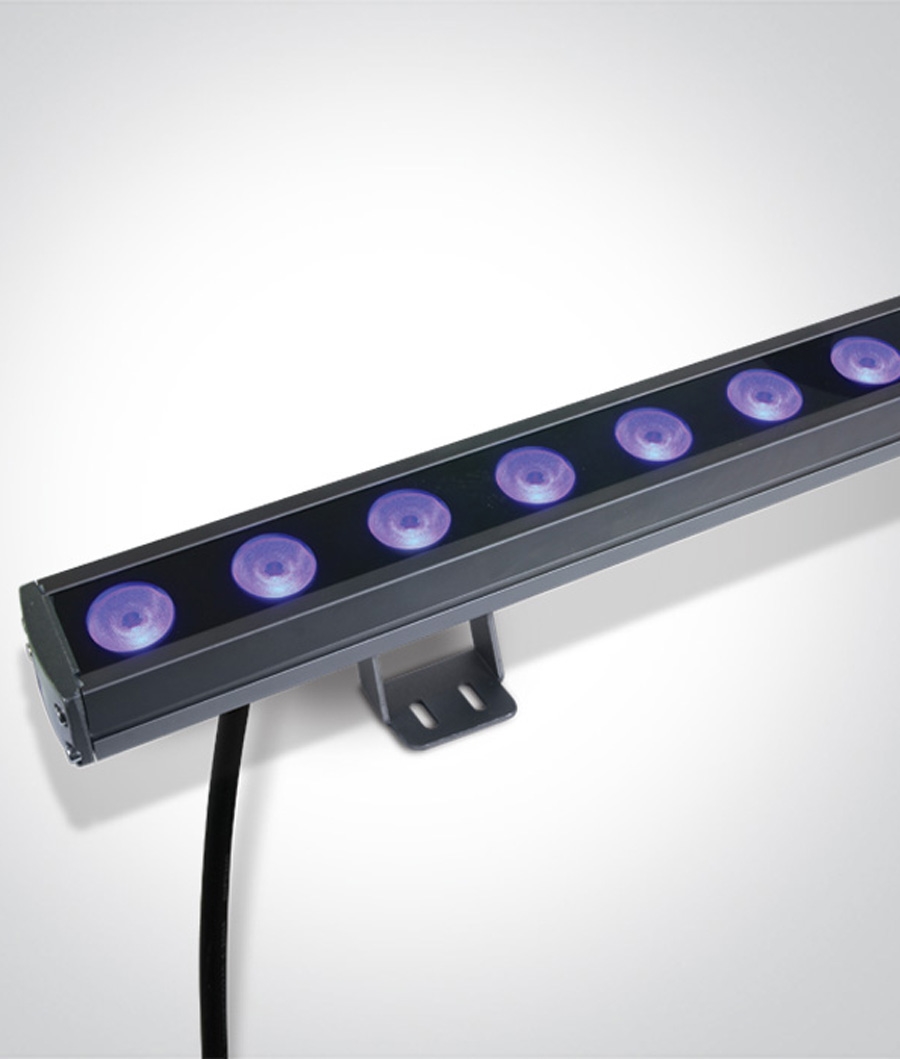

Adjustable in one direction

Warranty: 5 Years

View more items from this supplier

Availability: Typically dispatched in 4-7 days
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
500mm Option - 12w & 850 Lumen
CY7055AC
4000k LED 500mm 12w Wall Washer
£79.00
£65.83 exc VAT
CY7055AW
3000k LED 500mm 12w Wall Washer
£79.00
£65.83 exc VAT
1000mm Option - 24w & 1700 Lumen
CY7055BC
4000k LED 1000mm 24w Wall Washer
£95.00
£79.17 exc VAT
CY7055BW
3000k LED 1000mm 24w Wall Washer
£95.00
£79.17 exc VAT
1000mm RGB Option - 36w
CY7055BRGB
RGB Grey 24x1,5W LED Wall Washers.
£192.00
£160.00 exc VAT
CY20034
Remote Controller & Receiver for RGB Wall Washer
£71.00
£59.17 exc VAT
This product requires a driver or transformer - Suitable items can be found below
CY89030V
Non dimming 24v 30w Constant Voltage LED Driver
£19.20
£16.00 exc VAT
CY89075V
Non dimming 24v 75w Constant Voltage LED Driver
£31.60
£26.33 exc VAT
CY89150V
Non dimming 24v 150w Constant Voltage LED Driver
£61.20
£51.00 exc VAT
CY89040VT
Dimmable 24v 40w Constant Voltage LED Driver
£43.00
£35.83 exc VAT
CY89075VT
Dimmable 24v 75w Constant Voltage LED Driver
£60.40
£50.33 exc VAT
CY89150VT
Dimmable 24v 150w Constant Voltage LED Driver
£95.00
£79.17 exc VAT
