IP66 Linear LED Wall Washer - Asymetric Light Distribution 60 x 20 Degree Beam Angle

Design and Style

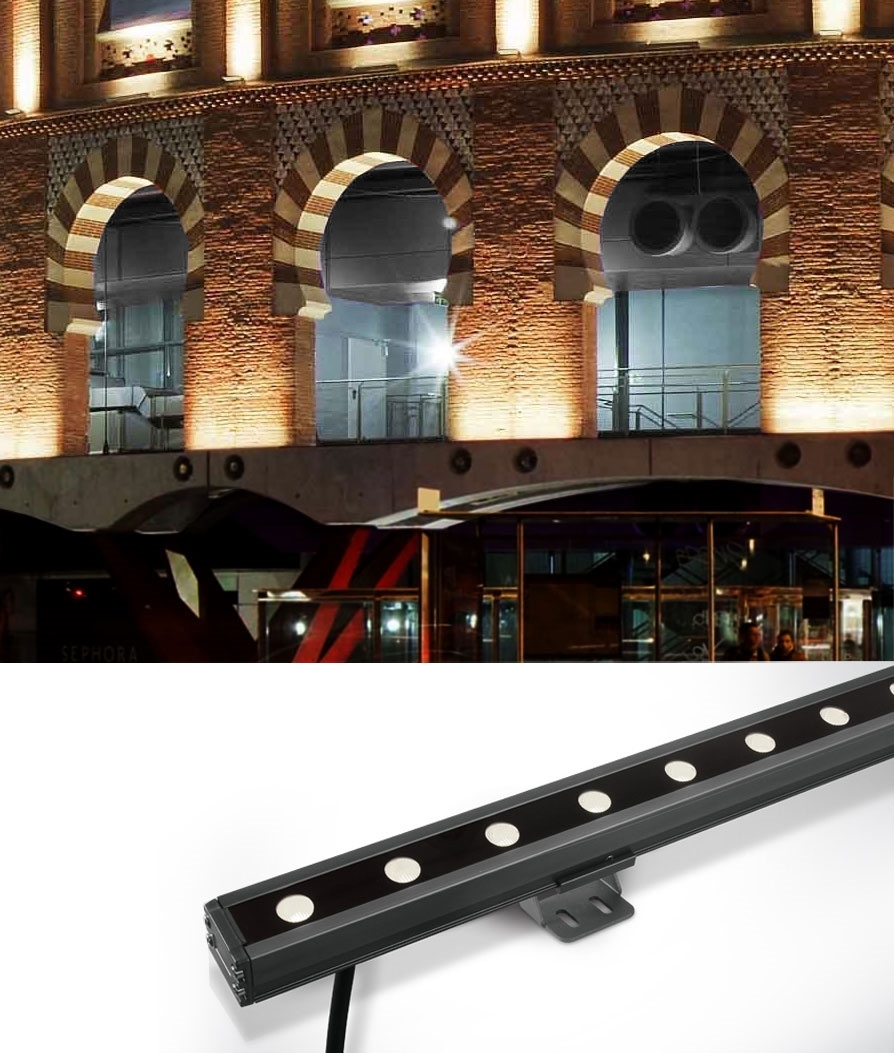

Exterior wall washing requires fittings that deliver consistent, high-quality illumination while adapting to the architectural features of a building. This linear wall washer is engineered to provide both performance and flexibility, making it suitable for a wide range of applications.

Available in two lengths, the fittings can be aligned to follow parapets, cornices, and façade details with precision. Their slim profile and unobtrusive design ensure that the emphasis remains on the building itself, while the light output creates continuous, even coverage that enhances architectural form. This adaptability makes the system equally effective on contemporary glass and metal structures or traditional stone and brick surfaces.

Usage
Positioning plays a critical role in achieving the desired effect. When installed close to the surface, the light produces a grazing effect that accentuates texture, highlighting the depth of materials such as stone, timber, or patterned concrete. When positioned further away, the beam blends into a smooth, uniform wash, ideal for large façades that require even illumination without shadows or hotspots.

Colour temperature selection also influences the final presentation. Warm white at 3000K brings depth and warmth to natural materials, enriching the tones of wood, stone, or brickwork. Neutral white at 4000K provides a cooler, more defined appearance, particularly effective on glass, steel, and concrete, where clarity and sharpness are required.

Key Features

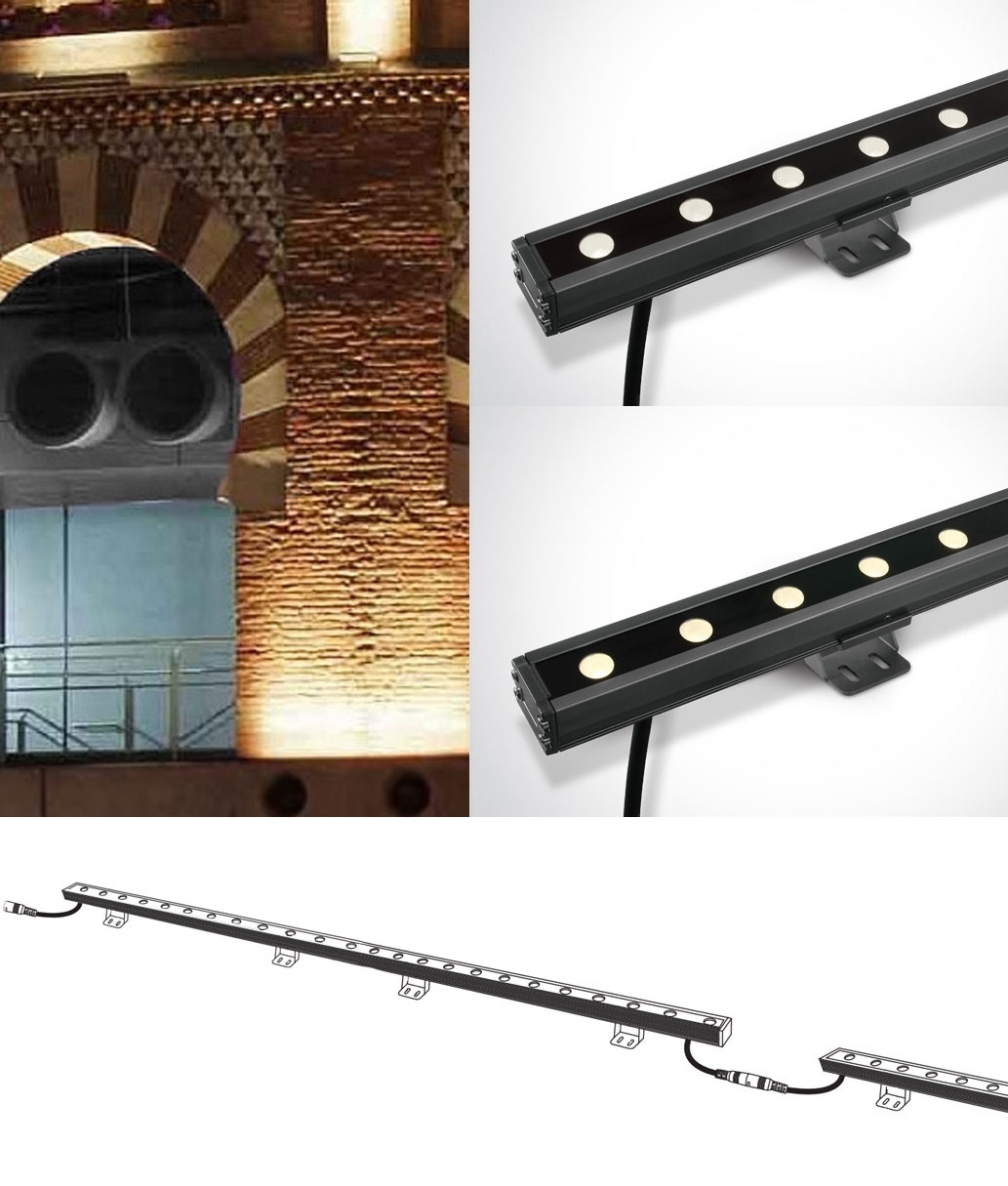

• Size flexibility: Available in 500mm and 1000mm lengths to suit both small and large projects

• Optics: Asymmetric distribution gives a wide beam with shallow projection (60° x 20°), ensuring consistent coverage

• Performance: High-quality OSRAM LED chips deliver long life (50,000 hours, L80B20) and energy-efficient operation

• Construction: Slim aluminium profile (60mm deep × 31mm wide) with weather-resistant design, IP66 rated

• Mounting: Adjustable brackets supplied, two with the 500mm fitting and three with the 1000mm fitting

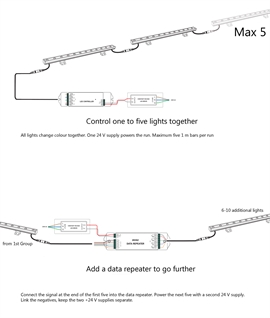

• Electrical: Runs from 24V DC via remote gear, keeping the profile compact and offering flexibility in power supply choice. Supplied with a 150mm input and output lead with watertight connectors for loop-in/loop-out wiring, and a 1m power-in lead.

Lighting specifics

• 500mm: 12W, 850 lumens, warm white (3000K) or neutral white (4000K)

• 1000mm: 24W, 1700 lumens, warm white (3000K) or neutral white (4000K)

Dimming capabilities?
We have listed a selection of waterproof drivers below. If you require dimmable options (phase, triac, leading edge, or trailing edge) or DALI compatibility, please contact us for advice on suitable solutions.

This LED wall washer combines form and function, delivering reliable performance and elegant façade illumination for both residential and commercial projects.
