Max-Grid 57mm White LED Recessed Spotlight - 4 Options

Design and Style

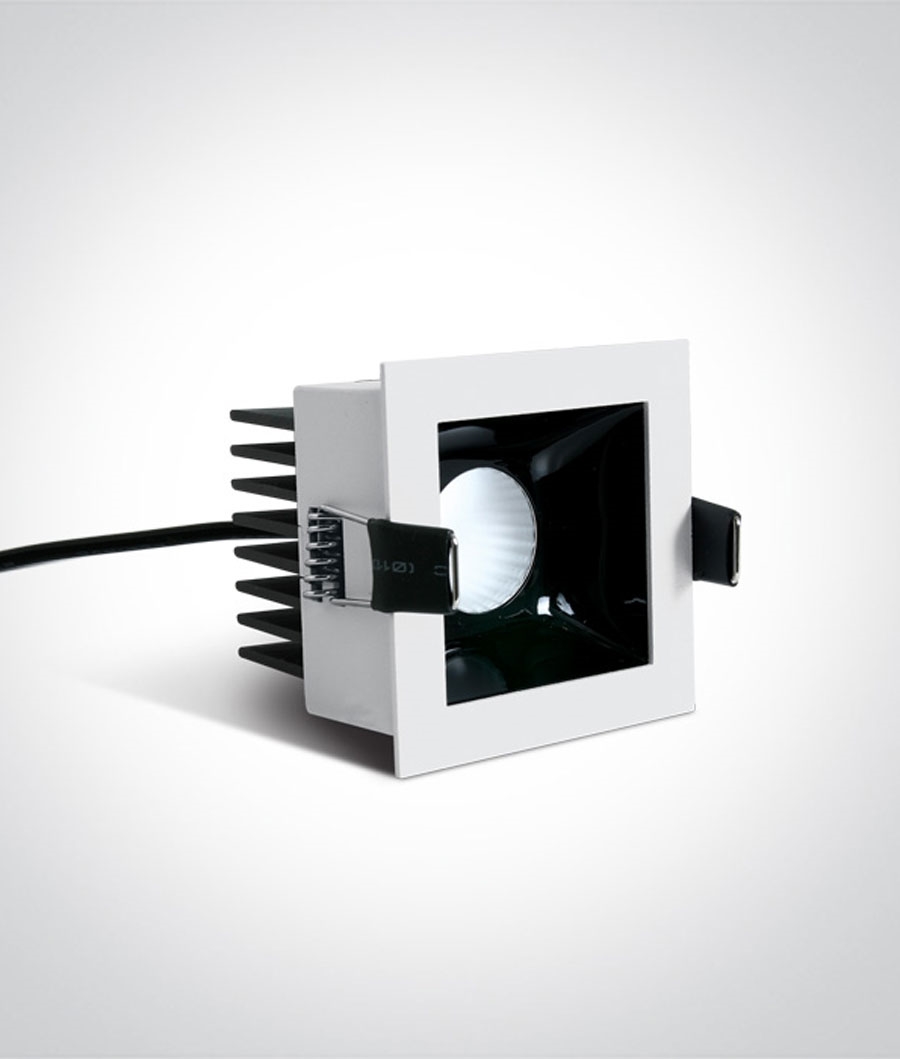

This range features a square, recessed design with a white bezel and a black optical chamber that helps create a tidy, focused appearance in the ceiling. The form is compact and available in four layouts that repeat the same modular light cell, giving designers and homeowners options that scale from single-point lighting to longer linear runs.

Usage
These fittings work well in kitchens, hallways, living areas and commercial environments where controlled, directional light is preferred. Their grid-style layout provides defined pools of light, making them suitable for task areas, display lighting or accenting features within the room. The recessed form keeps the ceiling line clean and uncluttered.

Key Features
Each fitting uses a 350mA constant current driver, delivering consistent performance and output. The LED modules provide warm white 3000K light with a concentrated beam that supports both functional and decorative lighting schemes. Installation is straightforward, provided the required void depth is available, and the fittings sit flush once installed. Energy-efficient performance, stable output and a durable construction make the range a practical choice for modern projects.

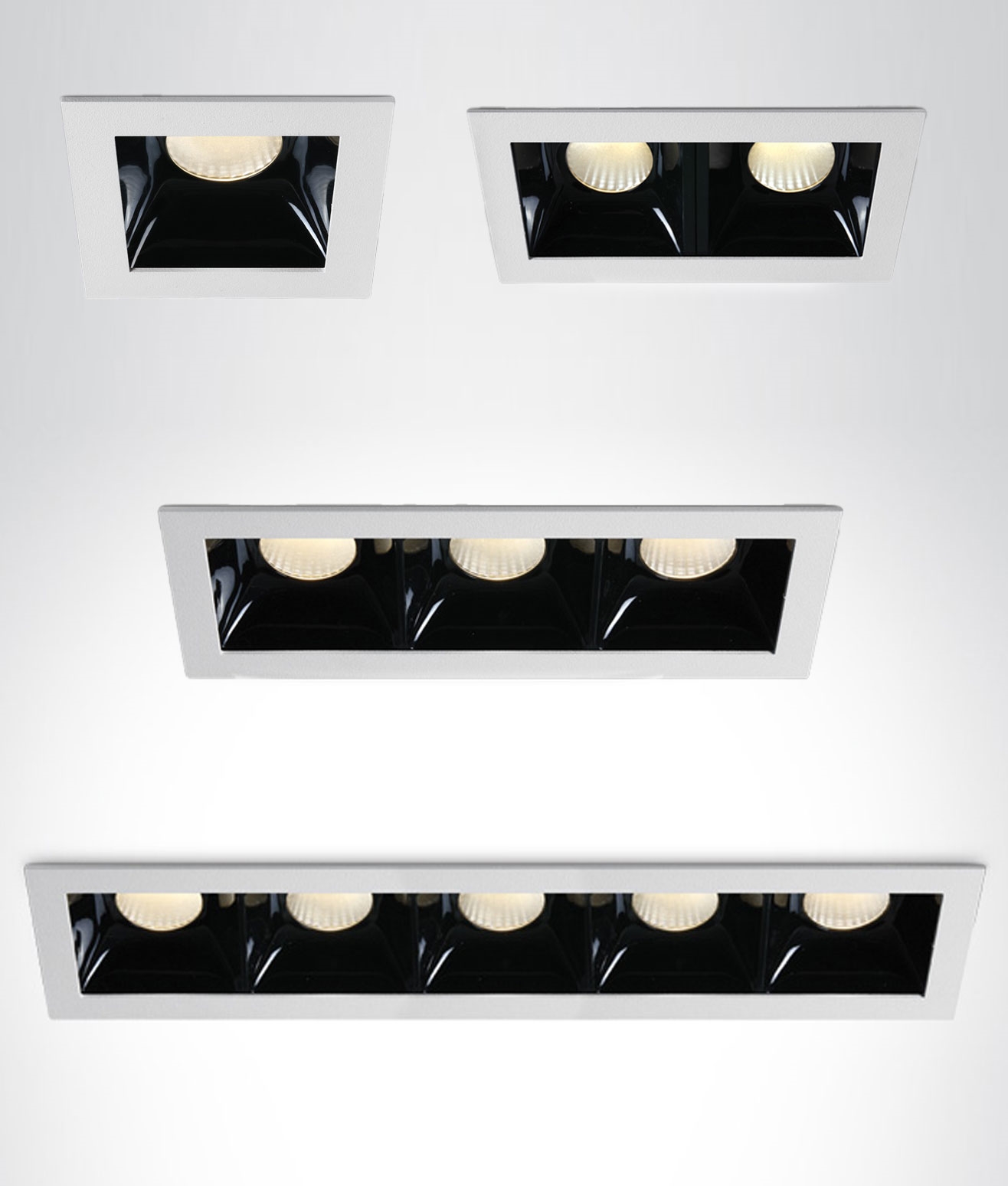

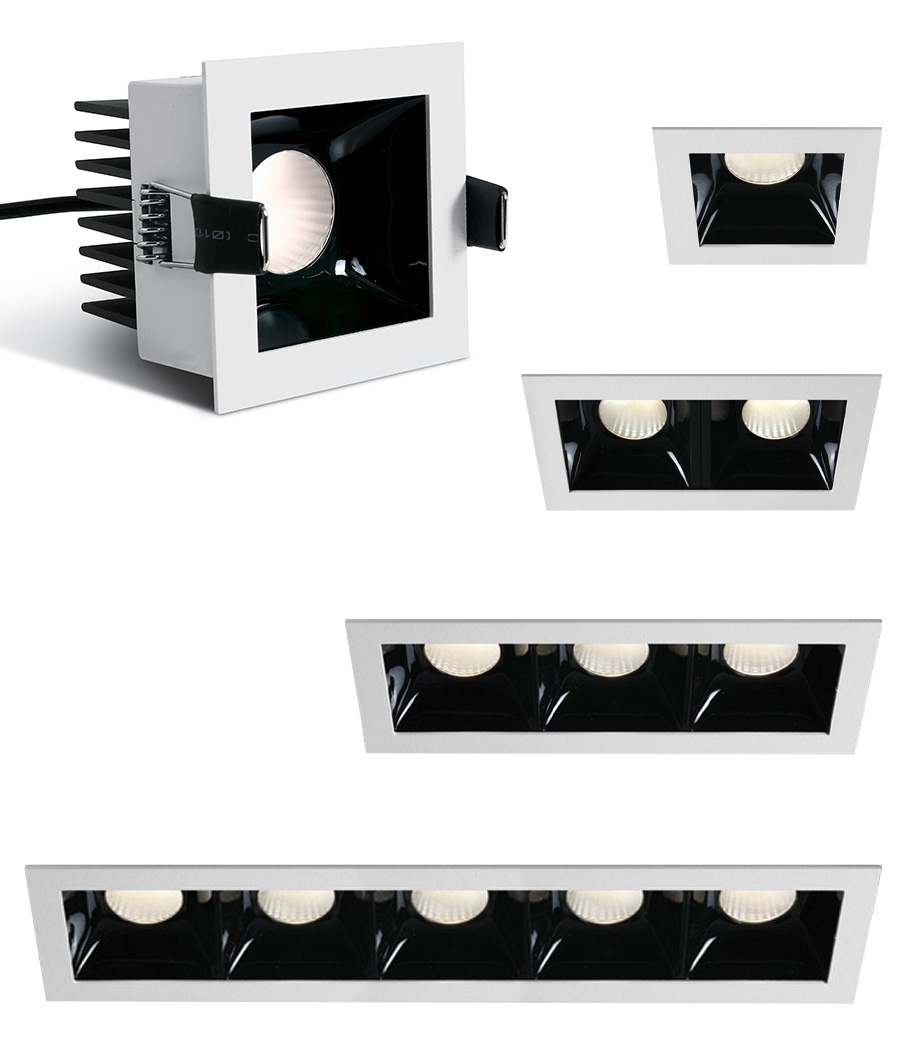

Available Options

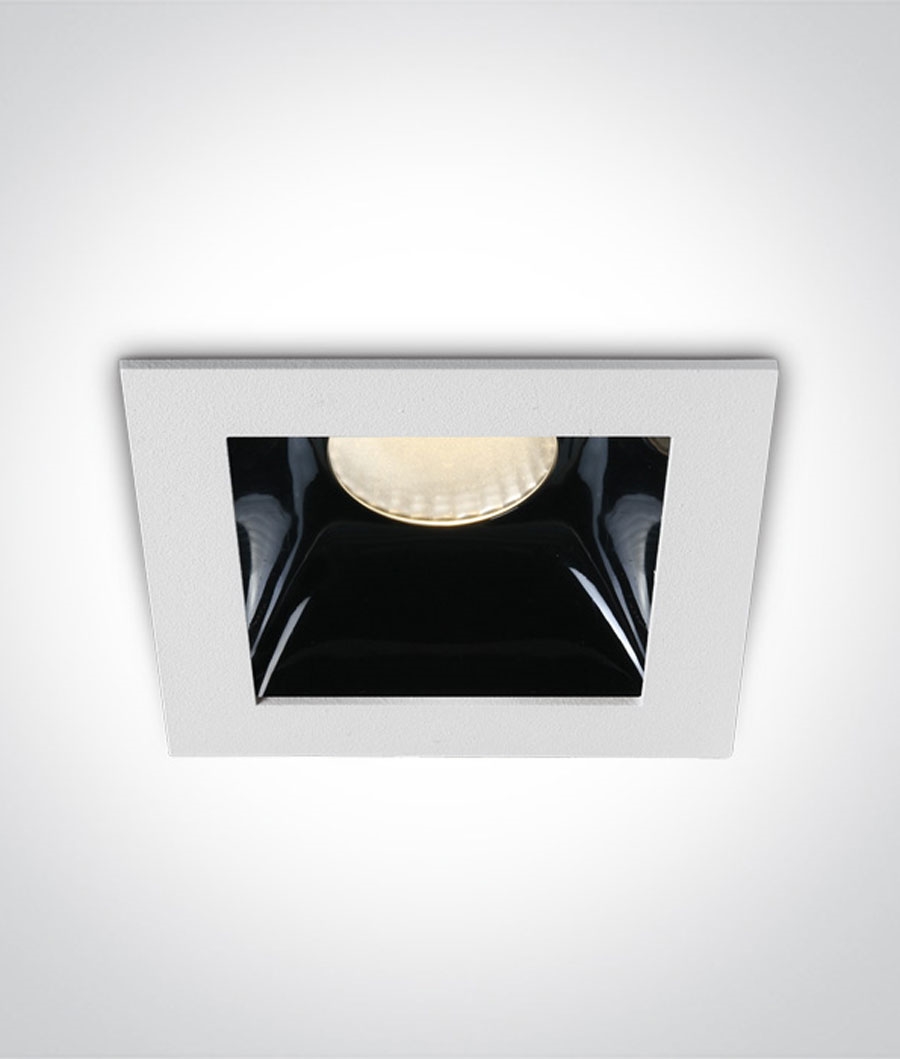

Single: 1 x 6.5W, 3000K, 550 lumens
62 x 62mm, cut-out 57 x 57mm

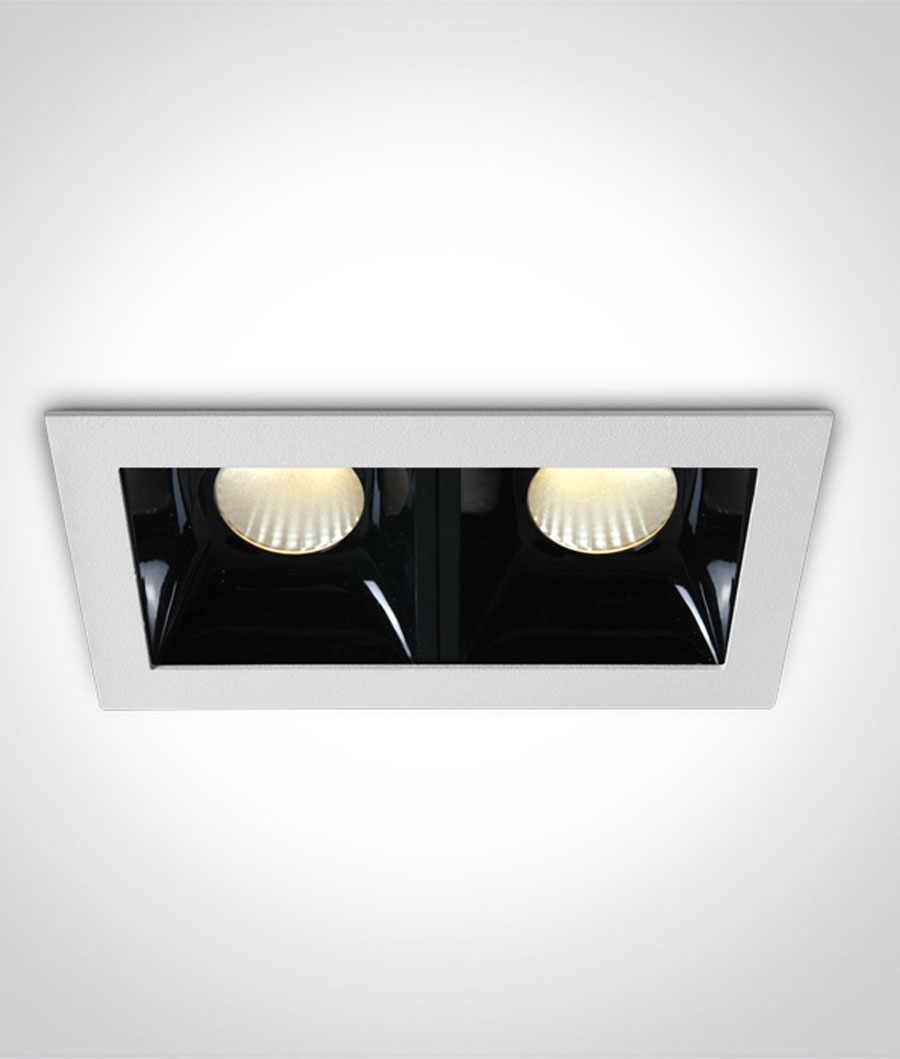

Double: 2 x 6.5W (13W), 3000K, 1100 lumens
115 x 62mm, cut-out 108 x 57mm

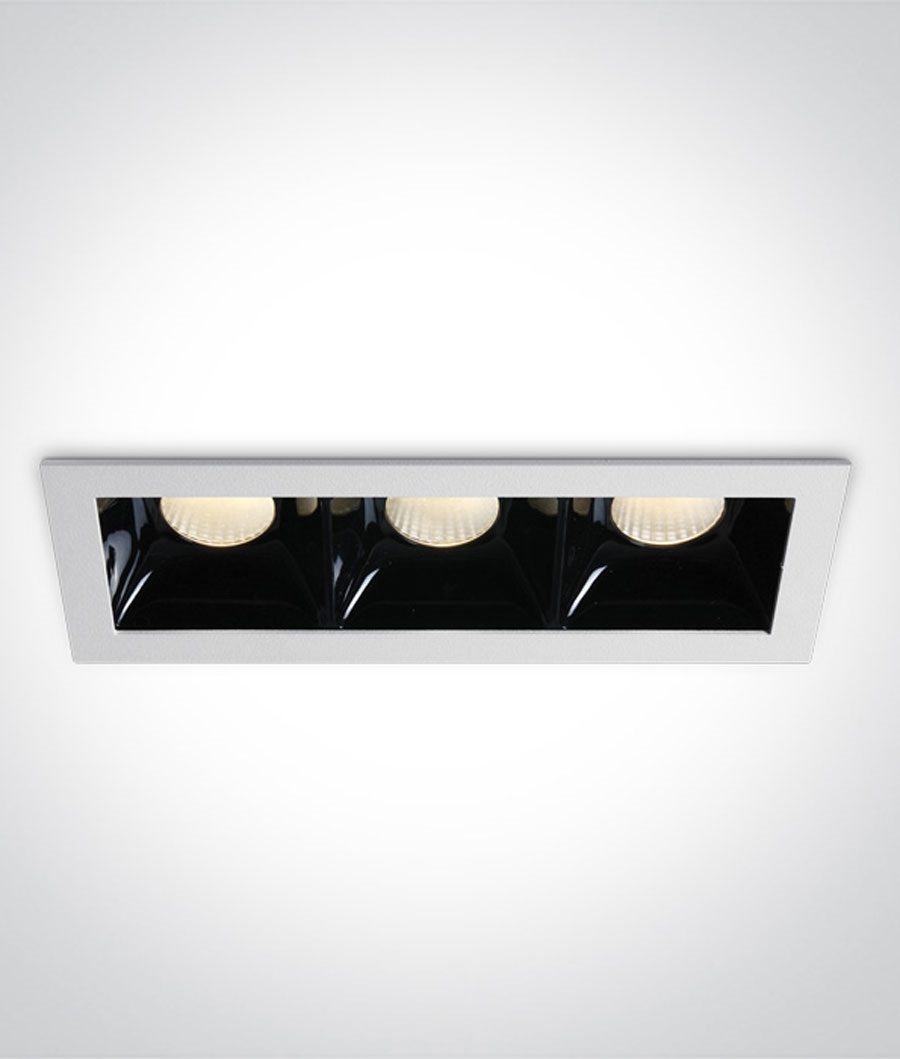

Triple: 3 x 6.5W (19.5W), 3000K, 1650 lumens
157 x 62mm, cut-out 150 x 57mm

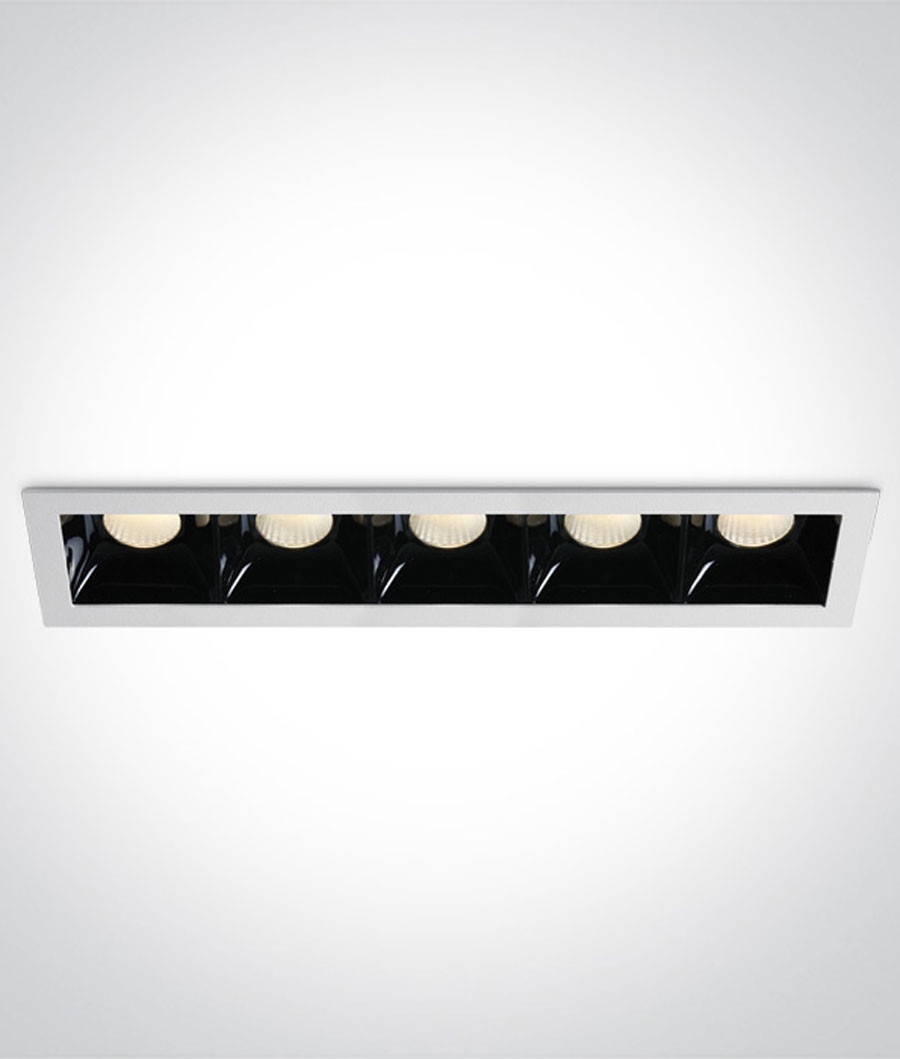

Five-cell: 5 x 6.5W (32.5W), 3000K, 2750 lumens
250 x 62mm, cut-out 240 x 57mm
(prewired for two drivers - 2 drivers around 20w are suggested.)

All fittings have a 70mm depth, with a recommended ceiling void of 90mm.

Warranty
3 years.
