Micro-Grid 45 mm Linear Low-Glare Downlight - Black Trim, Black Reflector

Single, Double, Triple, 5 or 10 Light

Class 3 - This fitting is low voltage and will require a transformer or driver.Yes, this product is dimmable - See the specifications tab for more detailsBulbs IncludedNo driver or transformer is supplied with this fixture (sold separately)

3000°K - Warm White

3000°K - Warm White

Product Ref: 59071

From £12.50 inc VAT

Design and Style

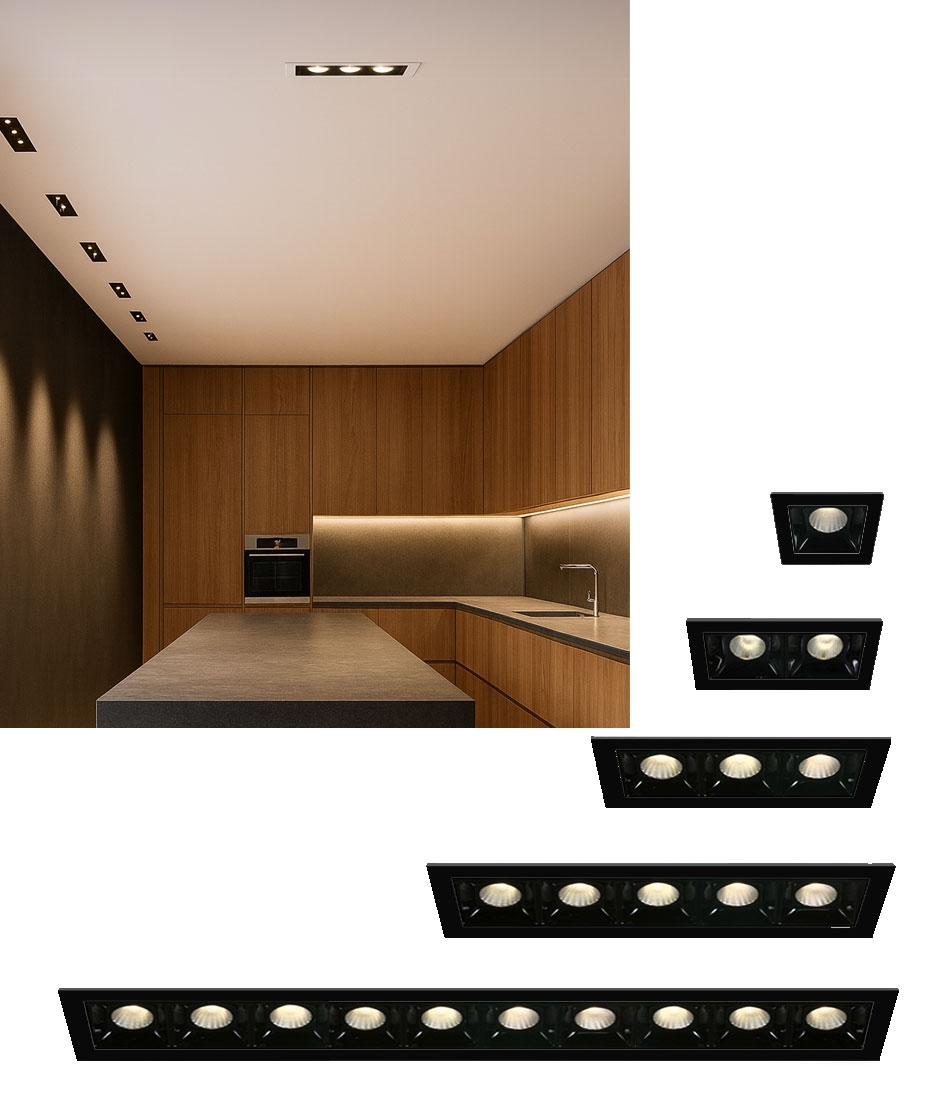

The Micro-Grid series combines a compact 45 mm form with a refined black trim and matching black reflector. The slim, recessed profile sits neatly within the ceiling, while the unified black finish defines each aperture and enhances the visual depth of the fitting. Installed individually or arranged in linear groups, these downlights bring rhythm and proportion to the ceiling, creating the effect of a continuous line of light. Their understated design complements modern interiors and architectural spaces where precision and balance are valued.

Usage
Used to highlight linear features such as kitchen islands, decorative wall perimeters, or corridor edges, the Micro-Grid range provides controlled, comfortable illumination. The black reflector minimises glare and focuses the beam, improving visual comfort in both residential and commercial settings. This makes them well suited to offices, hospitality spaces, and contemporary living areas where lighting should integrate seamlessly with the architecture.

Performance and Key Features
Each module uses a 2 W LED producing warm white light at 3000 K. The optical system provides a 30-degree beam angle for precise, well-directed illumination. Available configurations range from single fittings to multiple-light units, allowing layouts to be scaled for accent or general lighting. The fittings are 36 mm deep and require a 60 mm ceiling void for installation.

The Micro-Grid range operates with a 700 mA constant-current driver. Multiple fittings can share one driver, though a dedicated driver per fitting simplifies installation and maintenance.

Needs a DC Power Supply (LED Driver)
A driver is required to power these fittings. Larger drivers can power multiple fittings, however, for simplicity, we recommend using one driver per fitting.

View more items from this supplier

Availability: Typically dispatched in 4-7 days
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
CY50102BBW

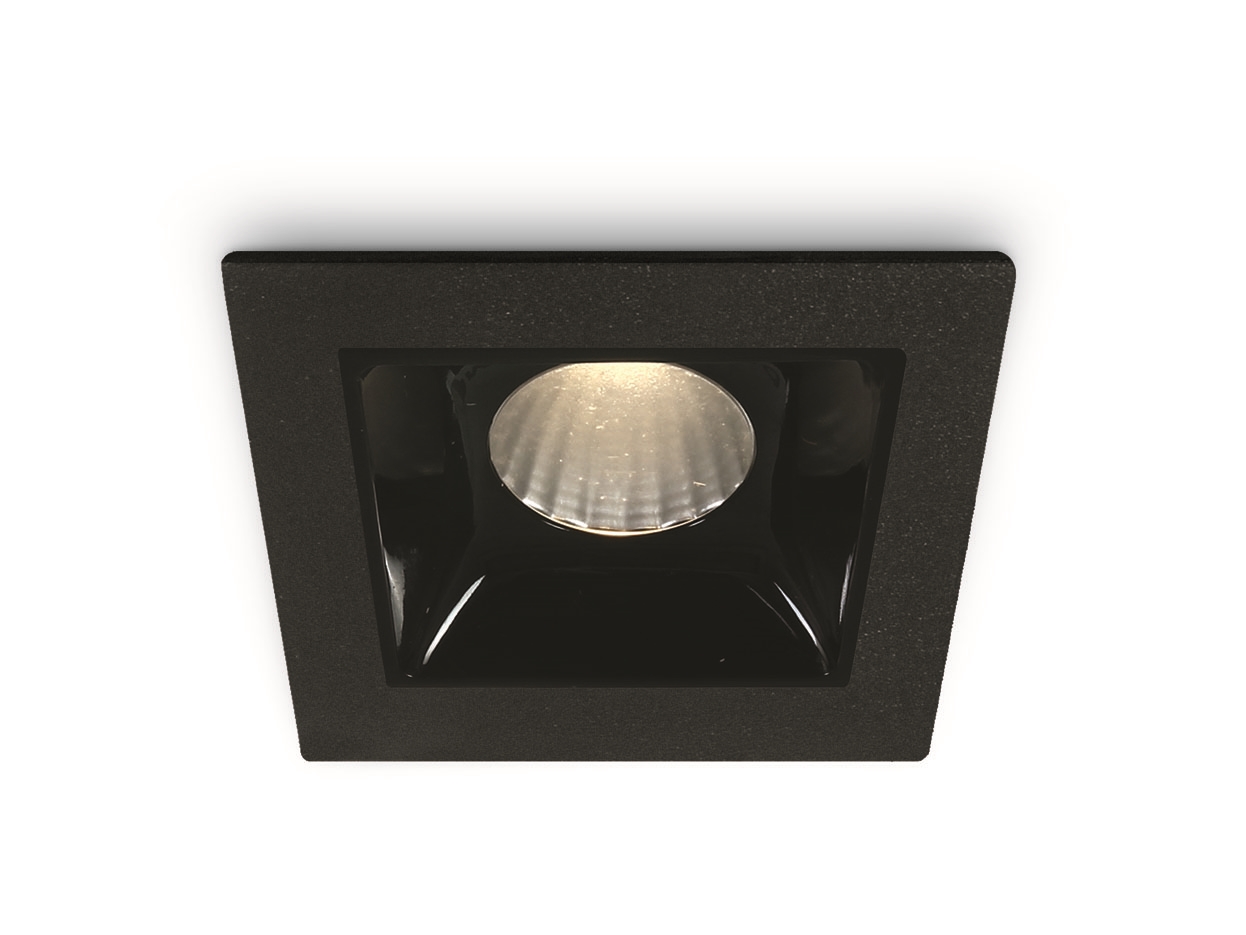

Black 2w Single LED Recessed Downlight
£12.50
£10.42 exc VAT
CY50202BBW

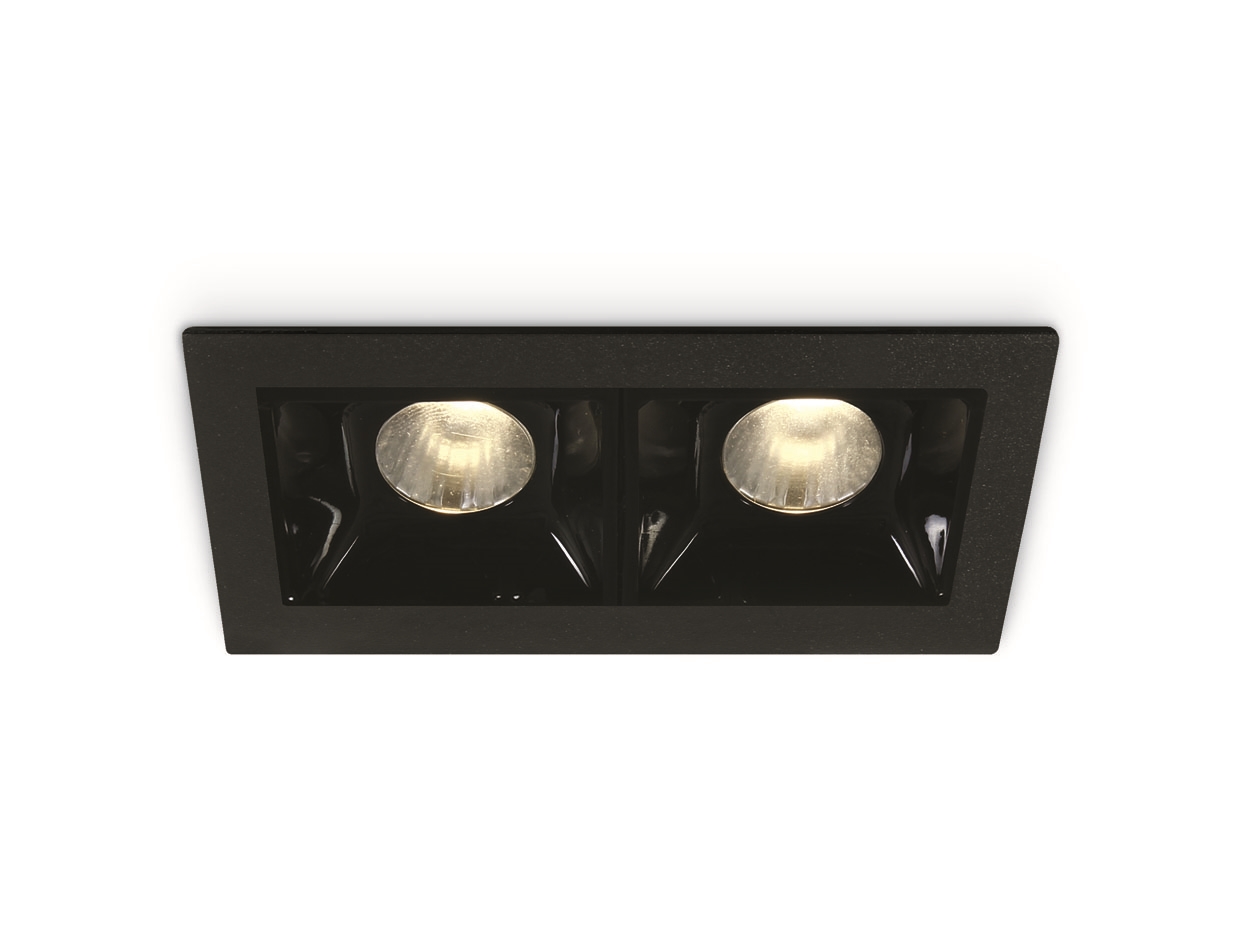

Black 4w Double LED Recessed Downlight
£21.15
£17.63 exc VAT
CY50302BBW

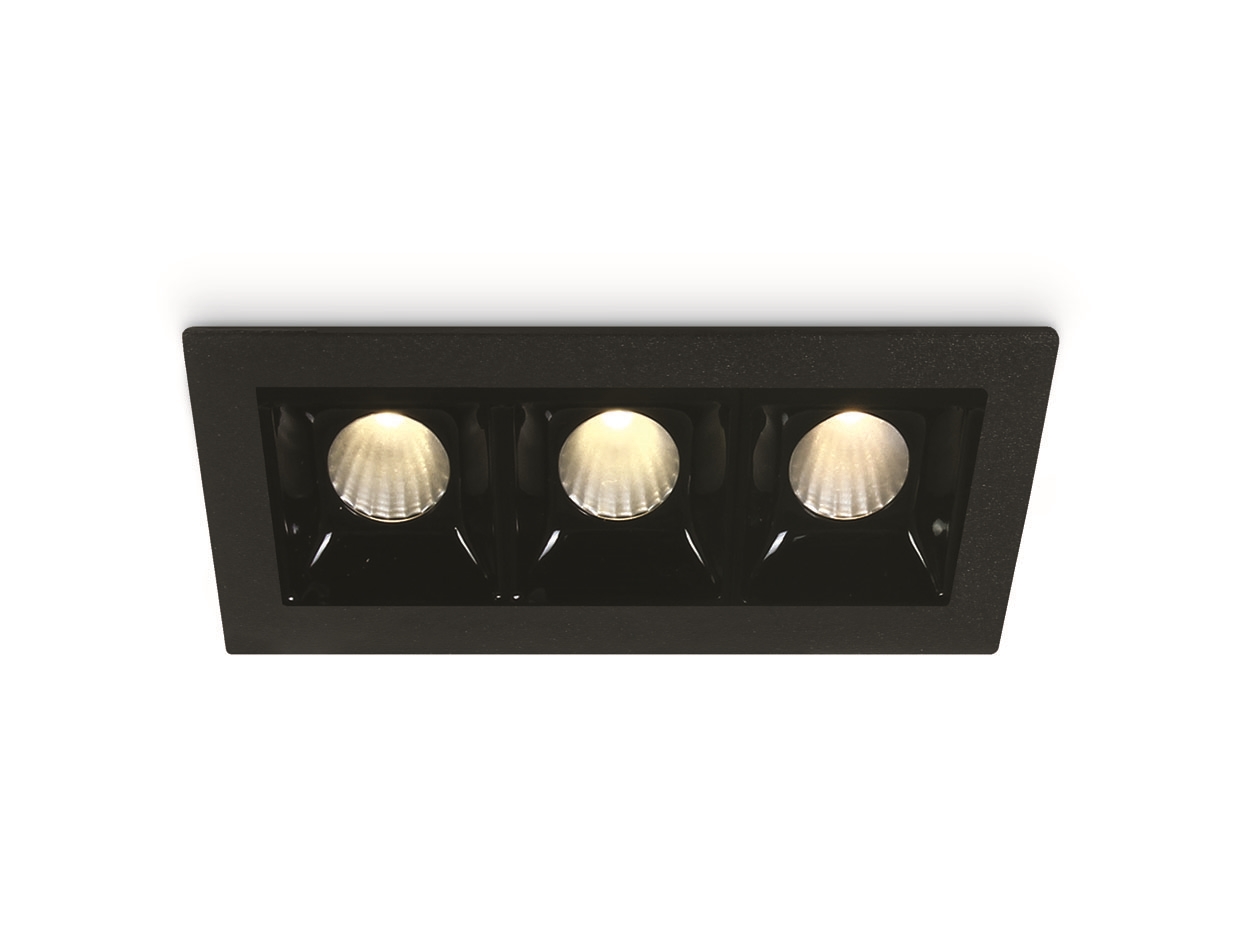

Black 6w Triple LED Recessed Downlight
£25.95
£21.63 exc VAT
CY50502BBW

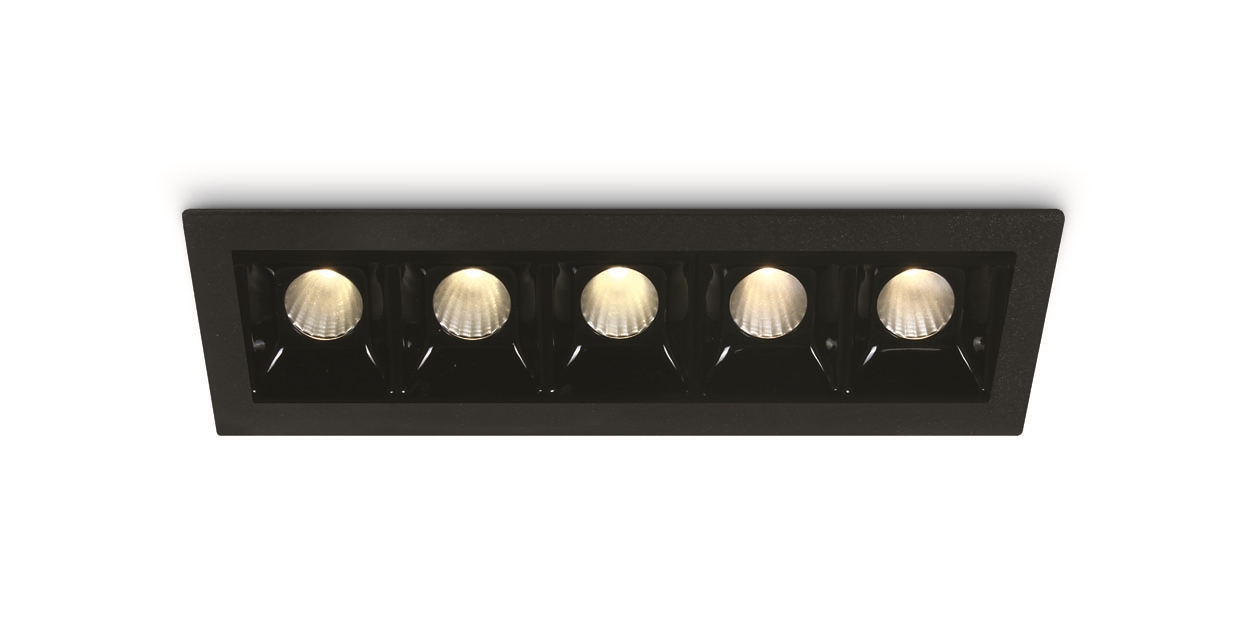

Black 10w 5 Light LED Recessed Downlight
£38.50
£32.08 exc VAT
CY50902BBW

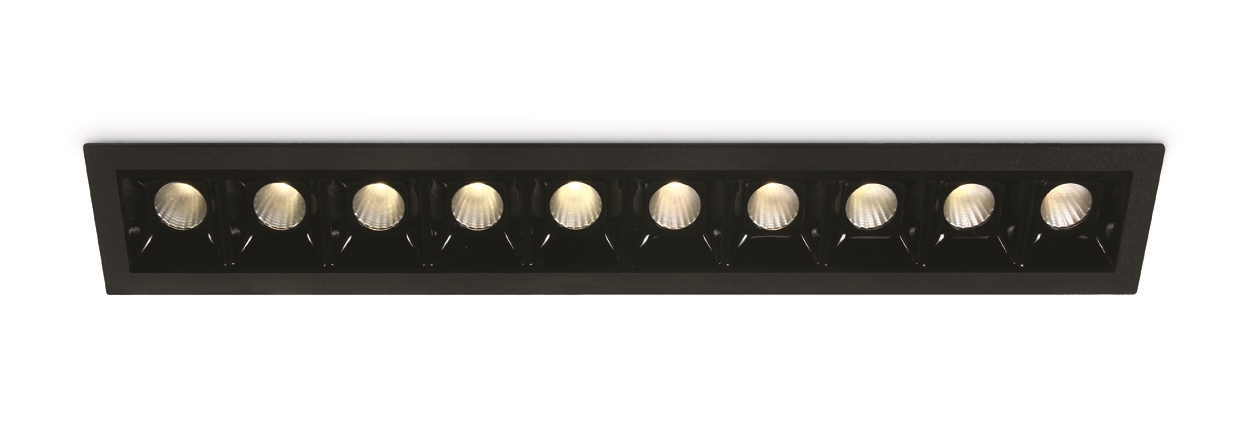

Black 20w 10 Light LED Recessed Downlight
£69.00
£57.50 exc VAT
This product requires a driver or transformer - Suitable items can be found below
CY89004AT
Dimmable 700ma 2 - 4w Constant Current LED Driver
£17.40
£14.50 exc VAT
CY89008AT
Dimmable 700ma 6 - 8w Constant Current LED Driver
£20.00
£16.67 exc VAT
CY89015AT
Dimmable 700ma 7 - 15w Constant Current LED Driver
£23.10
£19.25 exc VAT
CY89040AT
Dimmable 700ma 21 - 40w Constant Current LED Driver
£31.40
£26.17 exc VAT
CY89030UT
Dimmable 700ma 17.5 - 28w Constant Current LED Driver
£28.10
£23.42 exc VAT
