Product Ref: 6271

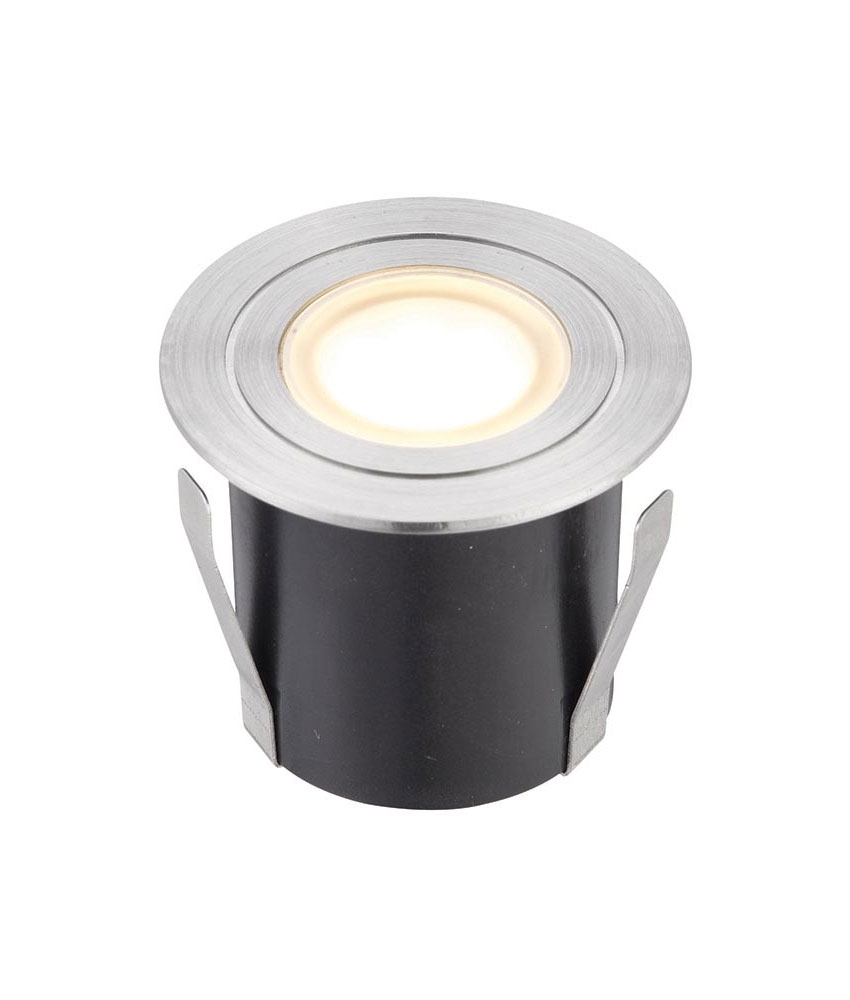

From £32.40 inc VATThis is an LED marker light constructed from marine grade stainless steel (316) and acrylic, making it a must for decking areas, walkways and other outdoor areas within coastal or industrial environments.
Each light comes supplied with 1000mm of rubber cable.
IP68 rated so provides protection against temporary immersion, making it suitable for use indoors and out, and suitable for use in the bathroom zones 2 and 3.
Light output options
3000°K (warm white) lumen output 80
5700°K (warm white) lumen output 80
The cutout size required is 26mm.
Energy saving, comes supplied with a 1 watt hi-powered LED lamp.
The driver can power a minimum of 3 fittings and a maximum of 9.
We have suggested a waterproof driver for use outside. The optional waterproof connectors make it easier to make electrical connections between LED marker lights.
These LED marker lights need to be wired in series, please refer to the image for more information.
| Number Of Lamps | 1 |
| Lamp Type | Long Life LED light source |
| Lumens Per Watt | 80 |
| Lamps Included | Yes |
| Dimmable? | No |
| Max Wattage | 1w |
| Total Wattage | 1w |
| Width | 35mm |
| Height | 40mm |
| Diameter | 31mm |
| Depth/Projection | 2mm |
| Suggested Void Depth | 40mm |
| Cut-Out Diameter | 26mm |
| Construction | Stainless Steel |
| Wiring Details | Class 3 - Requires a low voltage supply |
| IP Rating | IP68 |
| Driver | No driver or transformer is supplied with this fixture (sold separately) |
Be the first to ask a question about this product! |
