Lozenge Marine Bulkhead Light - Caged Glass

Name: Lozenge Marine Bulkhead Light - Caged Glass
Brand: Lighting Styles
SKU: 7206
Price: 88 GBP
Availability: InStock
Rating: 8.2 (12 reviews)

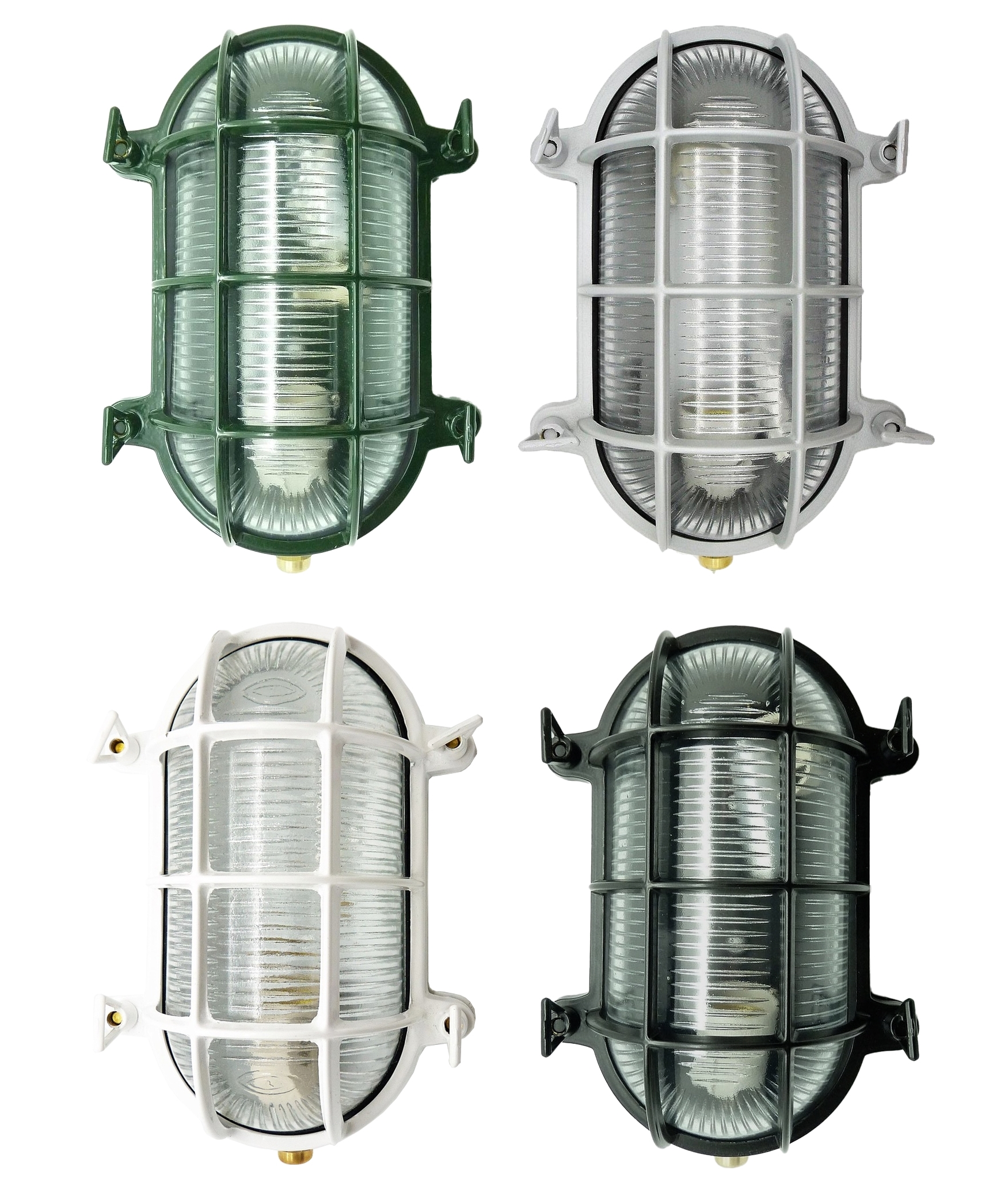

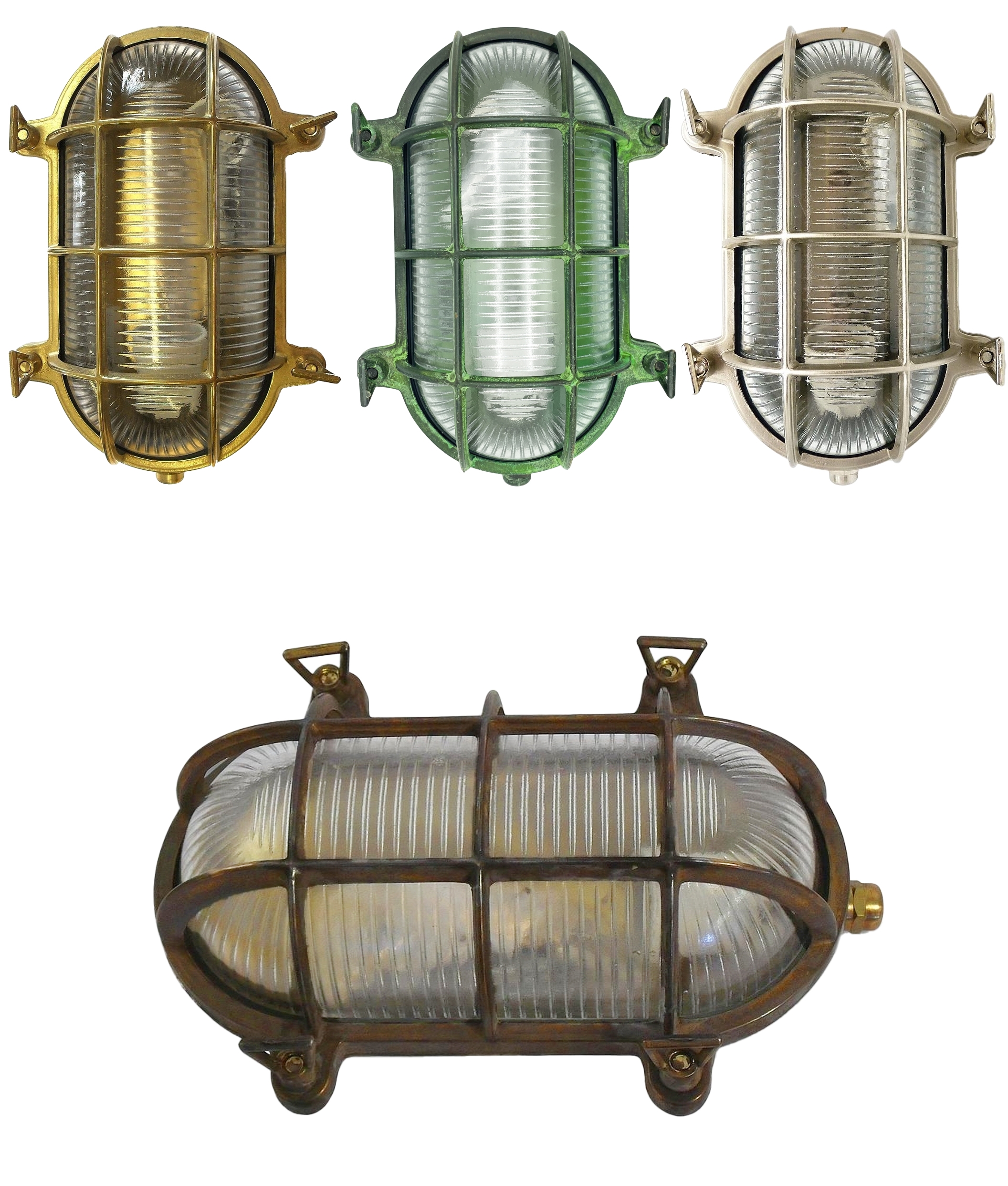

Solid Brass Construction - Offered in 7 Finishes

Protected from water spray from all directions

Class 1 – This fitting will require an earth connection.

Yes, this product is dimmable - See the specifications tab for more details

Product Ref: 7206

From £88.00 inc VAT

Description

A brass nautical themed glass wall light in a pill shape. Diffused with a thick prismatic glass shade, textured inside and smooth outer, this casts a beautiful patterned light for brilliant ambience.

While perfect for outdoor (IP54 rated) these also fit admirably in themed bars and restaurants, the glow of a filament lamp diffused to create warm pockets of light over tables and walkways. Heavyweight solid brass construction ensures these lights last for years and years. Just do not drop it, it will break your foot!

These look great mounted on bare wood and brick or even used on whitewashed walls providing a great contrast.

Four big brass butterfly bolts secure the cover, these can be undone by hand for easy lamp changing.

Designed for use with E27 base mains lamps up to a maximum of 40.

IP54 rated with thick weatherproof gaskets making this perfect for outdoor use.

Specification

Number Of Lamps	1
Lamp Type	E27 (ES) Base Mains Lamps
Lamps Included	No
Dimmable?	Yes - on standard dimmer (TRIAC or leading edge)
Max Wattage	40w
Width	160mm
Height	225mm
Depth/Projection	110mm
Construction	Brass - Satin
Wiring Details	Class 1 - Requires an Earth Connection
IP Rating	IP54

Bulbs

	E27 Standard LED Filament GLS 6w Lamp 620 Lumens - MLGLS6ESC
	E27 Dimmable LED Filament GLS 8w Lamp 1100 Lumens - SAM76799
	E27 20w Radium Compact Fluorescent Lamp RAD31718388
	E27 11w Radium Compact Fluorescent Lamp RADOSDLSTICK11W827E27
Click here to choose your bulbs

Frequently Asked Questions

Thanks for the reply. Does the fix above comply with the light fittings IP54 status as it will be installed in an external coastal location?
IPx4 =- water splashes from any direction. This is easily replicated using a grommet in the rear of the housing. For long trouble-free life ensure the installing electrician uses a good quality silicon or EBT sealant to exclude the possibility of water ingress where the cable/flex comes through the grommet.

Is there a facility for cable entry on the rear of the light (where light meets wall)?
You can block the side cable entry with a bung (supplied at request) and drill through the back, line the hole with a grommet and bring in your wiring.

Do they sit flush to the wall or are they away from the wall and if so by how much?
The backing plate is flush to the wall, but the overall fitting is 110mm in projection when installed.

Can I fit three of these in sequence
Some light fixtures allow for a loop-in, loop-out electrical connection; removing the need for any additional external wiring junctions. This fixture only has a one cable entry, so if you wish to wire them to a single electrical cable you will need to use a couple of junction boxes.

Can a standard E27 bulb be used in this fitting?
Yes, A standard E27 GLS lamp can be used up to 40w.

Can this light be used in a bathroom?
Yes this light can be used in zone 2 or 3 of a bathroom.

Do these brass outdoor wall lights (lozenge Marine for example) come with PIR sensors?
These brass outdoor lights do not come with a PIR as standard. You can use these fittings with a remotely installed PIR if required. When installing have the PIR in the same circuit as the lights. Please see product ref: 6112 or 1252.

Will this withstand coastal corrosion - and does it fix solidly to the wall?
Yes this fitting is suitable to be used in a coastal location. This fitting does fit flush to the wall.

Can this light be fitted vertical as well as horizontally?
Yes, This can be installed both ways.

Do these lights come with a trailing lead and plug? Or hard-wire only?
This is to be hard wired into your mains and controlled by you mains switch.
