Side Lighting LED Tape Light, 4.8W or 14.4W per Metre, 60 or 120 LEDs per Metre, 8mm Wide, 5m Reel

Side-emitting LED strip with SMD 3014 chips and 90 CRI, ideal for edge lighting and slim profiles. Available in 3000K and 4000K.

Product Ref: 56660

From £33.10 inc VAT

Overview

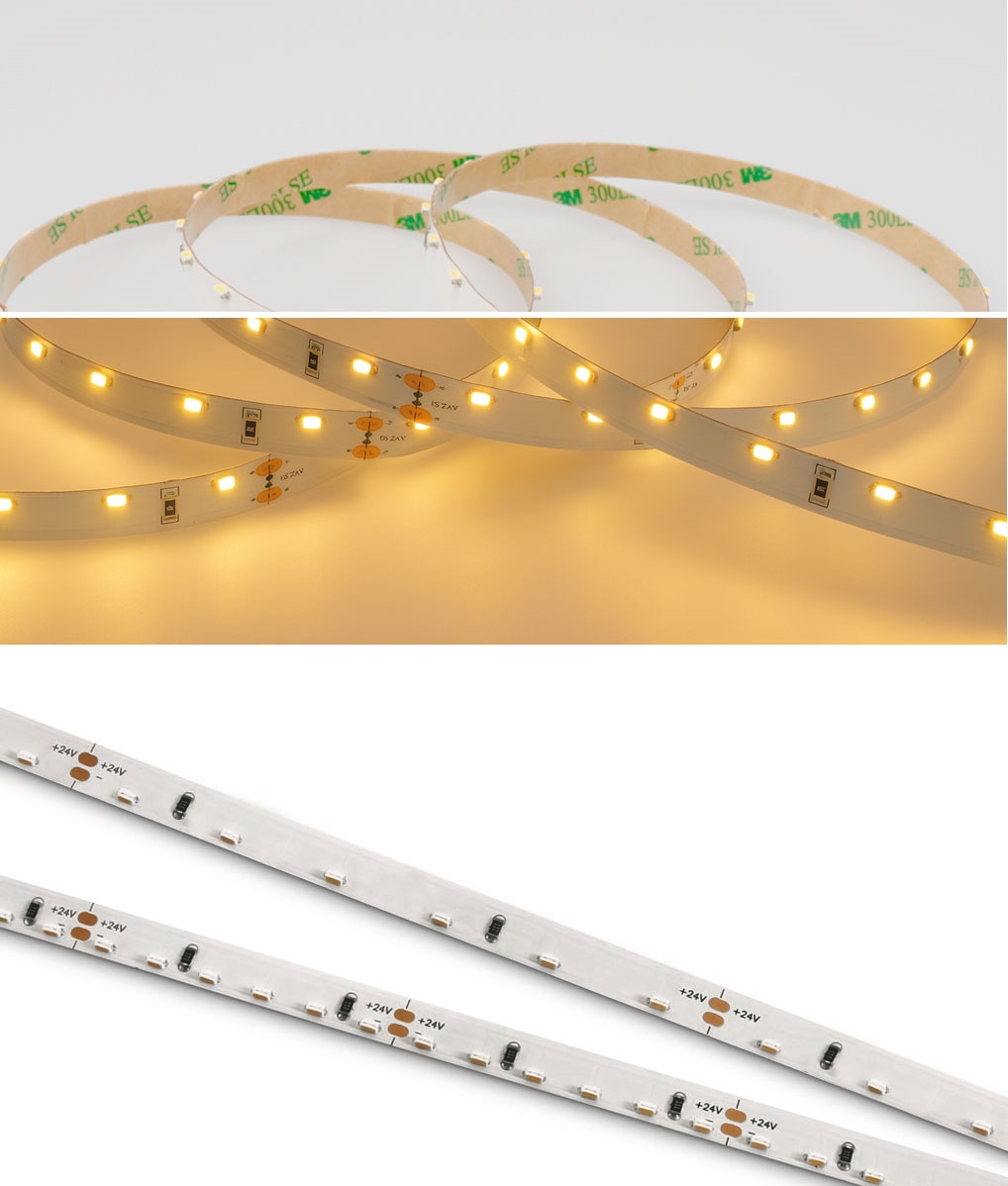

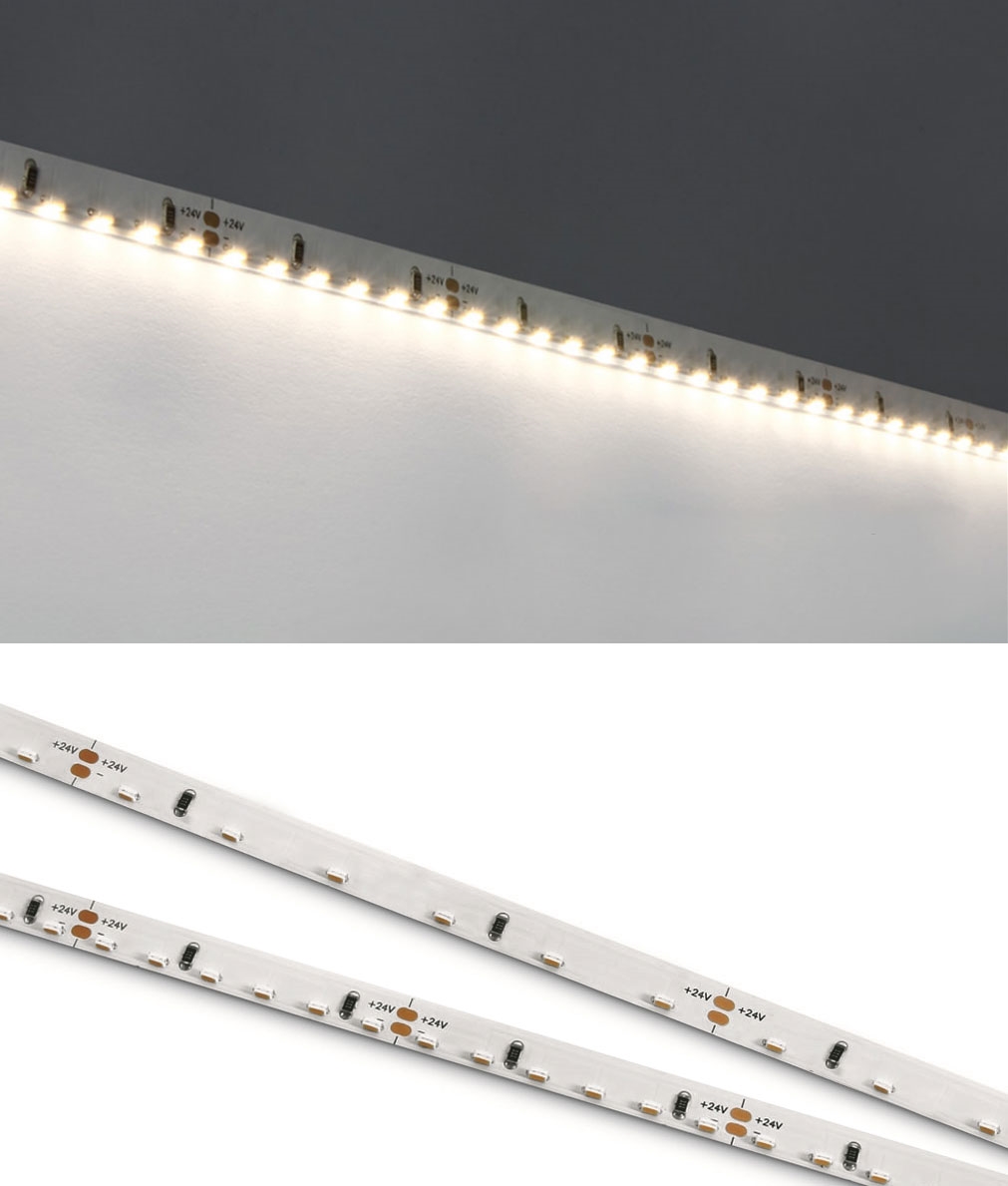

This specialist LED tape is designed with SMD3014 chips mounted vertically, directing the light to the side rather than forward. Supplied on 5m reels with tails at both ends, it is ideal for edge lighting acrylic panels, signage, or slim profiles where a side-throw of light is required.

Design and Features
Available in two densities, both built on an 8mm wide flexible PCB with adhesive backing for easy installation. The unique side-emitting construction enables uniform lighting along edges, making it ideal for creative architectural and joinery details.

  • Low density: 60 LEDs per metre, 4.8W per metre, 450 lumens per metre, efficiency 93 lm/W, cut every 100mm (6 LEDs).

  • High density: 120 LEDs per metre, 14.4W per metre, 1152 lumens per metre, cut every 50mm (6 LEDs).

Both versions achieve 90 CRI for accurate colour rendering.

Colour Temperatures

  • Low density: 3000K Warm White or 4000K Cool White

  • High density: 3000K Warm White

Usage
Designed for specialist edge-lighting applications such as illuminating acrylic panels, signage, diffused plastics, and slim aluminium profiles. The side-facing LEDs make this tape particularly effective in creating uniform edge glow effects rather than direct illumination.

Key Features

  • Vertical edge-lighting design with side-emitting SMD3014 chips

  • 24V DC operation

  • 8mm wide flexible PCB with adhesive backing

  • High 90 CRI for accurate colour rendering

  • Cut every 100mm (low density) or 50mm (high density)

  • Supplied on 5m reels with tails at both ends - making it easy to cut and reuse the other end

  • Supplied without driver, requires 24V DC power supply

  • 5-year warranty

Performance

  • Low density: 4.8W per metre, 450 lumens per metre (93 lm/W)

  • High density: 14.4W per metre, 1152 lumens per metre

Dimming?
We have paired these LED lights with switched LED drivers and with a remote control and receiver for dimming. If you prefer to operate the lights using a standard wall dimmer, you can find a suitable driver here.

View more items from this supplier

Availability: Typically dispatched in 4-7 days
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
CY7820VW
3000K Warm White 4.8W Vertical Side-Emitting LED Tape Light
£33.10
£27.58 exc VAT
CY7820VC
4000k Neutral White 4.8W Vertical Side-Emitting LED Tape Light
£33.10
£27.58 exc VAT
CY7835VW
3000K Warm White 14.4W Vertical Side-Emitting LED Tape Light
£52.90
£44.08 exc VAT
Remote Control & Dimming Module - 50 meters range. 2 memory settings, dimming by touch
CY20030
72w Remote Control & Dimming Module
£54.00
£45.00 exc VAT
This product requires a driver or transformer - Suitable items can be found below
CY89015V
24v 15w Constant Voltage LED Driver
£14.40
£12.00 exc VAT
CY89030V
24v 30w Constant Voltage LED Driver
£19.20
£16.00 exc VAT
CY89075V
24v 75w Constant Voltage LED Driver
£31.60
£26.33 exc VAT
