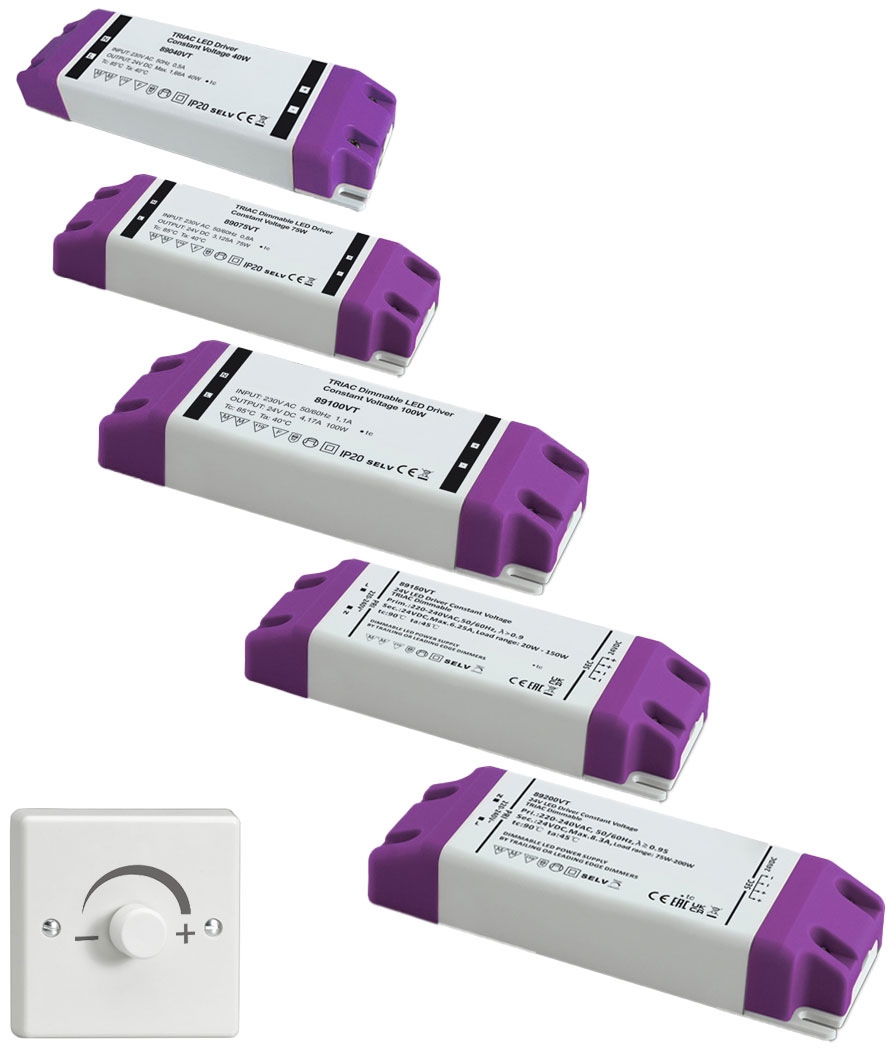

24V LED Drivers - Dimmable with Standard Wall Dimmers

6 options: 40w 50w 75w 100w 150w 200w

Offers no protection from splashed or sprayed waterClass 2 – This fitting is double insulated and does not require an earth.Yes, this product is dimmable - See the specifications tab for more details

Product Ref: 57688

From £43.00 inc VAT

These 24 volt LED drivers are designed to be dimmed with standard rotary wall dimmers on the mains side. Because dimming occurs before the 24-volt DC output, they are not compatible with secondary DC controllers used for colour-changing or CCT functions. If your requirement is simply to dim single-colour LED tape with a familiar rotary knob, these drivers are the right choice.

With power ratings from 40W to 200W, the range is suited to everything from small accent runs to larger LED tape installations. Compact housings (170–215mm long) with IP20 rating make them easy to fit into cabinets, ceiling voids, or recessed areas for indoor use.

Safety is built in with overload, short circuit, and overheat protection. Each unit comes with a 5-year warranty, giving you long-term peace of mind.

Available Models

  • CY89040VT – 40w (170 × 57 × 42mm)

  • CY89075VT – 75w (205 × 71 × 35mm

  • CY89050VT - 50w (177 x 58 x 22mm)

  • CY89100VT – 100w (205 × 71 × 35mm)

  • CY89150VT – 150w (195 × 67 × 31mm)

  • CY89200VT – 200w (215 × 78 × 35mm)

Key Features

  • Constant 24V DC output, 40W–200W range

  • Compact housings for easy indoor installation

  • Protection against short circuit, overload, and overheating

  • IP20 rated with 5-year warranty

Works with standard TRIAC rotary wall dimmers
In the trade, these are called TRIAC (or phase dimming) drivers because they work with the most common type of household dimmer. If you buy a standard rotary dimmer switch and it doesn’t specifically say “trailing edge” or “leading edge,” you can assume it uses TRIAC technology.

View more items from this supplier

Availability: Typically dispatched in 4-7 days
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
CY89040VT
Dimmable 24v 40w Constant Voltage LED Driver
£43.00
£35.83 exc VAT
CY89050VT
Dimmable 24v 50w Constant Voltage LED Driver
£48.00
£40.00 exc VAT
CY89075VT
Dimmable 24v 75w Constant Voltage LED Driver
£60.40
£50.33 exc VAT
CY89100VT
Dimmable 24v 100w Constant Voltage LED Driver
£72.70
£60.58 exc VAT
CY89150VT
Dimmable 24v 150w Constant Voltage LED Driver
£95.00
£79.17 exc VAT
CY89200VT
Dimmable 24v 200w Constant Voltage LED Driver
£120.00
£100.00 exc VAT
