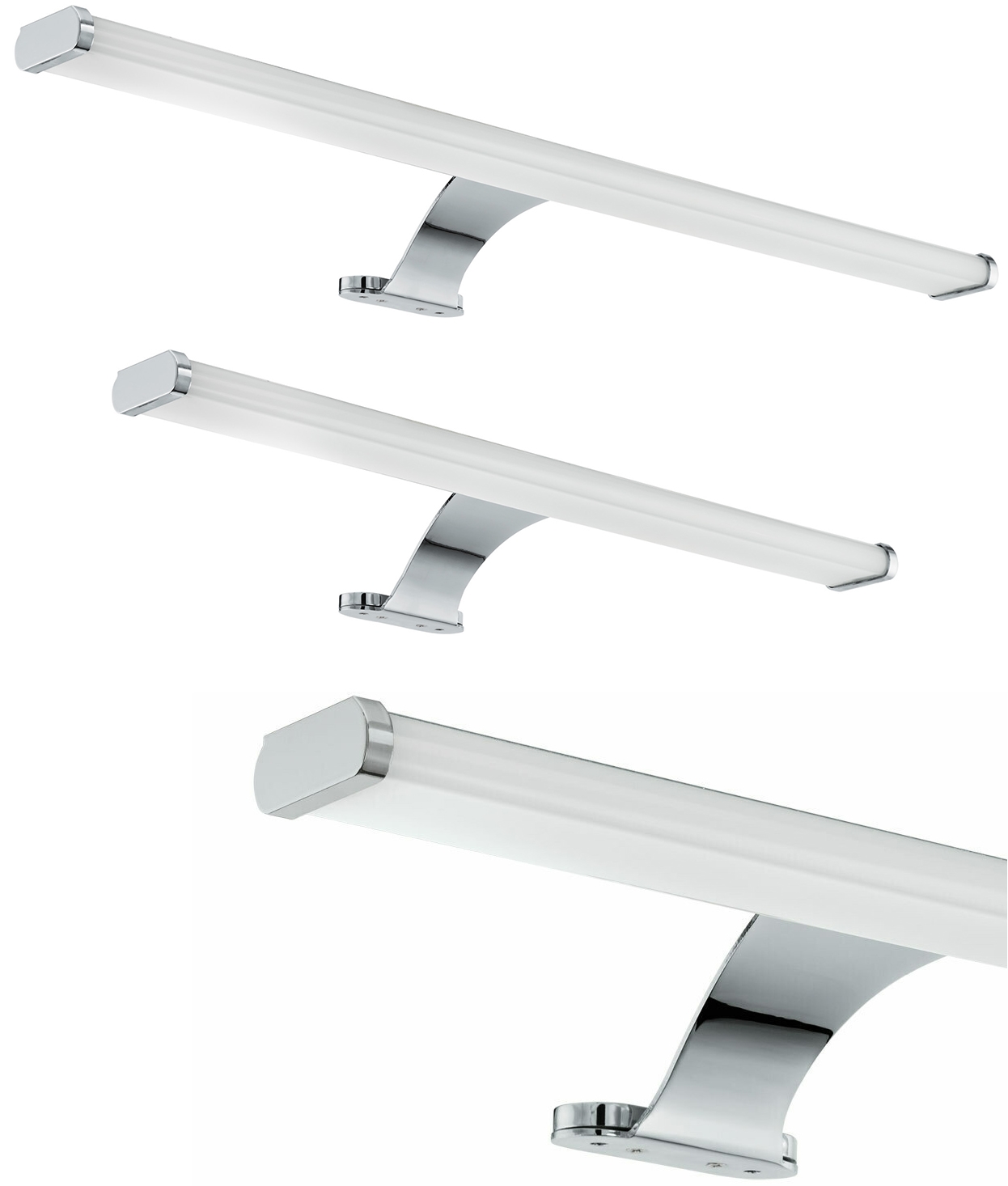

This new COB LED over cabinet light features an efficient and condensed lighting module. Running at only 5W, this fitting offers an economical and practical lighting solution. The fitting emits the equivalent light output to that of a 50W halogen.

Suitable for illuminating cabinets, display units and above wardrobes.

Integrated COB LED
Fitting runs at 5 watts.
1m cable attached

Dimensions:

Length 300mm x depth 113mm x height 53mm

Lumen Per Watt Output: 90Lm

Requires 350ma Constant current power supply.

LED light source, no UV rays, no flicker and no noise
Low power consumption
Available in 6000°K (daylight white) with approx lifespan 60,000hrs
120 degree beam angle
1000mm of attached cable

Please ensure that the driver you choose can power the number of fittings you plan to have connected to that driver. Wired in series.

Number Of Lamps	1
Lamp Type	Long Life LED light source
Lamp Lumens	450
Lumens Per Watt	90
Lamps Included	Yes
Dimmable?	No
Total Wattage	5w
Width	30mm
Length	300mm
Height	53mm
Depth/Projection	113mm
Construction	Acrylic
Wiring Details	Class 3 - Requires a low voltage supply
IP Rating	IP44
Kelvin	6000°K - Very Cool White
Driver	No driver or transformer is supplied with this fixture (sold separately)
PDF Document(s)	Measurement Diagram

Can you give me the total rise (height) of the unit when viewed in section as per fourth picture on details.
It goes upwards approximately 48mm.

I need to remove a wall light to fit a wardrobe. Can I use that spare supply to connect these lights
Yes but you will need to install a fused spur with a 3 or 5 Amp fuse to protect the installation.

I want 4 of these lights. How many drivers do I need, and if I want dimmers, do I need 4 of them?
The 15w driver can power 6 fittings, if they are all on the same circuit one dimmer would work.

Why do I need a driver for this light?
To power the LEDs, Wiring these direct to the mains will blow the LED chips.

The photograph shows the bracket in white , is this correct?
The bracket is silver and looks different because of the flash on the camera. Sorry for any confusion.

How does the fitting attach to the wardrobe
There is 2 screws at the end of the fitting. This is flat that allows for a sturdy fix.

Does this light run from mains or transformer ?
These require a LED convertor, if you go to the bottom of this listing you will see them listed below.

What is the price of a replacement lamp? Do you stock them as well?
No need, the LED chips will last for 30,000 hours - that`s around 25 years at 3 hours per day.

Does this unit come with a switch?
These are wired into your mains and have no independent switch.
